| Motherboard
|
- Mini-ITX (L x W: 170 x 170mm)
- Mini-DTX (L x W: 170 x 203mm)
|
| CPU Air Coolers
|
|
| AIO Liquid Cooler Support
|
- Radiator Mounting
- 2x 120mm radiator on side

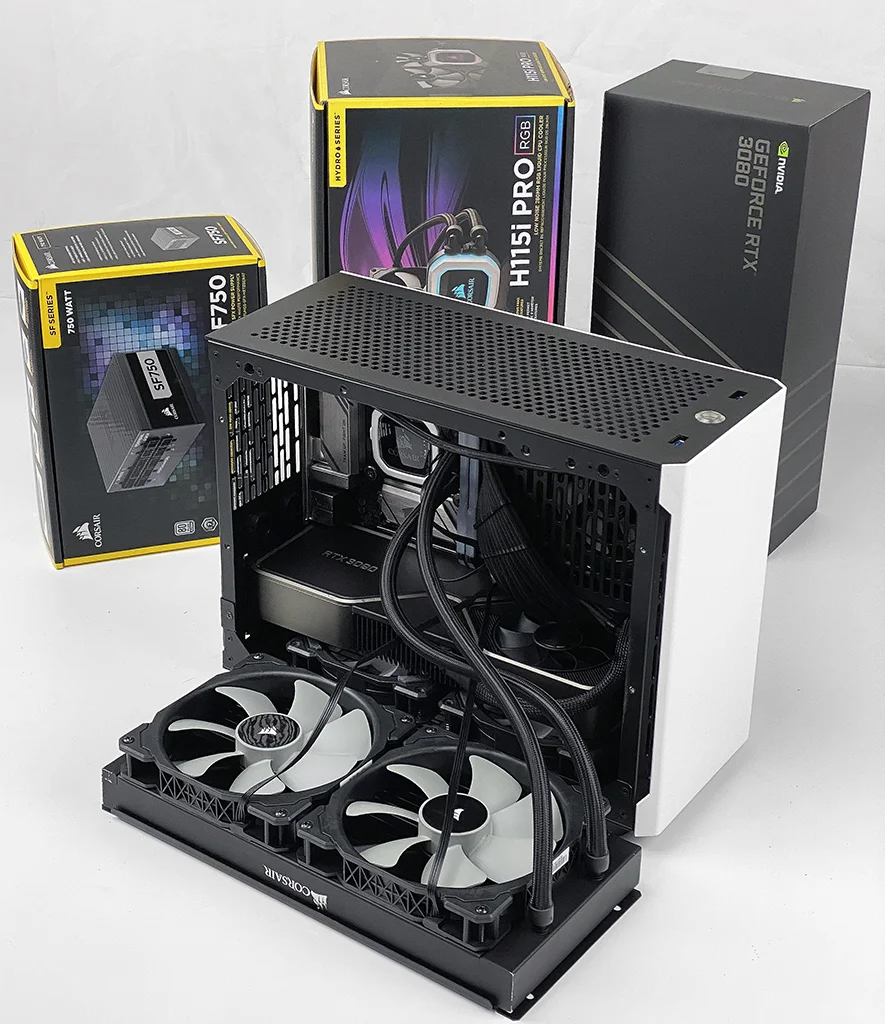

- 1x 240mm radiator on side
- 1x 280mm radiator on side
- Dual Radiator Options (custom loop only)
- 1x 240mm radiator on bottom, with slim fans + choice of side radiator from above
- Side Bracket Radiator + Fans must be less than 70mm thick
- AIO Liquid Cooler Compatibility List
- Click here for full AIO Compatibility Spreadsheet [Google Docs]

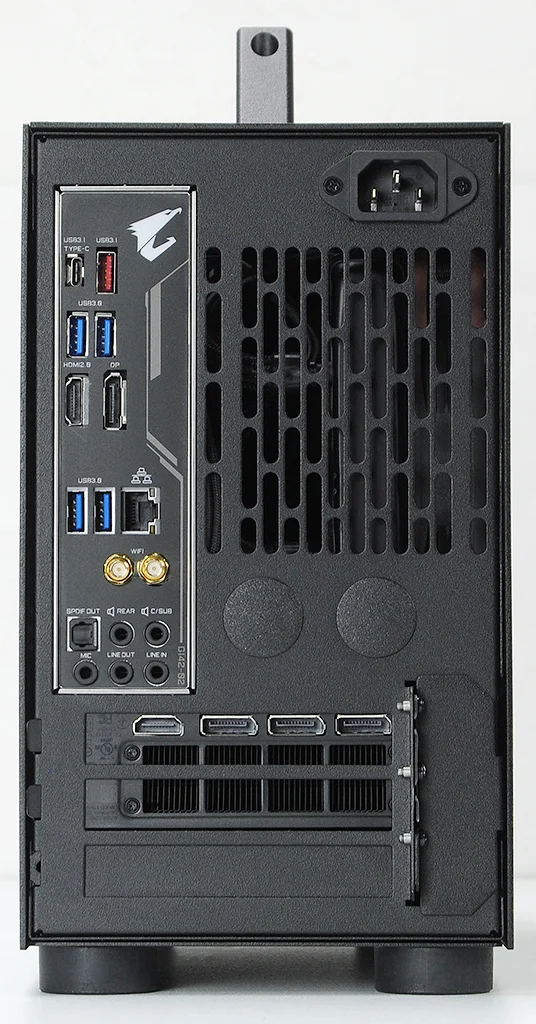

- Rear Passthrough Holes
- 20.5mm diameter (0.825")
- 35mm apart on center (1.39")
|
| Fan Mounting
|
- Top
- No Handle: 1x or 2x 120mm slim fans
- with Handle: 1x 120mm slim fan when handle is installed
- Bottom
- 2-Slot GPU: 2x 120mm standard fans (thickness of fans + thickness of card be <70mm)
- 3-Slot GPU: 2x 120mm slim fans (thickness of fans + thickness of card be <70mm)
- NOTE: width of GPU + fans must be equal to or under 70mm total when combined (ex: 55mm thick GPU + 15mm thin fans = 70mm)
- SFX PSU in standard length-wise position
- 1x 120mm fan on PSU cover shroud

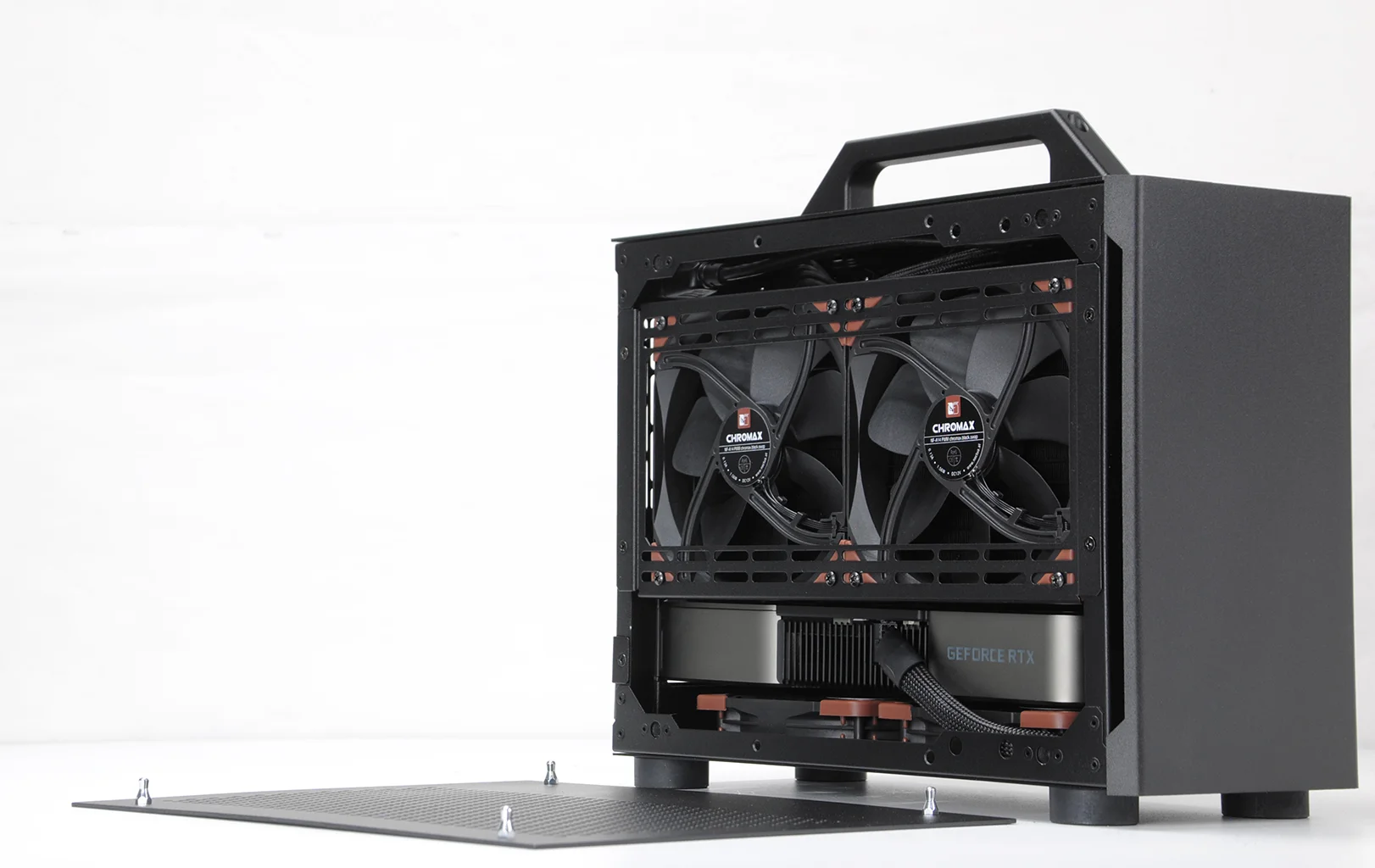

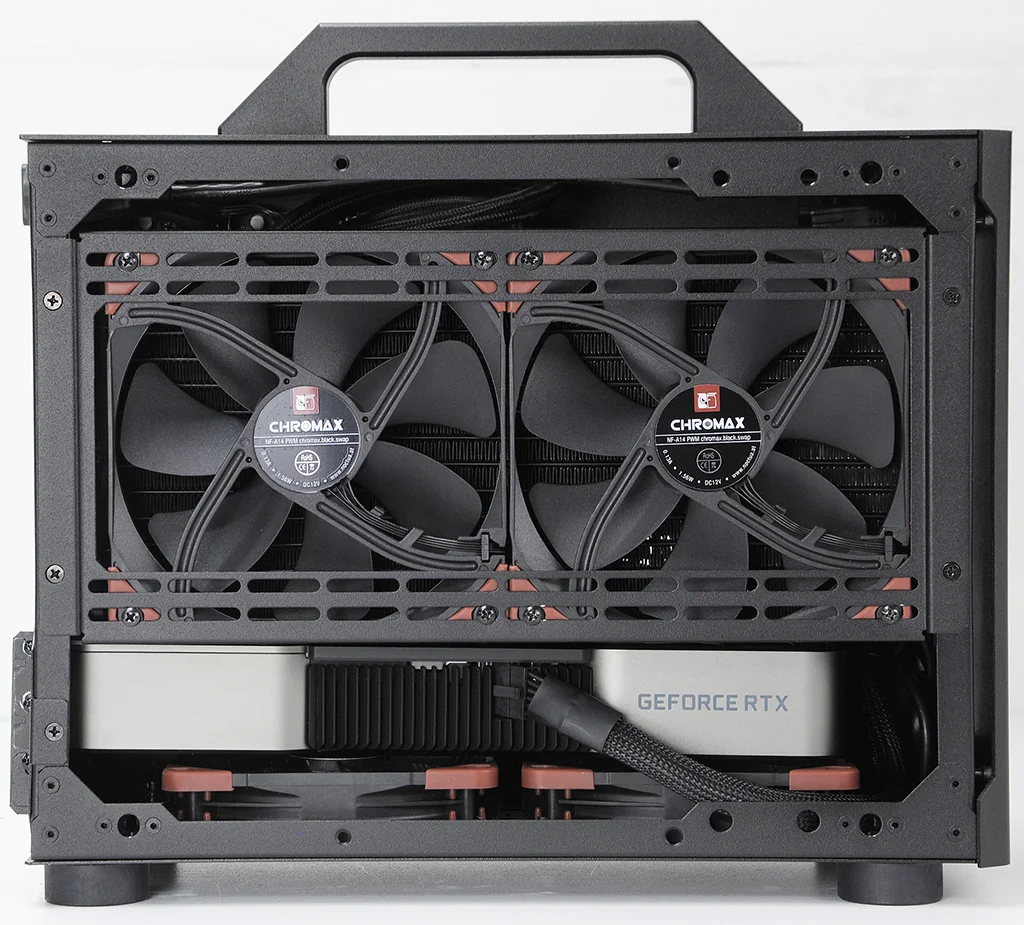

- 2x 120mm or 140mm on side mount bracket
- SFX PSU in width wise position
- 1x 120mm fan on front of chassis frame
- 1x 120mm or 140mm on side mount bracket
|
| GPU / PCIe Cards
|
|
| Storage
|

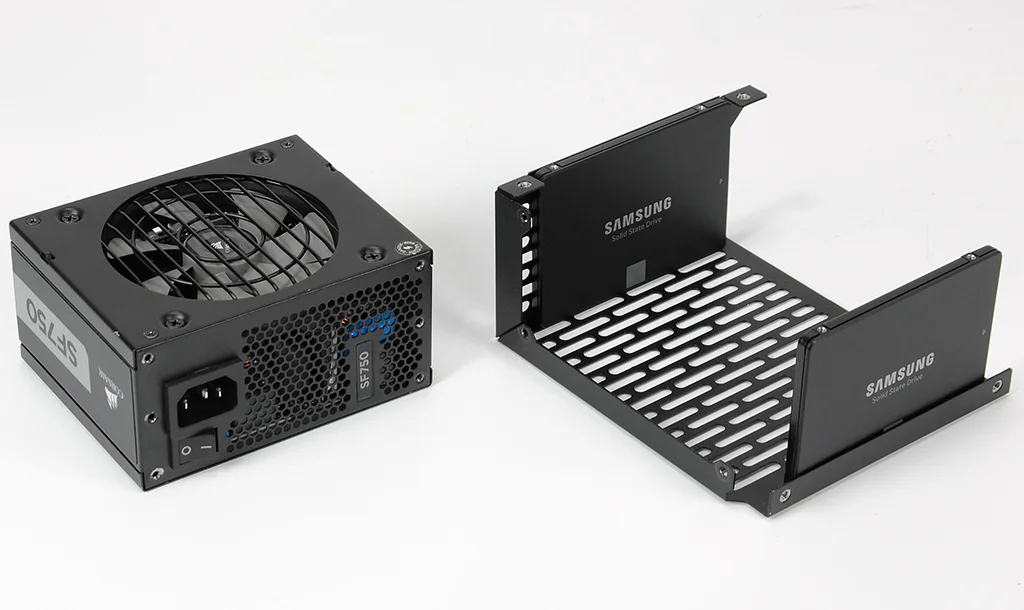

- (2x) 2.5" SSD/HDD mounting points on base chassis SFX PSU bracket

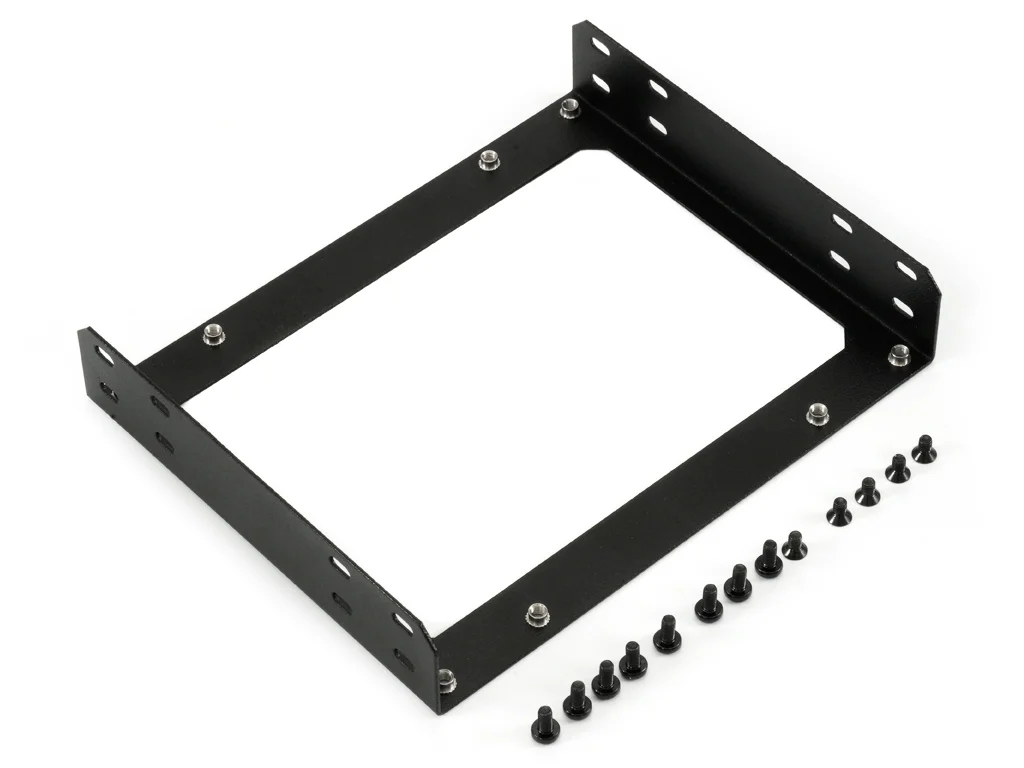

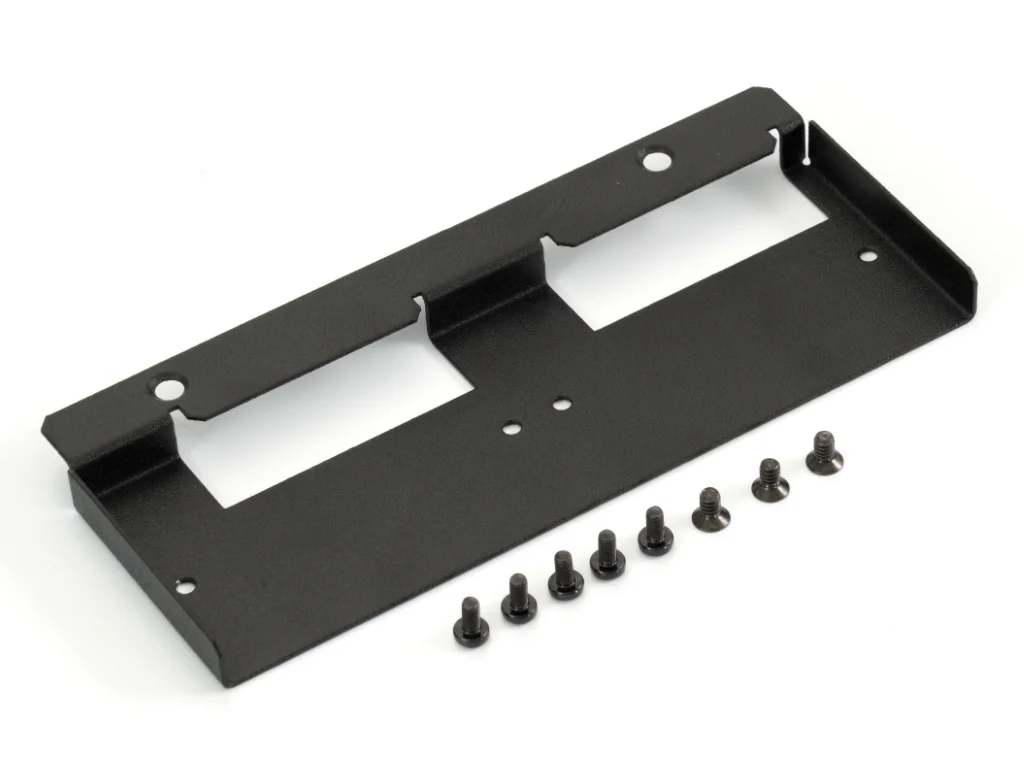

- Optional brackets for (2x) 2.5" SSD/HDDs

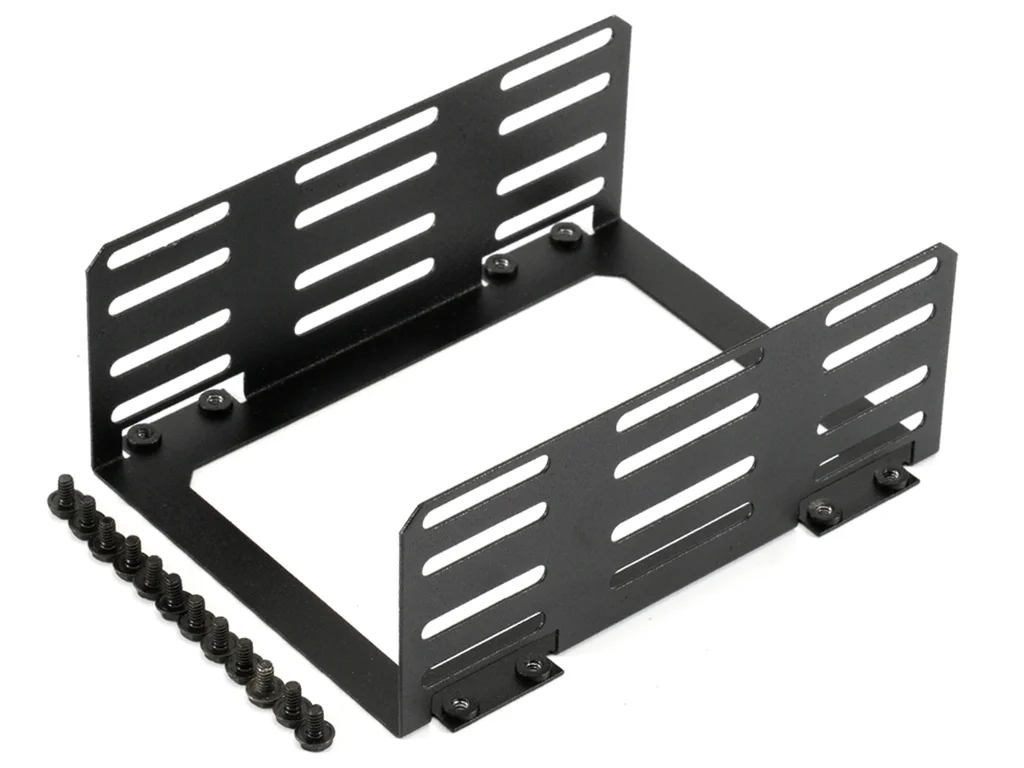

- Optional brackets for (3x) 3.5" HDDs
- Brackets can be configured for a combination of 3.5" and 2.5" drives
|
| Front Panel I/O
|
- (2x) USB 3.0 Ports
- (1x) Momentary Switch / Power Status LED (Ring Shape, White)
|
| Power Supply
|
- SFX
- SFX-L power supplies are not recommended, but are possible to use. Cable management will be difficult.
|
| Material
|

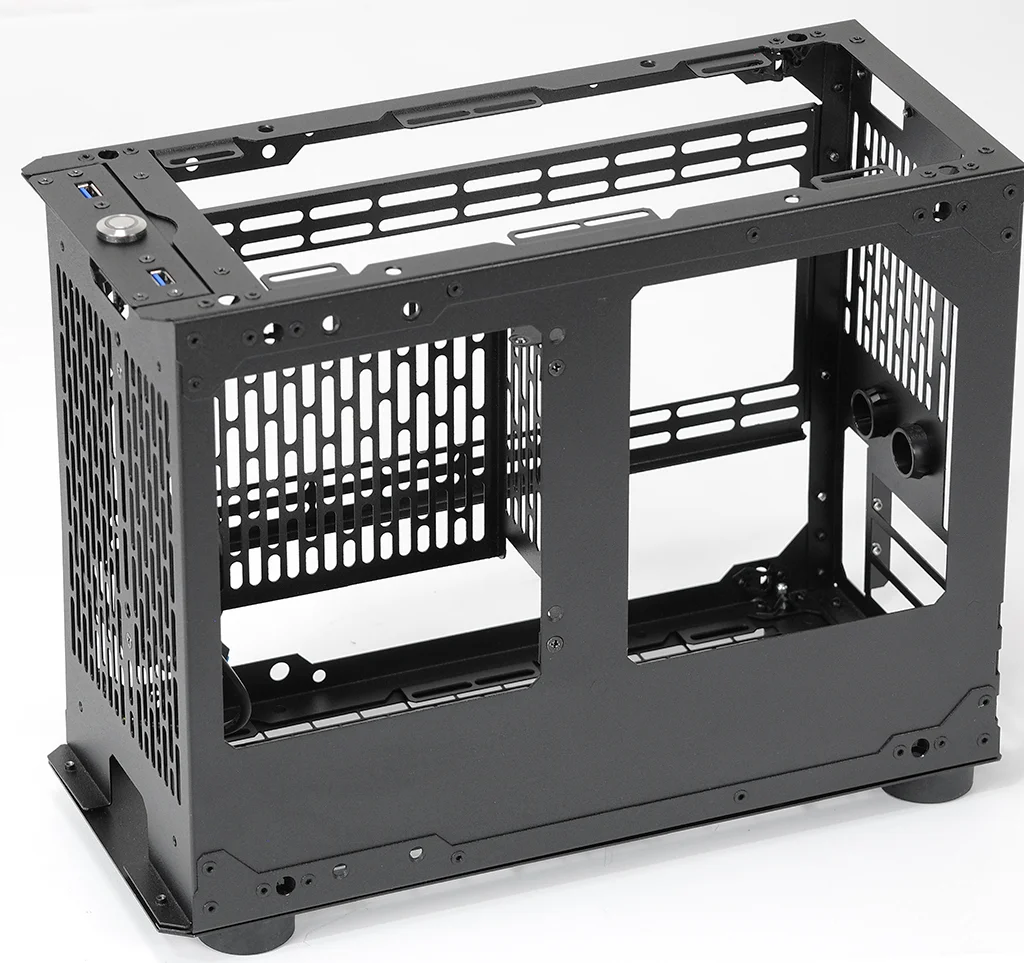

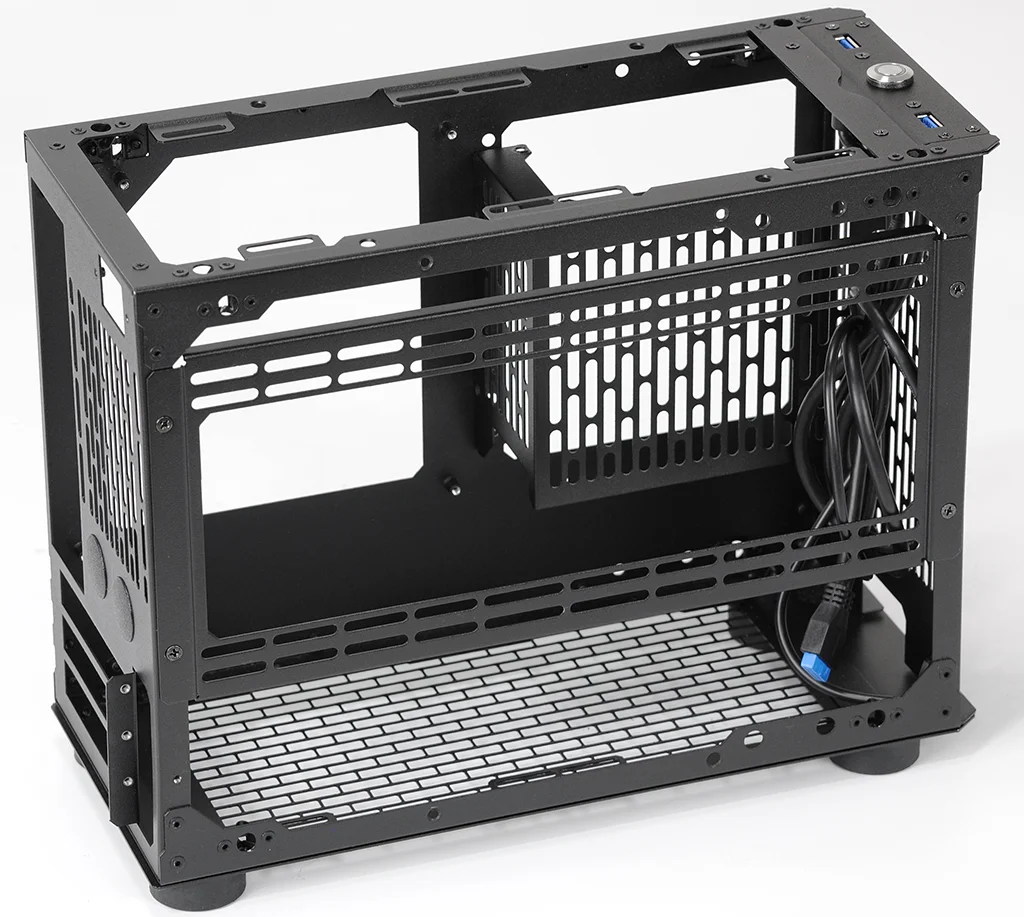

- Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Side Panels
- ASTM B209-10 5052-H32 0.080" Aluminum Sheet

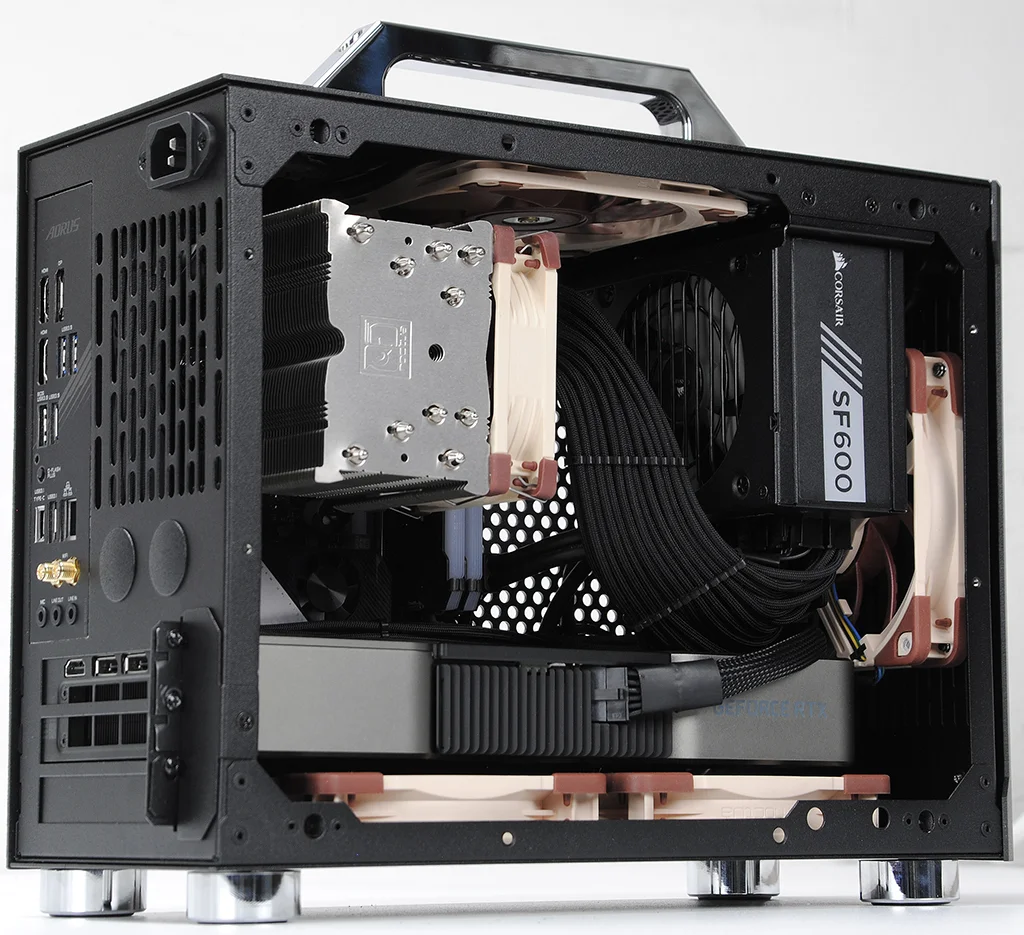

- Handle
- Machined B308M-10 Aluminum-Alloy 6061-T6

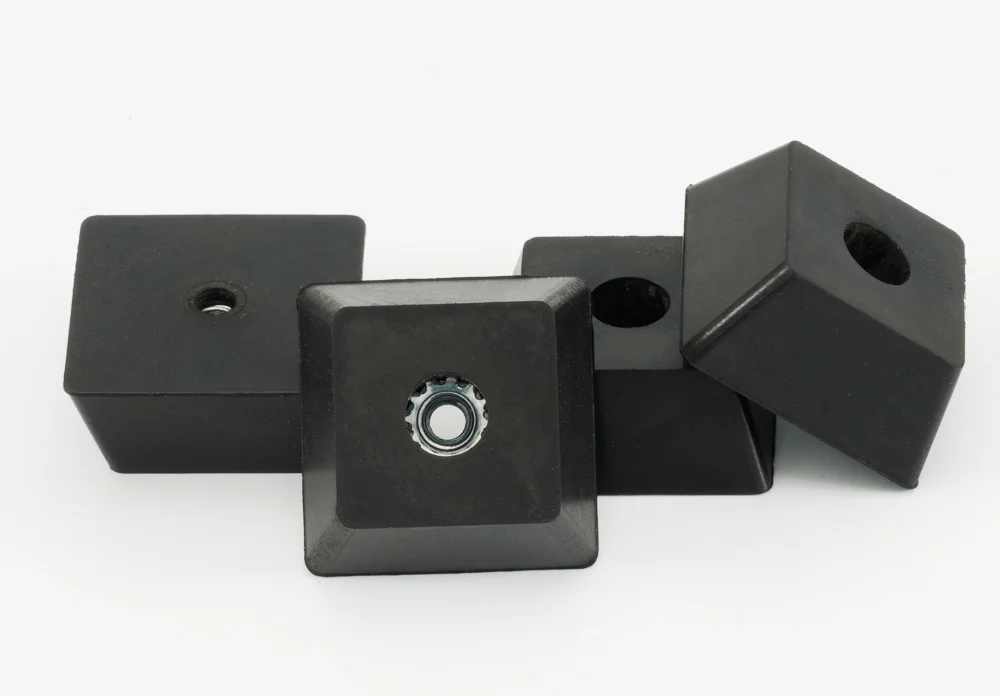

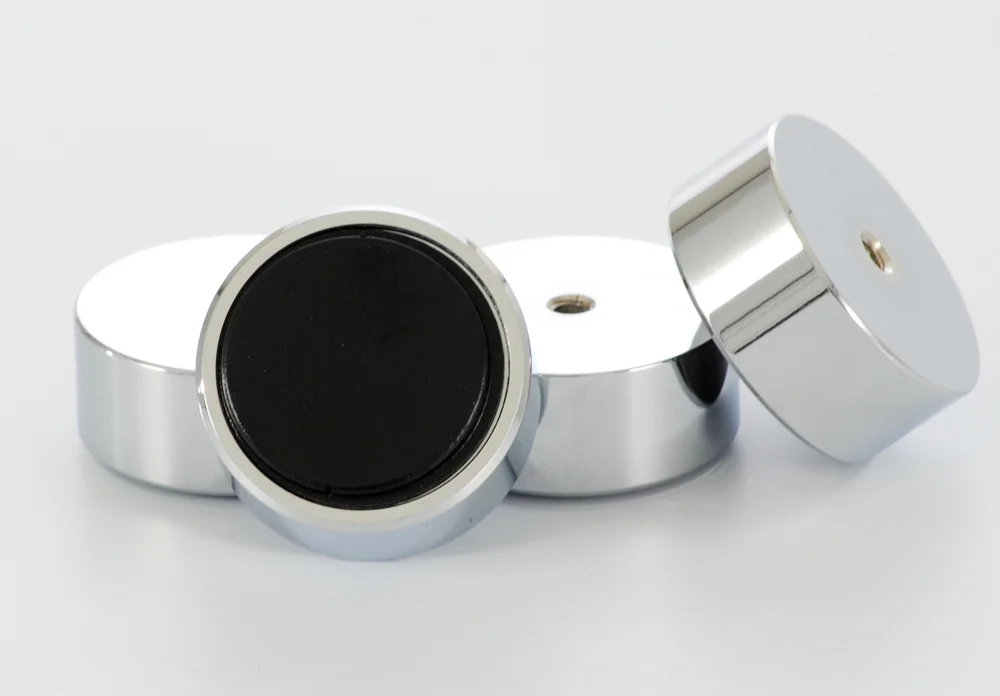

- Feet
- Cavity Molded 75 Durometer Nonmarking Black SBR
- or
- Machined B308M-10 Aluminum-Alloy 6061-T6, Chrome Plated
|

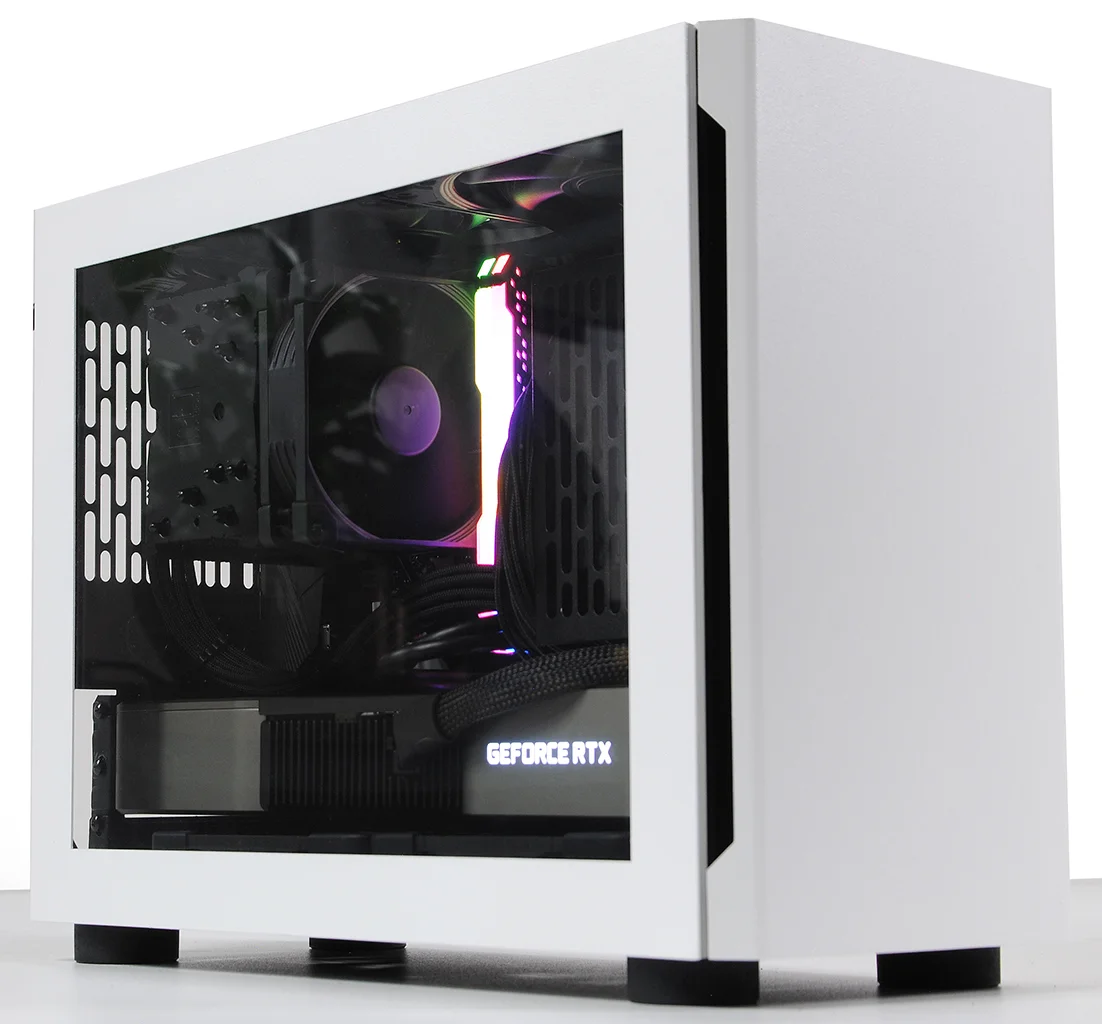

| Finish
|
- Fine texture powder coated chassis and panels
- Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
- Optional custom powder coat finishes, MOQ 25 units
|
| Branding
|
- Case is unbranded on interior and exterior of chassis.
- Optional logo screen printing (full color) on front panel for business customers, MOQ 5 units
|
| Outside Dimensions
|
- 13.57" x 5.96" x 10.08" [LxWxH]
- 344mm x 151mm x 256mm [LxWxH]
|
| Case Volume
|
|
| Weights
|

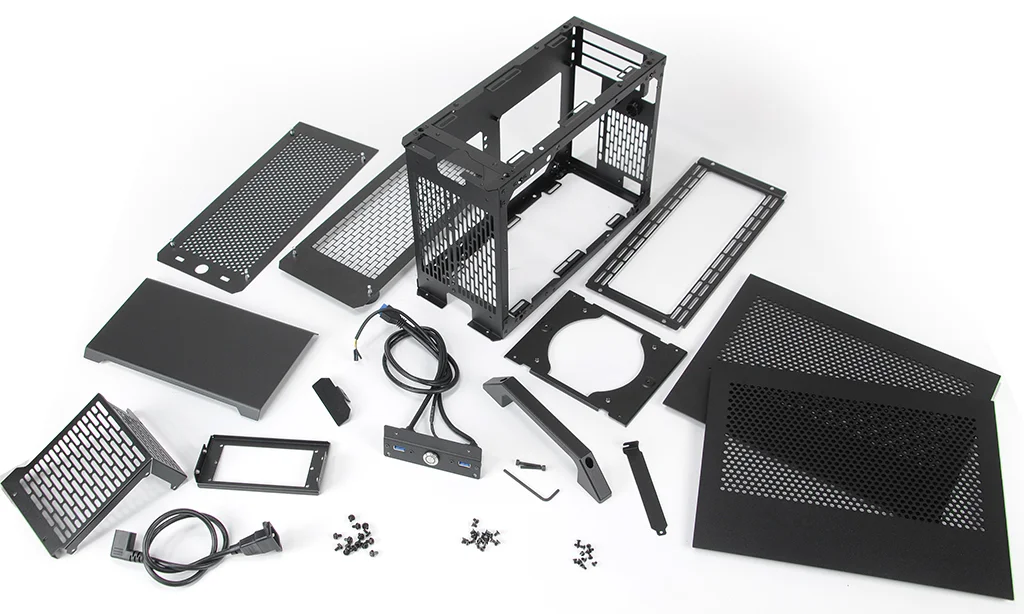

- Base Chassis (Chassis Frame, Side Panels, Front Panel, Top Panel, Power Cord, and both PSU brackets)
- 6.90 lbs
- Handle Bracket (mounting bracket, no handle)
- 0.30 lbs
- Handle w/ screws
- 0.50 lbs
- Handle Bracket with Handle and screws
- 0.80 lbs
- Packaging Materials (Box, Tape, Foam Corners)
- 1.60 lbs
|
| Warranty
|
- Case
- 5 Year Warranty [Chassis, USB cables, Power Button, Power Cable]
- Liquid Coolers & Fans
- 3 Year Warranty
- Please see our warranty policy for additional conditions, exclusions, and limitations.
|
| Homologation
|
- HTS Tariff Code
- 8473.30.00.02
- Country of Origin
- United States of America
| Rev Control
|
- 1.0 (11/22/20 - **/**/**)
- Initial Release
|
| |
