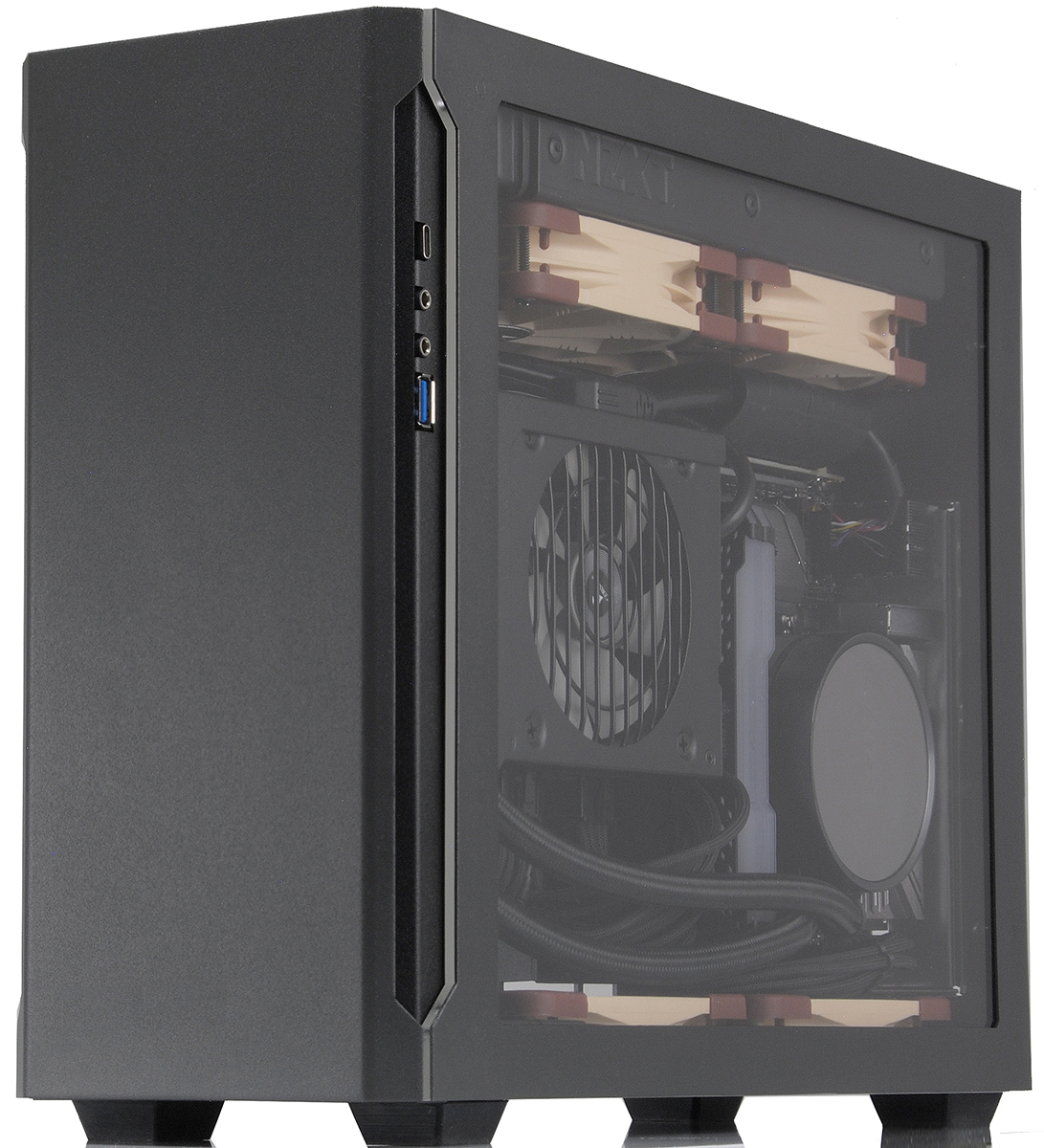

SM570 13.9L Mini-ITX PC Case for 240mm liquid coolers
SM57013.9L Mini-ITX PC Case for 240mm liquid coolers
  • Supports Mini-ITX and Mini-DTX motherboards
  • Front panel with USB 3.1 Type C (SS+ 10 Gbit/s), USB 3.0 Type A, and Dual Audio Jacks
  • Upper plenum for mounting one 240mm AIO liquid cooler or two 120mm liquid coolers
  • Supports dual slot GPUs up to 325mm long x 155mm tall
  • Support SFX an SFX-L form factor power supplies
  • Mounts two 120mm x 25mm thick fans in bottom for high performance cooling
  • Magnetic dust filters available from Demcifilter
  • Designed and manufactured in the USA by Sliger

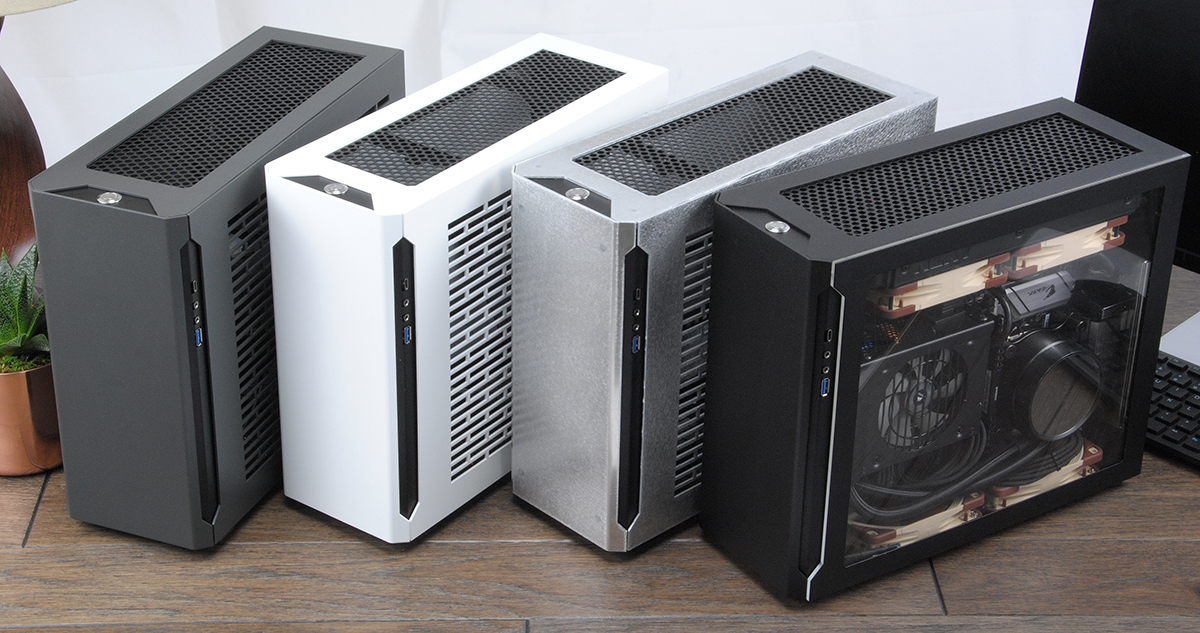

Panel Color
If you would like to mix and match panel colors, or request a custom color, please contact support at sales@sliger.com.
Additional charges may apply.
Panel Option (GPU Side)
Color will correspond to "Panel Color" selection above.
Panel Option (Motherboard Side)
Color will correspond to "Panel Color" selection above.
Front Panel Board Connector
BACKORDER NOTICE
These front panel boards are expected to arrive to us on 8/1/19.
If you order with a front panel board, the case will be shipped without a front panel board, and the front panel board will then be shipped to you once we have them in hand. Cases with no front panel IO will continue to ship per normal leadtimes. (Order date + 1-3 days.)

INTERNATIONAL ORDERS
For customers outside of the US we have two options:
1. Sliger will hold the case to ship on August 1st with the front panel board
2. Sliger can ship the case immediately, and then charge you via PayPal for the additional shipping of the front panel board when it is avaiable.
No front panel is currently our recommended option. Our sincere apologies on this mistake and any inconvenience it may cause!

For any questions or ordering help please reach out to us at orders@sliger.com or call us at 1 775 356 5595 x 233 - thank you!
* This option connects both 3.0 A and USB C ports to a single motherboard header, recommended for AMD Ryzen 3.
**This style header is common on many ASUS, Gigabyte, and EVGA Intel Mini-ITX motherboards.
Riser Cable
* Bifurcation is recommended only for advanced users.
Bifurcation is the technology of splitting a single PCIe 16x 3.0 slot into two PCIe 3.0 16x slots with 8x bandwith on each.
Known supported motherboards include Gigabyte Z390 Auros, Z370N; ASRock Z390, Z370, X299, and X99; and most server motherboards.
Please confirm compatability with your motherboard by contacting sales@sliger.com before purchasing.

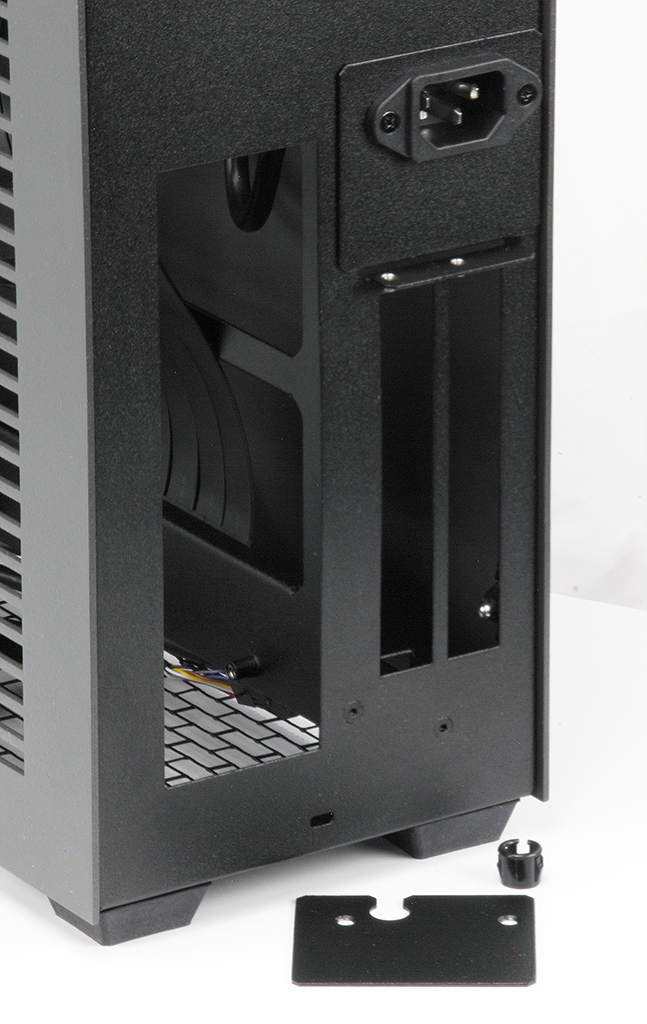

Power Supply Cable
* Standard power cable restricts GPU height to 133mm (this prevents some oversized MSI and Zotac cards from being mounted)
** Pigtail power cable mount restricts GPU height to 145mm tall (this allows for taller MSI Gaming and Zotac GPUs)
Handle Options
2x 3.5" HDD Bracket
* One HDD bracket limits case to a single 120mm or 140mm AIO / radiator in the top of case.
** Two HDD brackets does not allow any radiators or AIO coolers to mount in the top of case.
Bottom Fan to 3.5" HDD Adapter
If using two of these brackets at the same time it is recommended to get at least one vented side panel, otherwise airflow may be restricted.
One of these brackets can becombined with one of the below 4x 2.5" SSD brackets, or the 92mm AIO bracket at bottom.
4x 2.5" SSD Adapter
If using two of these brackets at the same time it is recommended to get at least one vented side panel, otherwise airflow may be restricted.
One of these brackets can becombined with one of the above 3.5" HDD brackets, or the below 92mm AIO bracket.
Additional Liquid Cooler Options
Add To Cart
FREE SHIPPING (US ONLY)
Orders typically ship in 1-3 business days.
International shipping calucated in cart. Sliger is not responsible for import duties and/or taxes.
REPLACEMENT & EXTRA PARTS
If you would like an extra window panel or an additional power switch that you cannot select in the configuration, this is the place to add it to cart.
All new cases ordered via the "configure" tab come with power switch, front panel board, feet, panels, your riser and brackets of choice, etc. included.
For any questions or ordering help please reach out to us at orders@sliger.com or call us at 1 775 356 5595 x 233 - thank you!

Chassis Electrical Parts

Power Switch w/ wires
$15
USB / Audio PCB
$25
C14 to C13 Power Cord
$10
Single PCIe 16x Flex Riser
$40
Bifurcated PCIe Riser
$100

Case Feet

4x Black SBR Feet
$10

Individual Panels, Black

Panel, Top, Obsidian Black
$15
Panel, Front, Black
$15
Panel, Vented Side, Black
$20
Panel, Unvented, Black
$20

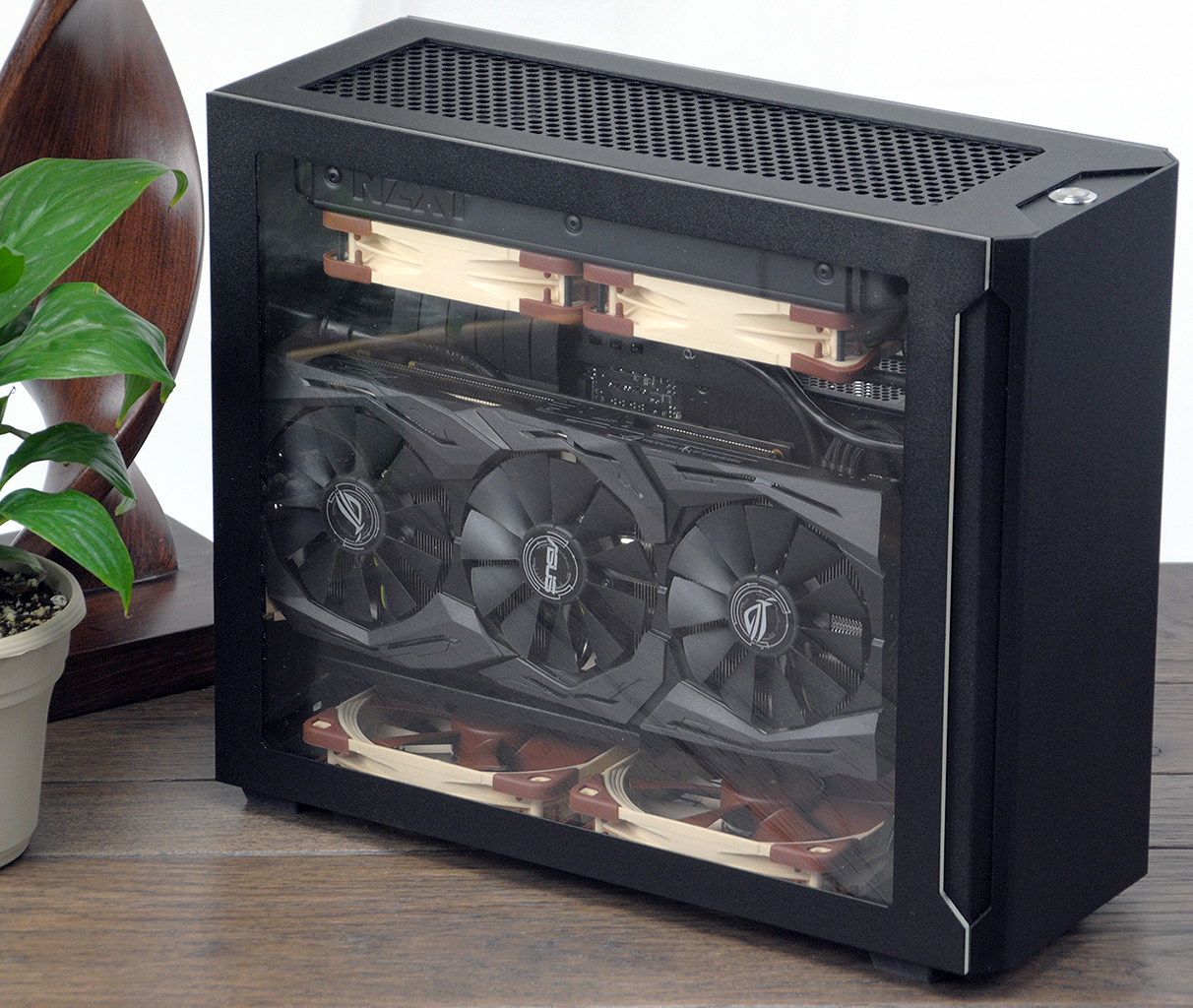

Panel, Full Window, Black
$25

Individual Panels, White

Panel, Top, White
$15
Panel, Front, White
$15
Panel, Vented Side, White
$20
Panel, Unvented, White
$20
Panel, Full Window, White
$25

Individual Panels, Red

Panel, Top, Unpainted
$15
Panel, Front, Unpainted
$15
Panel, Vented Side, Unpainted
$20
Panel, Unvented, Unpainted
$20
Panel, Full Window, Upainted
$25

Individual Panels, Grey

Panel, Top, Slate Grey
$15
Panel, Front, Grey
$15
Panel, Vented Side, Grey
$20
Panel, Unvented, Grey
$20
Panel, Full Window, Grey
$25

Technical Specifications

Motherboard
  • Mini-ITX (170mm × 170 mm)
Liquid Cooling
  • Maximum of 55mm tall CPU pump blocks
  • Height limit includes tubing, avoid AIOs with tubes that stick out top of CPU block (ex: EVGA CLC, Corsair H100i V2)

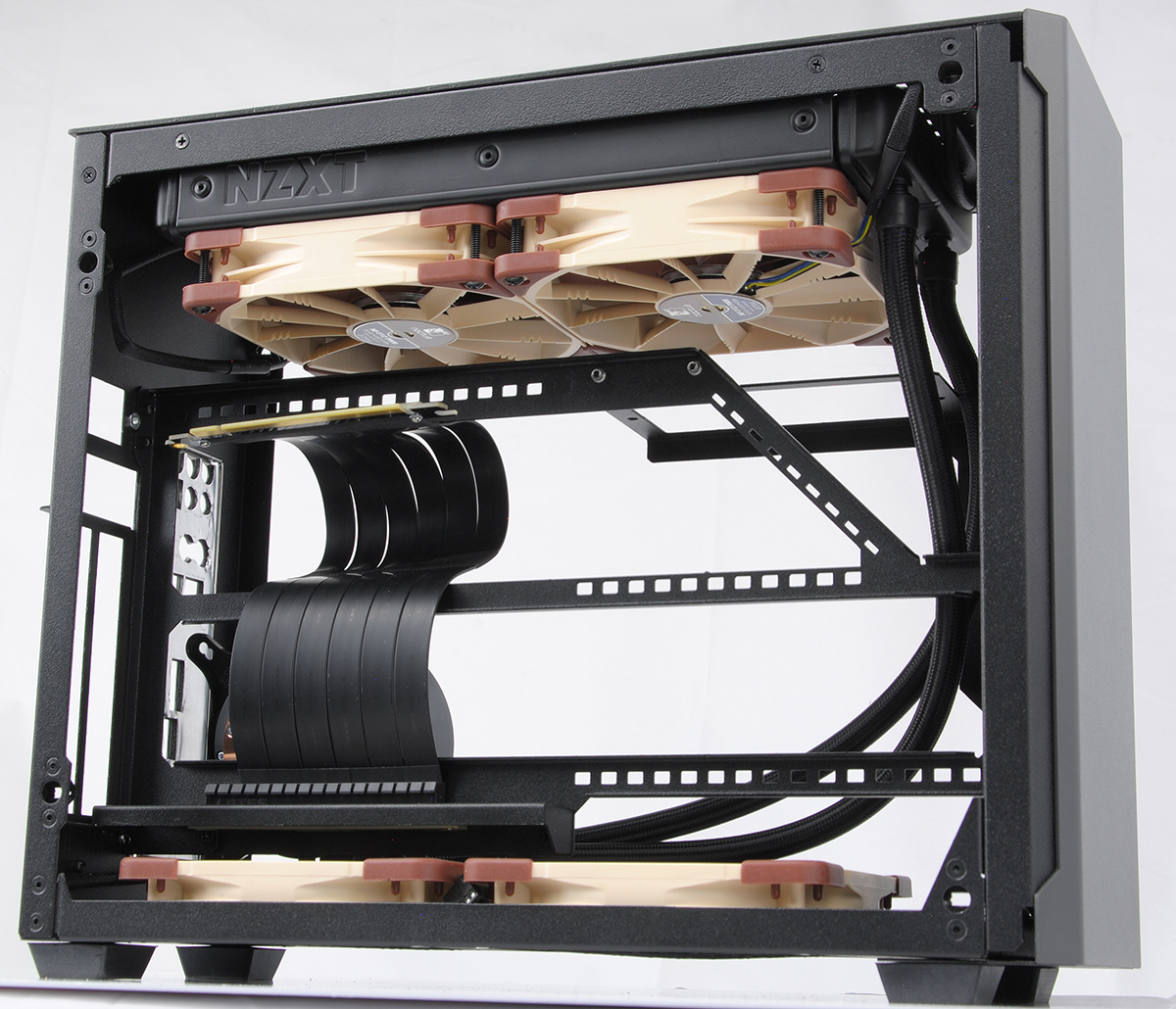

  • Upper Radiator Plenum
  • Maximum dimensions of 328mm x 130mm x 72mm (LxWxH -- 72mm height includes fan and radiator thickness)
  • 1x 240mm AIO cooler or radiator
  • 2x 120mm AIO coolers or radiators
  • 1x 120mm AIO 1x of the optional 2x 3.5" HDD brackets
  • Bottom Fan Plenum
  • 1x 92mm Asetek AIO with 15mm thick fan (requires adapter plate)
CPU Air Coolers
  • Maximum of 55mm tall CPU coolers
  • Coolers that require a Vented Side Panel on the CPU side
  • ID-COOLING IS-60 (55mm)
  • AMD Wraith Stealth (54mm)
  • Cooltek LP53 (53mm)
  • Coolers compatible with all side panel types (Unvented, Window, or Vented)
  • Alpenföhn® Black Ridge (47mm)
  • Noctua L9i/L9a
  • Intel Boxed Cooler
  • Cryorig C7 CU
  • Cryorig C7
  • Cooltek ITX30
  • Phanteks PH-TC90LS
  • RAIJINTEK Zelos
  • Silverstone AR05
  • Silverstone AR11
  • SEMI-PASSIVE MODE: requires Unvented or Window panels on both sides
  • be quiet! SHADOW ROCK LP (FAN REMOVED)
  • Phanteks PH-TC12LS (FAN REMOVED)
  • Noctua NH-L9x65 (FAN REMOVED)
  • REEVEN BRONTES RC-1001b (FAN REMOVED)
  • Scythe SCSK-1100 Shuriken Rev. B (FAN REMOVED)
  • SCYTHE Big Shuriken 3 CPU Cooler SCBSK-3000 (FAN REMOVED)
  • Thermalright AXP-100H Muscle(FAN REMOVED)
  • Thermalright AXP-100 Copper(FAN REMOVED)
  • Cooltek CR-701 (FAN REMOVED)
Fan Mounting
  • 2x 120mm fans in bottom plenum
  • Fans can be a maximum of 25mm thick
  • 2x 120mm fans on top, either mounted on radiator(s) or without radiator(s).
  • For any (FAN REMOVED) heat sinks listed above both fans must be populated with high static pressure fans.

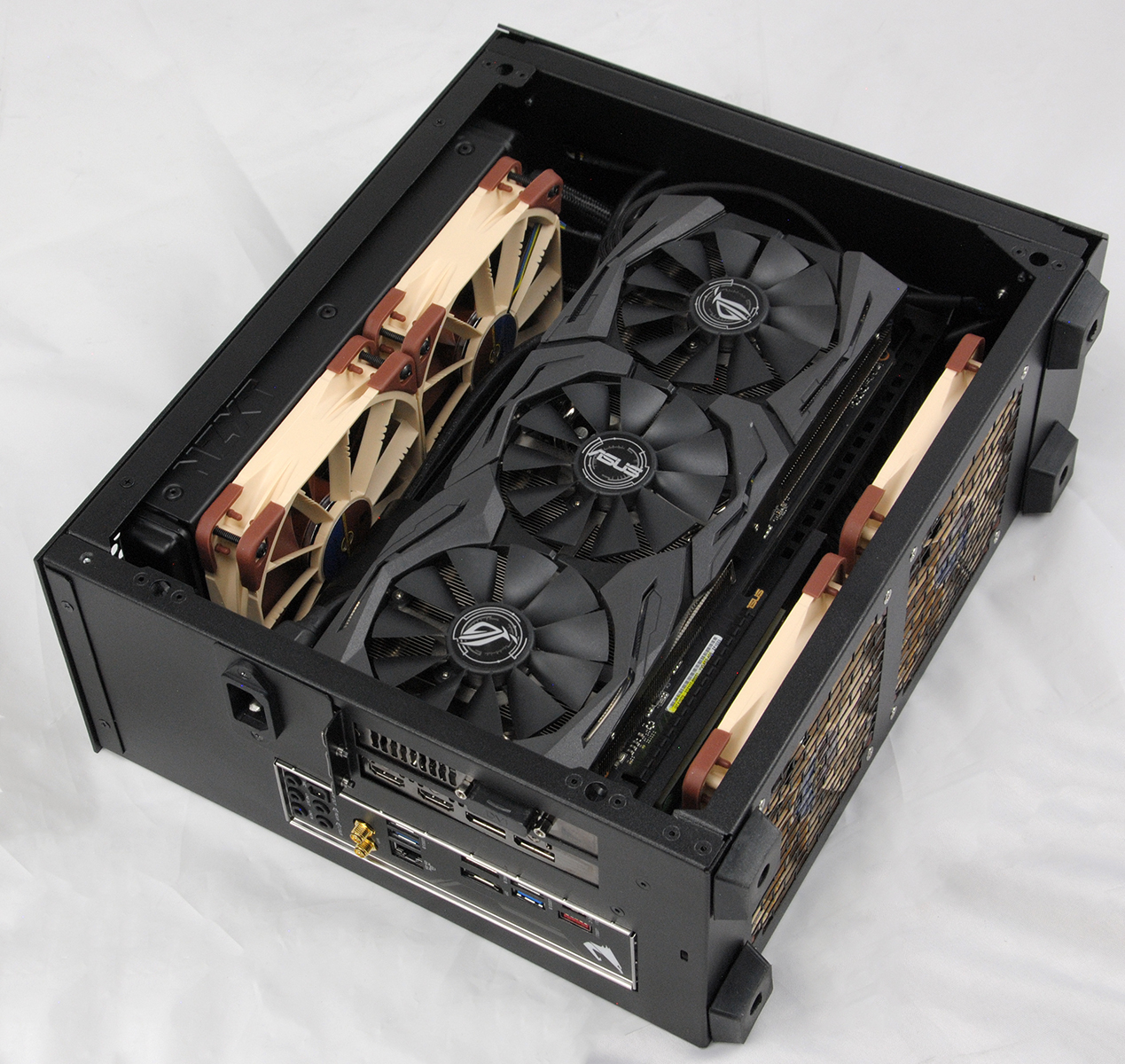

GPU / PCIe Cards
  • Supports two(2) slot wide cards with room between side panel and card for airflow
  • Card is mounted behind motherboard on a PCIe 3.0 16x Flexible Ribbon Riser
  • with Standard Inlet
  • Maximum card height: 133mm (157mm for power connectors)
  • Maximum card length: 325mm
  • Maximum card width: 2 slot, up to 50mm [email support@sliger.com to verify fit]
  • with Pigtail Inlet
  • Maximum card height: 157mm
  • Maximum card length: 325mm
  • Maximum card width: 2 slot, up to 50mm [email support@sliger.com to verify fit]
Storage
  • (2x) 2.5" SSD/HDD mounting points behind front panel
  • Optional (4x) 2.5" SSD/HDD mounting bracket [replaces 1x 120mm bottom fan]
  • Maximum two brackets for total of 8x 2.5" SSD/HDDs
  • Optional (1x) 3.5" HDD mount bracket [replaces 1x 120mm bottom fan]
  • Maximum two brackets for (2x) 3.5" HDD in bottom of case

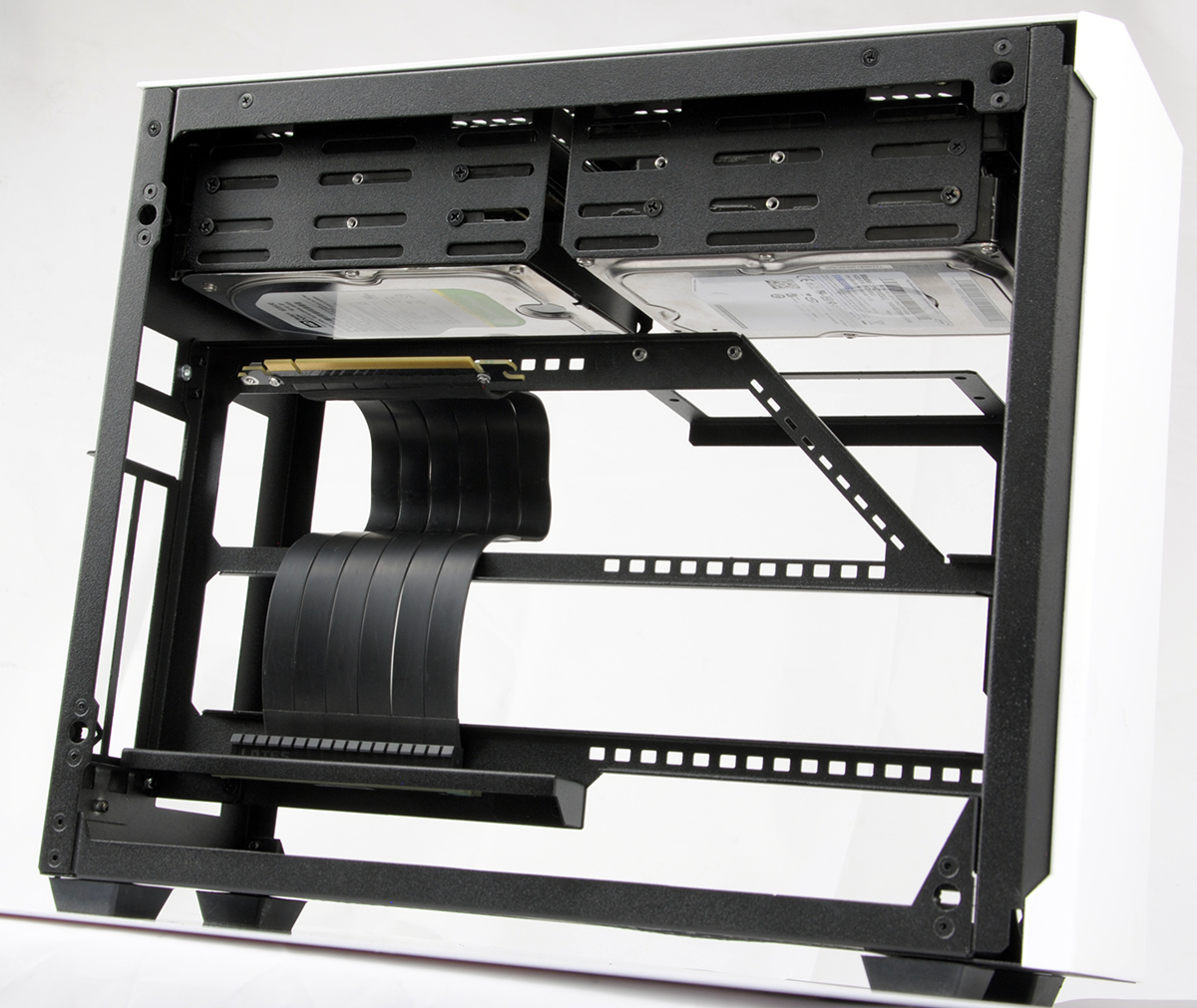

  • Optional (2x) 3.5" HDD mount bracket (top of case)
  • Maximum two brackets for total of 4x 3.5" HDDs in top of case
  • Total maximum of (6x) 3.5" HDDs
Power Supply
  • SFX
  • Corsair SF series
  • SilverStone SST-SX series
  • EVGA SuperNOVA GM series
  • FSP Dagger series
  • SFX-L is supported, however it is a very tight fit and not recommended.
  • Sliger recommends a fan guard grill or custom cables if you do go with SFX-L.
Front Panel I/O
  • One USB 3.1 Gen 2 Type C to USB E header (SS+ 10 Gbit/s)
  • One USB 3.0 Type A to 20-Pin Motherboard Header
  • Two Audio Jacks to standard 9-Pin HD AUDIO header
Material
  • Chassis
  • ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
  • Side Panels
  • ASTM B209-10 5052-H32 0.080" Aluminum Sheet
  • Feet
  • Cavity Molded 75 Durometer Nonmarking Black SBR
Finish
  • Powder coated chassis and panels
Case Dimensions (LxWxH)
  • 14.05" x 5.31" x 11.30" - LxWxH
  • 357mm x 135mm x 287mm - LxWxH
Volume
  • 13.9 Liters
Weights
  • Base Chassis (includes power cord and riser)
  • XXX lbs
  • Window Panels
  • XXX lbs each
  • Vented Panels
  • XXX lbs each
  • Unvented Panels
  • XXX lbs each
  • Packaging Material
  • XXX lbs each
Security
  • 1x Kensington Lock Cutout
Warranty
  • 2 Year Warranty
Homologation
  • HTS Tariff Code
  • 8473.30.80.00
  • Country of Origin
  • United States of America
Rev Control
  • SM570-A (7/8/19 - X/X/XX)
  • Initial Release
More pictures coming soon!

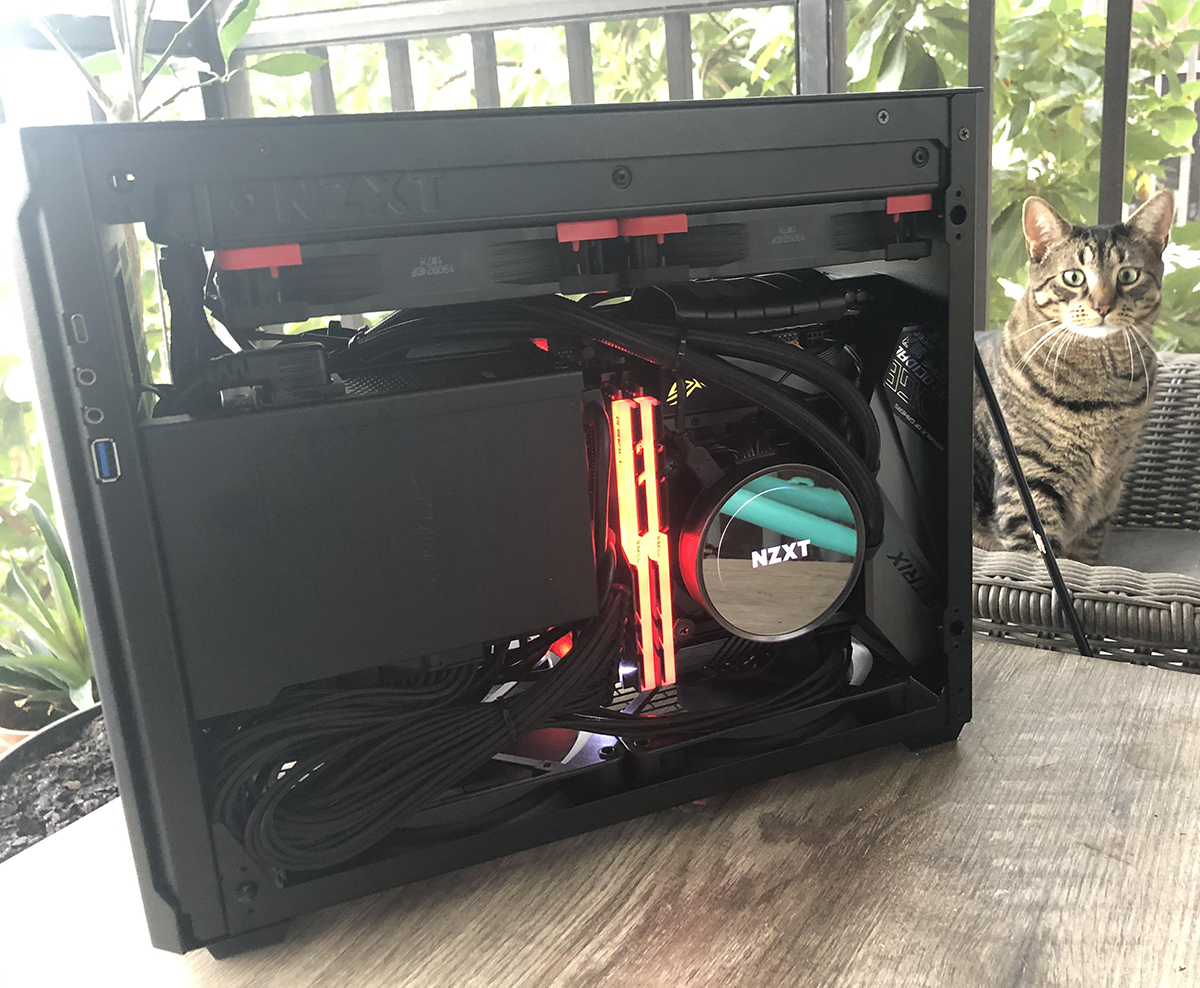

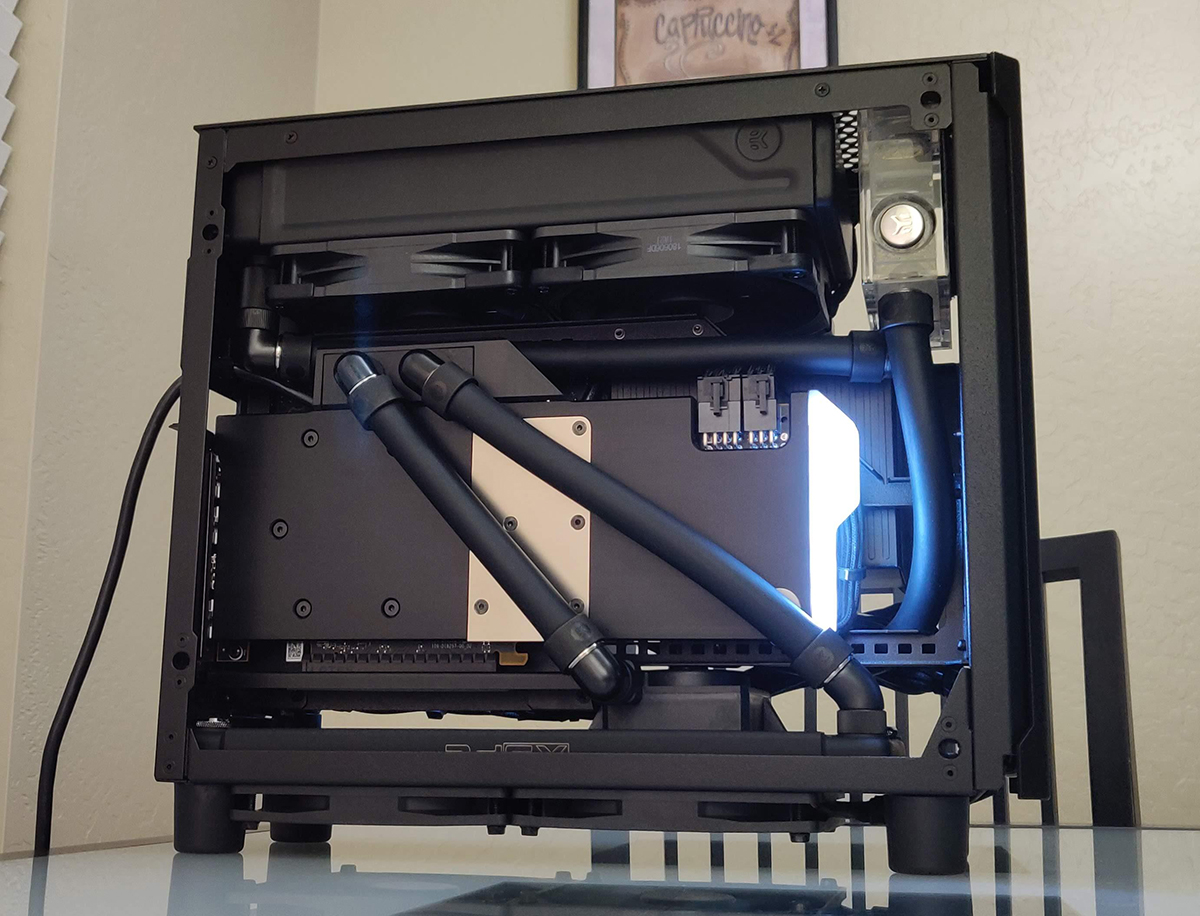

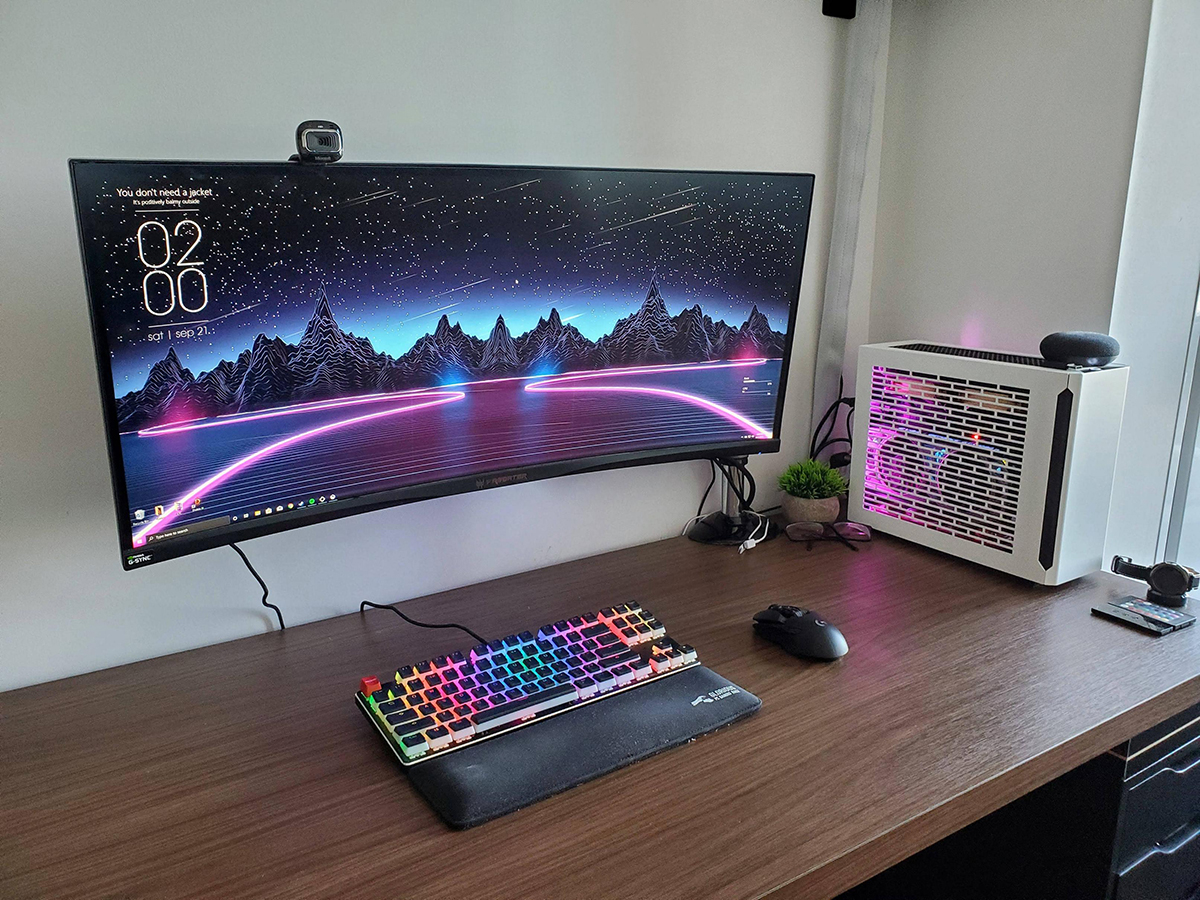

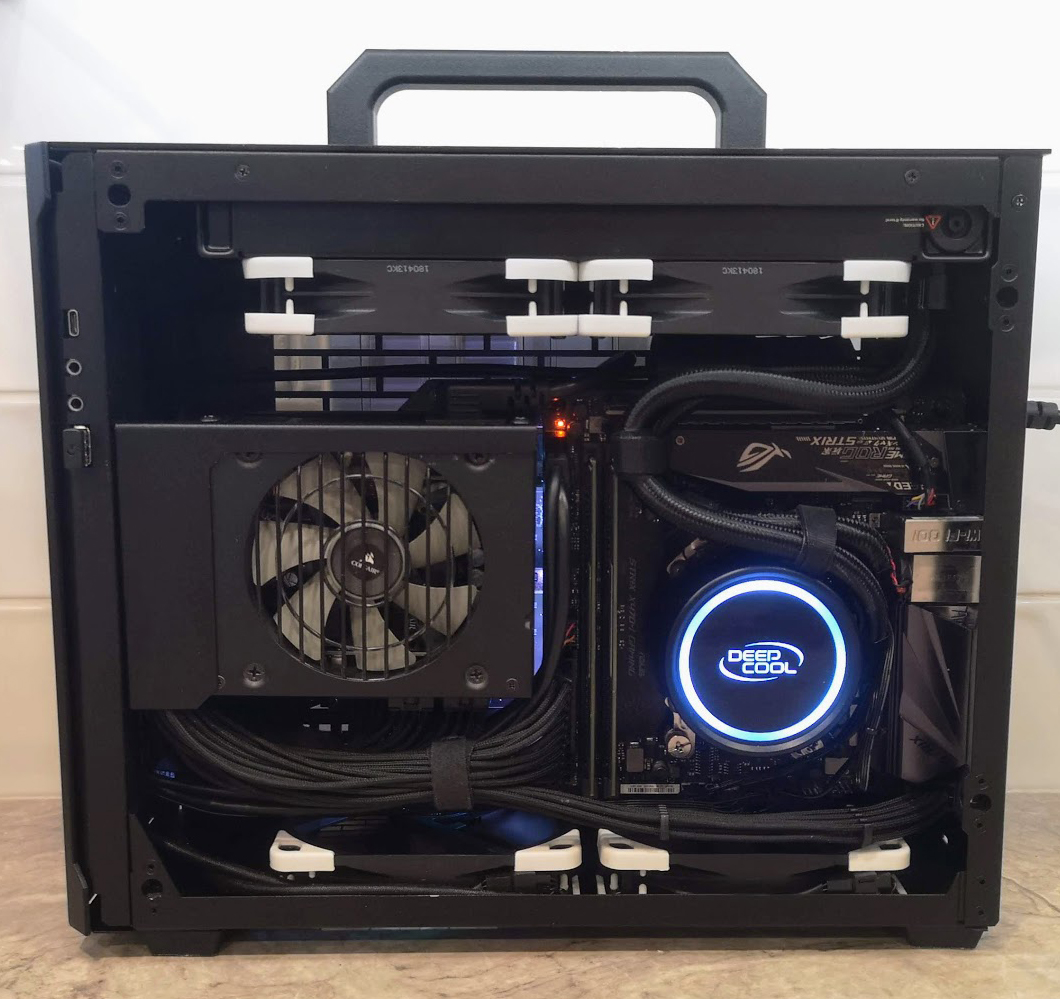

User Build Albums
