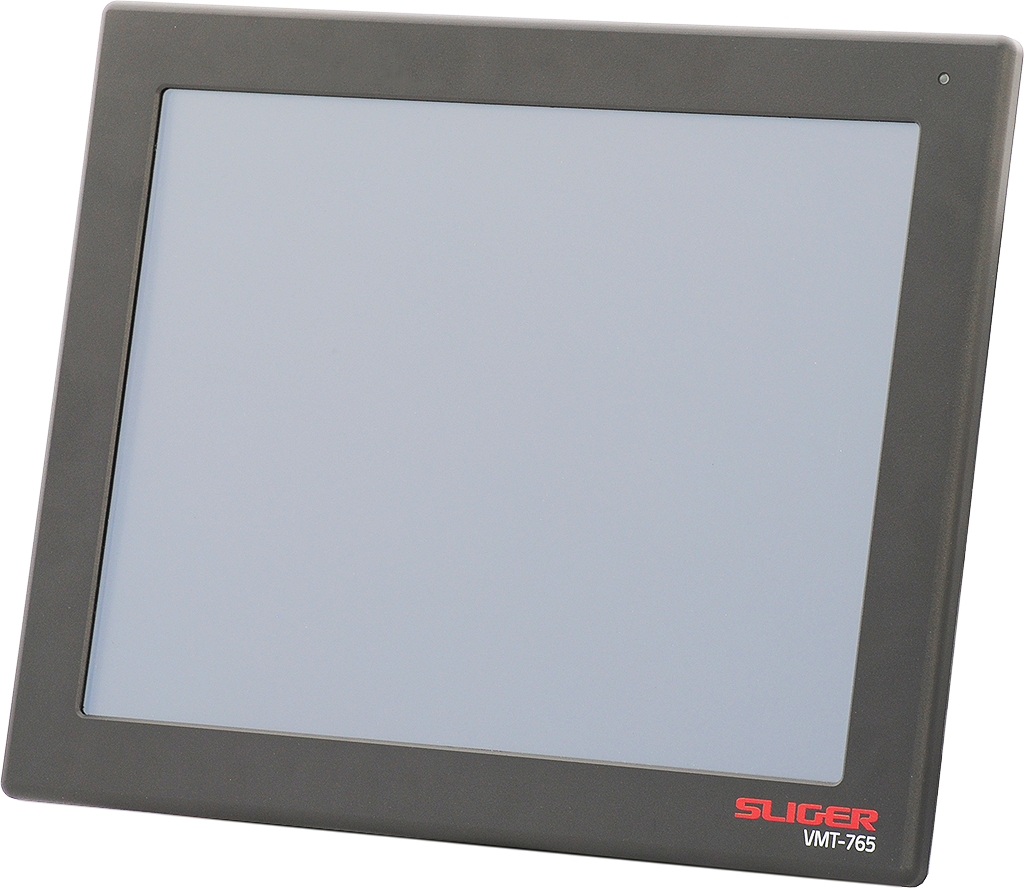

VMT-765 Fanless Vehicle Mount Terminal
VMT-765Fanless Vehicle Mount Terminal
  • Sunlight readable 15” LED backlit display
  • Damage resistant rugged glass touchscreen with anti-glare
  • Intel® 6th Gen i5 Mobile Processor with up to 32GB DDR4 RAM, 4TB storage
  • 6V to 34V DC power input for automotive DC environments
  • Smart power supply prevents battery drain and system brown-outs
  • Detects vehicle ignition and shutdown with adjustable shutdown timer
  • 802.11a/b/g/n/ac Wi-Fi with Bluetooth 4.0LE connectivity
  • Operational Temperatures of 14°F - 122°F (-10ºC - 50ºC)
Memory
Storage
Operating System
Warranty
Optional Equipment
Add To Cart
per unit as configured
shipping calculated in cart

Market Leading Performance

Professional grade components for industrial applications

Designed with the latest Intel Skylake series processors, up to 32GB of RAM, and up to 4TB of industrial grade storage the VMT-765 delivers the performance, prompt reactivity, high capacity storage, unbottle necked memory, and IO connectivity to meet the needs of the most demanding sensory and data acquisition applications; or can be optioned down for a highly cost effective user access terminal.

Intelligent Power Management

Detects vehicle ignition, protects against surges and brown outs, prevents dead batteries

The VMT-765s intelligent power supply is designed to detect vehicle ignition on/off, allowing the VMT to boot or safely shutdown the system based on adjustable user determined timings settings, and prevent dead batteries.

Powerful Connectivity

Seamless roaming 802.11b/g/n/ac wireless and Bluetooth 4.0LE

Combining the latest Intel wireless and Bluetooth modules with externally mounted RP-SMA antenna connectors the VMT-765 is able to integrate a wide range of external antennas and amplifiers for persistent roaming connectivity even in locations with high attenuation such as lumber yards and packaging distribution centers.

Extended Temperature Operation

Performance in rugged environments

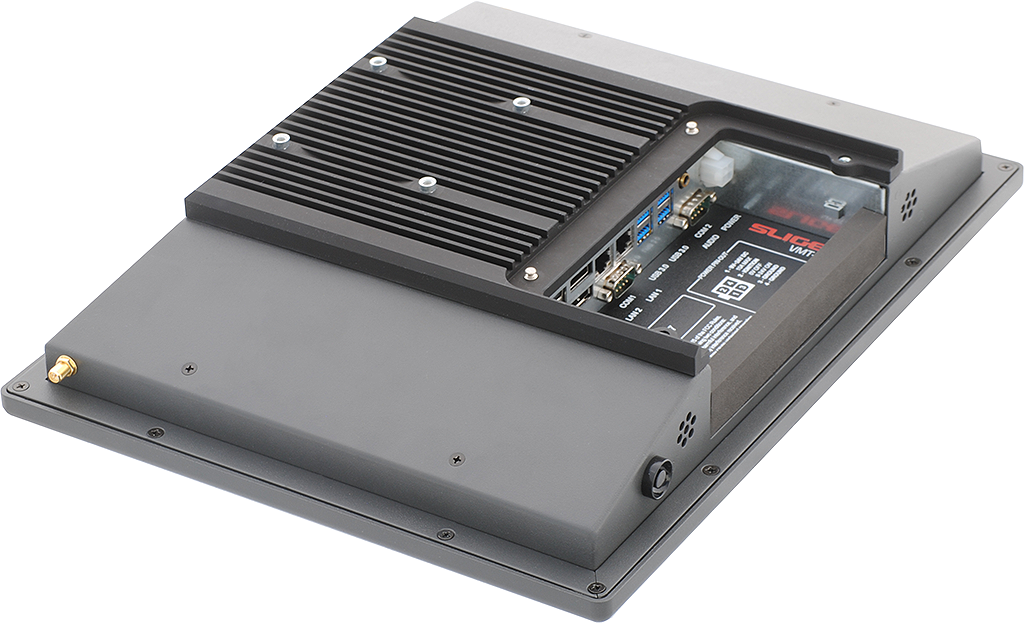

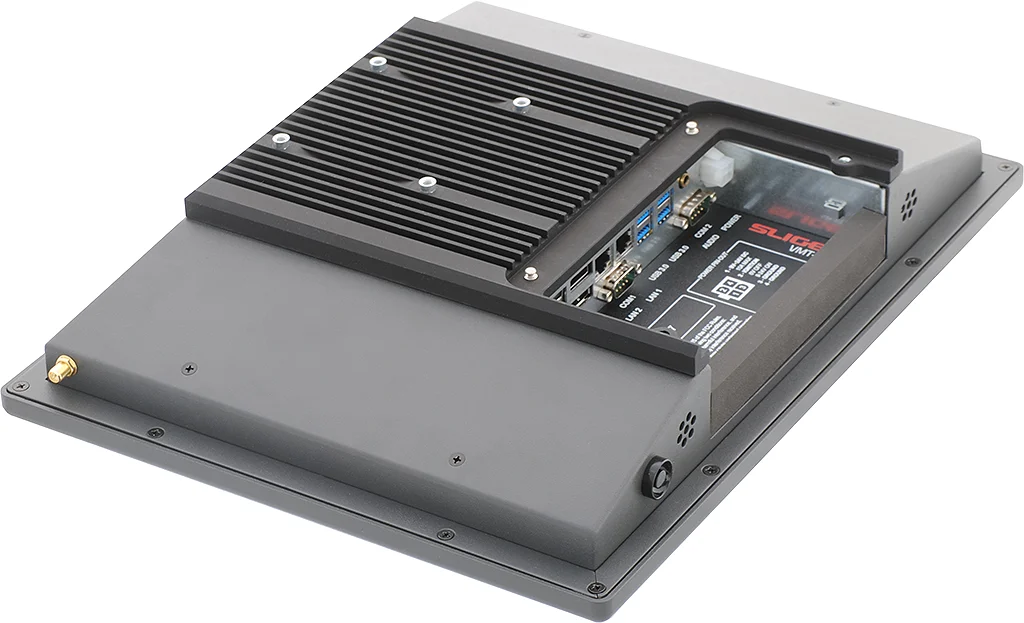

Large thermal aluminum block heatsink and protective gasketing ensures the system continues to operate in extreme conditions. The VMT-765 is tested to perform in ambient temperatures ranging from below 0°F to exceeding 120°F. Optional extended temperature packages including conformal coatings, ceramic coatings, IP65 sealing, and more makes the VMT-765 a low cost easily modifiable design for your harsh environment.

Display
  • 15” XGA 1024x768 LED backlit display
  • Standard Indoor: 250 cd/m2 brightness
  • Optional Outdoor High Brightness: 1100 cd/m2 brightness
  • Optional Screen Blanking Hardware
Touchscreen
  • 5-wire resistive touchscreen

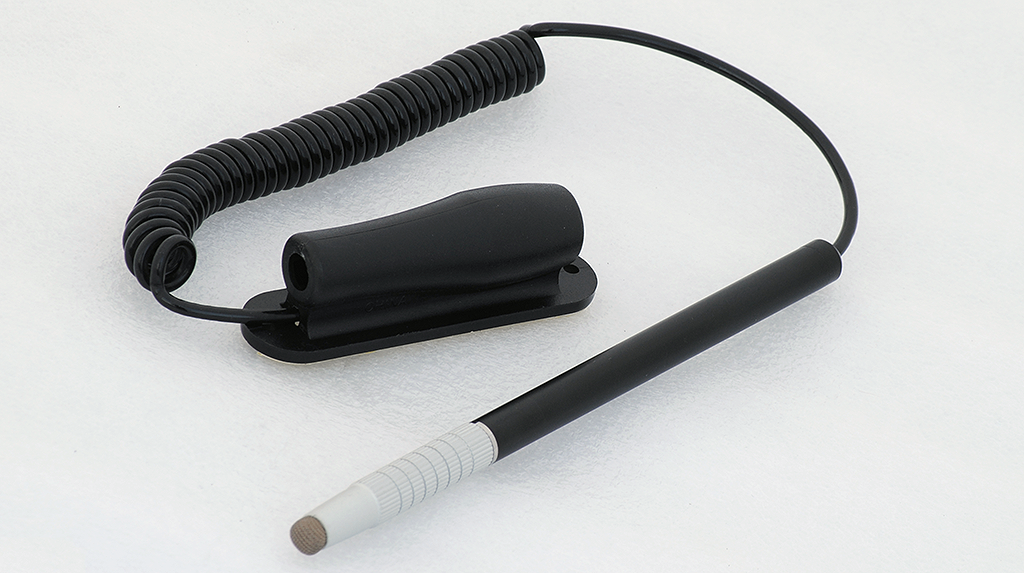

  • Compatible with glove, stylus, or finger touch operation
  • Touchscreen function unimpaired by liquids on touchscreen
  • Optional Rugged Glass Top Layer
Processor
  • Intel® i5-6200U
  • 2.3GHz - 2.8GHz, Dual Core Hyper-Threaded
  • Intel HD Graphics 520 (GT2) with H.265/HEVC decode
Memory
  • (2x) DDR4-2133 SODIMM up to 32GB
  • Standard 8GB
Storage
  • (1x) Solid State mSATA Drive
  • Standard 128GB
Wireless
  • Intel® Dual Band Wireless-AC 7260
  • 802.11b, 802.11g, 802.11a/b/g, 802.11a/b/g/n, and 802.11ac
  • Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)
  • Supports seamless roaming between respective access point
  • Wi-Fi Direct for peer to peer device connections
  • (2x) RP-SMA antenna connectors for external mast mount antennas

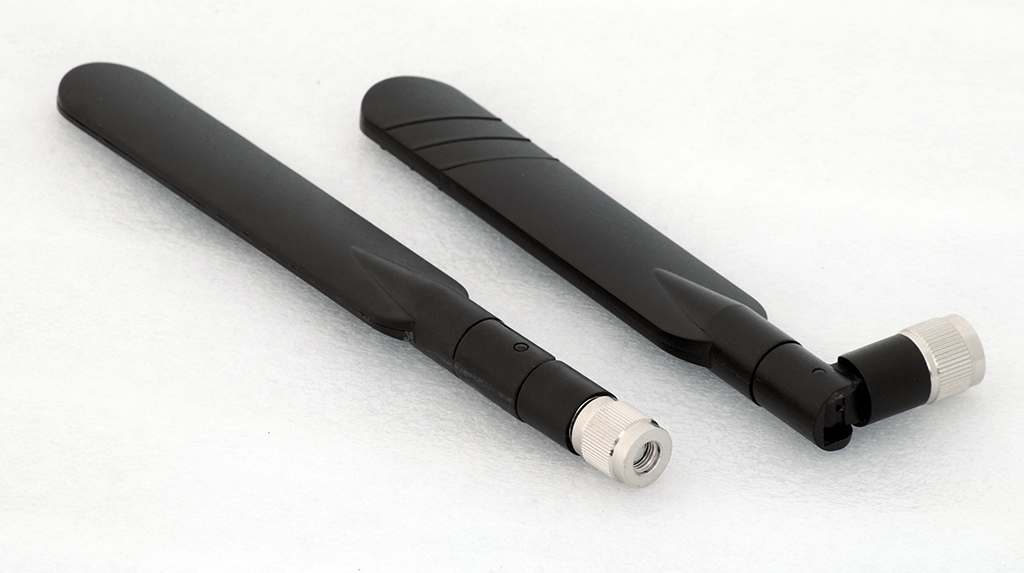

  • (2x) RP-SMA antennas included

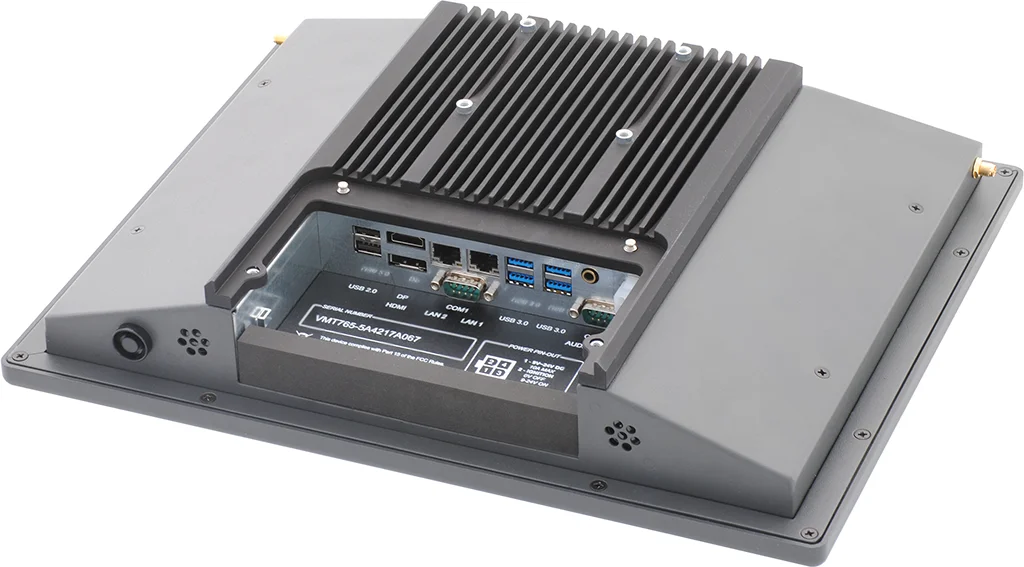

System I/O Interfaces
  • (4x) USB 3.0
  • (2x) USB 2.0
  • (1x) RS-232/422/485
  • (1x) RS-232
  • Optional GPIO DB9
  • (1x) 3.5mm Headphone Jack
  • (2x) RJ45 GbE
  • Intel I211AT Gigabit LAN & Intel I219LM Gigabit LAN
  • (2x) RP-SMA Antenna Connector
  • (1x) Power Connector for Dual Monitor / Dual Display or IO Device
  • Optional TPM 1.2
Audio
  • (2x) Built-In Speakers
  • On-board audio amplifier
  • (1x) 3.5mm Headphone Jack
Operating System
  • Microsoft Windows 10 Pro (64 bit or 32 bit)
  • Microsoft Windows IoT Enterprise
Mounting

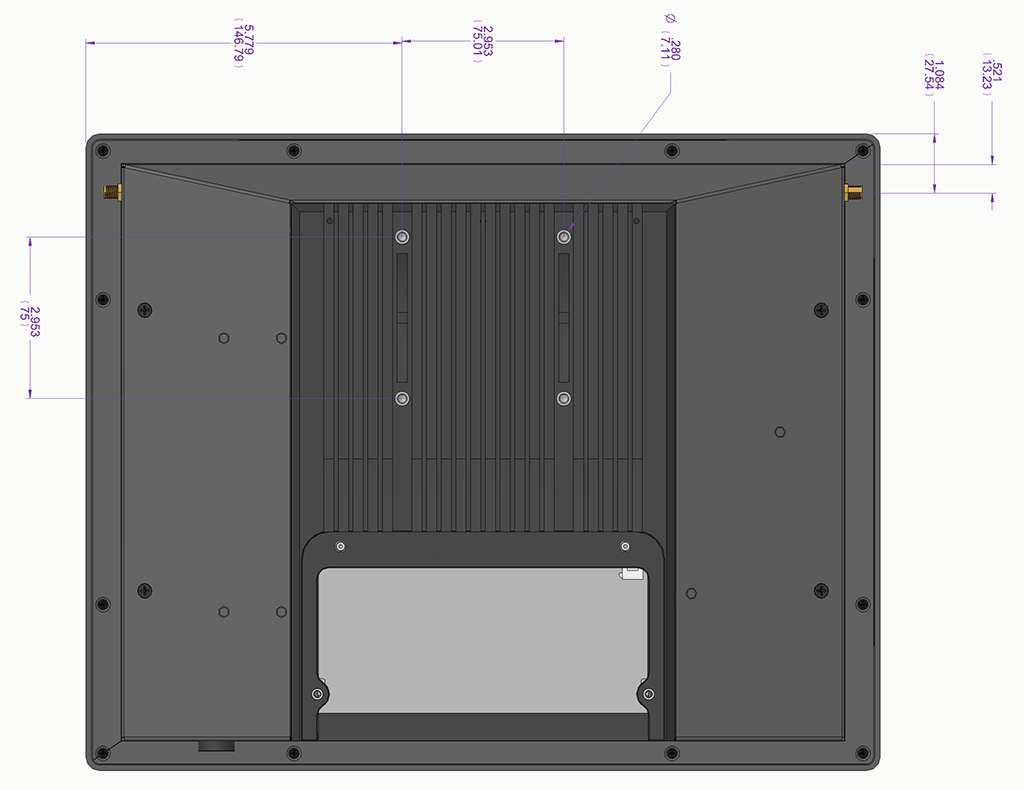

  • VESA 75

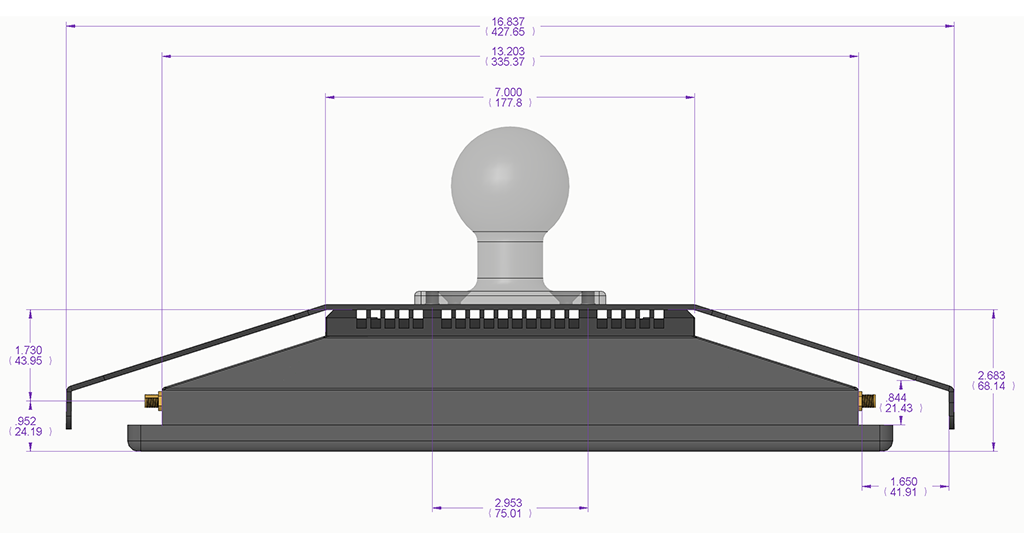

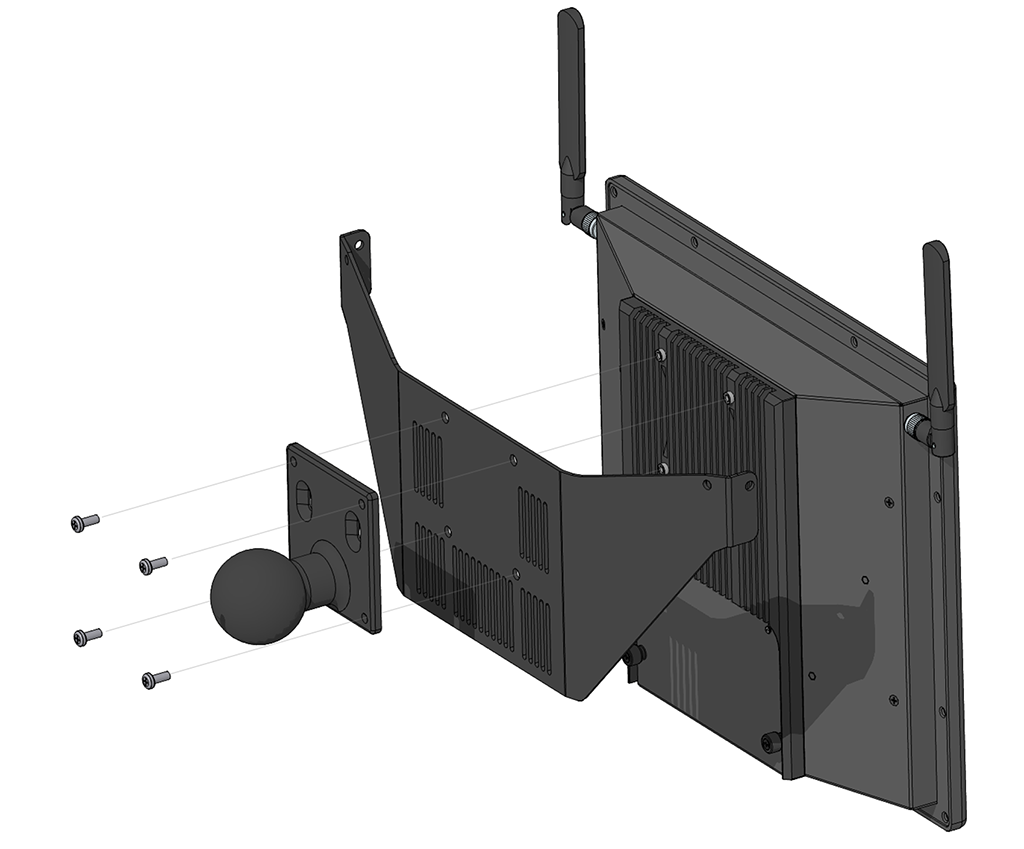

  • Optional Ball-Mount, Wallmounting, and VESA Offset Brackets
Cooling
  • Fanless
Power
  • Detects vehicle ignition and shutdown with adjustable shutdown timer
  • 6V to 34V DC power input protects system components from brownouts and power surge
  • User replaceable 10 amp fuse
  • 4-pin power connector provides easy crimp & pinning for power, ground, and ignition detection

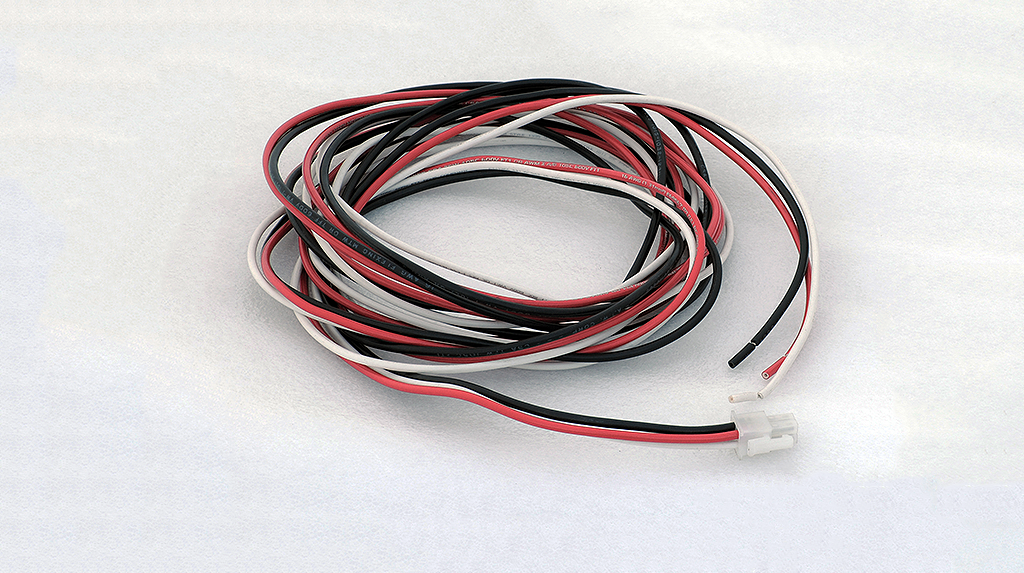

  • Includes (1x) 10' 3-wire power, ground, and ignition detection cable harness
  • Integrated smart battery monitoring & low battery auto-shutdown

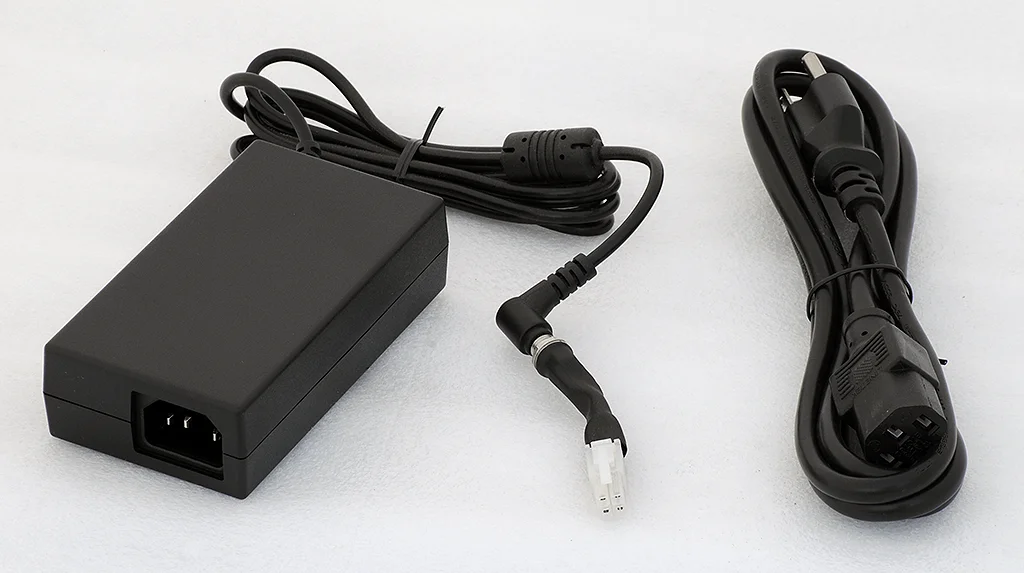

  • Optional AC to 12V DC external power brick for desktop/wallmount deployment
Environmental
  • IP52 sealed for splashing water and dust particle resistance
  • Optional full IP65
  • SAE-J1455 (MIL-STD-810g-4.6.6 Procedure V-Crash Hazard Shock Test)
  • MIL-STD-810F, composite wheeled vehicles
  • EN 55024:2010 (enhanced ESD to 8kV direct and 15kV air)
  • Operating Ambient Temperature: 14°F - 122°F (-10ºC - 50ºC)
  • -22°F - 122°F (-30ºC - 50ºC) with Internal Conformal Coating
  • Humidity: 0% - 90%

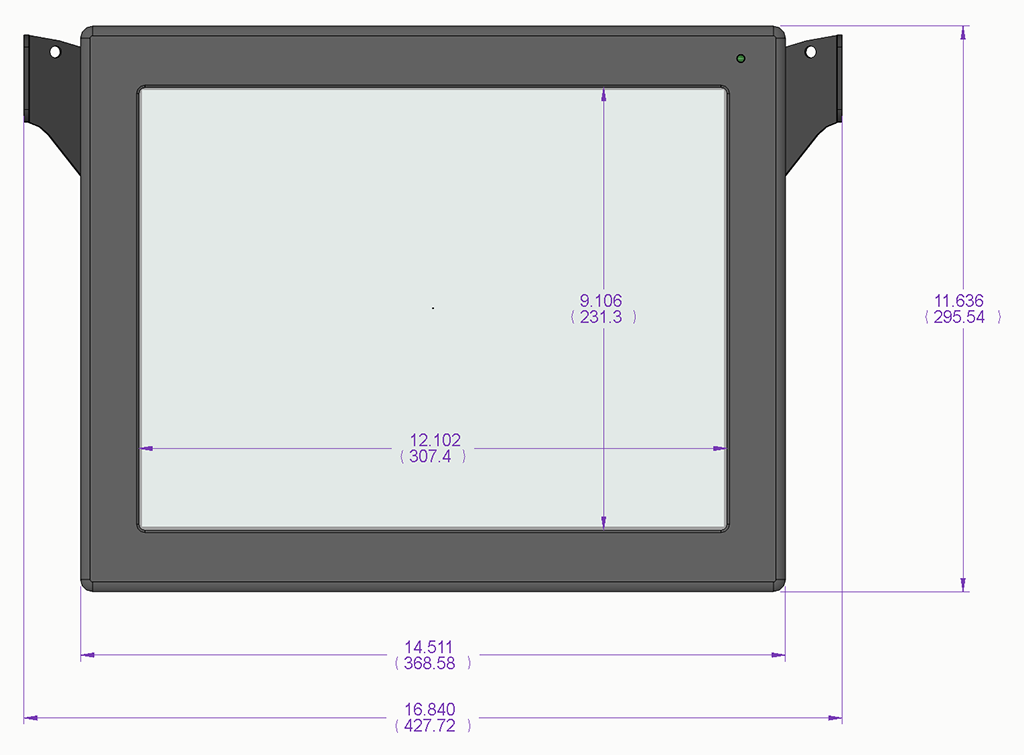

Physical Traits
  • Height: -" (- cm)
  • Width: -" (- cm)
  • Depth: -" (- cm)
  • Weight: - lbs (- kg)
Material
  • All aluminum light weight construction
  • UV and scratch resistant powder coat
Homologation
  • Assembled from UL, C-UL, CB (IEC 60950-1) and FCC Tested Components
  • RoHS & REACH Compliant
Warranty
  • 2 year factory warranty
Service Plans
  • Up to 5 year warranties
  • Advanced replacement & repair with cross-ship
  • Accident replacement plans
  • Optional OS imaging, network and software configurations, default BIOS setting configurations
