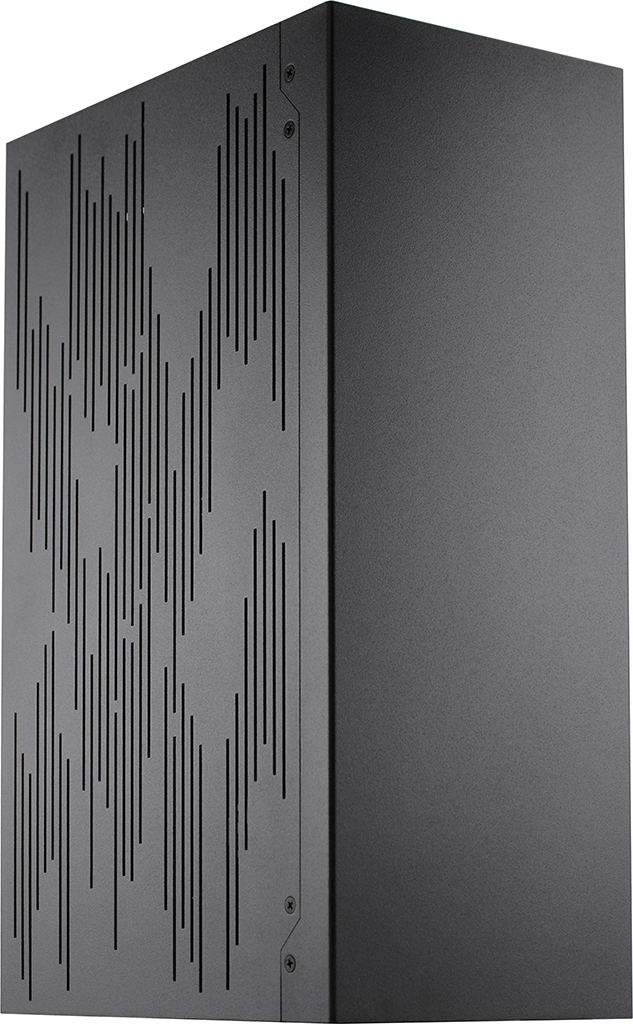

SV540 Vertical Mini-ITX PC Case for 280mm AIOs and 3-slot GPUs
SV540Vertical Mini-ITX PC Case for 280mm AIOs and 3-slot GPUs

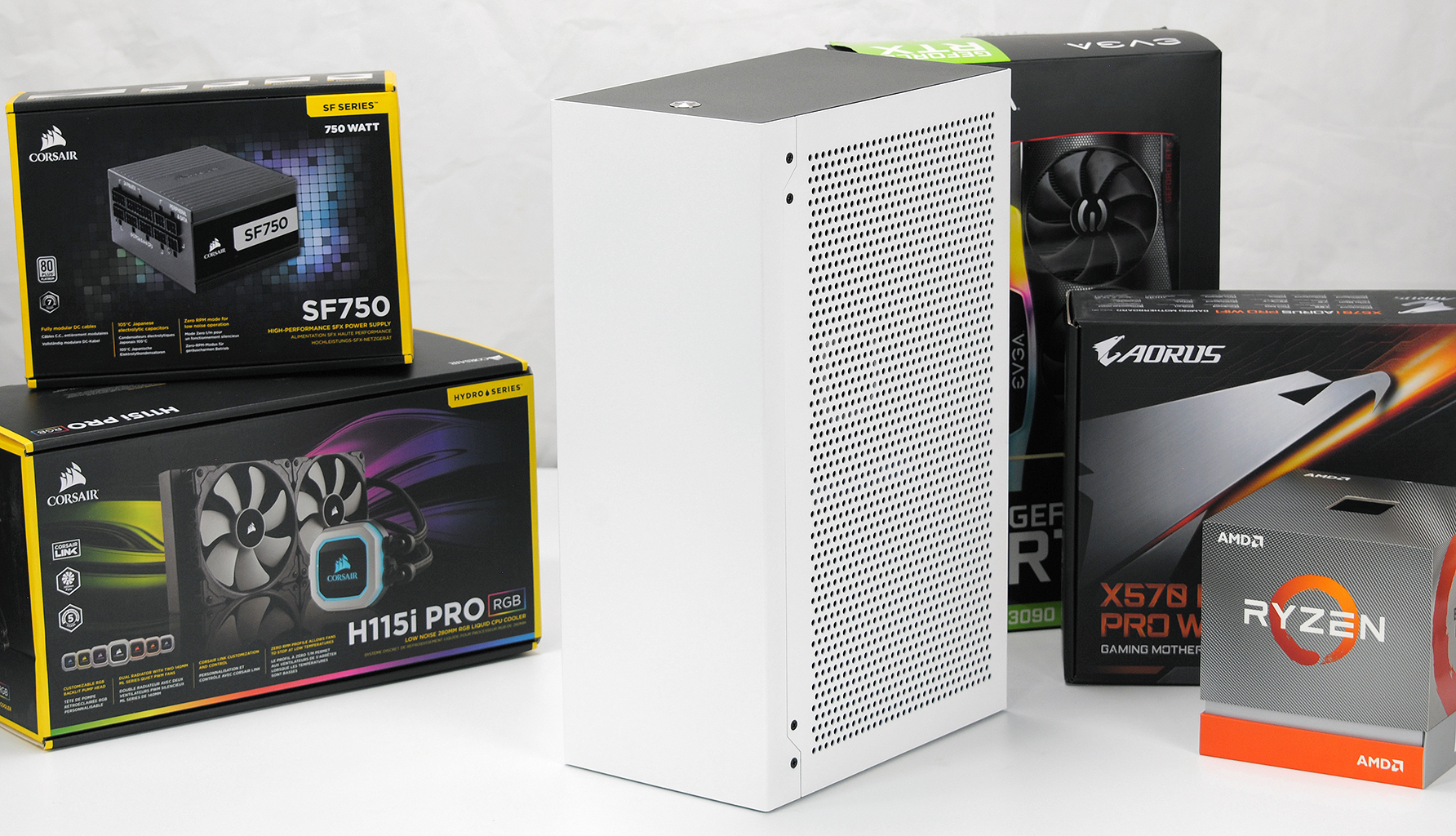

  • Compact vertical layout takes up less desk space than a sheet of A4 paper
  • Unique easy-flip feature allows cables to come out top or bottom of case

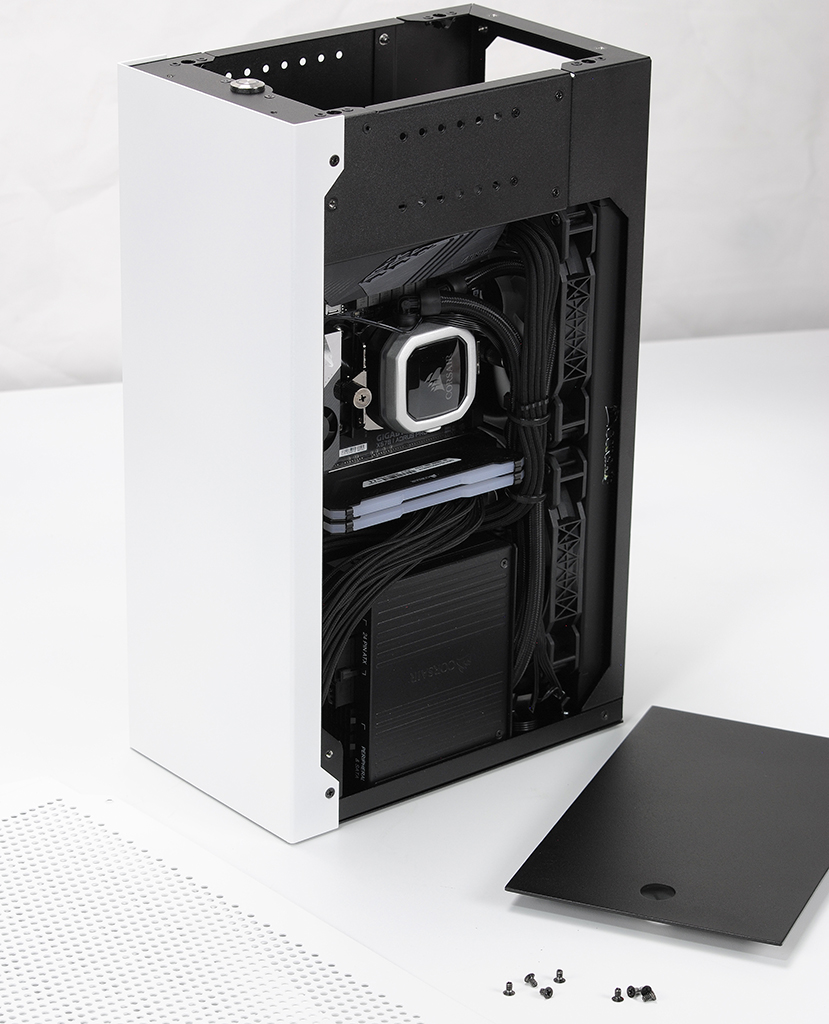

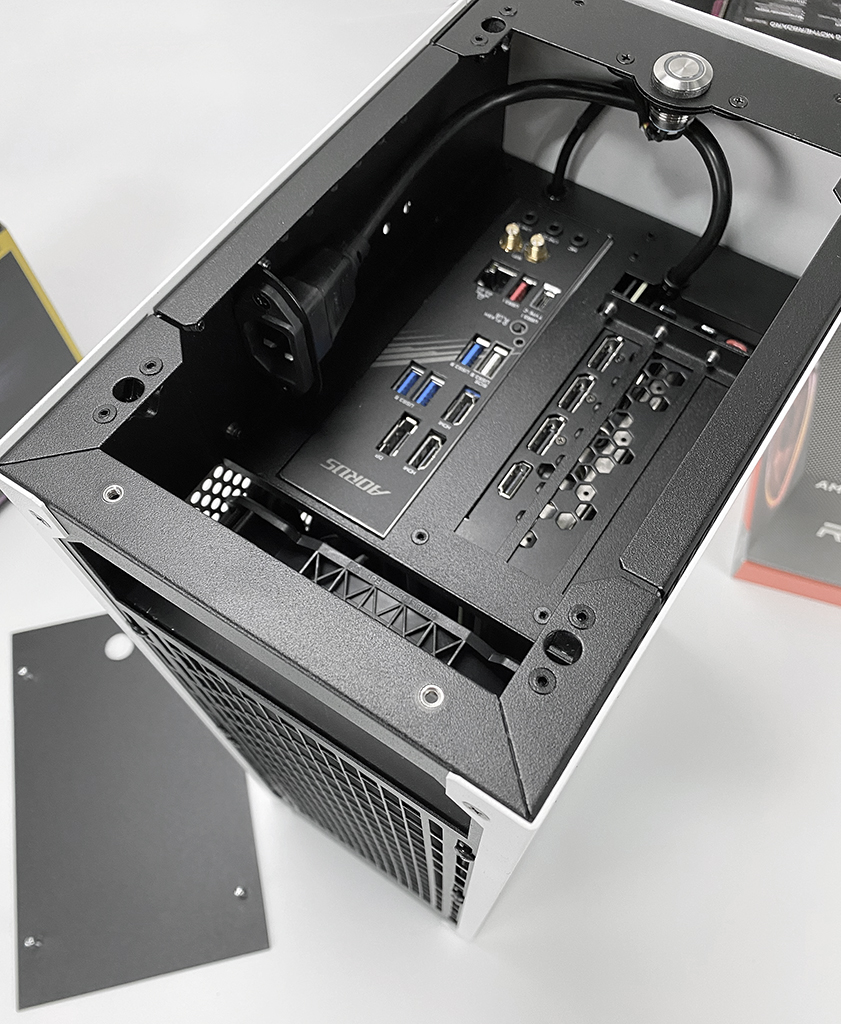

  • Easy access to all motherboard and GPU/PCIe card ports via removable ballstud panel

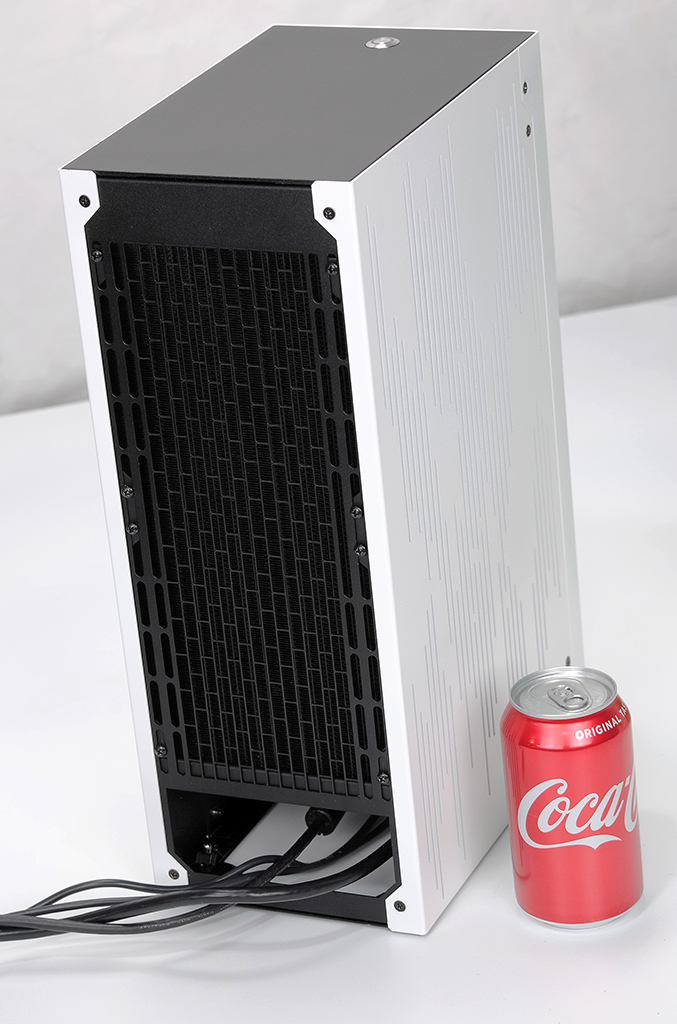

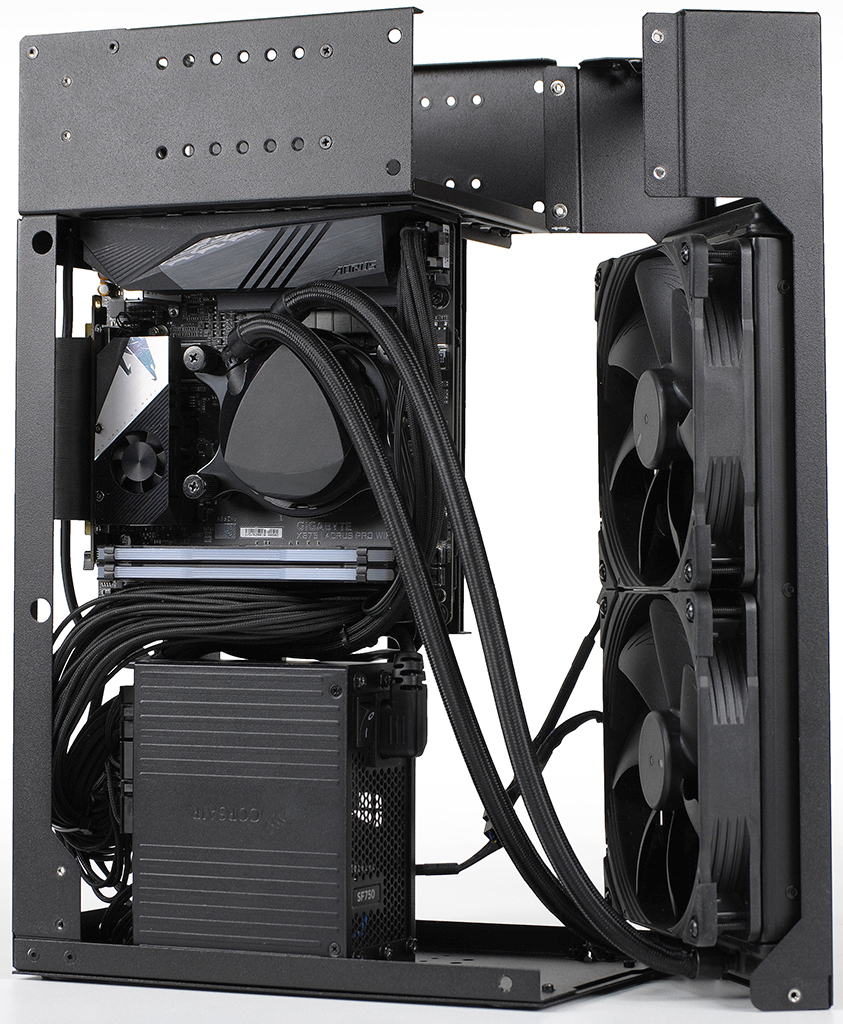

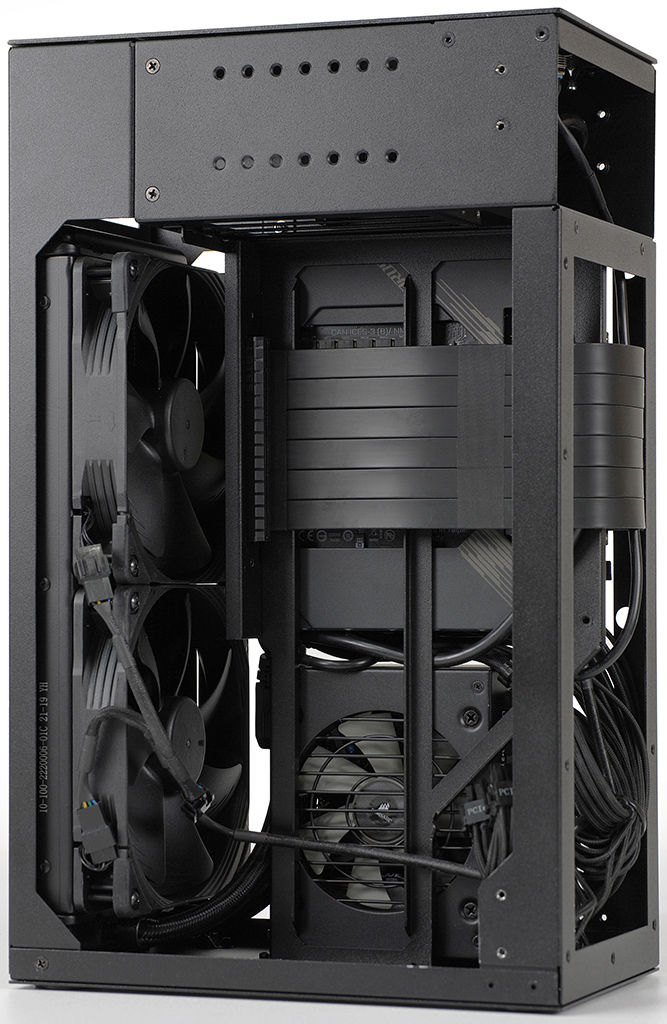

  • Rear mounting bracket for one 280mm radiator, or 2x 120mm liquid cooler

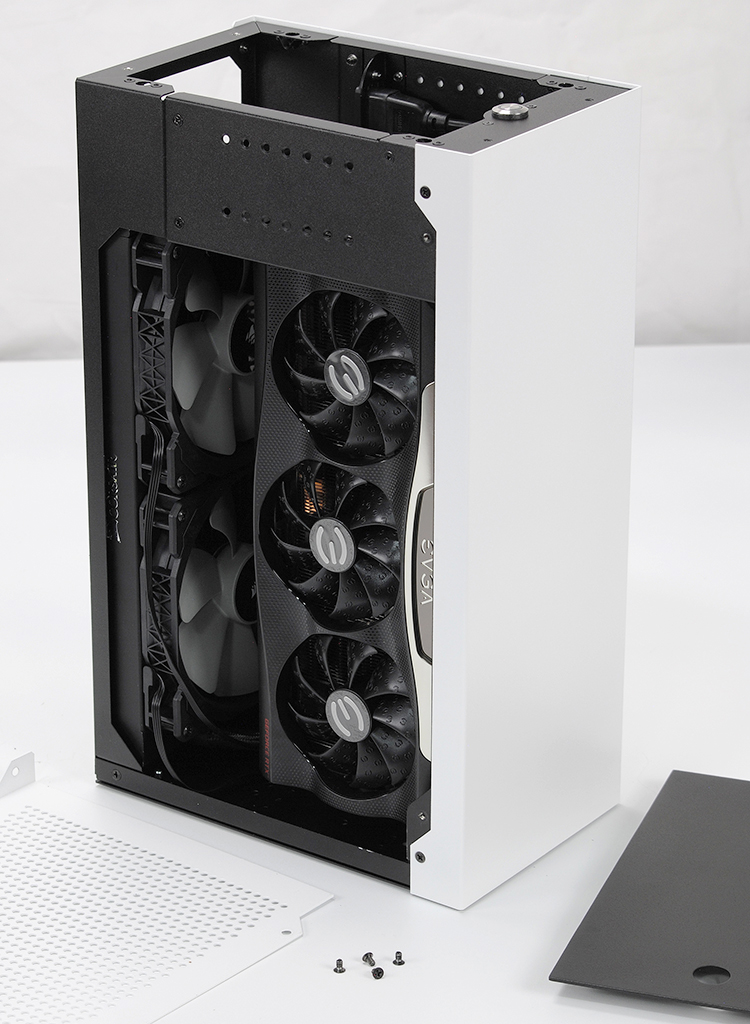

  • Three slot GPUs up to 315mm long and 160mm tall
  • Optional bifurcation PCIe riser allows two PCIe 16x cards on a single Mini-ITX motherboard
  • Mounting for up to 8x 2.5 SSDs, or 4x 2.5" SSD and 2x 3.5" HDDs
  • Supports SFX and SFX-L form factor power supplies

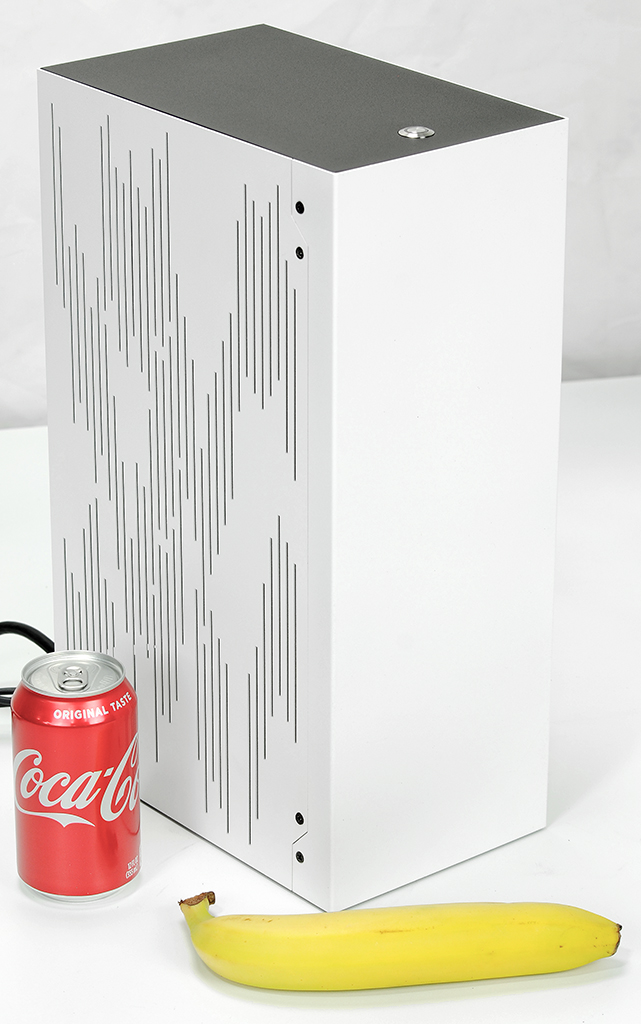

  • Measures 6.06" x 9.73" x 14.79" [154mm X 247mm X 401mm]
  • Made in the USA by Sliger from US made materials
Panel Color & Vent Pattern
Riser Cable
*Bifurcation is the technology of splitting a single PCIe 16x 3.0 slot into two PCIe 3.0 16x slots with 8x bandwith on each.
Please confirm compatibility with your motherboard by contacting sales@sliger.com before purchasing.
280mm Liquid Cooler Options
*These AIO coolers do not feature any RGB lighting or software, and no fans are included.
ASETEK is the OEM liquid cooler manufacturer for the NZXT X62 and Z63, ThermalTake Floe, and Corsair H115i.
This 680LS is the same radiator as the NZXT Z63, with a 6th gen pump, made in the same factory.
Please see ASETEK'S website for additional information.
Optional Base Plate
* All orders include a small ballstud mounted bottom panel with four rubber feet for standing the SV540 on a desk.
The Base Plate is not required, but is recommend for stability. Particularly for users with cats and children.
DDC Pump / Resevoir Mount
* This horizontal pump & resevoir bracket mount limits GPU length to ~235mm. Pump/Resevoir max hieght is limited to ~175mm. Max dimension for radiator + fans + resevoir + pump is ~241mm. See this image for dimensions.
Add To Cart
FREE SHIPPING (US ONLY)
PRE ORDER NOTICE
Orders for the SV540 are currently on PRE-ORDER. Orders are expected to start shipping the week of December 7th.
5% CANCELLATION FEE
Due to changes in refund policies from PayPal and Amazon, all order cancellations are now subject to a 5% order cancellation fee.
Order Cancellations & Returns
Orders typically ship in 3-5 business days. Order ship date estimates are not based on live data, holidays and/or promotions may cause leadtimes to extend.
Please contact support@sliger.com or call us 775 356 5595 for updates on estimated ship date.
International shipping calculated in cart. Sliger is not responsible for import duties and/or taxes.

Technical Specifications

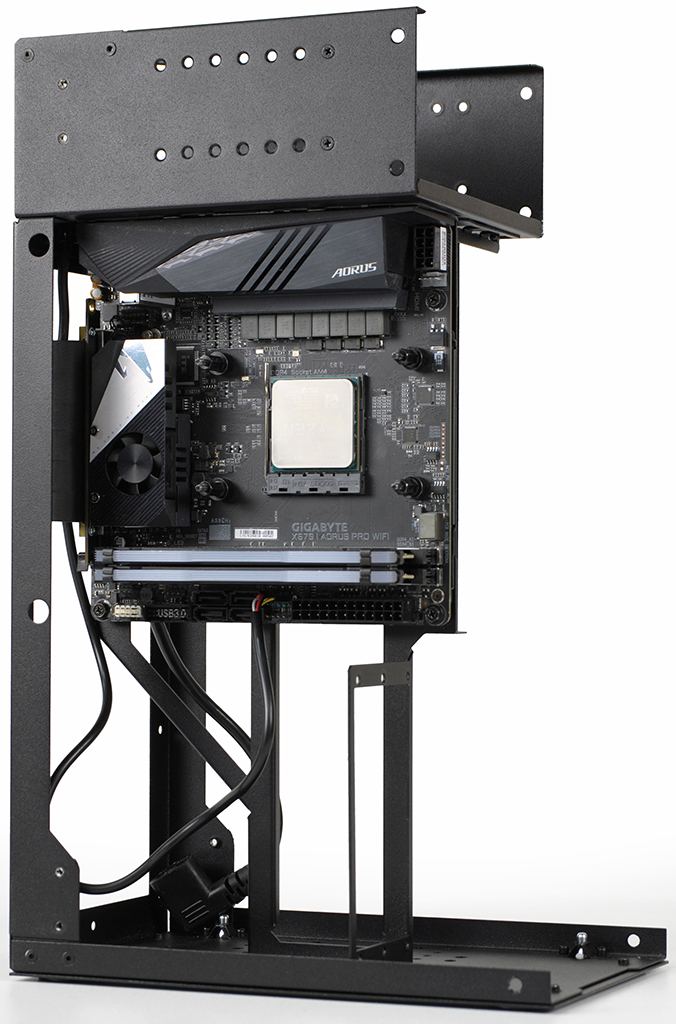

Motherboard
  • Mini-ITX (170mm × 170 mm)
  • Not compatible with Mini-DTX boards such as the ASUS ROG Crosshair VIII Impact AM4

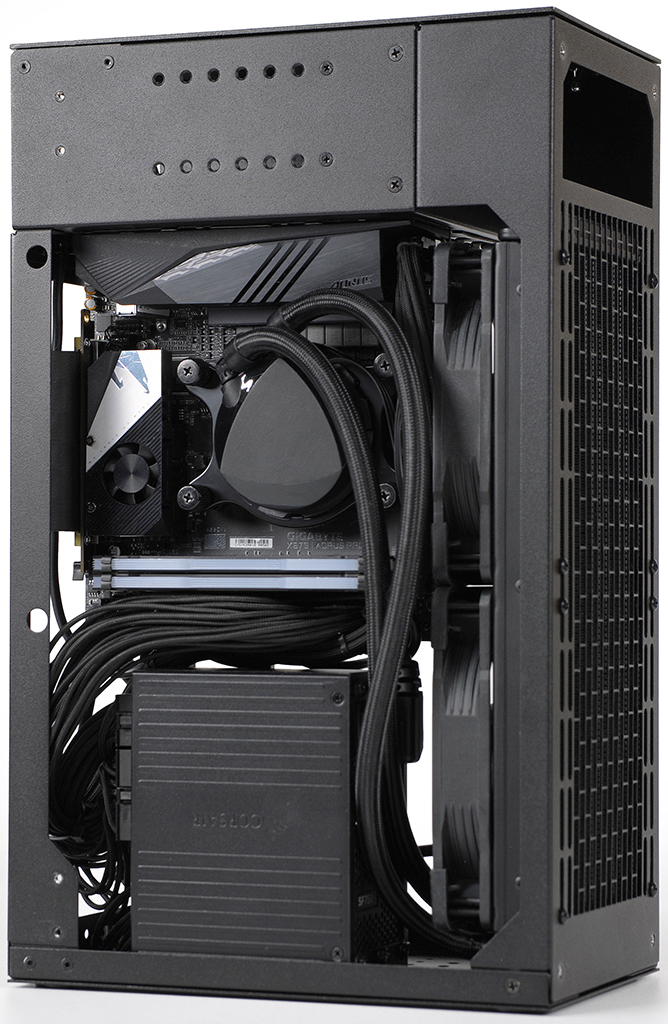

Liquid Cooling
  • 1x 280mm radiator or 240mm radiator
  • Maximum Length: 330mm
  • Maximum Width: 149mm
  • Maximum Thickness: 66mm (this is the combined fan and radiator thickness)
  • Maximum of 55mm tall CPU pump blocks
  • Space in bottom of case for short pump/res combos.
  • Max GPU/GPU block length with pump/res in bottom: 235mm
CPU Air Coolers
  • Maximum of 55mm tall CPU coolers
  • Air cooling of the CPU is not recommended.
Fan Mounting
  • 2x 140mm fans (on 280mm radiator)
  • 2x 120mm fans (on 240mm radiator)

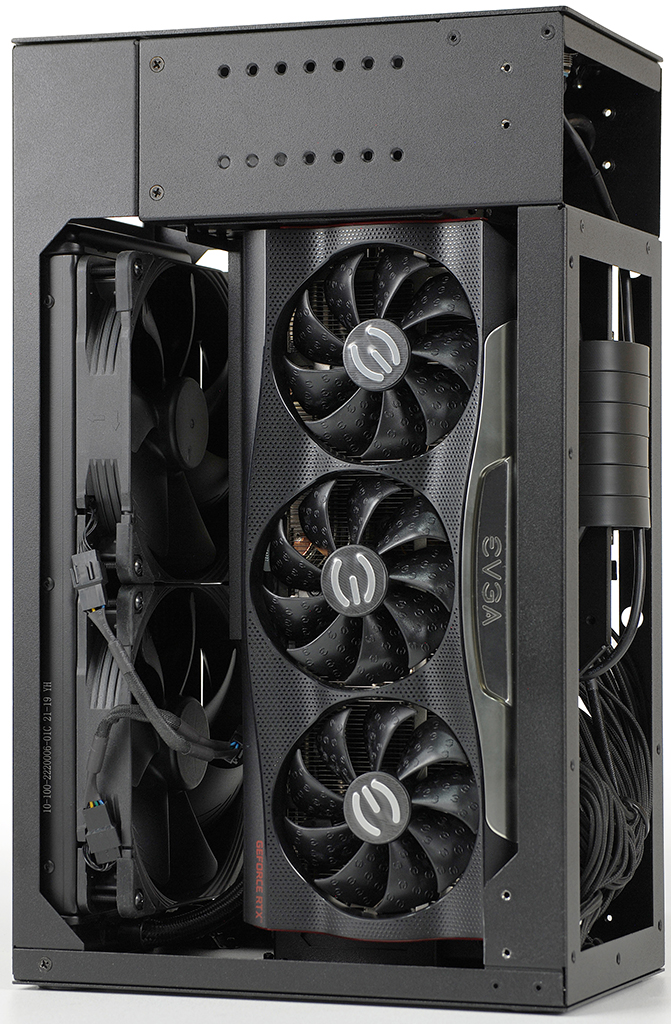

GPU / PCIe Cards
  • Includes PCIe 3.0 16x riser [NOTE: SET MOTHERBOARD TO PCIE 3.0 MODE, RISER DOES NOT WORK WITH PCIE 4.0]
  • Supports one three(3) slot wide card, or with PCIe bifurcation riser 1x 2-slot card and 1x single slot card
  • Maximum card height: 160mm
  • Maximum card length: 310mm (217mm with 3.5" HDD or 248mm with 2.5" SSDs in case bottom)
  • Maximum card width: 68mm (3-slot)

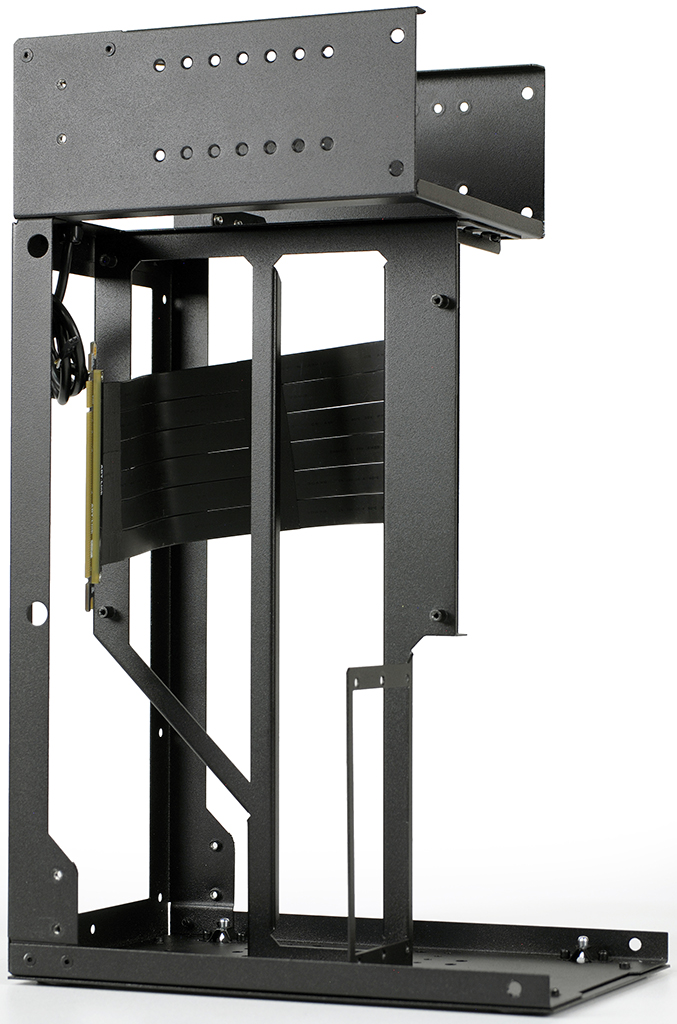

  • Note that the PCIe card is mounted behind motherboard on a PCIe 3.0 16x flexible ribbon riser
  • Bifurcation riser limits the outer PCIe 16x 2.0 card to 2 slots wide, and inner slot to a single slot card.
  • Bifurcation outer slot maximum card width: 47mm
Storage

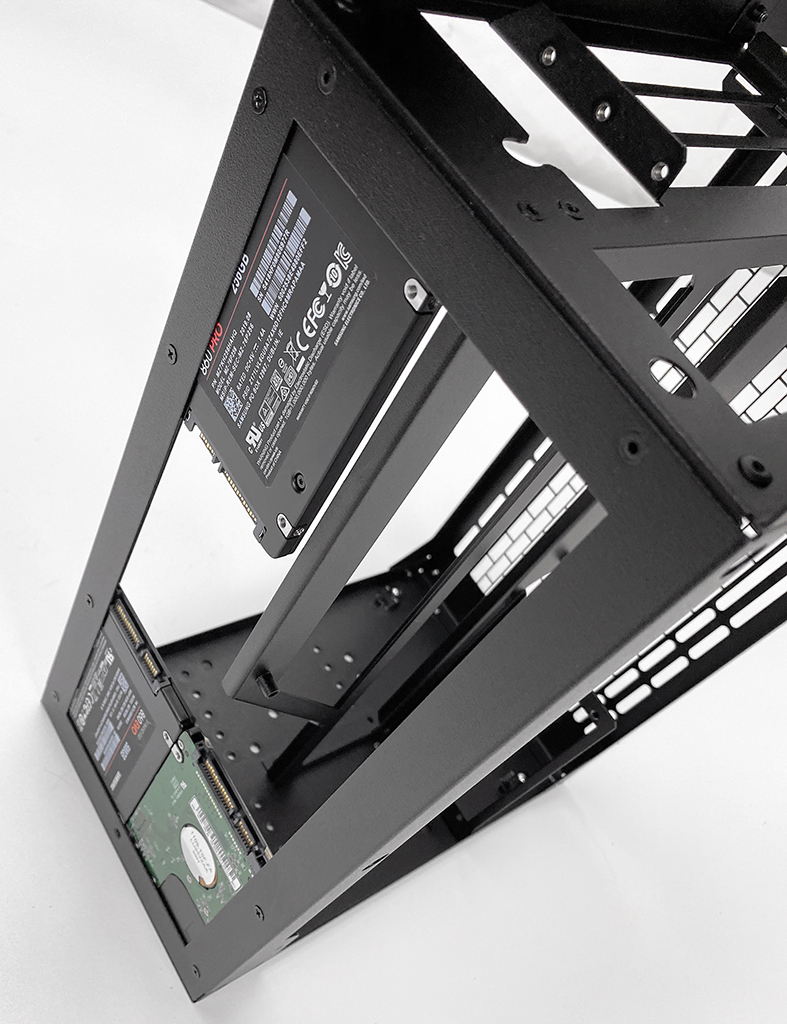

  • (3x) 2.5" SSD/HDD mounting points on chassis frame
  • Optional (5x) 2.5" SSD/HDD mounting in bottom of case [restricts GPU length to 248mm]

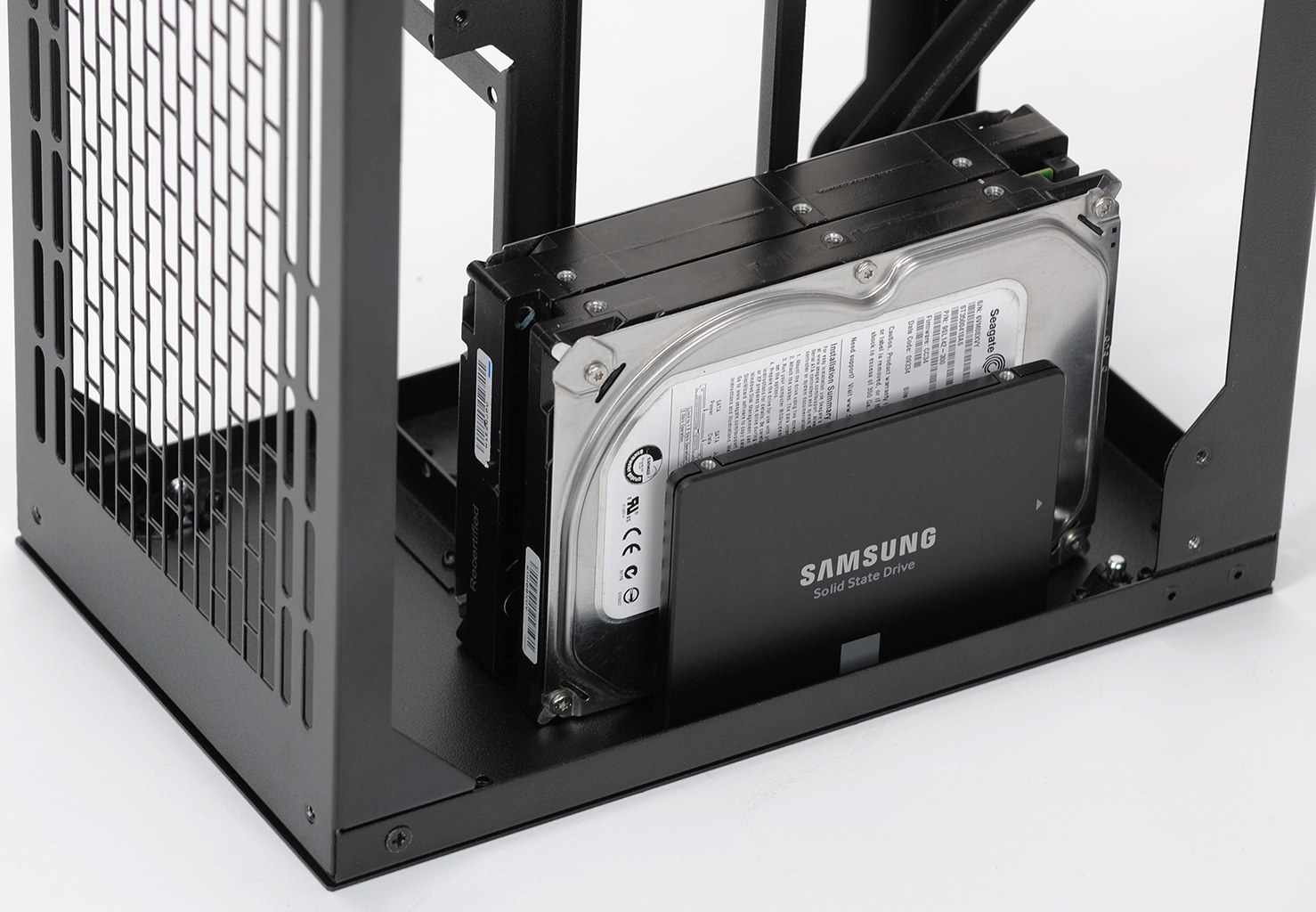

  • Optional (2x) 3.5" HDD mounting in bottom of case [restricts GPU length to 217mm]

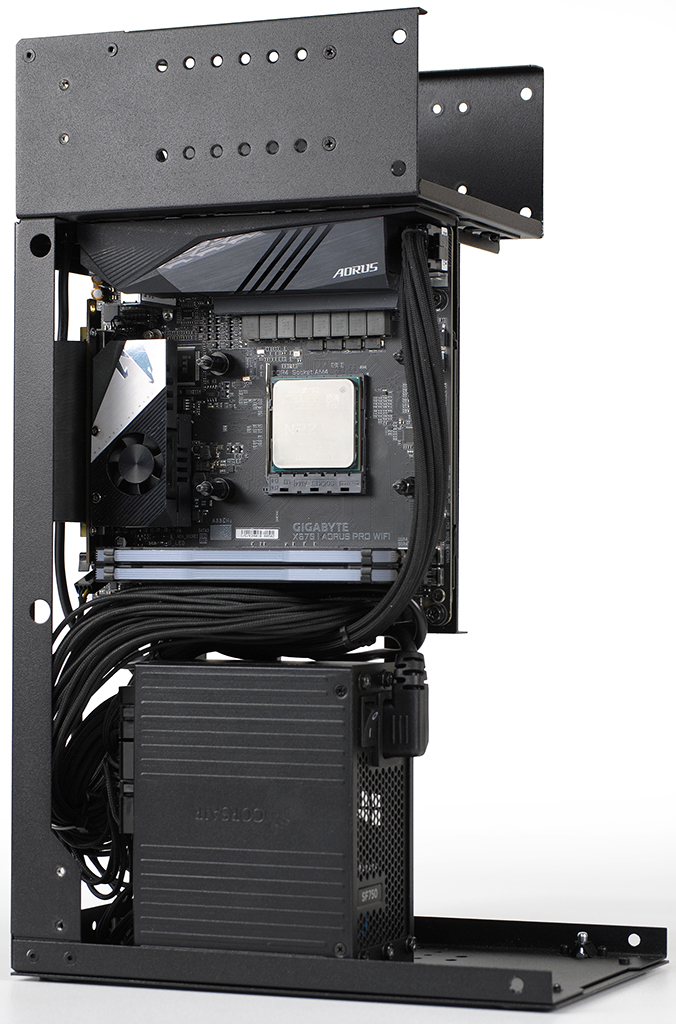

Power Supply
  • SFX
  • SFX PSU are recommended over SFX-L
  • SFX-L is supported, however it is a very tight fit and not recommended.
Front Panel I/O
  • None
Material
  • Chassis
  • ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
  • Side Panels
  • A1008 (AISI 1008) 18 Gauge Cold Rolled Steel
  • Base Plate
  • A1008 (AISI 1008) 14 Gauge Cold Rolled Steel with four 75 durometer nonmarking black SBR feet with adhesive backing
Finish
  • Powder Coat
Case Dimensions (LxWxH)
  • Case Body: 6.06" x 9.73" x 15.78" (WxDxH)
  • 154mm X 247mm X 401mm (WxDxH)
  • Base Plate: 8.61" x 11.21" x .10" (WxDxH)
  • 218.8mm x 284.8mm x 2.64mm (WxDxH)
Volume
  • 15.25 Liters
  • Volume includes covered cable cubby
Weights
  • Base Chassis (includes power cord and riser)
  • Side Panel Set + Top Panel
  • Base Plate
  • Packaging Materials
Warranty
  • Case
  • 5 Year Warranty [Chassis, USB cables, Power Button, Power Cable, PCIe Riser]
  • Liquid Coolers & Fans
  • 3 Year Warranty
  • Please see our warranty policy for additional conditions, exclusions, and limitations.
Homologation
  • HTS Tariff Code
  • 8473.30.00.02
  • Country of Origin
  • United States of America
Rev Control
  • SV540 V1 (11/13/20 - **/**/**)
  • Initial Release
