| Motherboard
|
- Extended ATX / E-ATX / EATX (305mm × 335mm max)
- ATX (305mm × 244 mm)
- Mini-DTX (203mm × 170 mm)
- Mini-ITX (170mm × 170 mm)
|

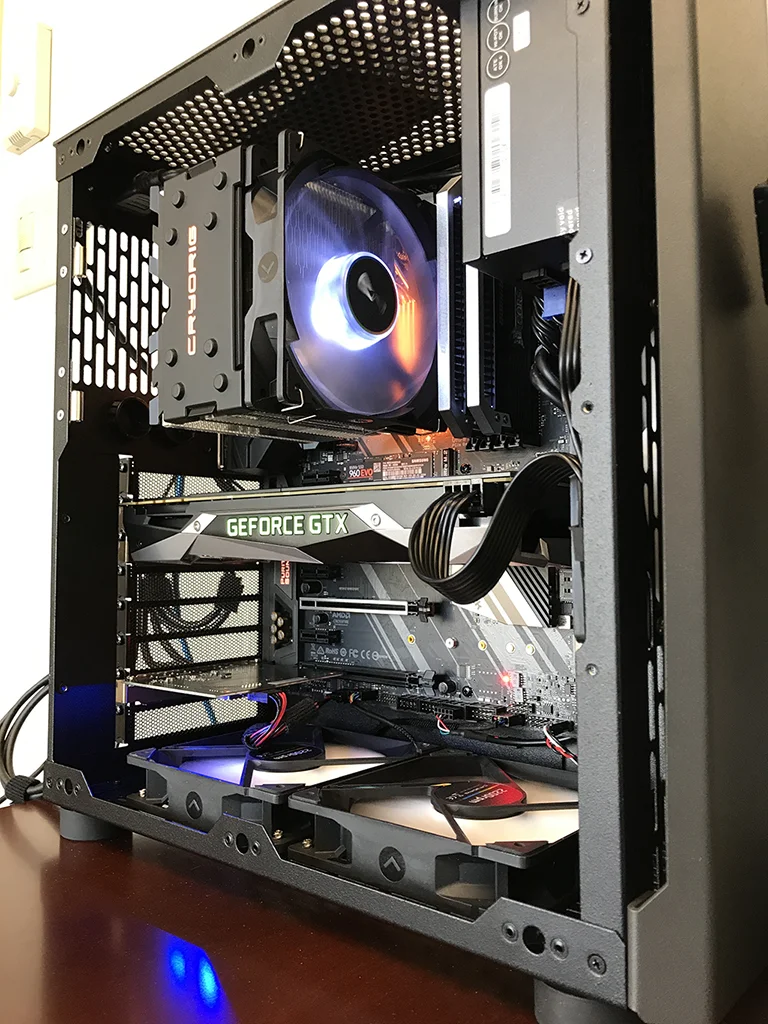

| CPU Air Coolers
|

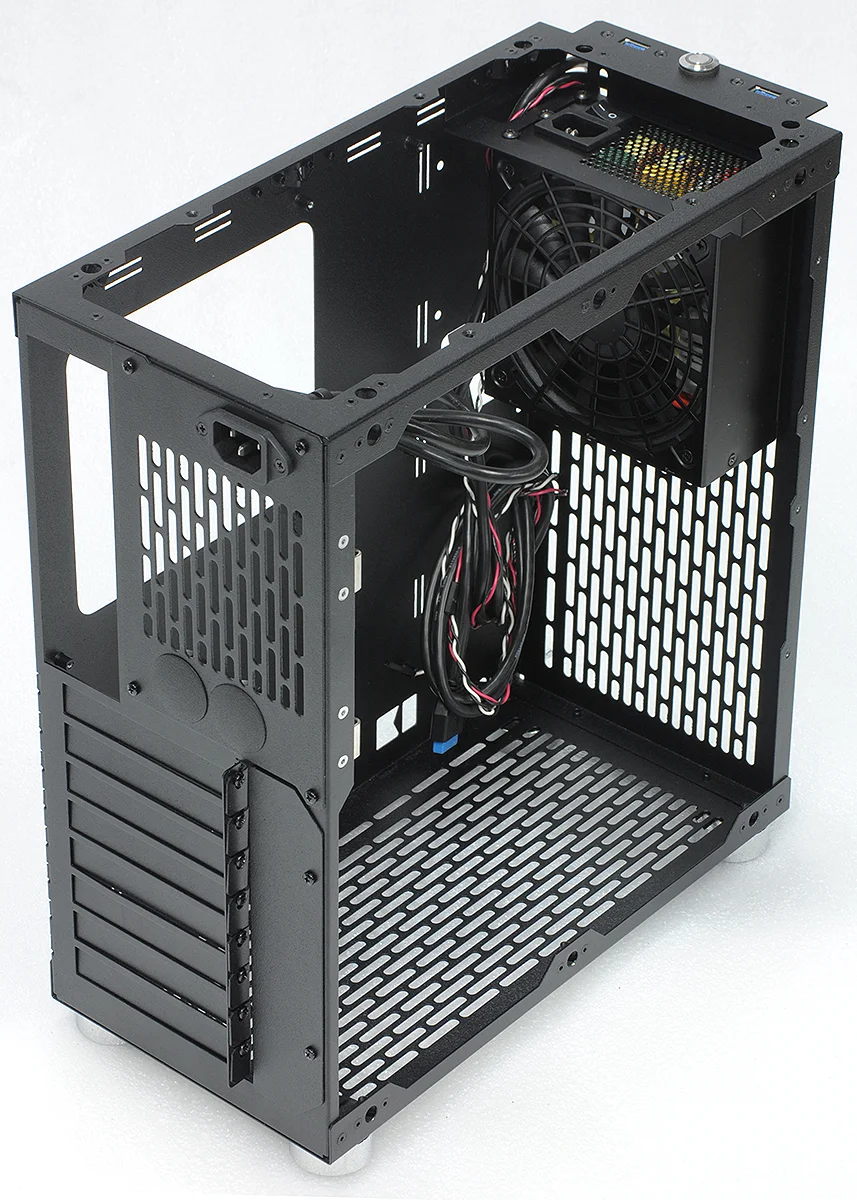

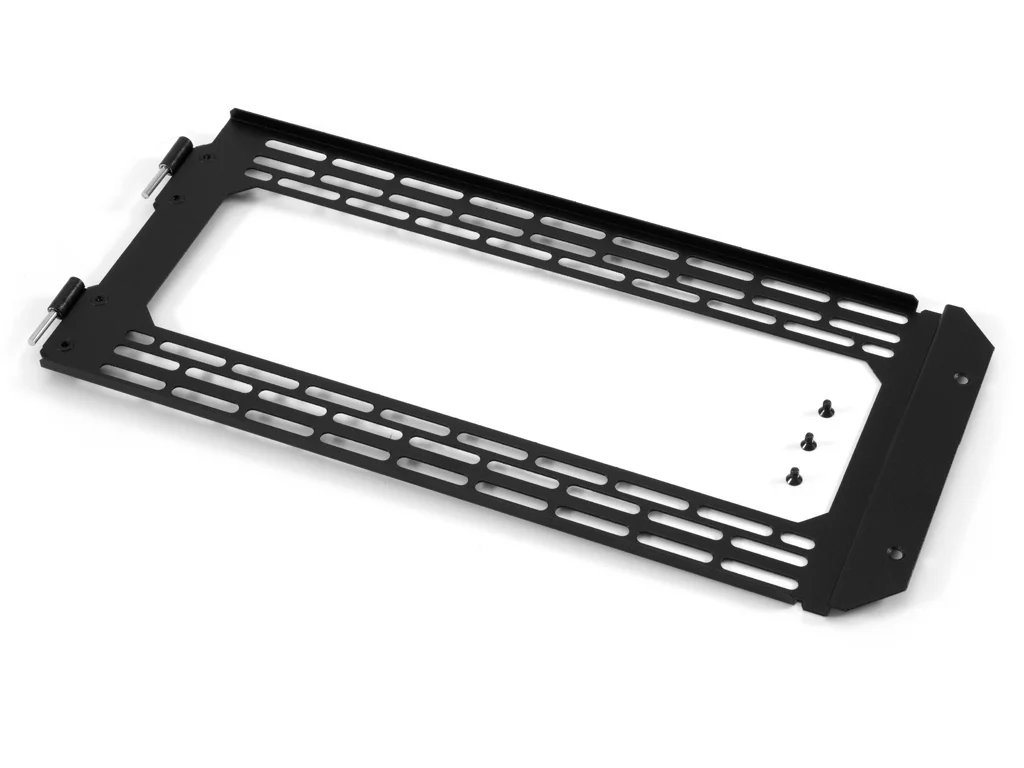

- SFX Internal Kit: 149mm with side hinge bracket removed, 142mm with the side hinge bracket installed
- bequiet! Dark Rock TF (131mm)
- ARCTIC Freezer Xtreme Rev. 2 (140mm)
- PHANTEKS PH-TC14CS (141mm)
- Noctua NH-C14S (142mm)
- ThermalTake NiC L31 (145mm)
- PCCOOLER GI-X5R (148mm)
- Thermolab Trinity (149mm) [contacts side panel]
- Scythe Fuma Rev B (149mm) [contacts side panel]
- SFX Rear Plate: 75mm max height
- Noctua NH-L9x65 (65mm)
- Noctua NH-L12S (70mm)

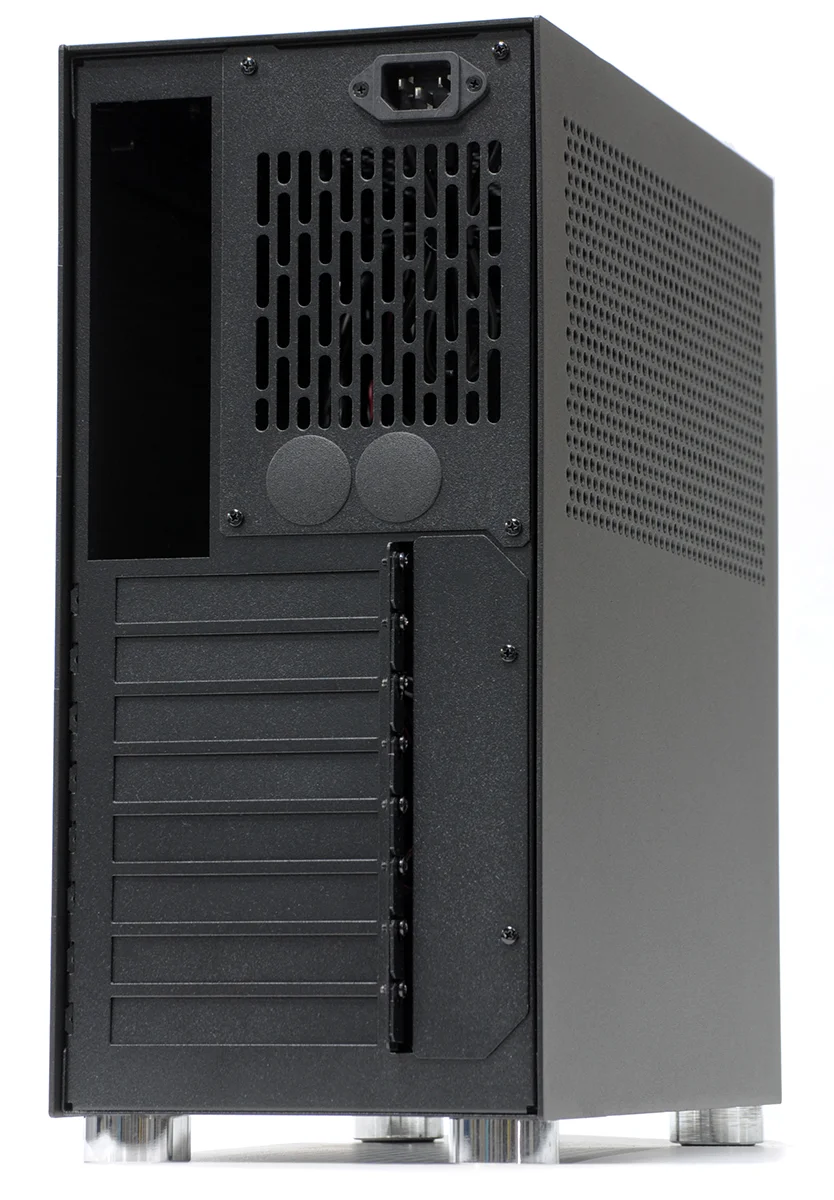

- ATX Rear Plate: 48mm max height
- Air coolers are not recommended, see all-in-one liquid coolers.
|
| AIO Liquid Cooler Support
|
- Single Radiator Options
- 1x 120mm radiator in bottom or front
- 1x 140mm radiator in bottom or front
- 1x 240mm radiator in bottom
- 1x 280mm radiator in bottom [placement may be difficult, depends on motherboard and radiator]
- Dual Radiator Options
- 2x 120mm or 140mm radiators in bottom, or mix of bottom/front.
- 1x 280mm radiator in bottom w/ 25mm fans + 1x 120mm or 140mm radiator in front of case
- [280mm radiator placement may be difficult, depends on motherboard]

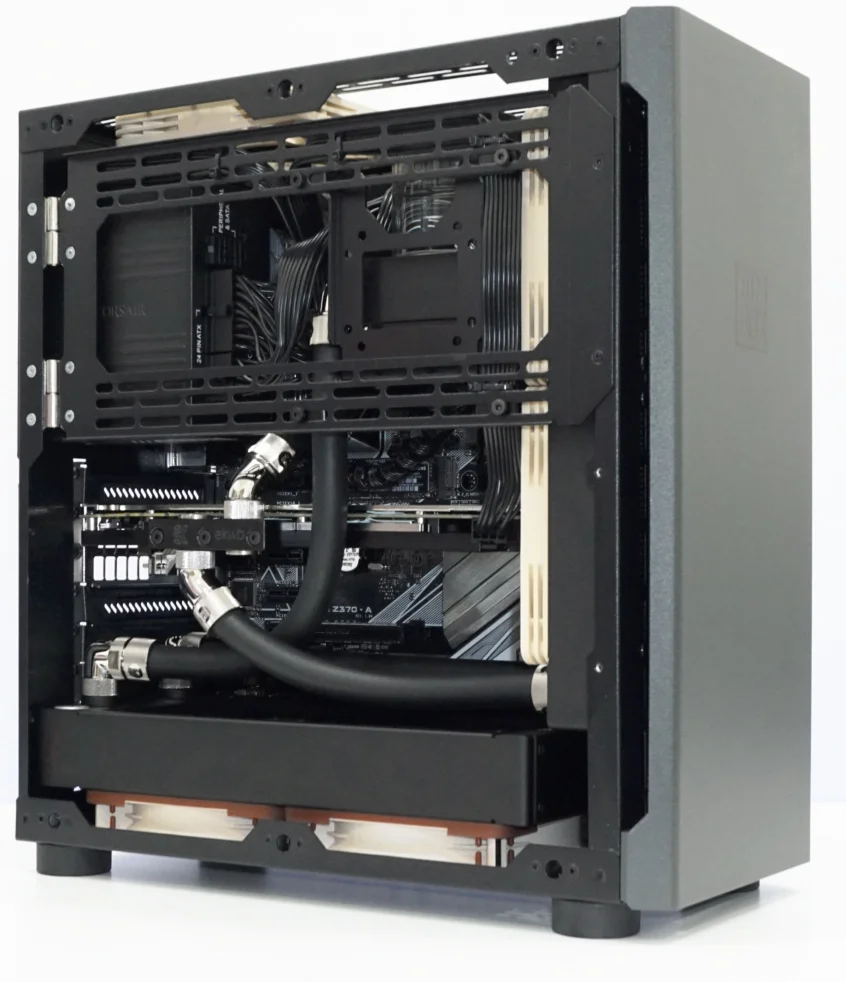

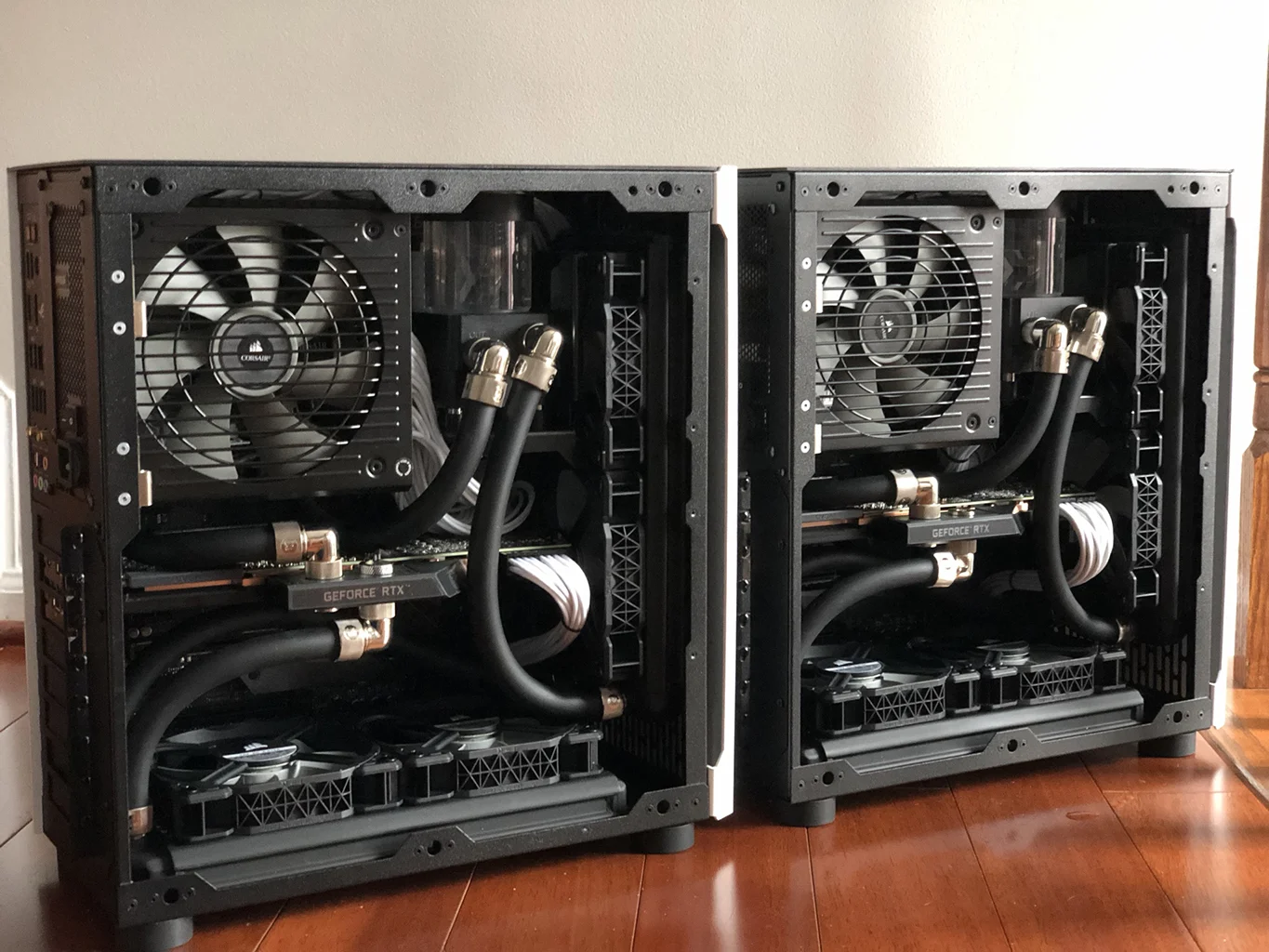

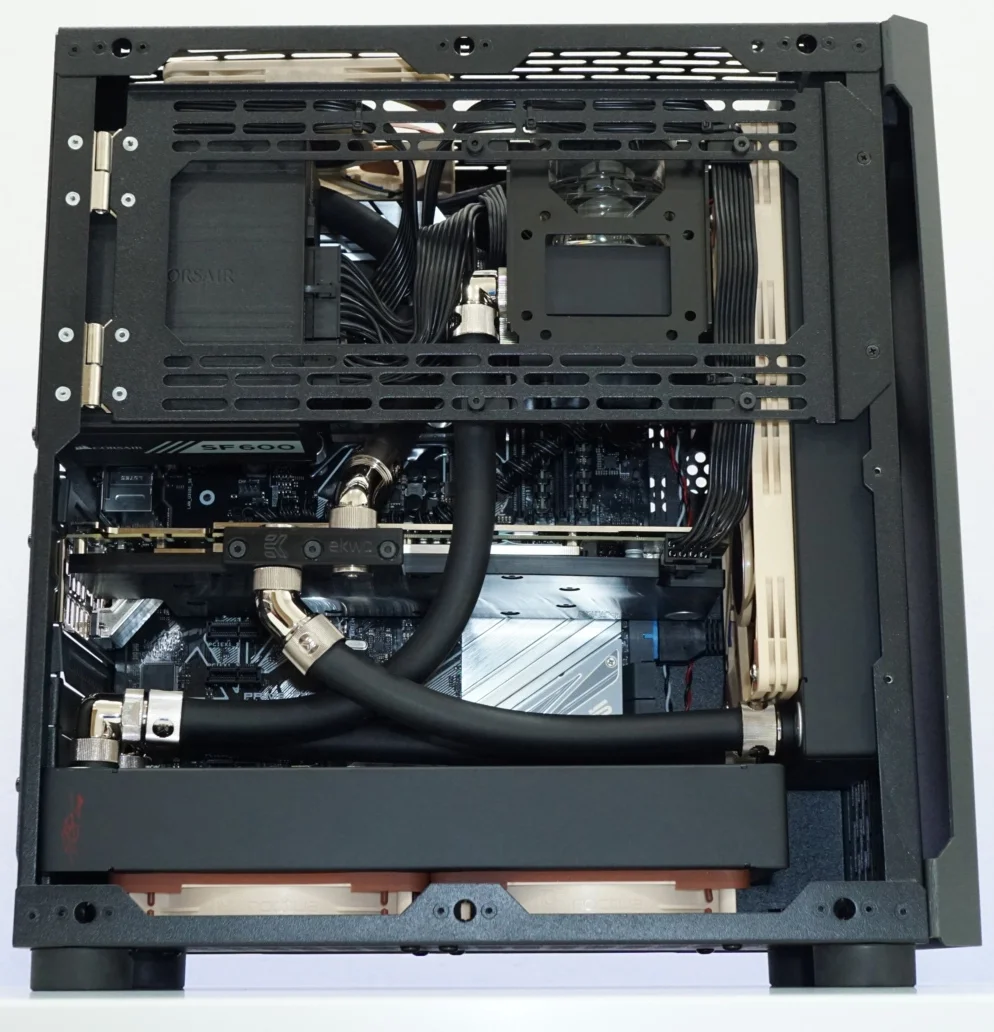

- 2x 240mm x 27.5mm thick radiator in front / bottom + 25mm fans on both
- 2x 240mm x 30mm thick radiator in front / bottom with 15mm thick fans on both
- Thickness of radiator on front of case + thickness radiator fans + GPU length must equal less than 330mm total.
- Recommended to purchase a low profile USB 3.0 motherboard header adapter for 280mm radiators in bottom of case.
- Some of these recommendations might not work with EATX motherboards.
|
| Fan Mounting
|
- One 120mm x 15mm fan on top fan bracket (120mm x 25mm possible but depends on motherboard)
- Two 140mm fans in bottom
- 120mm x 240mm radiator in front + 120mm x 240mm radiator in bottom (with SFX rear plate or ATX rear plate)
- Slim 15mm fans behind front panel
|
| Dust Filters
|
|

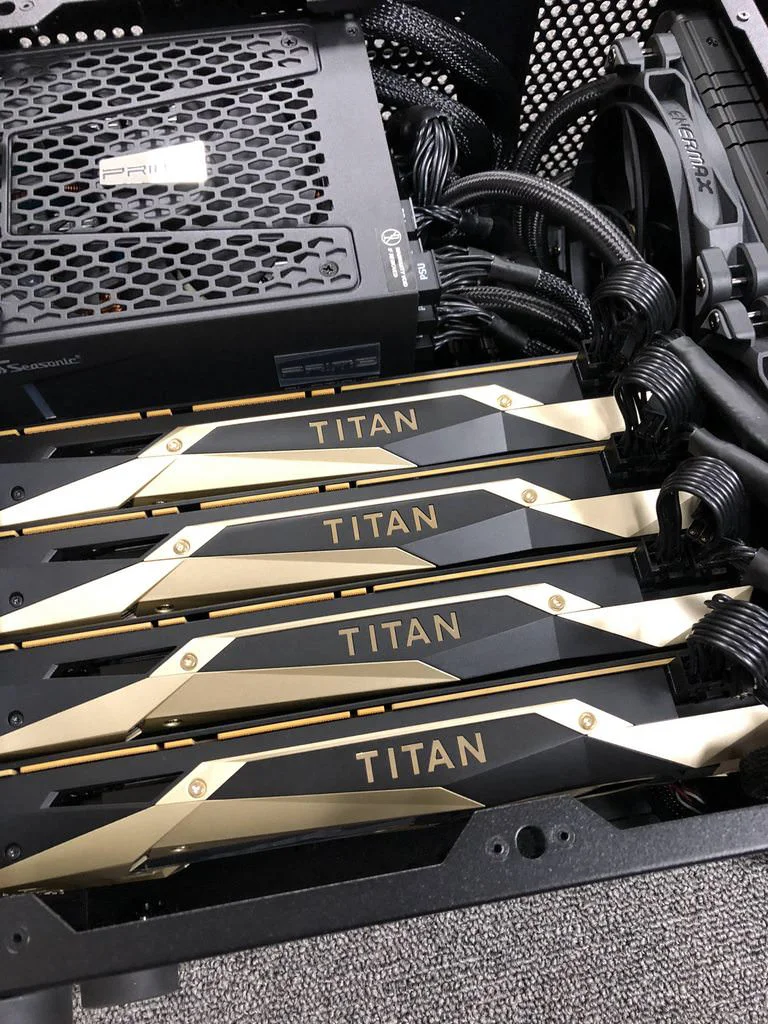

| GPU / PCIe Cards
|
|
| Storage
|
- (2x) 2.5" SSD/HDD mounting points on base chassis
- Optional bracket(s) for additional 2.5" SSD/HDDs
- Optional bracket(s) for additional 3.5" HDDs
- Brackets can be used simultaneously for a flexible combination of 3.5" and 2.5" drives
|
| Front Panel I/O
|
- (2x) USB 3.0 Ports
- (1x) Momentary Switch / Power Status LED (Ring Shape, White)
|

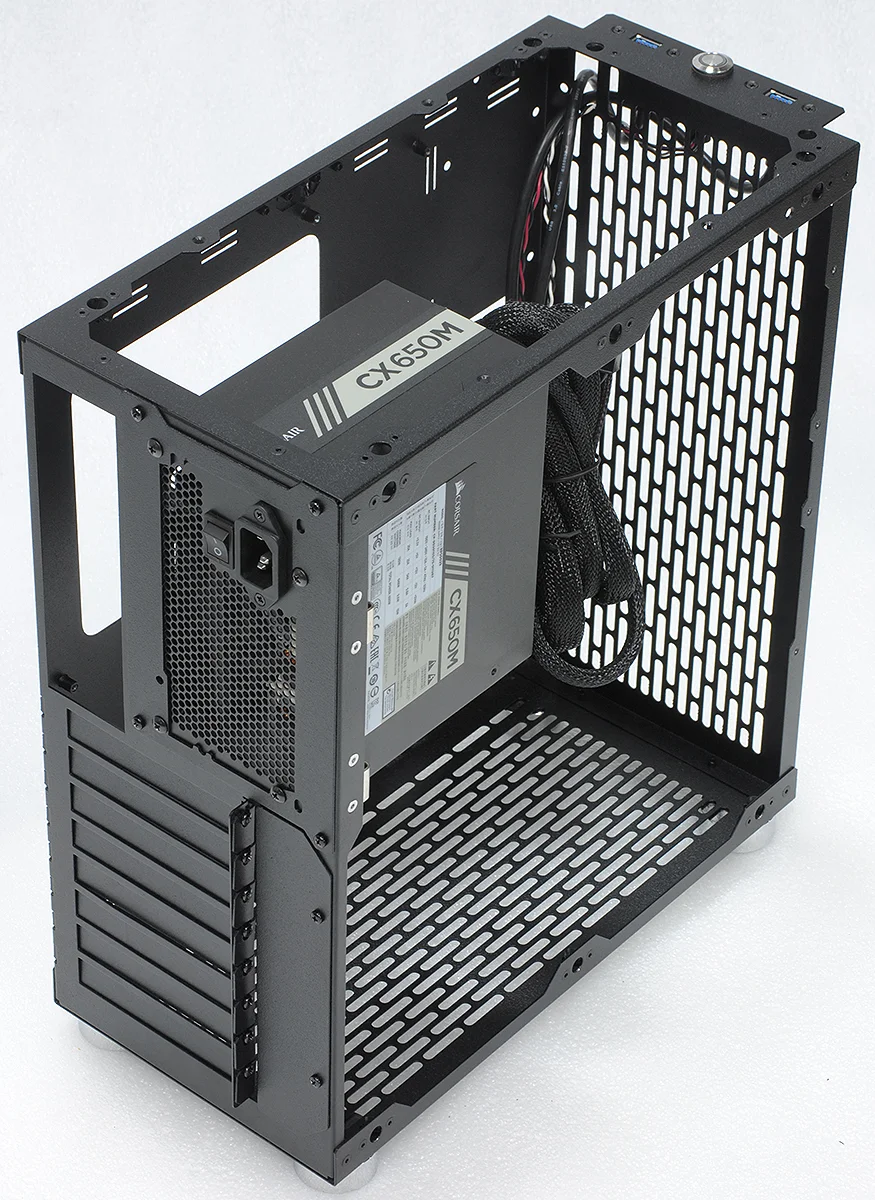

| Power Supply
|
- ATX
- Supports all lengths
- SFX / SFX-L
|
| Material
|

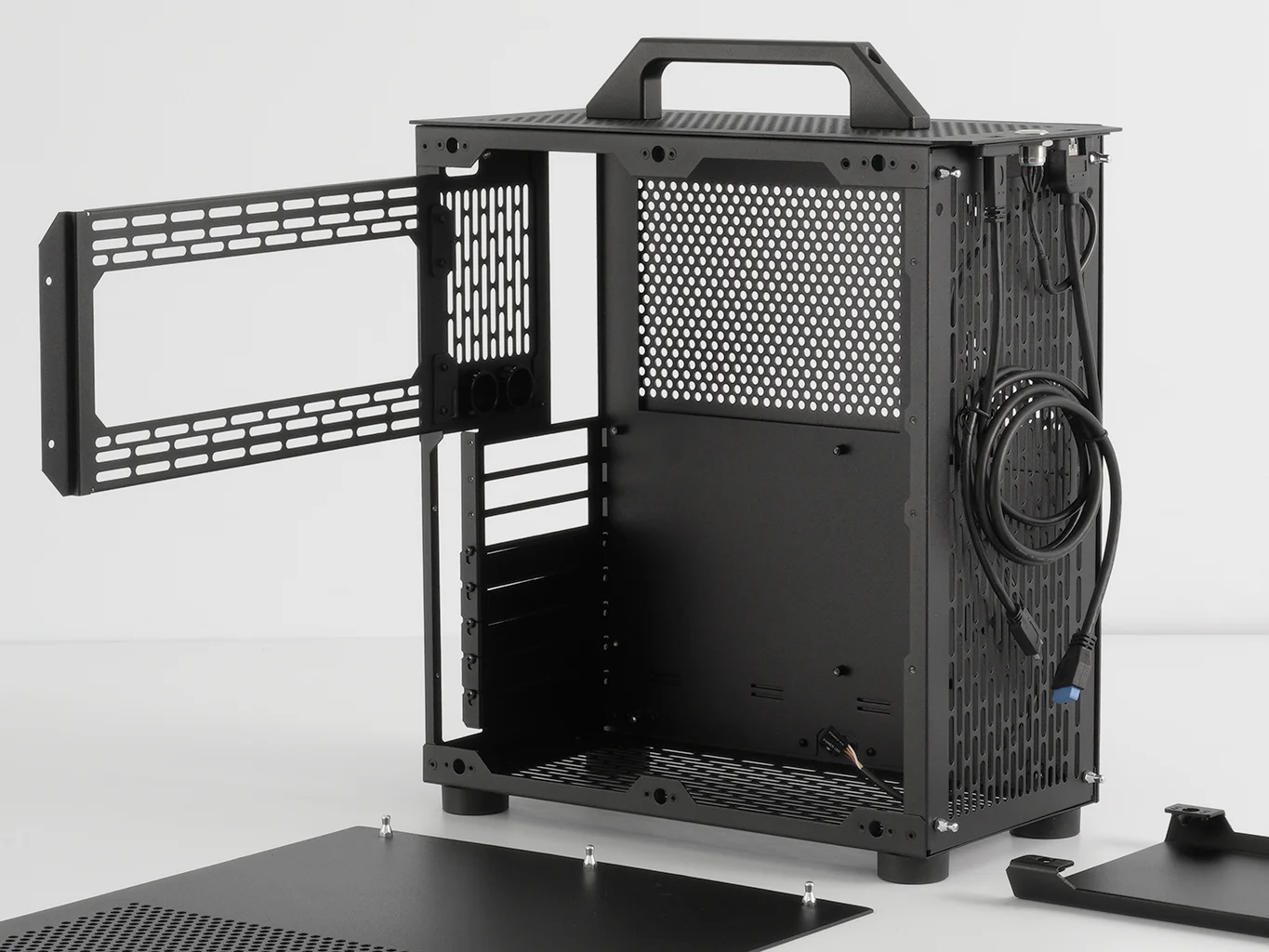

- Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Side Panels
- ASTM B209-10 5052-H32 0.080" Aluminum Sheet

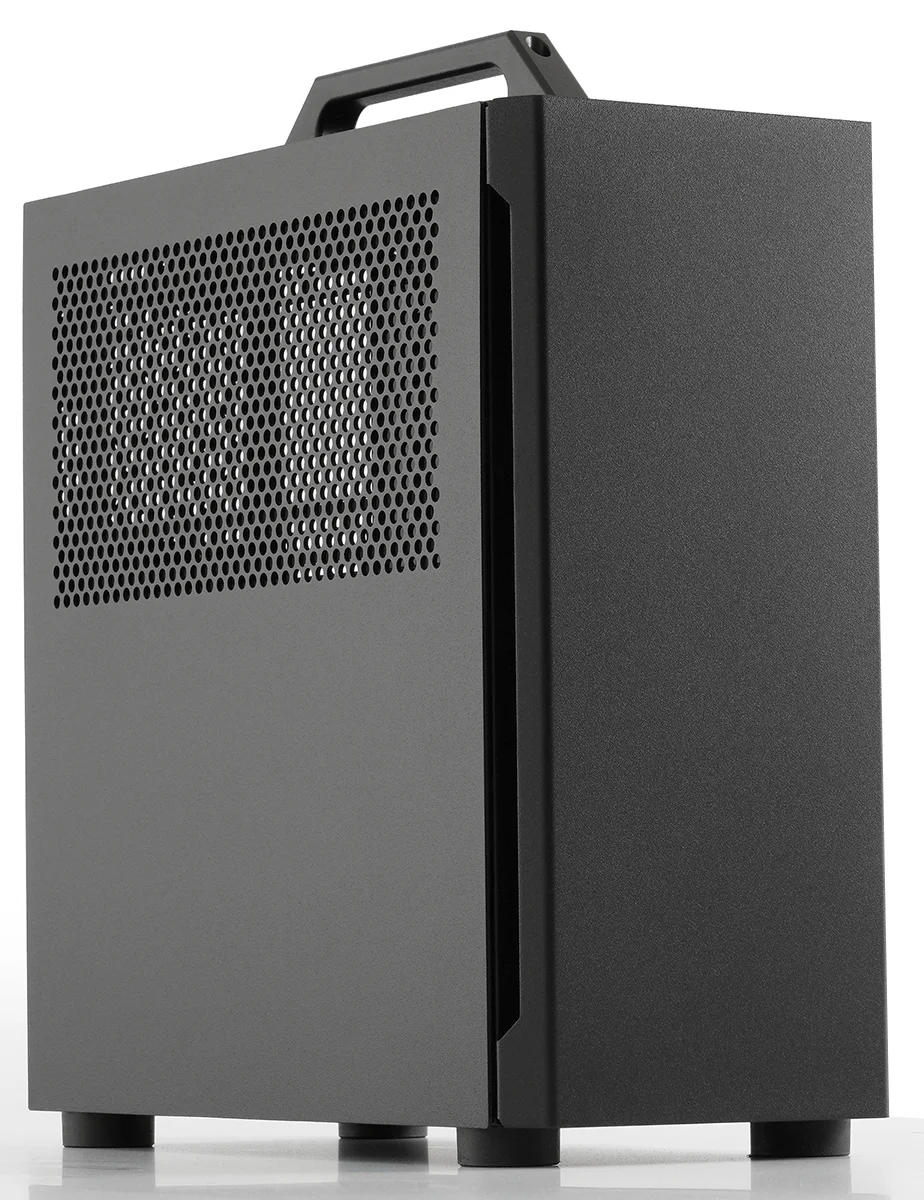

- Handle
- Machined B308M-10 Aluminum-Alloy 6061-T6
- Feet
- Cavity Molded 75 Durometer Nonmarking Black SBR
- or
- Machined B308M-10 Aluminum-Alloy 6061-T6
|
| Finish
|
- Fine texture powder coated chassis and panels
- Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
- Optional custom powder coat finishes, MOQ 25 units
|
| Branding
|
- Case is unbranded on interior and exterior of chassis.
- Optional logo screen printing (full color) on front panel for business customers, MOQ 5 units
|

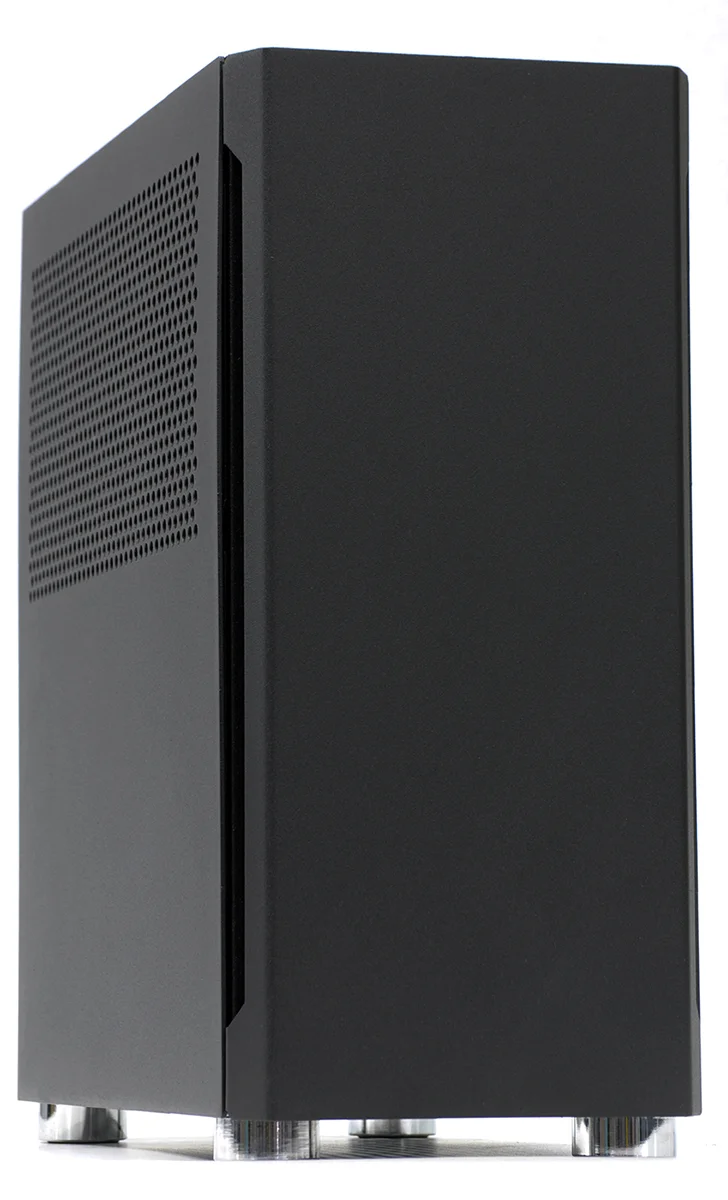

| Case Dimensions (HxWxD)
|
- 14.97" x 6.78" x 14.09" (counting feet and side panels)
- 380mm x 172mm x 358mm
- Shipping Box: 18.25" x 16.25" x 11.25"
|
| Volume
|
- 23.40 Liters
- Volume includes case feet and all protruding flanges
|
| Weight
|
- Chassis: 4.55 lbs

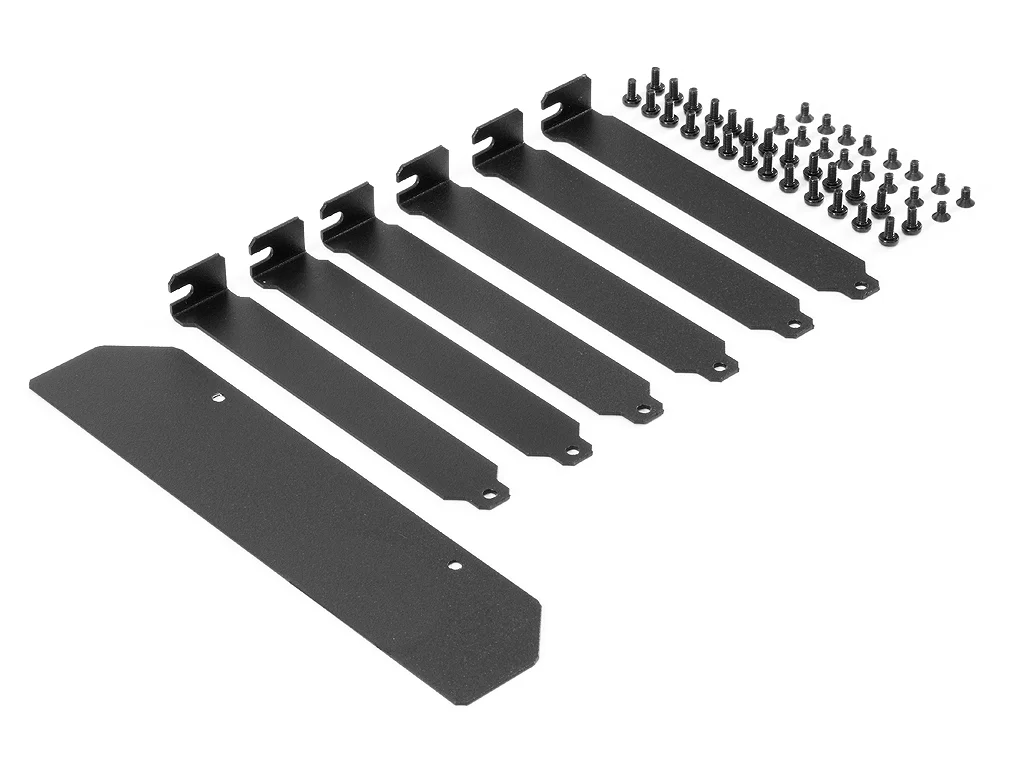

- Hardware Kit: 0.55 lbs
- Panels: 4.30 lbs
- SFX Internal Kit: 0.70 lbs
- SFX Kit: 0.30 lbs
- ATX Kit: 0.25 lbs
- Handle Kit: 0.70 lbs
- 3.5" HDD Kit: 0.40 lbs
- 2.5" SSD Kit: 0.10 lbs
- Packaging: 4.35 lbs
|
| Warranty
|
- Case
- 5 Year Warranty [Chassis, USB cables, Power Button, Power Cable]
- Liquid Coolers & Fans
- 3 Year Warranty
- Please see our warranty policy for additional conditions, exclusions, and limitations.
|
| Homologation
|
- HTS Tariff Code
- 8473.30.00.02
- Country of Origin
- United States of America
| Rev Control
|
- 1.0 (11/28/18 - 2/9/18)
- Initial Release
- 1.1 (2/16/18 - ~5/14/19)
- Removed flange from top panel bracket below middle ballstud that contacted hinge bracket.
- Ballstud clips changed to 0.017" thick steel (fixes "hard to remove panels" issue)
- Changed all 4-40 assembly hardware to rivets on top and bottom chassis inner frame assembly.
- Fixed various interference and tolerance issues.
- Power switch now has labeled connector terminals.
- Discontinued Half Window / Half Vented panel option.
- Added Full Window panel option.
- Added Wood Top Panel options.
- Added Chrome Handle and Chrome Feet option.
- Discontinued Ecru Beige color option. (available until out of stock)
- 1.2 (5/14/19 - *)
- Replaced all remaining 440 thread hardware with metric M3.
- Modified chassis SSD cutout for ease of access.
- Modified cutout on back of case for easier access to CPU cooler mounting and some M.2 slots.
- Reduced price on Handle and Chrome Feet.
- Temporarily discontinued Wood Top panels.
- Added unvented black top panel.
- Discontinued Carmine Red color option. (available until out of stock)
|
| |
