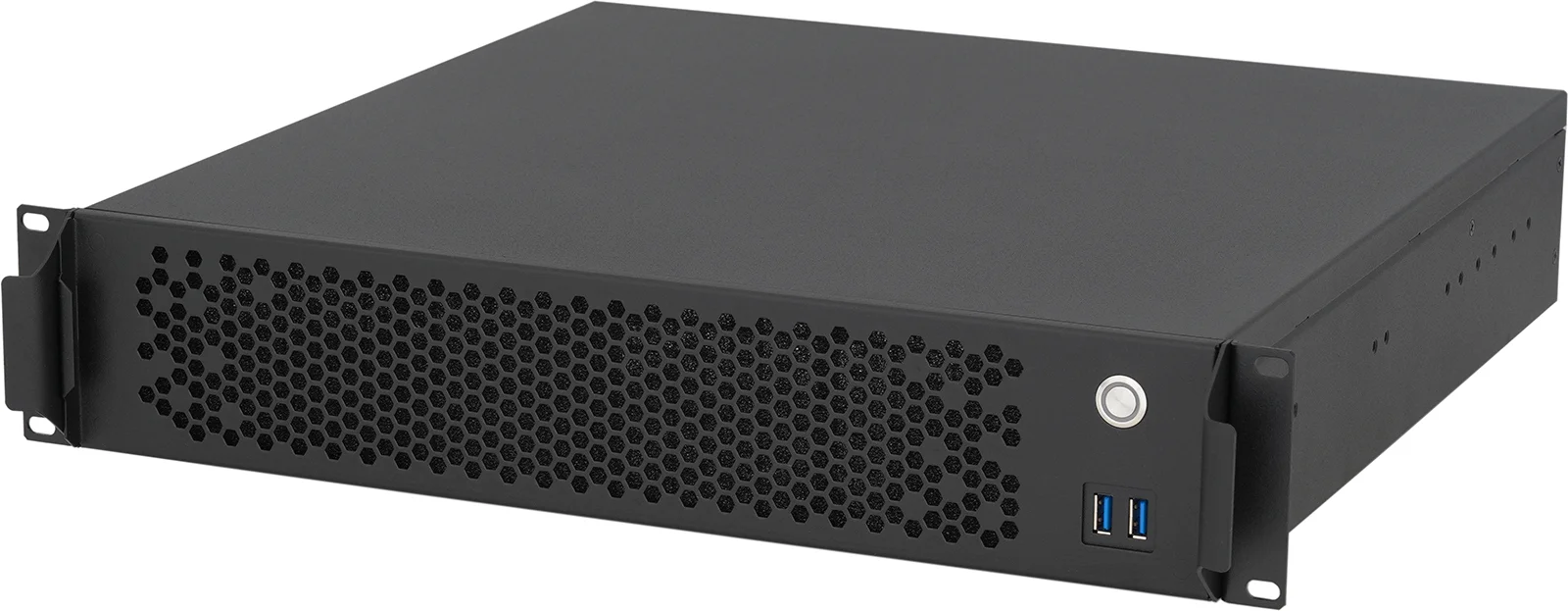

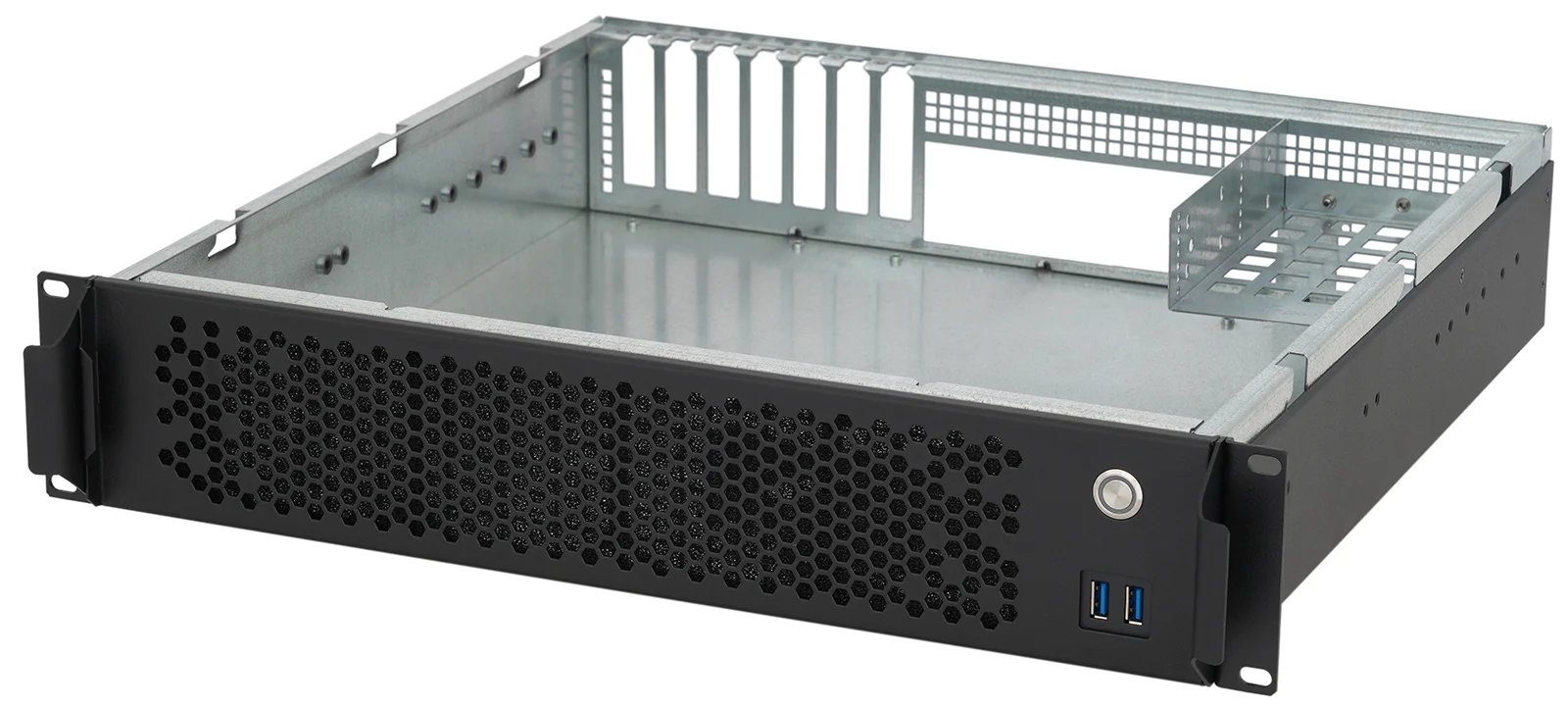

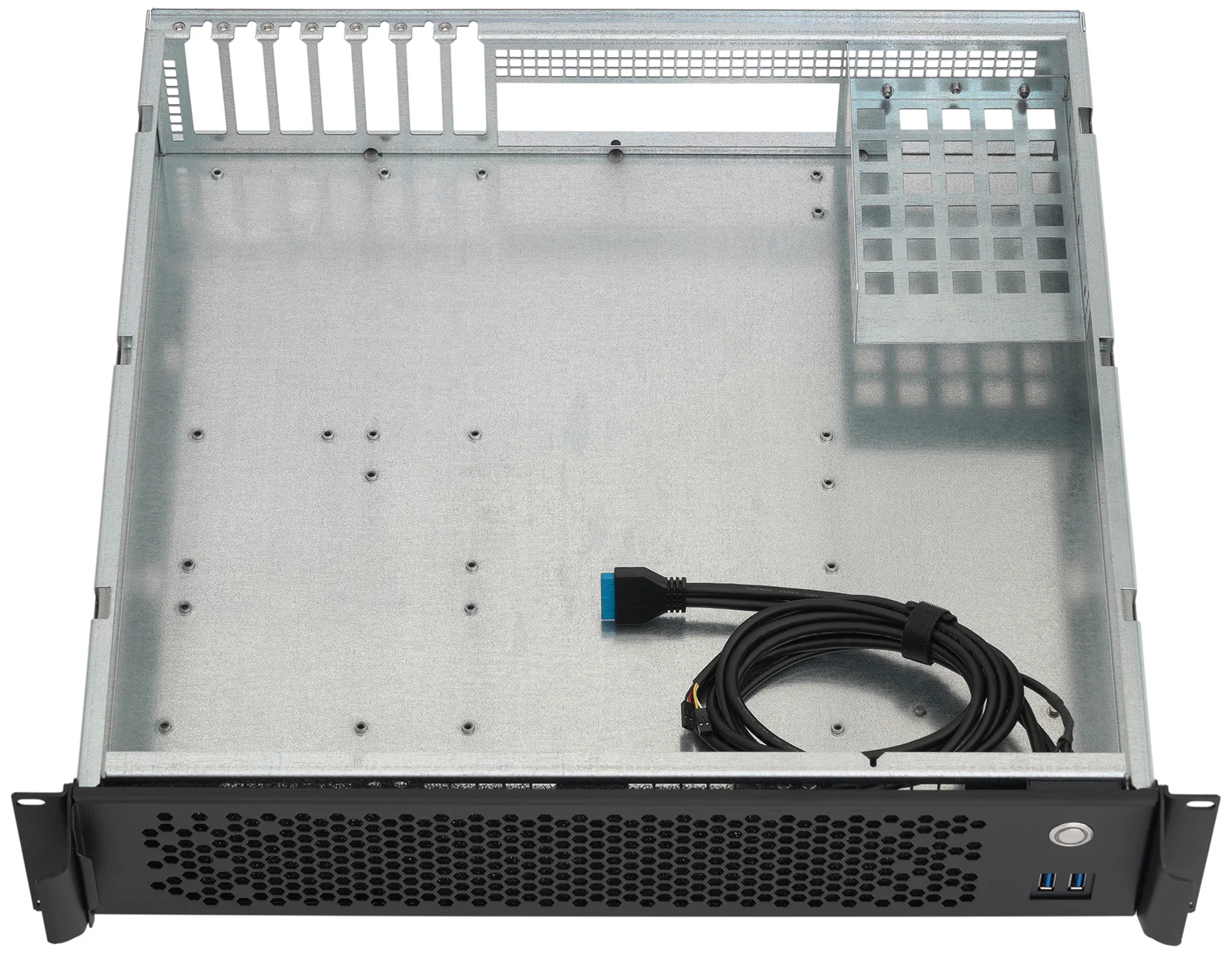

CX2177a | 17" 2U for EATX / SSI-EEB / FlexATX PSU |

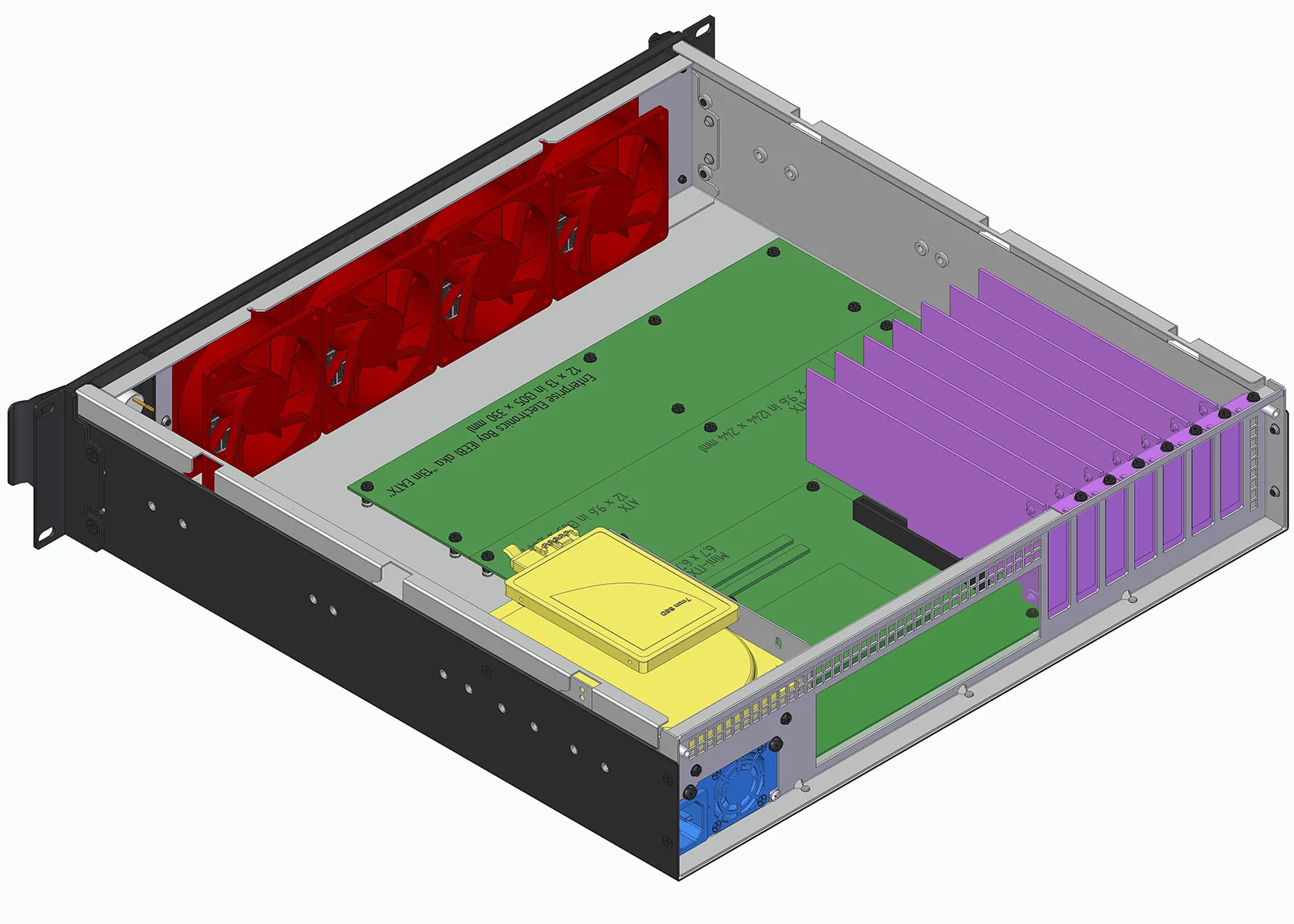

- Supports SSI-EEB or eATX (up to 13" deep) motherboards
- Seven(7) Half-Height Full-Length (HHFL) PCIe Card Slot Cutouts
- Mounting for up to four(4) 80mm fans, support for air coolers up to 66mm tall
- Internal storage for up to two(2) 3.5" HDD, seven(7) 2.5" SSD, or a mix of both
- Mounting for one FlexATX form factor power supply
- Made in USA with US materials, guaranteed availability for 8+ years
| |
Rails Backorder
Our 14" General Devices rails are currently on backorder, and will take additional time to ship. Any orders placed with the 14" General Devices rails will ship without them, and a seperate shipment will go out once the rails are available again. There will be no extra charge with this additional shipment. We apologize for any inconvenience, and thank you in advance for your patience. Please contact us at sales@sliger.com or 1-775-356-5595 for more details.
Replacement / Optional Parts
This page is for replacement parts for existing cases. New case orders per the configure tab include all required panels, brackets, cables, screws, and accessories for assembly per the options selected on that tab.
Technical Specifications |
Motherboard
|
- SSI-EEB (305mm x 330mm) [12" x 13"]
- SSI-CEB (305mm x 267mm) [12" x 10.5"]
- EATX (up to 325mm x 330mm) [up to 12.8" x 13"]
- ATX (305mm × 244 mm) [12" × 9.6"]
- MicroATX (245 x 245mm) [9.6" × 9.6"]
- FlexATX (229 × 191 mm) [9" × 7.5"]
- Mini-DTX (203mm × 170 mm) [8" × 6.7"]
- Mini-ITX (170mm × 170 mm) [6.7" × 6.7"]
|
CPU Air Coolers
|
- Up to 66mm tall
- Sliger recommends the ID Cooling IS-55 CPU Cooler for most builds.
- Performance and reliability of the IS-55 can be enhanced by swapping the stock fan for a Noctua A12x15 120mm Slim Fan.
- Server grade and HEDT 2U CPU coolers are available for all CPUs and sockets through Dynatron or CoolJag USA.
- For more options, see this PCPartPicker.com list of compatible retail CPU coolers.
- CAUTION: 60mm or taller "Top Down Coolers" such as Noctua L65 are NOT recommended.
|
---|
Fan Mounting
|
- Mounting spots for four(4) 80mm fans
- RECOMMENDED FANS: Noctua NF-A8 PWM, Thermalright TL-B8, or Arctic P8 MAX
- Server and HEDT CPUs may require very high airflow fans such as ARCTIC S8038-10K or equivalent.
Dust Filter
|
- Includes one(1) washable / reusable dust filter
- 30ppi open cell reticulated polyether filter foam with flame resistant rating, UL94 HF1, UL FILE NO E93229(N)
- Alternate density and/or materials such as aluminum mesh available for OEM projects
|
---|
GPU / PCIe Cards
|

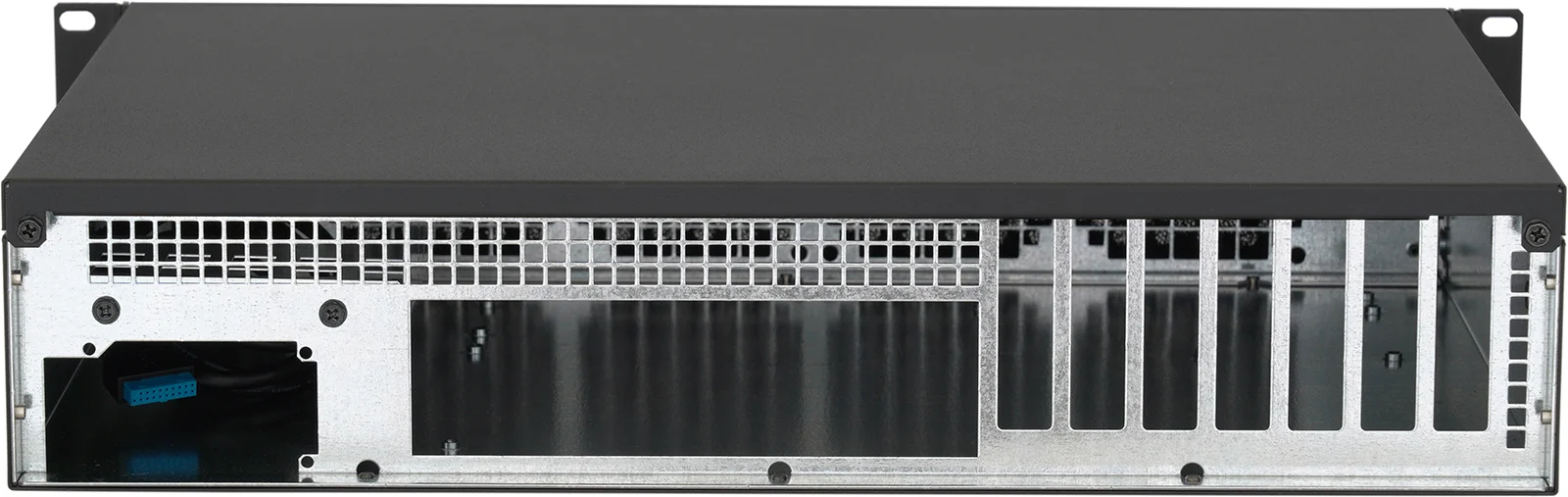

- Seven(7) Half Height PCIe slot cutouts

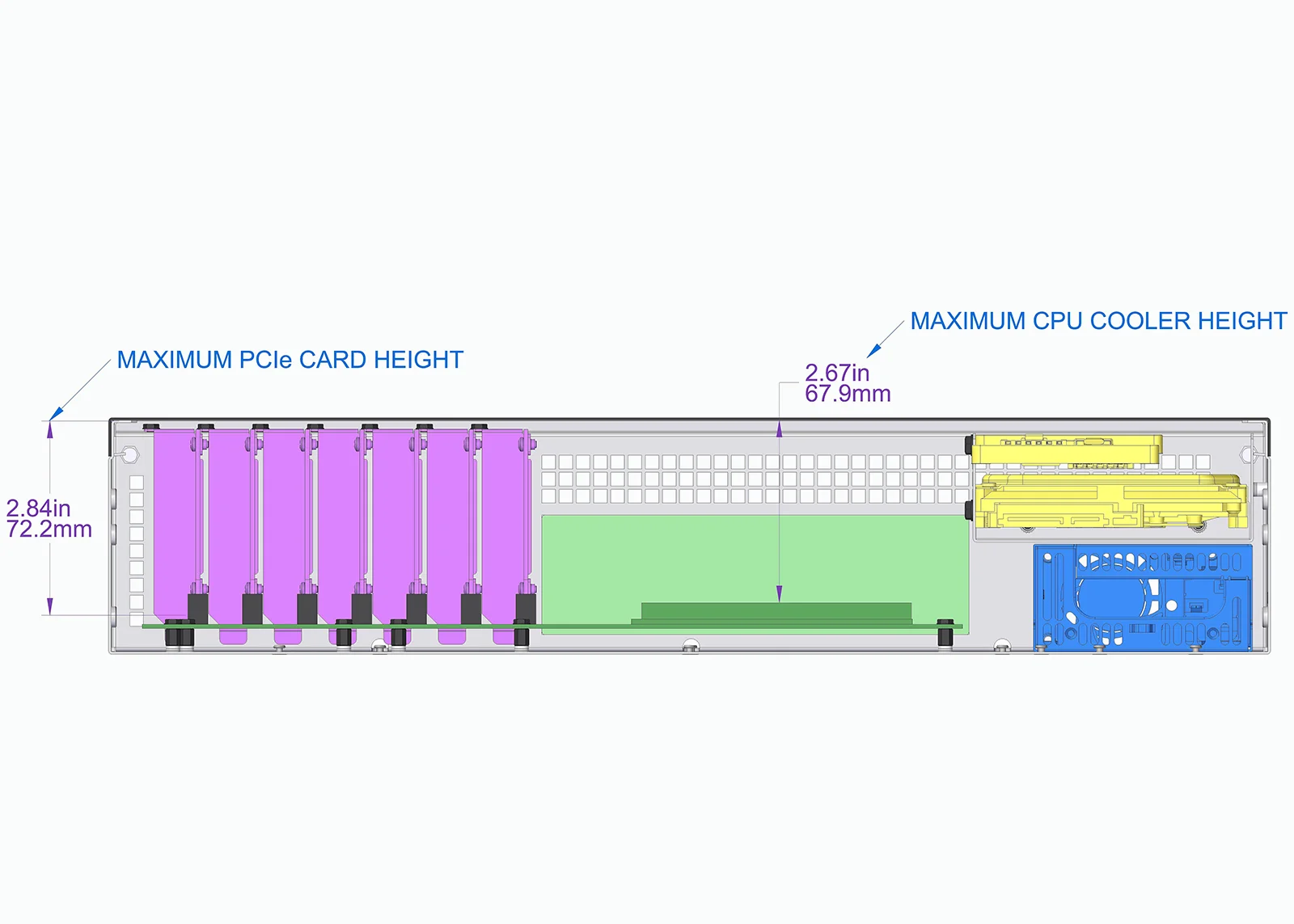

- Max Height: 72mm from bottom edge of PCIe finger tab to lid of case
- Max Length with 25mm fans: 276mm - indluding power connectors
- Max Length with 38mm fan: 263mm - including power connector
- Cards may be refered to as 2U height, low-profile, or MD1/MD2/MD3 form factor
- Half height vented slot covers are provided with case
- Compatible GPUs
- Gigabyte 4060 TI 8GB Low Profile, Intel ARC A310 single slot or A380 dual slot, AMD RX 550 LP, Nvidia A4000 SFF or A2000
|
---|
Storage
|

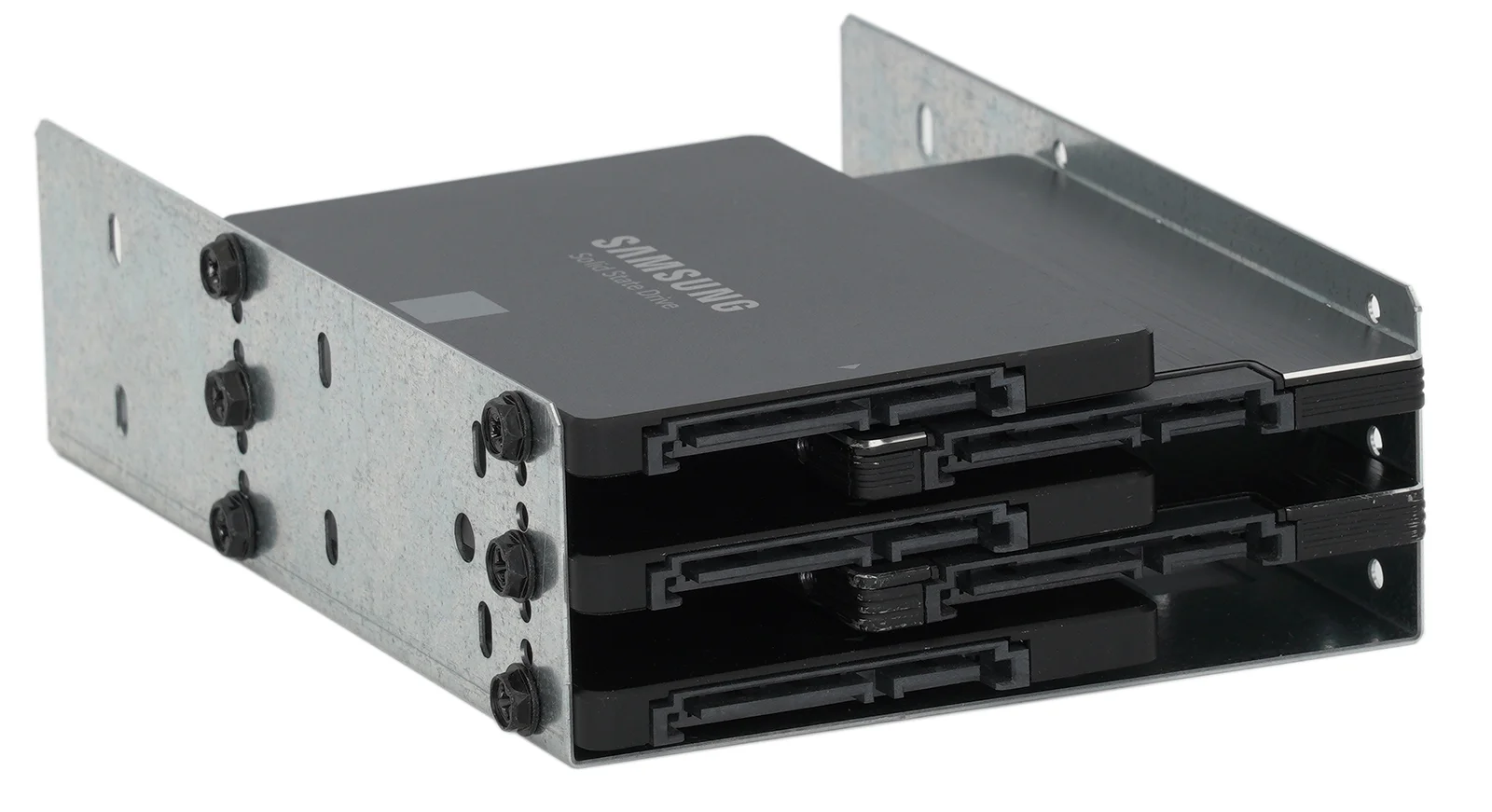

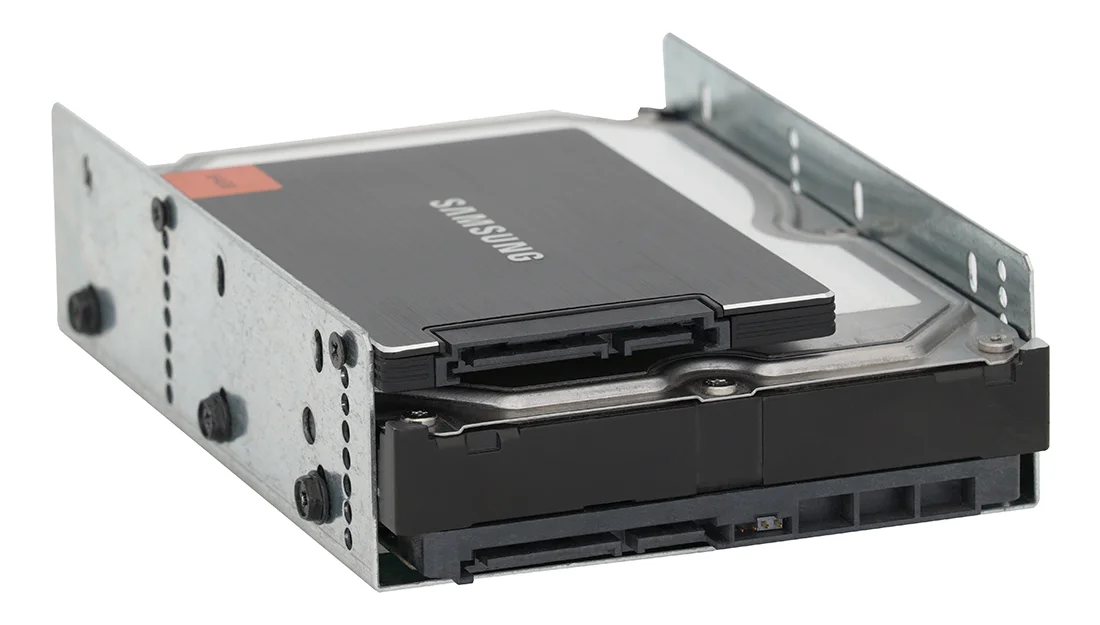

- Internal mounting bracket with configuration options for:
- Two(2) single or dual-platter 3.5" HDD
- Both 3.5" HDDs must be less 20mm / .760" thick
- One(1) full-sized 3.5" HDD, and one(1) 2.5" SSD up to 15mm thick
- Up to five(5) 2.5" SSD
- SSDs must be 7mm thick
- Sliger recommends use of M.2/NVMe and PCIe based storage on motherboard when possible
- Motherboard PCIe slots can be utilized for M.2 drives via Sabrent PCIe to M.2 or equivalent
|

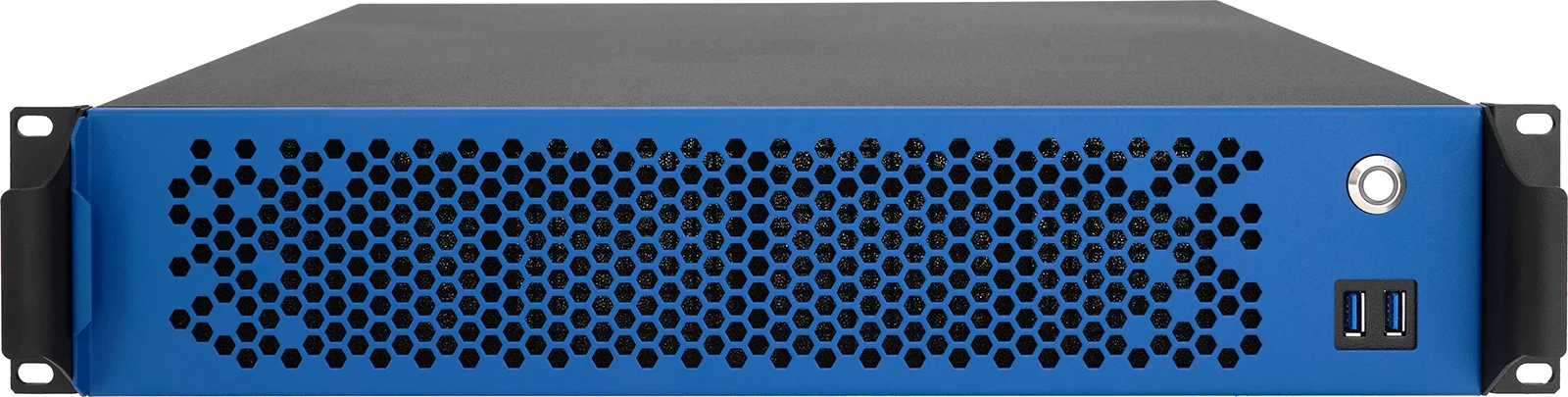

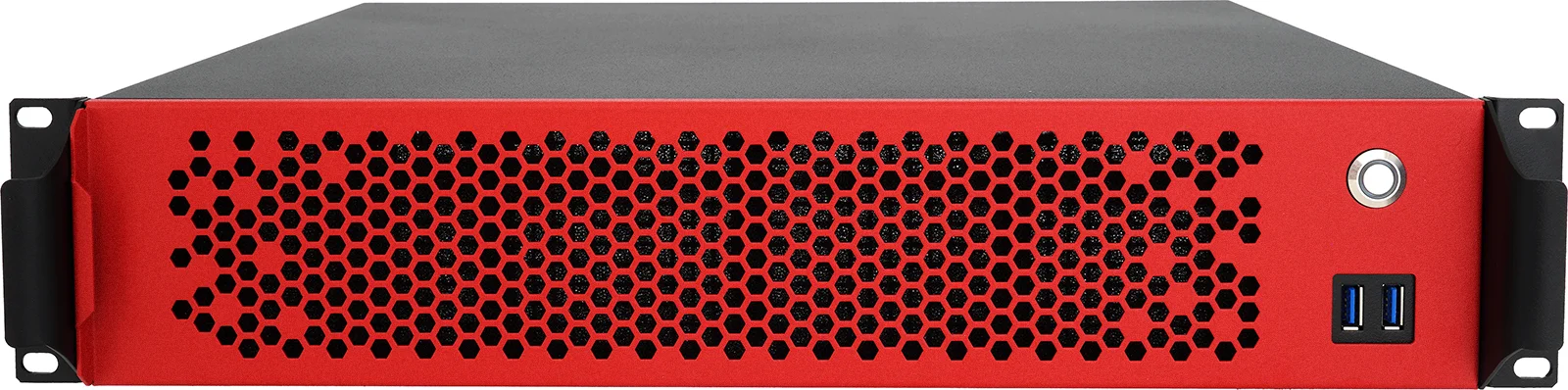

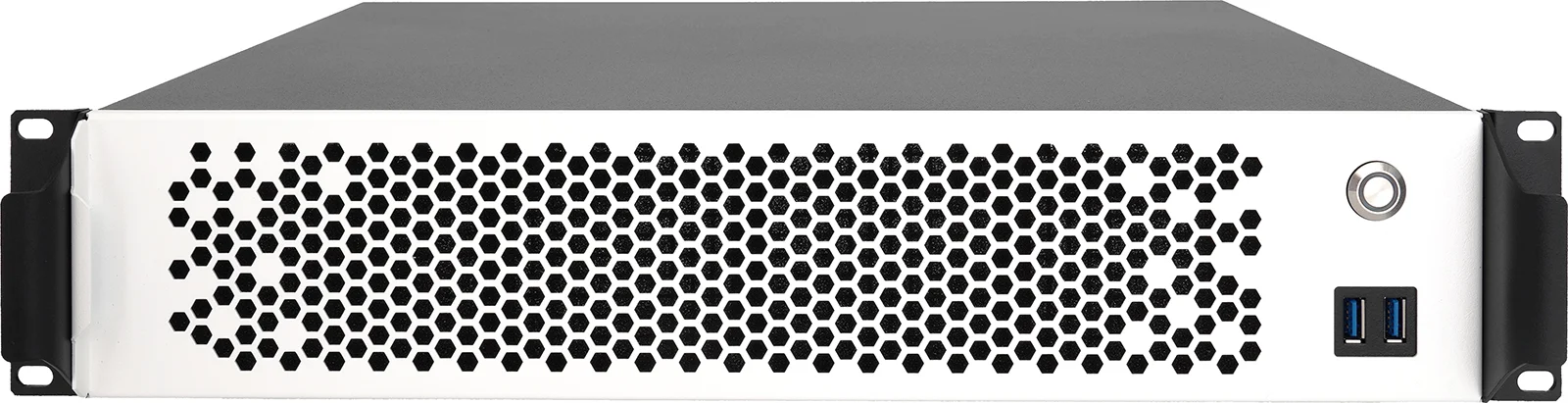

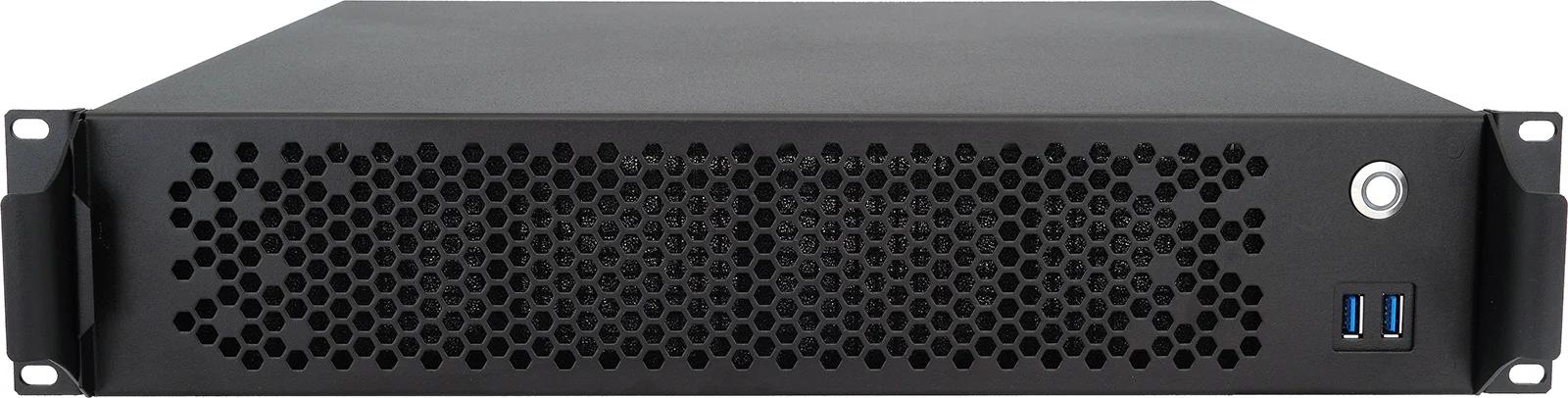

Front Panel I/O
|
- Two(2) USB 3.0 Type A Ports
- One(1) 16mm Momentary Power Button with integrated Power Status LED (Ring Shape, White)
Power Supply
|
|
---|
Rack Rails
|
- General Devices C300-S Series
- Rack Rails are not included by default, must be purchased on the configuration or parts page.
- Brand Compatibility
- Brands such as iStarUSA TC Rails are natively compatible.
- Please contact our support team for any compatibility questions.
| Warranty
|
- Case and Rack Rails
- 5 Year Warranty
- Liquid Coolers & Fans
- 3 Year Warranty
- Please see our warranty policy for additional conditions, exclusions, and limitations.
|
---|
Rev Control
|
- 1.0 (10/01/24 - **/**/**)
- Initial Release
|
---|
| |

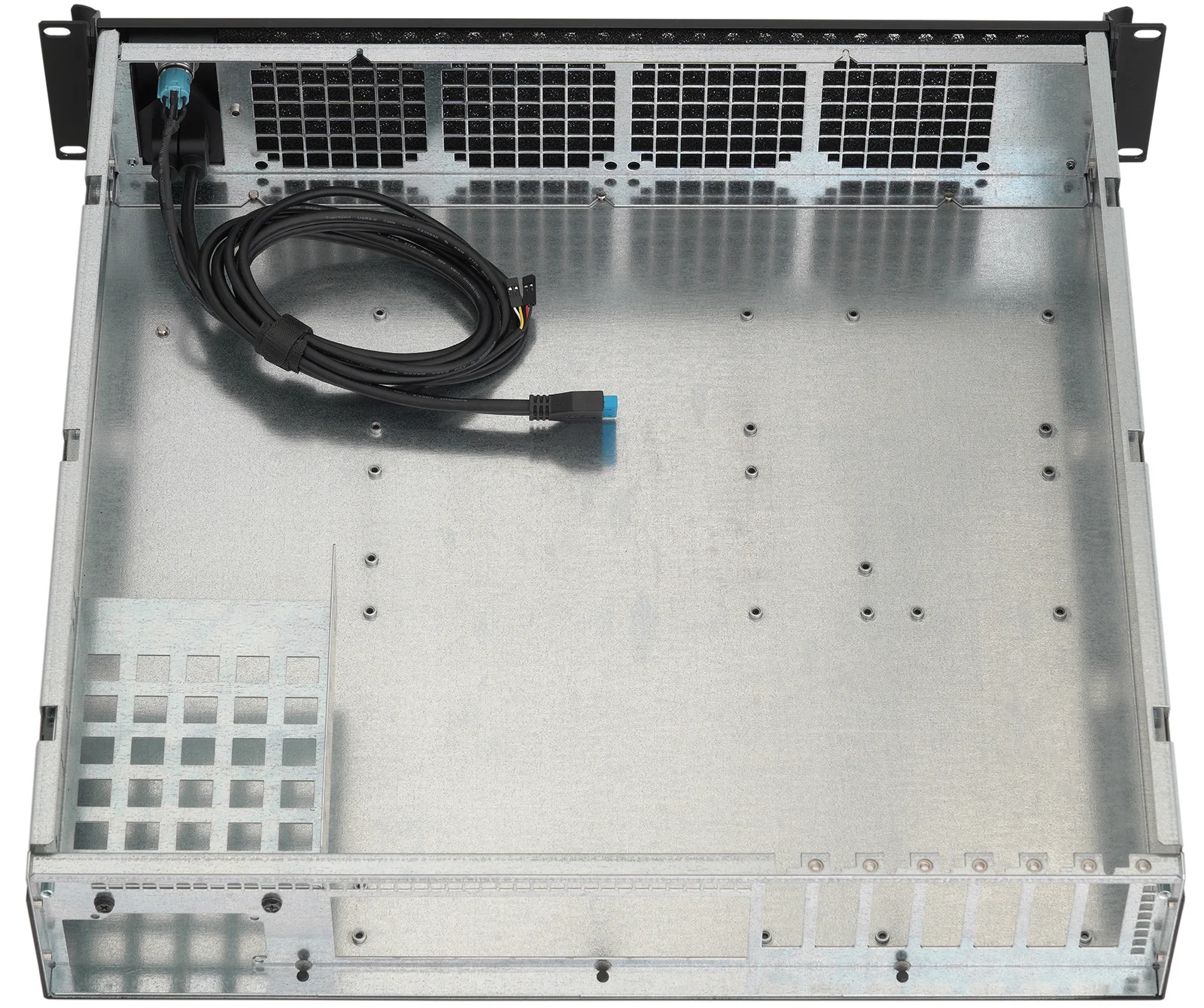

Case Mechanicals |
Material
|
- Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Front Panels
- ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
- Rack Ears
- ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
|
Finish
|
- Semi-gloss fine texture powder coat finish
- Powder coat is an outdoor architectural grade polyester epoxy blend
- Compliant with SAE AMS-STD-595 / FED-STD-595 color number 27038 (ANA 514)
- Custom powder coat finishes are available, additional labor/material charges and 10 unit MOQ will apply.
- Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
|
Branding
|
- Case is unbranded on interior and exterior of chassis.
- Optional logo screen printing (full color) on front panel for business customers, MOQ 10 units
|

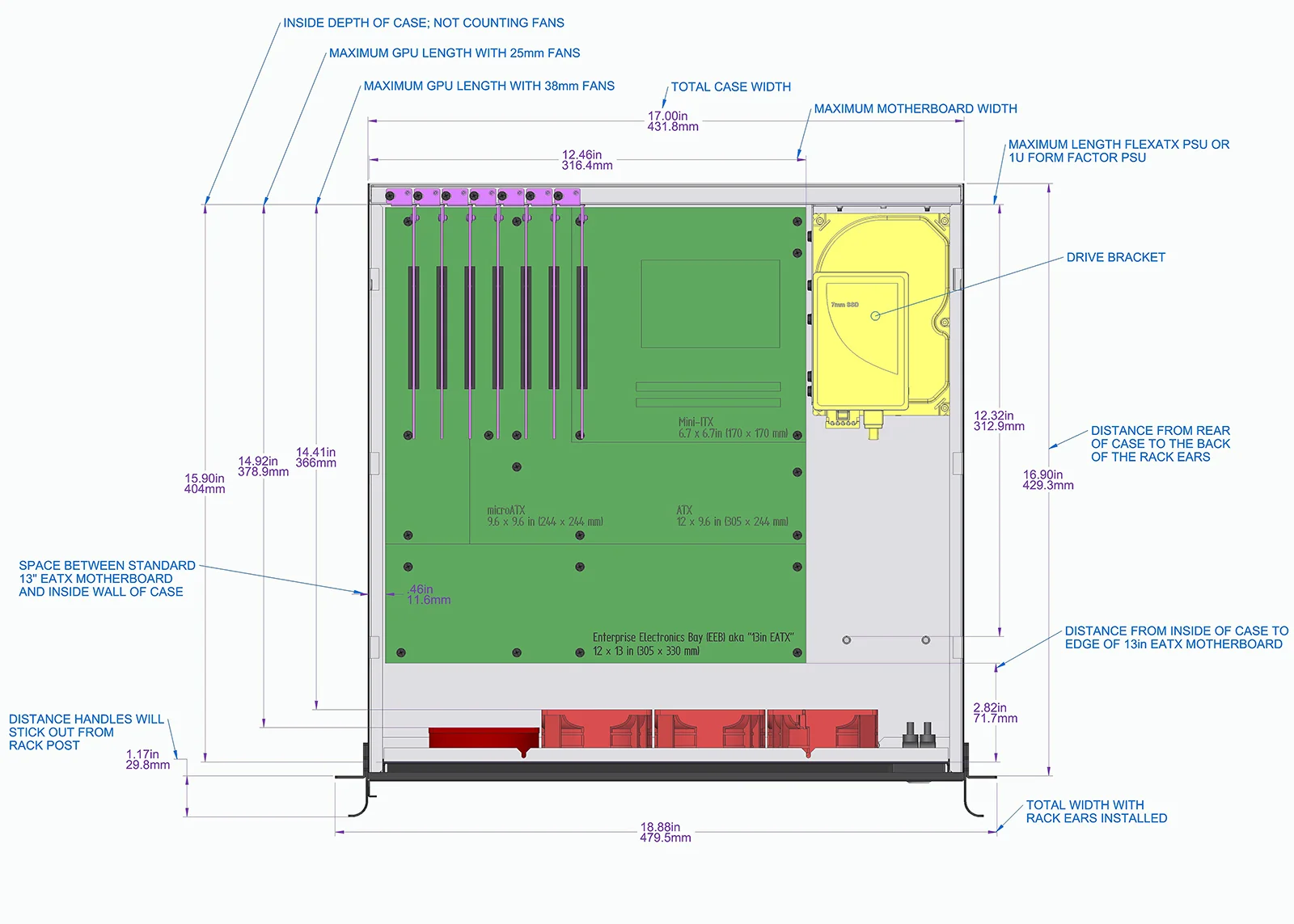

Outside Dimensions
|
- 17.05" x 17.00" x 2U (3.46") [DxWxH]
- 433mm x 432mm x 88mm [DxWxH]
- Depth from front rack post is 16.90" [429mm]
|
---|
Weights
|
- Chassis
- 11.25lbs [5.1kg]
- Rack Slide Kits
- GDRAIL-14XX - 5.25lbs [2.38kg]
- GDRAIL-20XX - 7.5lbs [3.4kg] - Will ship in separate box
- GDRAIL-26XX - 8.75lbs [3.97kg] - Will ship in separate box
- Fans
- 1.2lbs [.54kg] total - .3lbs per fan
- Packaging Materials (Box, Tape, Foam Corners)
- 3.25lbs [1.5kg]
|
---|
Shipping
|
- 20.5" x 20.5" x 7.5" (Shipping Box Outside Dimensions)
- 20" x 20" x 7" (ID)
- Shipping box is ECT52, Double Wall, Kraft Brown
- Standard SLIGER branded tape, optional unbranded kraft brown tape for business customers
|
Regulatory & Homologation |
Product Lifecycle
|
- Planned availability through 2032
- Extended availability beyond 8 years as built-to-order(BTO) with a 25 unit MOQ
|
EMI / Safety
|
- Case cannot be certified as a standalone item. Certifications must be sought as a fully integrated system.
- Contact us before using case for FCC, CE, UL, IEC, or other safety / regulatory compliance.
- Alternate vent sizes, brackets, EMI springs, and/or powder coat masking, may be required depending on certifications sought.
- UL listed wire, fans, coolers, and materials where possible
|
Industry Standards
|
- 19-inch rack standard
- Electronic Industries Alliance EIA-310-D
- International Electrotechnical Commission IEC 60297-1 / IEC 60297-3-100
- Consumer Electronics Association CEA-310-E
- Deutsches Institut für Normung DIN 41494
|
Environmental
|
- Compliant with RoHS Directive 2002/95/EC, 2015/863 RoHS2, RoHS3 (EU) with all applicable exemptions
- Regulation (EC) No 1907/2006 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Compliant for all Substances of Very High Concern (SVHC)
- Conflict–Free Sourcing Initiative (CFSI) with Conflict-Minerals Report (CMRT) available upon request
- Compliant with US EPA PBT Section 6 Toxic Substances Control Act (TSCA)
|
Import / Export
|
- Harmonized Tariff Schedule (HTS) / HS Schedule B
- 8473.30.0002 - COMPUTER CASES AND ACCESSORIES
- Export Control Classification Number [ECCN]
- EAR99 LOW-TECHNOLOGY CONSUMER GOODS
- Country of Origin
- United States of America
- "Made in USA" per Federal Trade Commission (FTC) subchapter C title 16 Code of Federal Regulations Part 323
- TAA (Trade Agreements Act) Compliant for GSA Schedules, IDIQ contracts, and DoD contracts
- Compliant with Section 889 of Federal Acquisition Regulation (FAR) of National Defense Authorization Act (NDAA)
|
