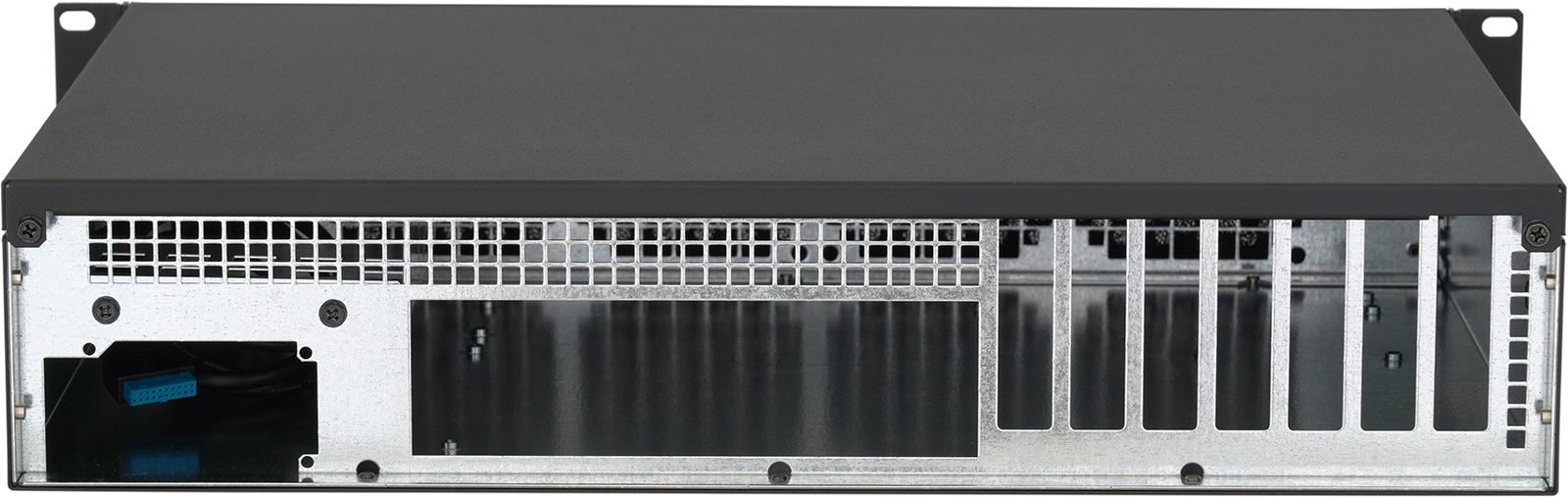

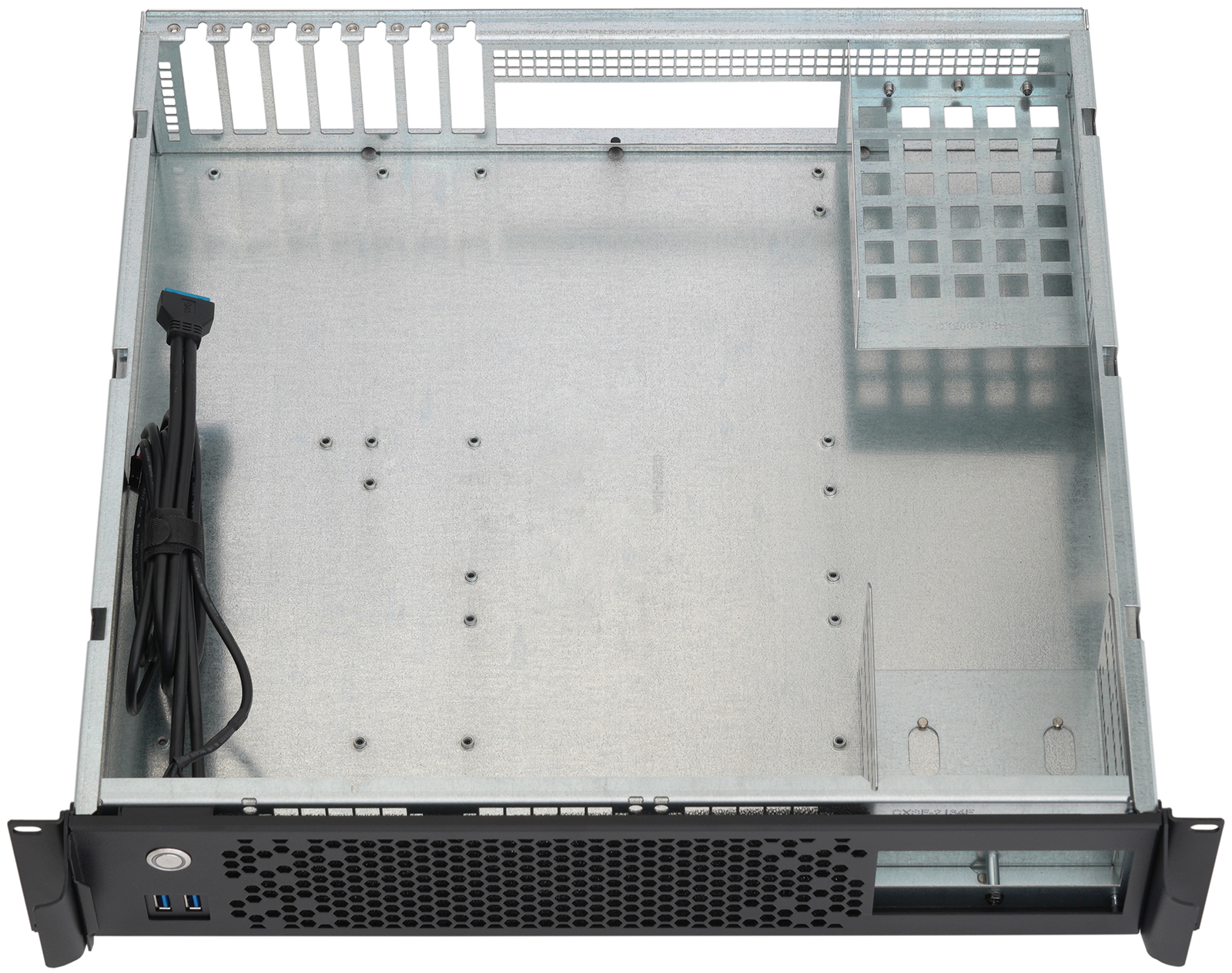

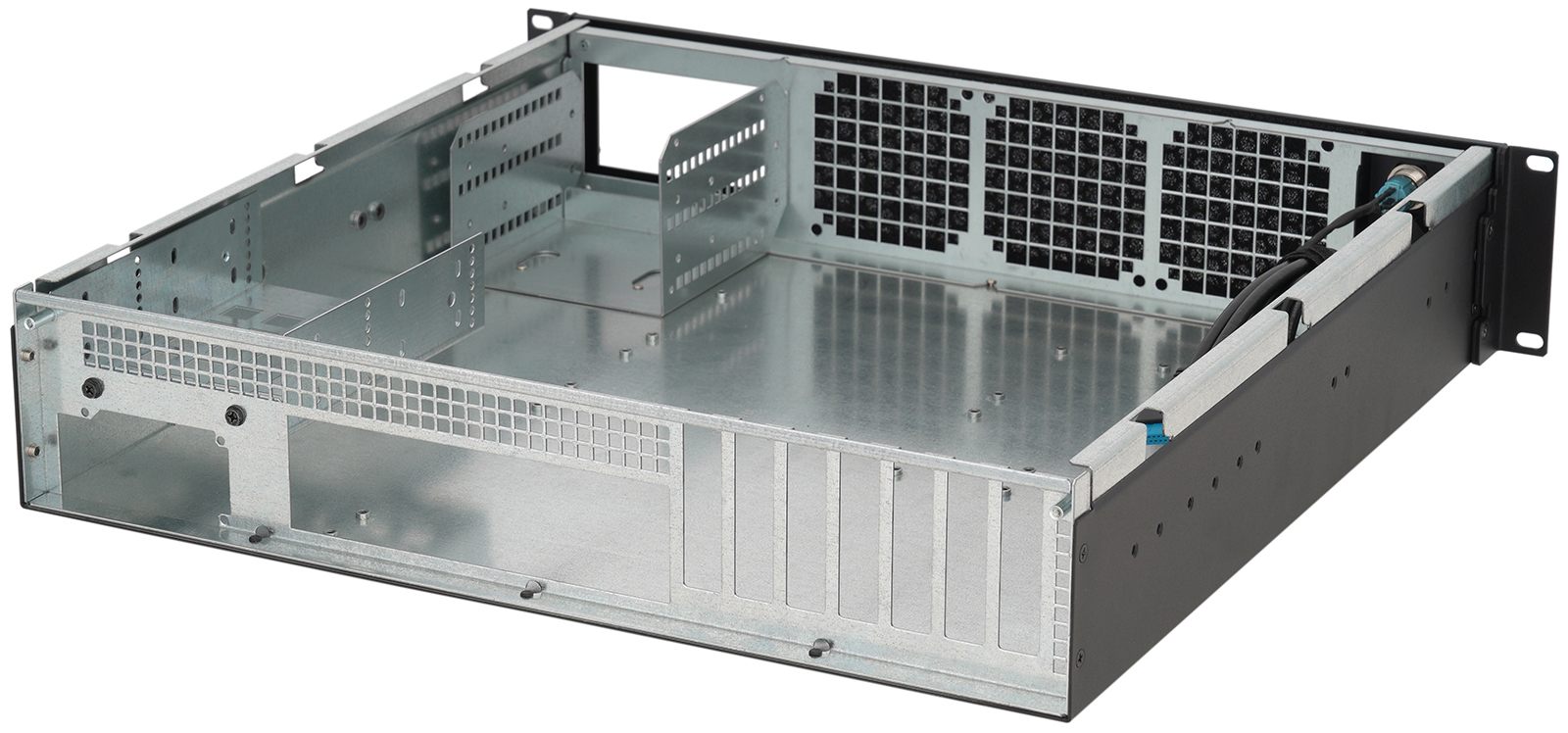

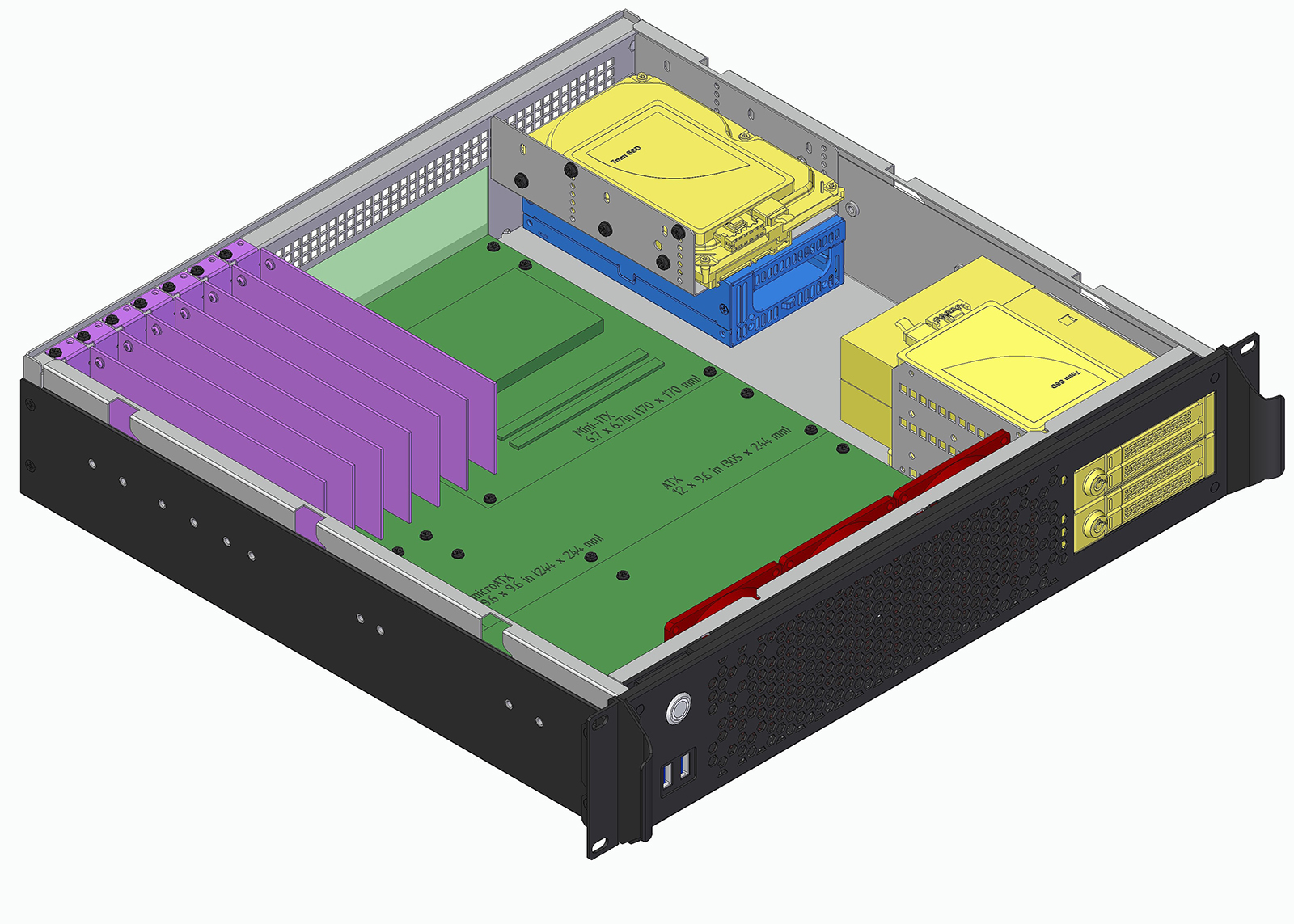

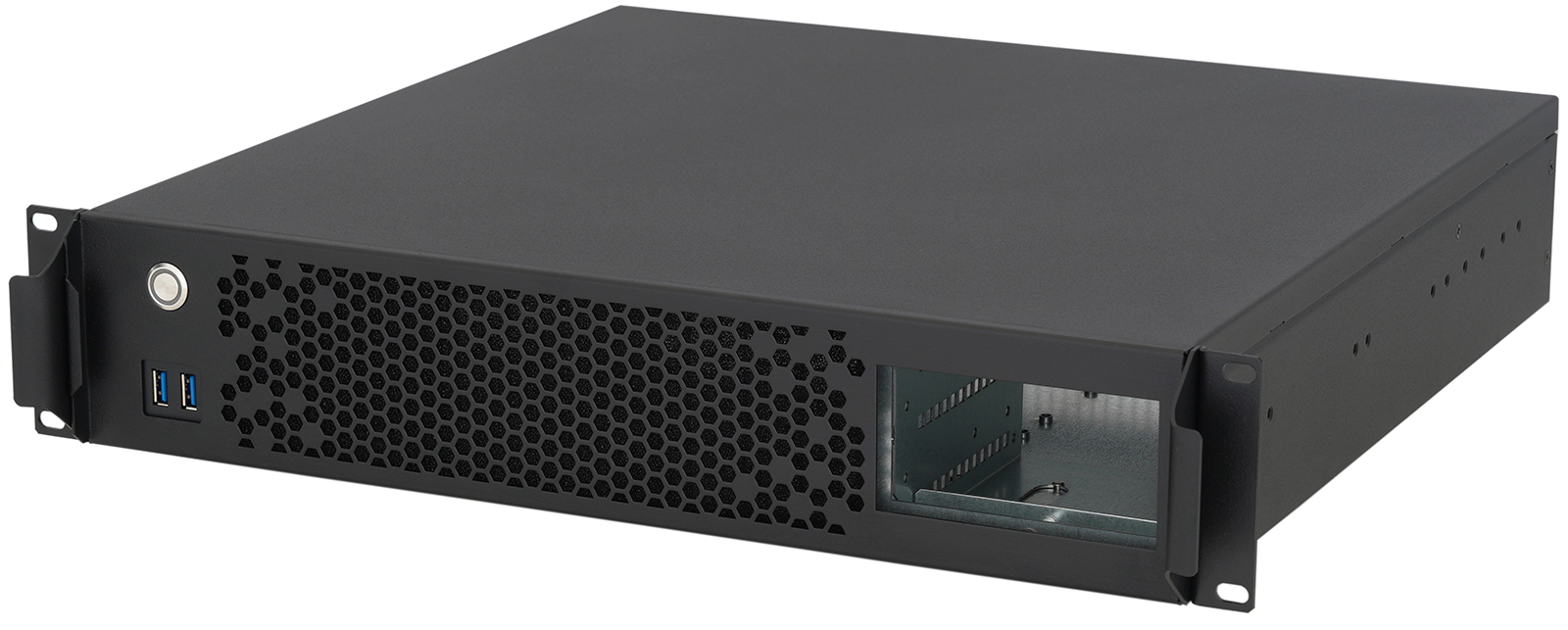

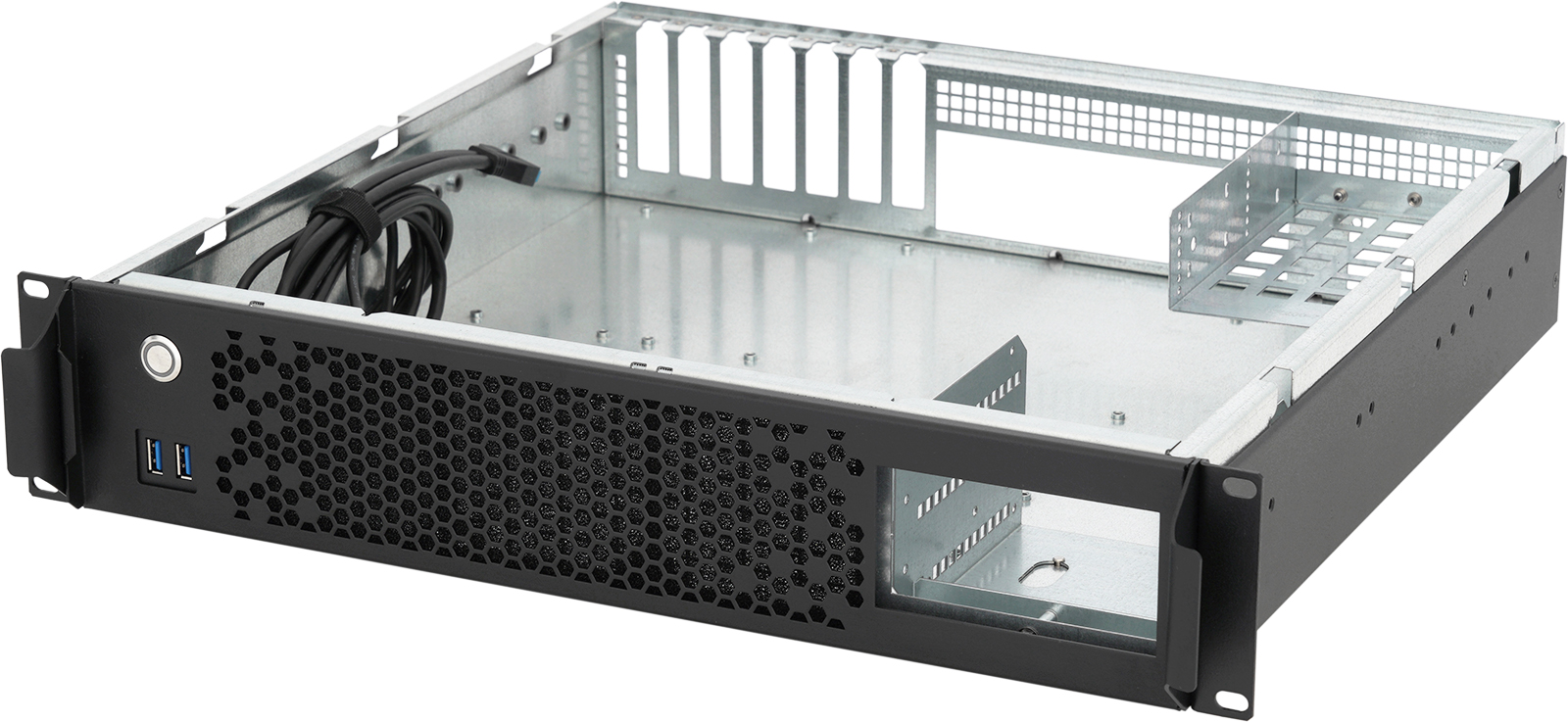

CX2177c 17" 2U for SSI-EEB / FlexATX PSU with Hot-Swap Storage
CX2177c17" 2U for SSI-EEB / FlexATX PSU with Hot-Swap Storage
  • Supports SSI-EEB or eATX (up to 13" deep) motherboards
  • Seven(7) Half-Height Full-Length (HHFL) PCIe Card Slot Cutouts
  • Mounting for up to three(3) 80mm fans, support for air coolers up to 66mm tall
  • Front 3.5" adapter bays for hot-swap storage, USB, audio, and/or card readers
  • Internal storage for up to two(2) 3.5" HDD, seven(7) 2.5" SSD, or a mix of both
  • Mounting for one FlexATX form factor power supply
  • Made in USA with US materials, guaranteed availability for 8+ years
Add To Cart
FREE SHIPPING (US ONLY)
Order Terms & Conditions
*Assembled to Order

Please note, chassis are assembled to order, and may take 3-10 business days to fulfill.

Higher quantity orders are granted priority in our queues, and options to expedite your order are available if needed.

To verify if expediting your order is an option, please contact us directly at 1-775-356-5595 or sales@sliger.com.


Front Panel Color


BUSINESS CUSTOMERS: Custom branded front panels are available!
Services include custom powder coating of any color on Prismatic Powders, modified vent patterns, and full color screen printing (including gradients). Please contact sales@sliger.com to discuss your requirements. A minimum order quantity (MOQ) of 10 units is required.
80mm Fans
*Fans are not included with the base chassis.
3.5" Drive Filler Blank
*Blanks are not included with the base chassis.
Power Supply
FSP500-50FDB Technical Specificaton / Datasheet.
6ft US power cord is included.
General Devices Rack Slides

Installation instructions for our General Devices Series rack slides are available here.

Replacement / Optional Parts

This page is for replacement parts for existing cases. New case orders per the configure tab include all required panels, brackets, cables, screws, and accessories for assembly per the options selected on that tab.
General Devices 14" Slides
Rack Slides for All Chassis

Custom General Devices C300S friction rack slides for all Sliger rackmount products.

  • Includes Mounting Hardware
  • Front and rear brackets
  • Screws and custom dimples
  • For 16" to 31" Rack Post Spacing
  • 6", 12" and 18" rear extensions included
$99
General Devices 20" Slides
Rack Slides for All Chassis

Custom General Devices C300S friction rack slides for all Sliger rackmount products.

  • Includes Mounting Hardware
  • Front and rear brackets
  • Screws and custom dimples
  • For 21" to 37" Rack Post Spacing
  • 6", 12" and 18" rear extensions included
$109
General Devices 26" Slides
Rack Slides for All Chassis

Custom General Devices C300S friction rack slides for all Sliger rackmount products.

  • Includes Mounting Hardware
  • Front and rear brackets
  • Screws and custom dimples
  • For 27" to 43" Rack Post Spacing
  • 6", 12" and 18" rear extensions included
$119
2U 'c' Black Faceplate
Obsidian Black Faceplate for All CX2000c Series

Standard 2U 'c' style faceplate for all CX2000c chassis.

  • Standard Filter Foam Included
  • Filter foam may not be cut to shape
  • Obsidian Black Color
  • Powdercoated in house
$30
2U 'c' White Faceplate
Matte White Faceplate for All CX2000c Series

Standard 2U 'c' style faceplate for all CX2000c chassis.

  • Standard Filter Foam Included
  • Filter foam may not be cut to shape
  • Matte White Color
  • Powdercoated in house
$30
2U 'c' Red Faceplate
Carmine Red Faceplate for All CX2000c Series

Standard 2U 'c' style faceplate for all CX2000c chassis.

  • Standard Filter Foam Included
  • Filter foam may not be cut to shape
  • Carmine Red Color
  • Powdercoated in house
$30
2U 'c' Blue Faceplate
Cobalt Blue Faceplate for All CX2000c Series

Standard 2U 'c' style faceplate for all CX2000c chassis.

  • Standard Filter Foam Included
  • Filter foam may not be cut to shape
  • Cobalt Blue Color
  • Powdercoated in house
$30
30ppi Filter Foam
Open Cell Polyether Filter Foam for All Chassis

30ppi Open Cell Polyether Filter Foam for All Chassis

  • Two 6.62"x14.40" Pieces
  • Washable for Extended Life
$25
Hardware Kit
For All CX2007 Style Chassis

Accessory kit for all CX2007 style chassis

  • Includes rack ears, pull handles
  • Includes 7 half-height PCIe slot covers
  • Includes screws operation/installation
$20
3.5" Drive Filler Blank
For All CX2000c Style Chassis

3.5" drive filler blank for all CX2000c style chassis

  • Filler blanks are NOT included with chassis
  • Includes mounting for singular 2.5" drive
  • Includes screws operation/installation
$20

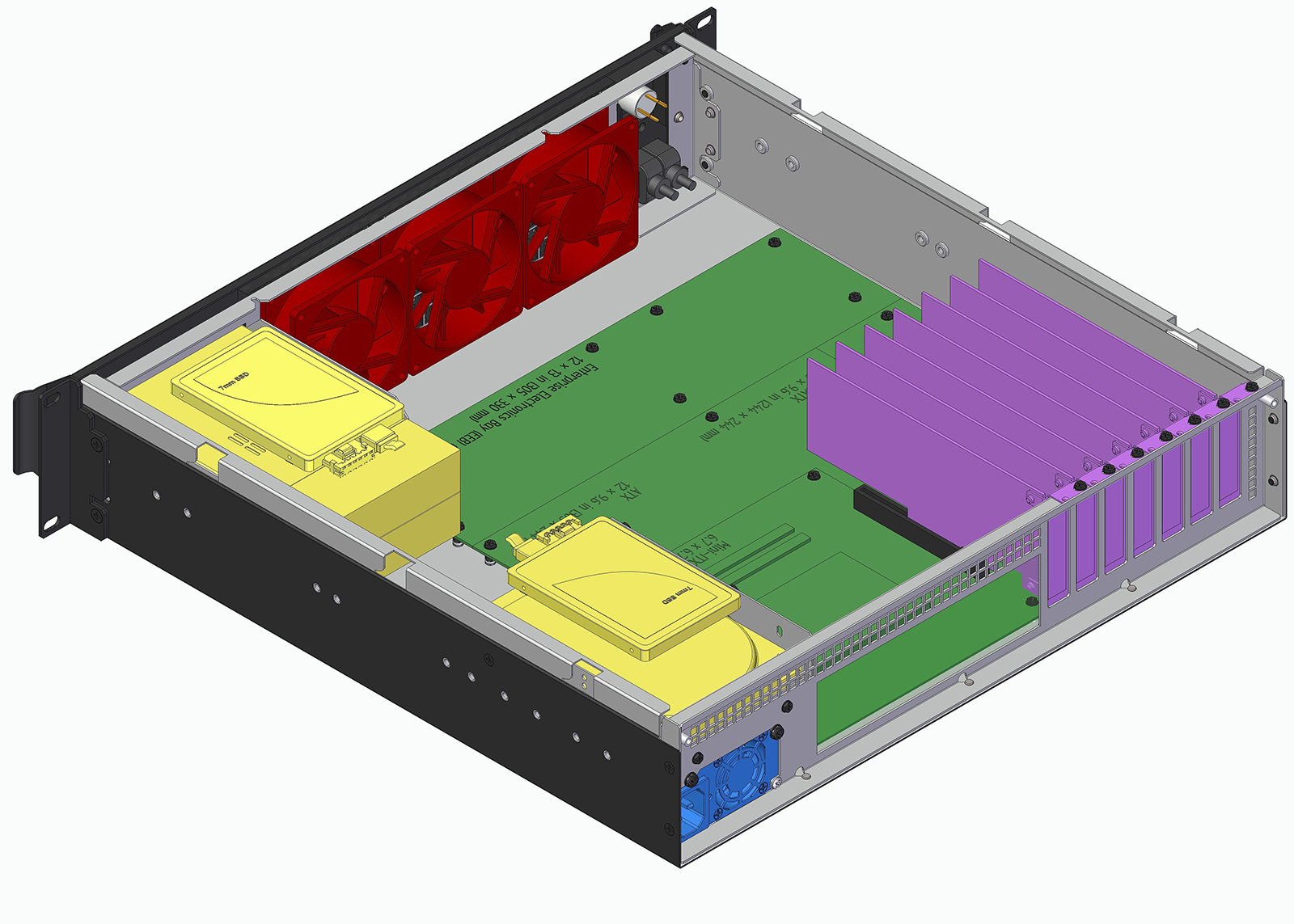

Technical Specifications
Motherboard
  • SSI-EEB (305mm x 330mm) [12" x 13"]
  • SSI-CEB (305mm x 267mm) [12" x 10.5"]
  • EATX (up to 325mm x 330mm) [up to 12.8" x 13"]
  • ATX (305mm × 244 mm) [12" × 9.6"]
  • MicroATX (245 x 245mm) [9.6" × 9.6"]
  • FlexATX (229 × 191 mm) [9" × 7.5"]
  • Mini-DTX (203mm × 170 mm) [8" × 6.7"]
  • Mini-ITX (170mm × 170 mm) [6.7" × 6.7"]
CPU Air Coolers
  • Up to 66mm tall
  • Sliger recommends the ID Cooling IS-55 CPU Cooler for most builds.
  • Performance and reliability of the IS-55 can be enhanced by swapping the stock fan for a Noctua A12x15 120mm Slim Fan.
  • Server grade and HEDT 2U CPU coolers are available for all CPUs and sockets through Dynatron or CoolJag USA.
  • For more options, see this PCPartPicker.com list of compatible retail CPU coolers.
  • CAUTION: 60mm or taller "Top Down Coolers" such as Noctua L65 are NOT recommended.
Fan Mounting
Dust Filter
  • Includes one(1) washable / reusable dust filter
  • 30ppi open cell reticulated polyether filter foam with flame resistant rating, UL94 HF1, UL FILE NO E93229(N)
  • Alternate density and/or materials such as aluminum mesh available for OEM projects
GPU / PCIe Cards
  • Seven(7) Half Height PCIe slot cutouts

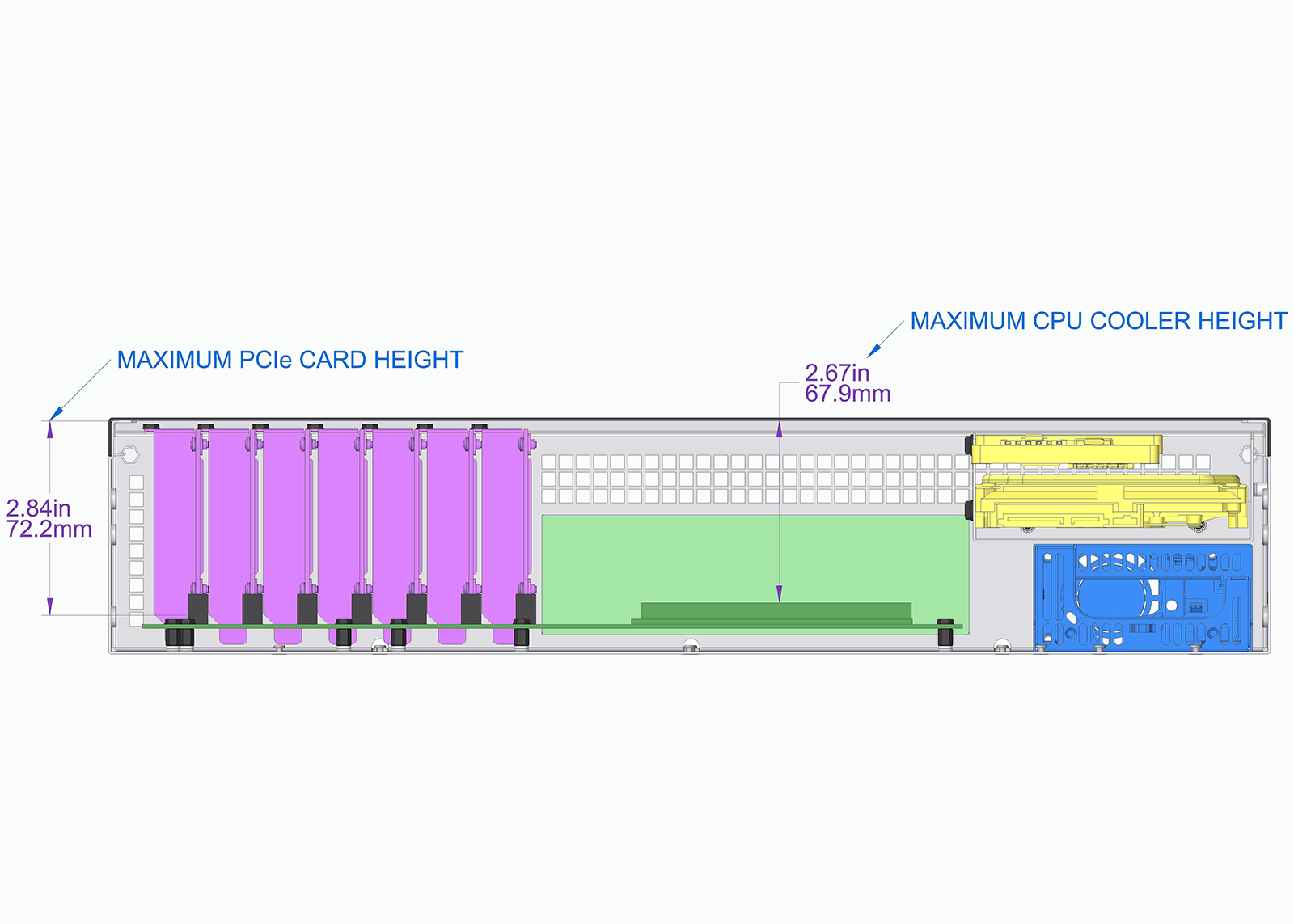

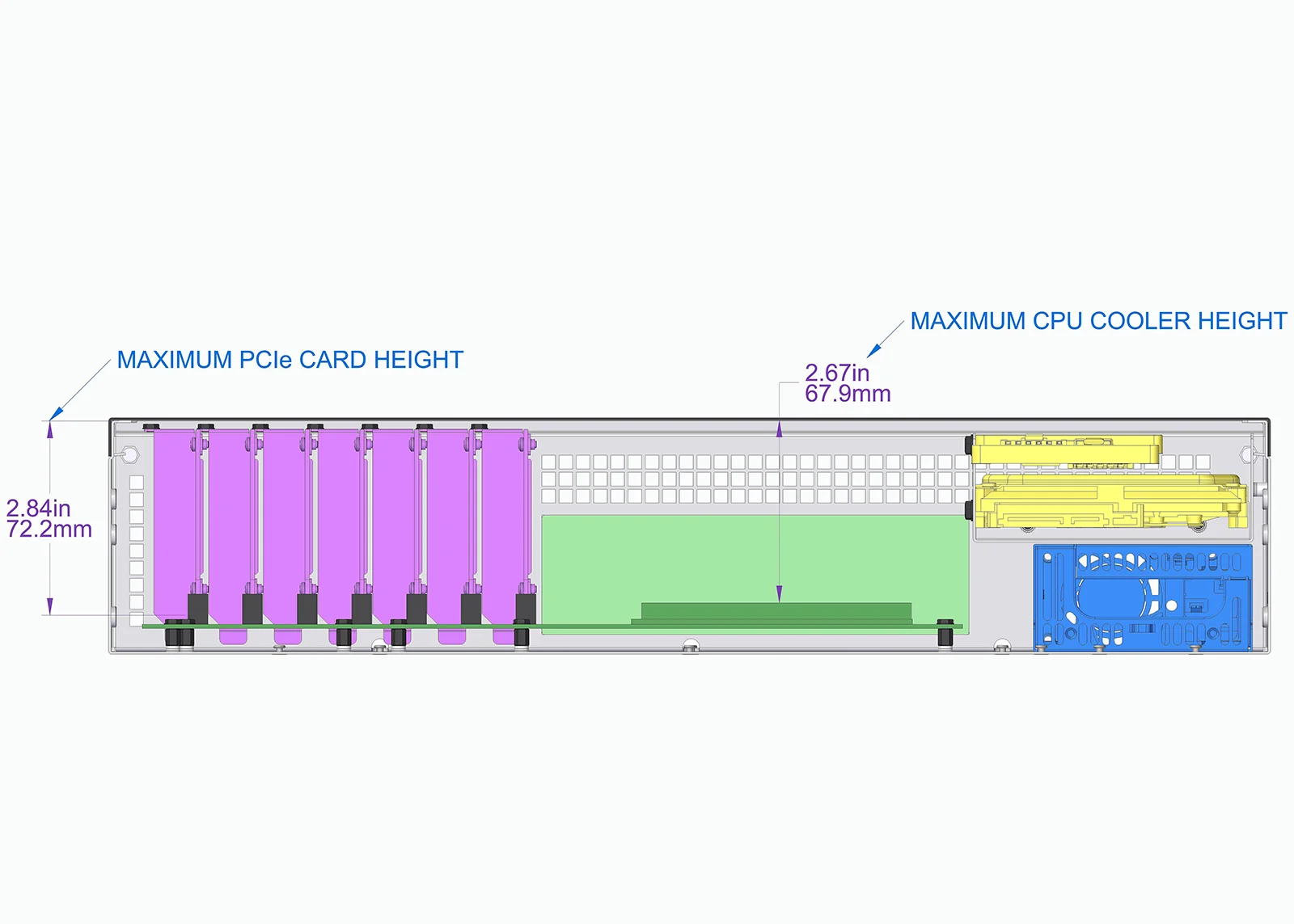

  • Max Height: 72mm from bottom edge of PCIe finger tab to lid of case
  • Max Length with 25mm fans: 276mm - indluding power connectors
  • Max Length with 38mm fan: 263mm - including power connector
  • Cards may be refered to as 2U height, low-profile, or MD1/MD2/MD3 form factor
  • Half height vented slot covers are provided with case
  • Compatible GPUs
  • Gigabyte 4060 TI 8GB Low Profile, Intel ARC A310 single slot or A380 dual slot, AMD RX 550 LP, Nvidia A4000 SFF or A2000
Storage
  • Two(2) front accessible 3.5" adapter bays for IcyDock or CRU storage devices
  • 3.5" bay filler blanks are available
  • Each filler blank can mount one 2.5" SSD or HDD up to 15mm thick

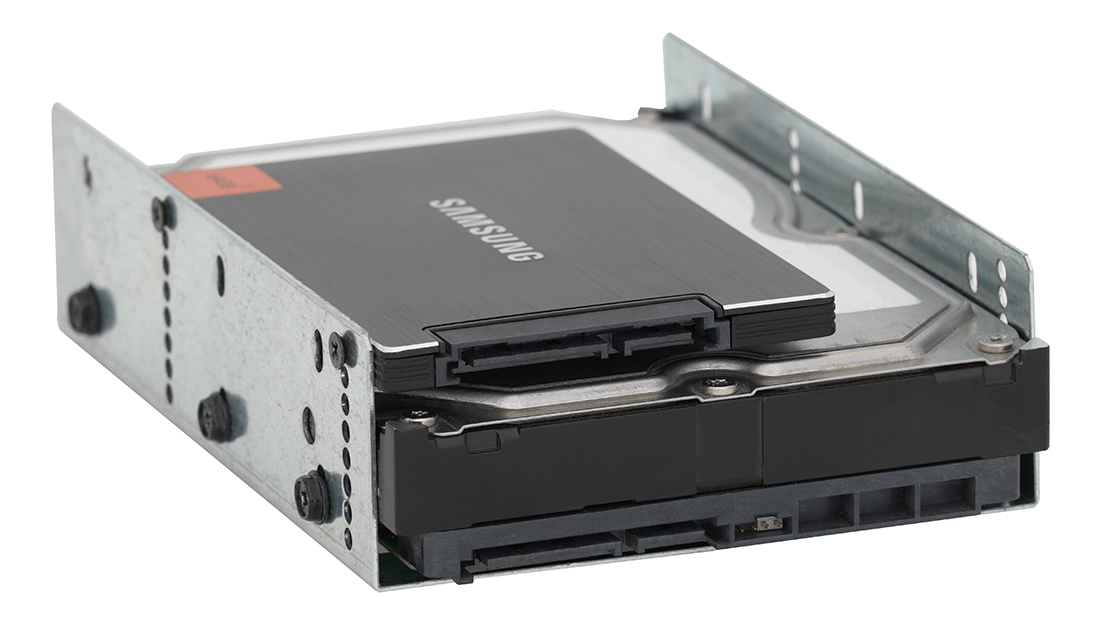

  • Up to two(2) 3.5" Hard Disk Drives [HDDs]
  • Both 3.5" HDDs must be less than 20mm / .760" thick

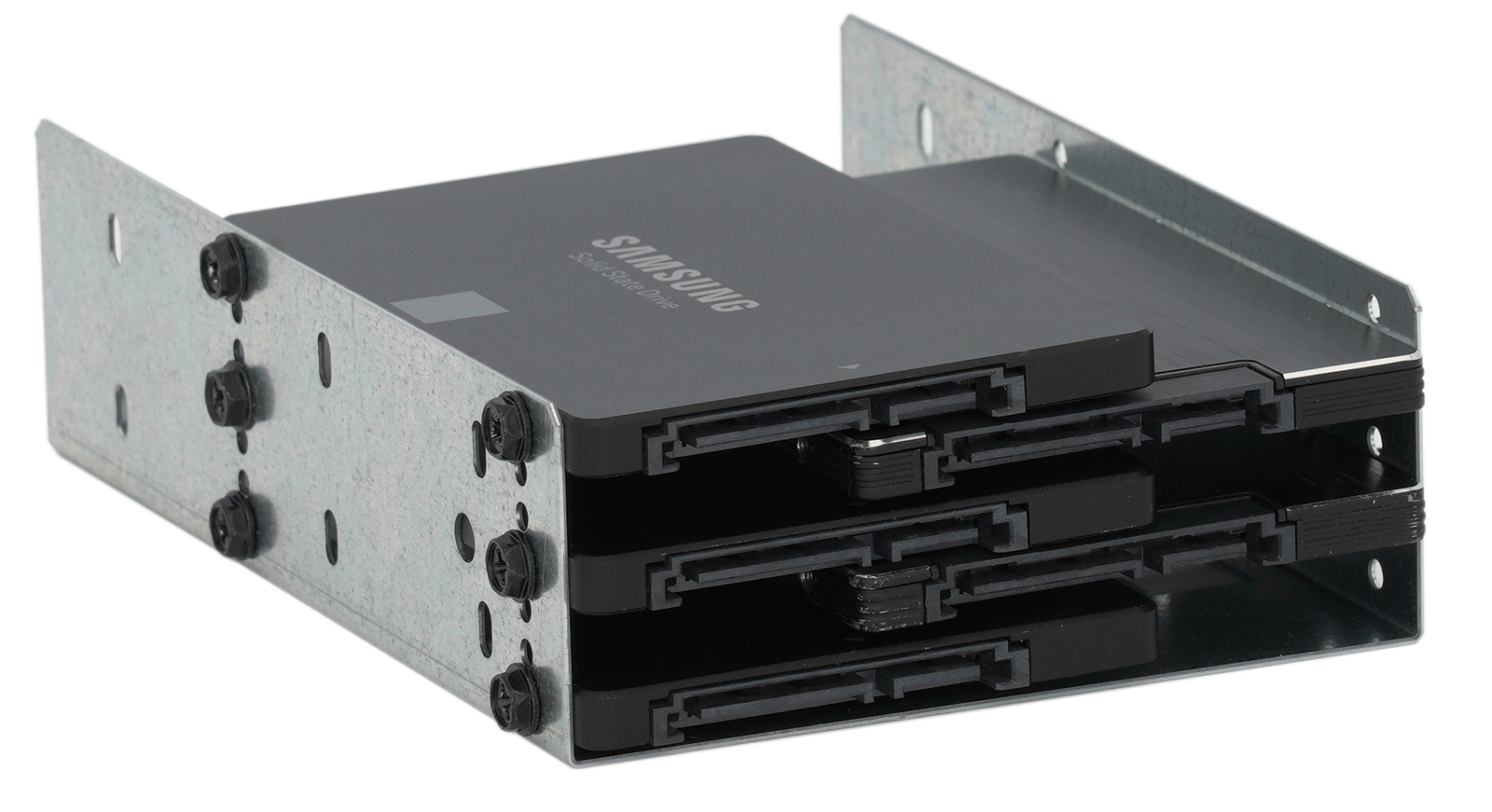

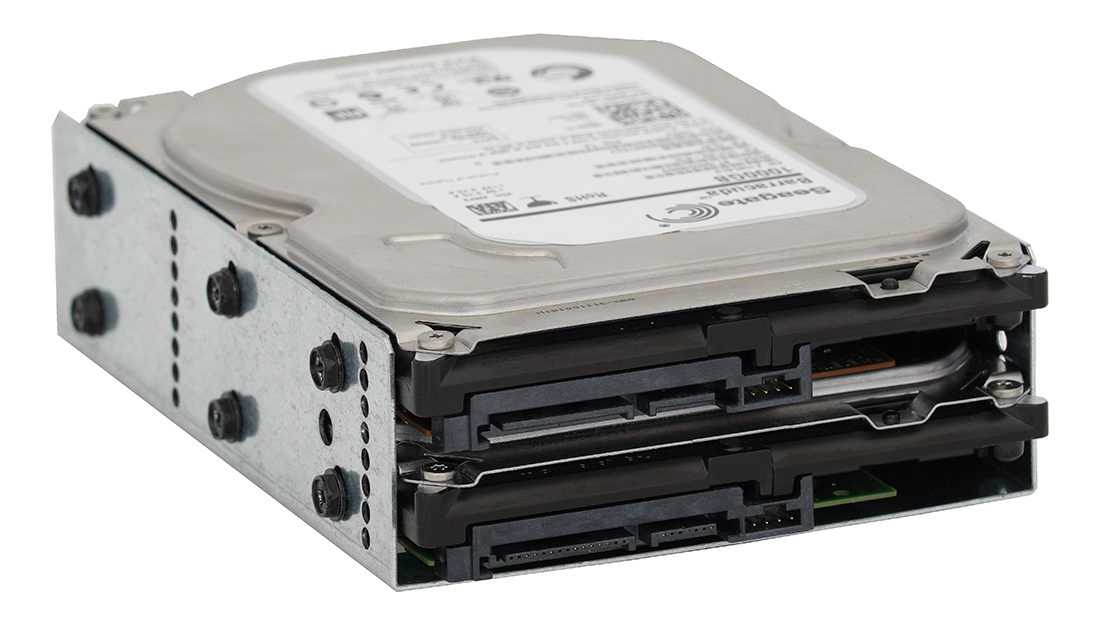

  • Up to seven(7) 2.5" Solid State Drives [SSD]
  • One(1) SSDs mount above 3.5" adapter bays - up to 15mm thick
  • One(1) SSDs mount below 3.5" adapter bays - limited to 7mm thick
  • Five(5) SSDs possible above PSU when no 3.5" HDD is present - limited to 7mm thick
  • Sliger recommends use of M.2/NVMe and PCIe based storage on motherboard when possible
  • Motherboard PCIe slots can be utilized for M.2 drives via Sabrent PCIe to M.2 or equivalent
Front Panel I/O
  • Two(2) USB 3.0 Type A Ports
  • One(1) 16mm Momentary Power Button with integrated Power Status LED (Ring Shape, White)
  • Front 3.5" bays can be used to add additional IO such as audio, USB, or card readers
  • See 3.5" Front Panel Hubs available on Amazon.com
Power Supply
Rack Rails
  • General Devices C300-S Series
  • Rack Rails are not included by default, must be purchased on the configuration or parts page.
  • Brand Compatibility
  • Brands such as iStarUSA TC Rails are natively compatible.
  • Please contact our support team for any compatibility questions.
Warranty
  • Case and Rack Rails
  • 5 Year Warranty
  • Liquid Coolers & Fans
  • 3 Year Warranty
  • Please see our warranty policy for additional conditions, exclusions, and limitations.
Rev Control
  • 1.0 (10/01/24 - **/**/**)
  • Initial Release

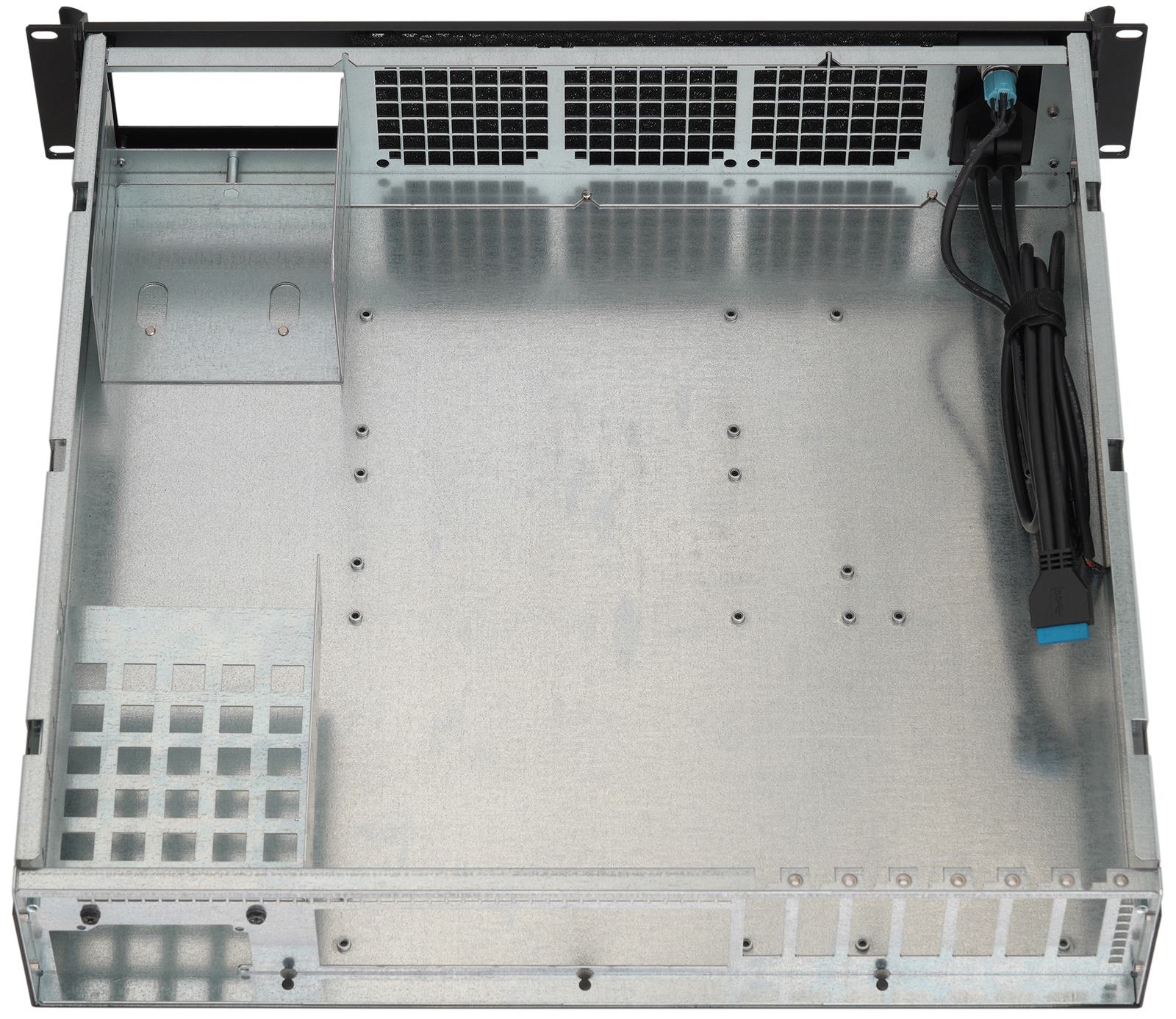

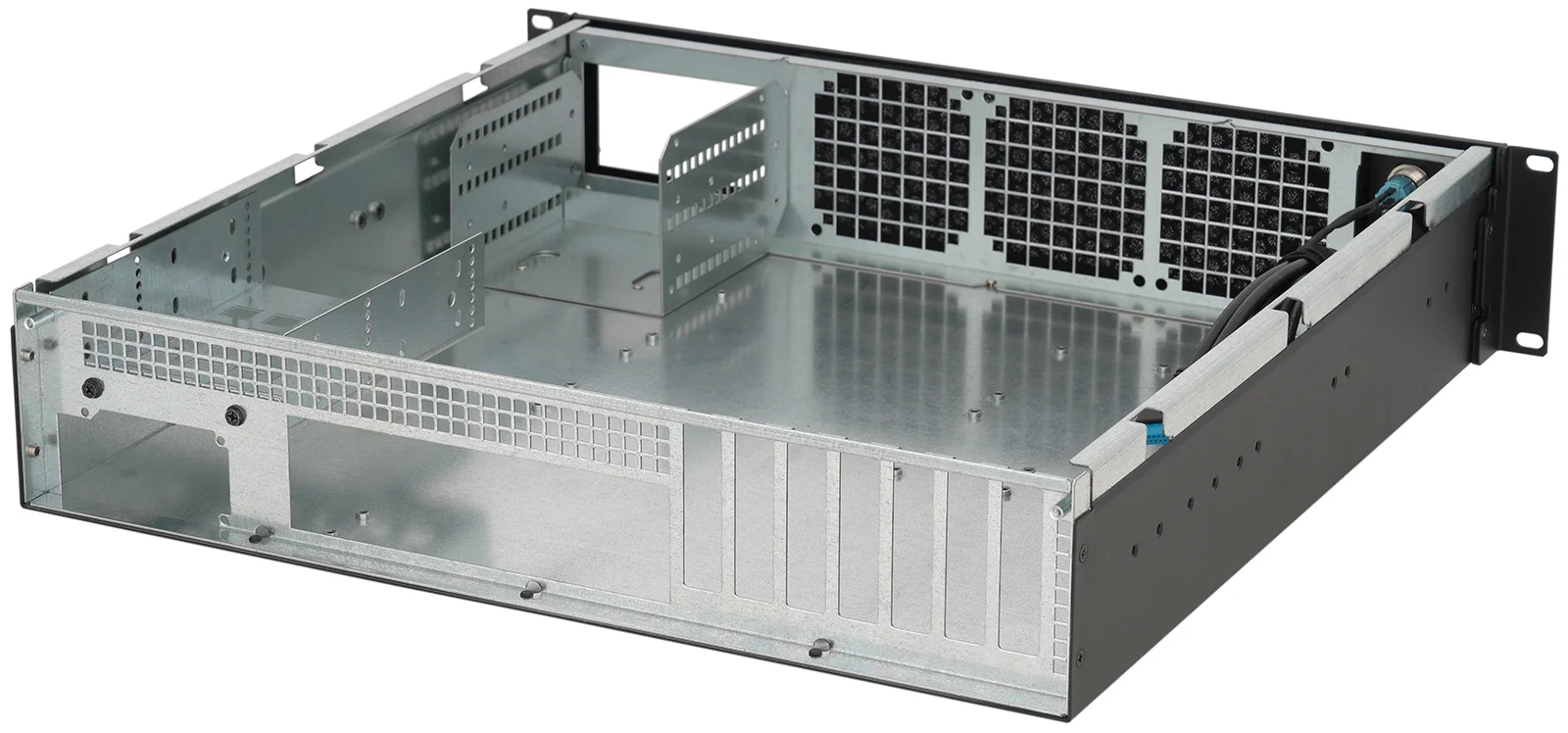

Case Mechanicals
Material
  • Chassis
  • ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
  • Front Panels
  • ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
  • Rack Ears
  • ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
Finish
  • Semi-gloss fine texture powder coat finish
  • Powder coat is an outdoor architectural grade polyester epoxy blend
  • Compliant with SAE AMS-STD-595 / FED-STD-595 color number 27038 (ANA 514)
  • Custom powder coat finishes are available, additional labor/material charges and 10 unit MOQ will apply.
  • Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
Branding
  • Case is unbranded on interior and exterior of chassis.
  • Optional logo screen printing (full color) on front panel for business customers, MOQ 10 units

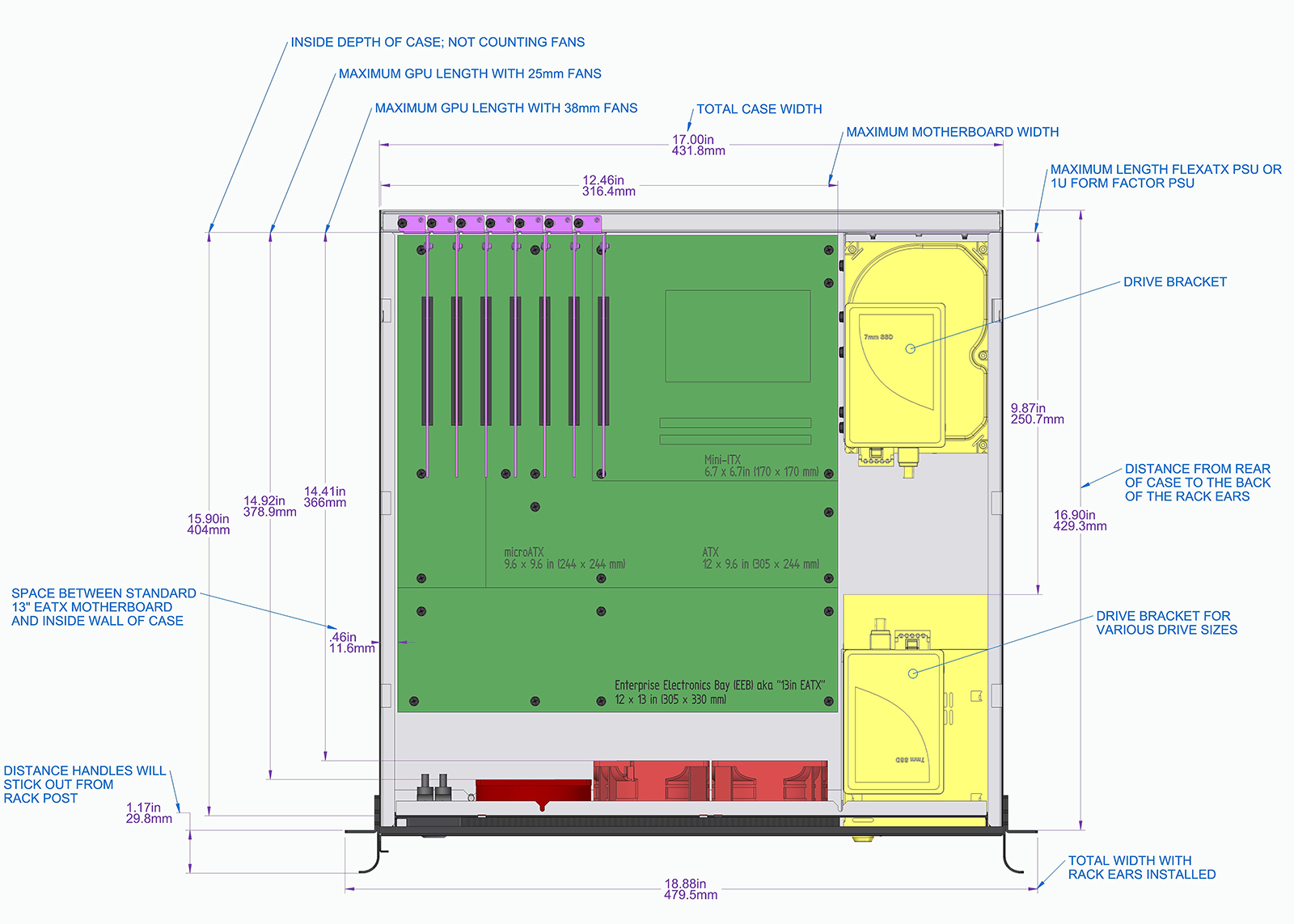

Outside Dimensions
  • 17.05" x 17.00" x 2U (3.46") [DxWxH]
  • 433mm x 432mm x 88mm [DxWxH]
  • Depth from front rack post is 16.90" [429mm]
Weights
  • Chassis
  • 11.75lbs [5.33kg]
  • Rack Slide Kits
  • GDRAIL-14XX - 5.25lbs [2.38kg]
  • GDRAIL-20XX - 7.5lbs [3.4kg] - Will ship in separate box
  • GDRAIL-26XX - 8.75lbs [3.97kg] - Will ship in separate box
  • Fans
  • .9lbs [.41kg] total - .3lbs per fan
  • Packaging Materials (Box, Tape, Foam Corners)
  • 3.25lbs [1.5kg]
Shipping
  • 20.5" x 20.5" x 7.5" (Shipping Box Outside Dimensions)
  • 20" x 20" x 7" (ID)
  • Shipping box is ECT52, Double Wall, Kraft Brown
  • Standard SLIGER branded tape, optional unbranded kraft brown tape for business customers
Regulatory & Homologation
Product Lifecycle
  • Planned availability through 2032
  • Extended availability beyond 8 years as built-to-order(BTO) with a 25 unit MOQ
EMI / Safety
  • Case cannot be certified as a standalone item. Certifications must be sought as a fully integrated system.
  • Contact us before using case for FCC, CE, UL, IEC, or other safety / regulatory compliance.
  • Alternate vent sizes, brackets, EMI springs, and/or powder coat masking, may be required depending on certifications sought.
  • UL listed wire, fans, coolers, and materials where possible
Industry Standards
  • 19-inch rack standard
  • Electronic Industries Alliance EIA-310-D
  • International Electrotechnical Commission IEC 60297-1 / IEC 60297-3-100
  • Consumer Electronics Association CEA-310-E
  • Deutsches Institut für Normung DIN 41494
Environmental
  • Compliant with RoHS Directive 2002/95/EC, 2015/863 RoHS2, RoHS3 (EU) with all applicable exemptions
  • Regulation (EC) No 1907/2006 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Compliant for all Substances of Very High Concern (SVHC)
  • Conflict–Free Sourcing Initiative (CFSI) with Conflict-Minerals Report (CMRT) available upon request
  • Compliant with US EPA PBT Section 6 Toxic Substances Control Act (TSCA)
Import / Export
  • Harmonized Tariff Schedule (HTS) / HS Schedule B
  • 8473.30.0002 - COMPUTER CASES AND ACCESSORIES
  • Export Control Classification Number [ECCN]
  • EAR99 LOW-TECHNOLOGY CONSUMER GOODS
  • Country of Origin
  • United States of America
  • "Made in USA" per Federal Trade Commission (FTC) subchapter C title 16 Code of Federal Regulations Part 323
  • TAA (Trade Agreements Act) Compliant for GSA Schedules, IDIQ contracts, and DoD contracts
  • Compliant with Section 889 of Federal Acquisition Regulation (FAR) of National Defense Authorization Act (NDAA)
