| Motherboard
|
- EATX (305mm x 267mm) [12" x 10.5"]
- ATX (305mm x 244 mm) [12" x 9.6"]
- MicroATX (245 x 245mm) [9.6" x 9.6"]
- FlexATX (229 x 191 mm) [9" x 7.5"]
- Mini-DTX (203mm x 170 mm) [8" x 6.7"]
- Mini-ITX (170mm x 170 mm) [6.7" x 6.7"]
|
| CPU Air Coolers
|
|
| CPU Liquid Coolers
|
|
| Fan Mounting
|
- Front
- 3x 120mm x 25mm fans
|

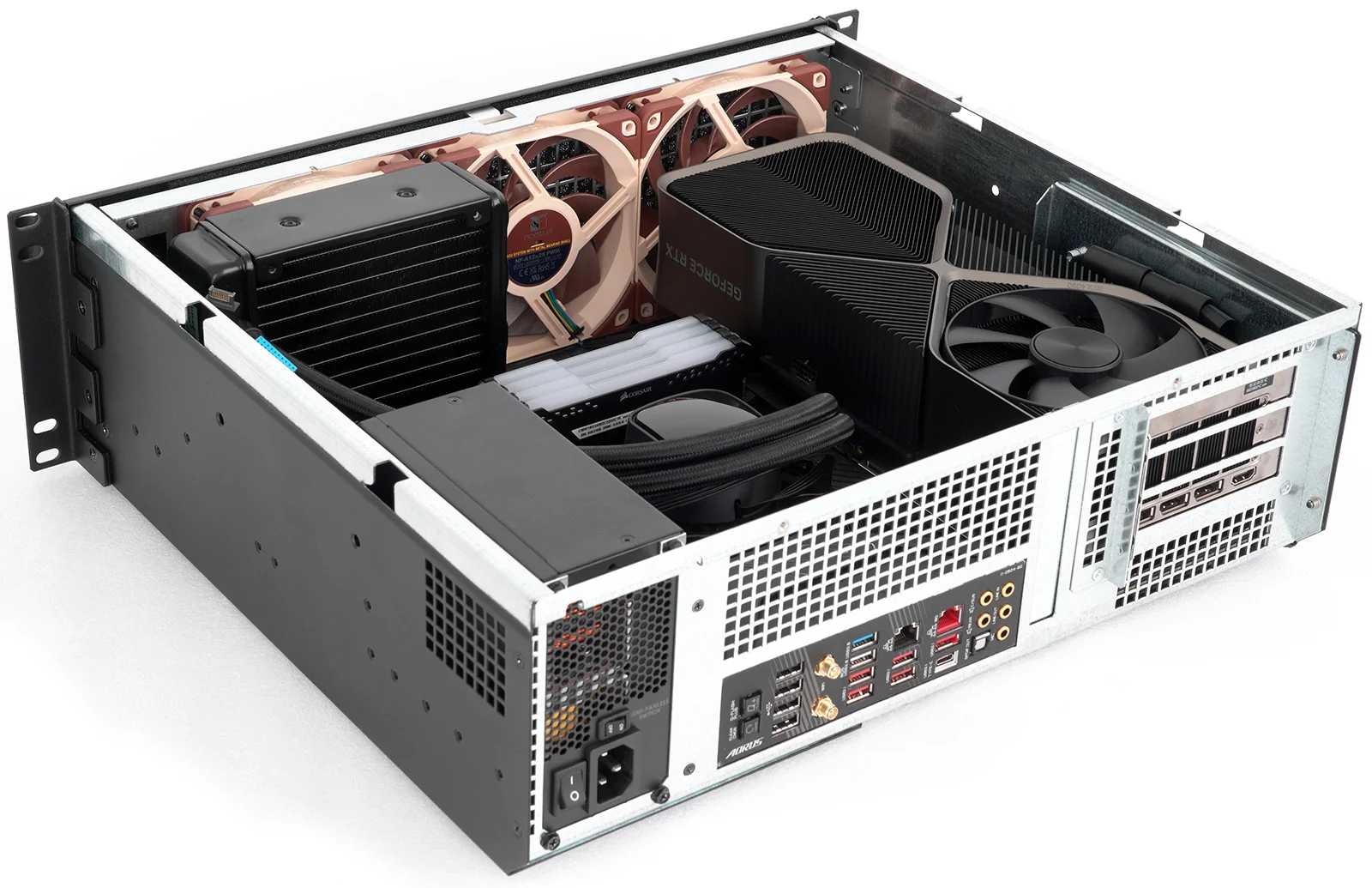

| GPU / PCIe Cards
|

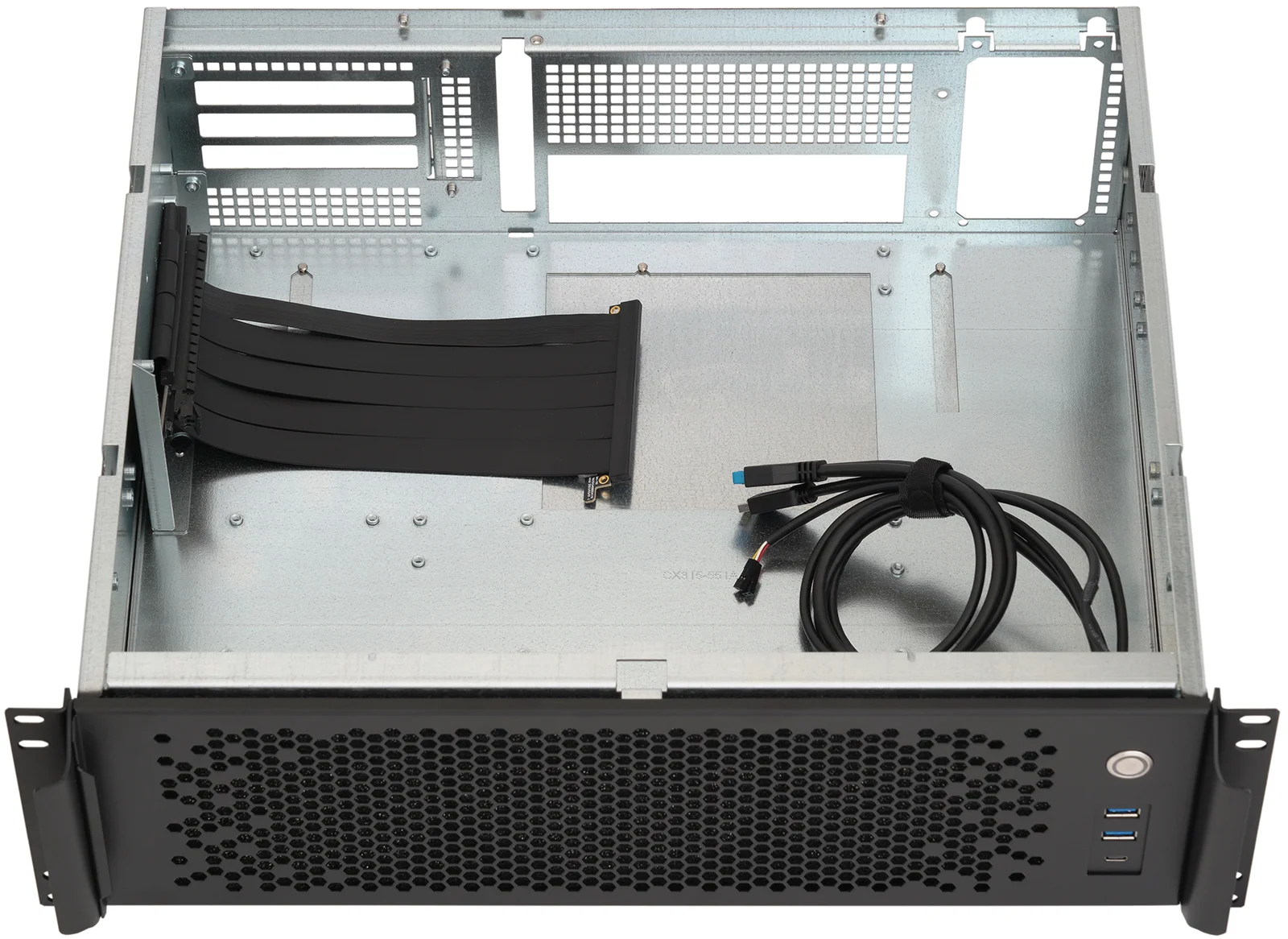

- 3x horizontal slot cutouts with one PCIe 4.0 16x riser for large 3-slot GPU
- Maximum card width: 72mm or 3.5-slot

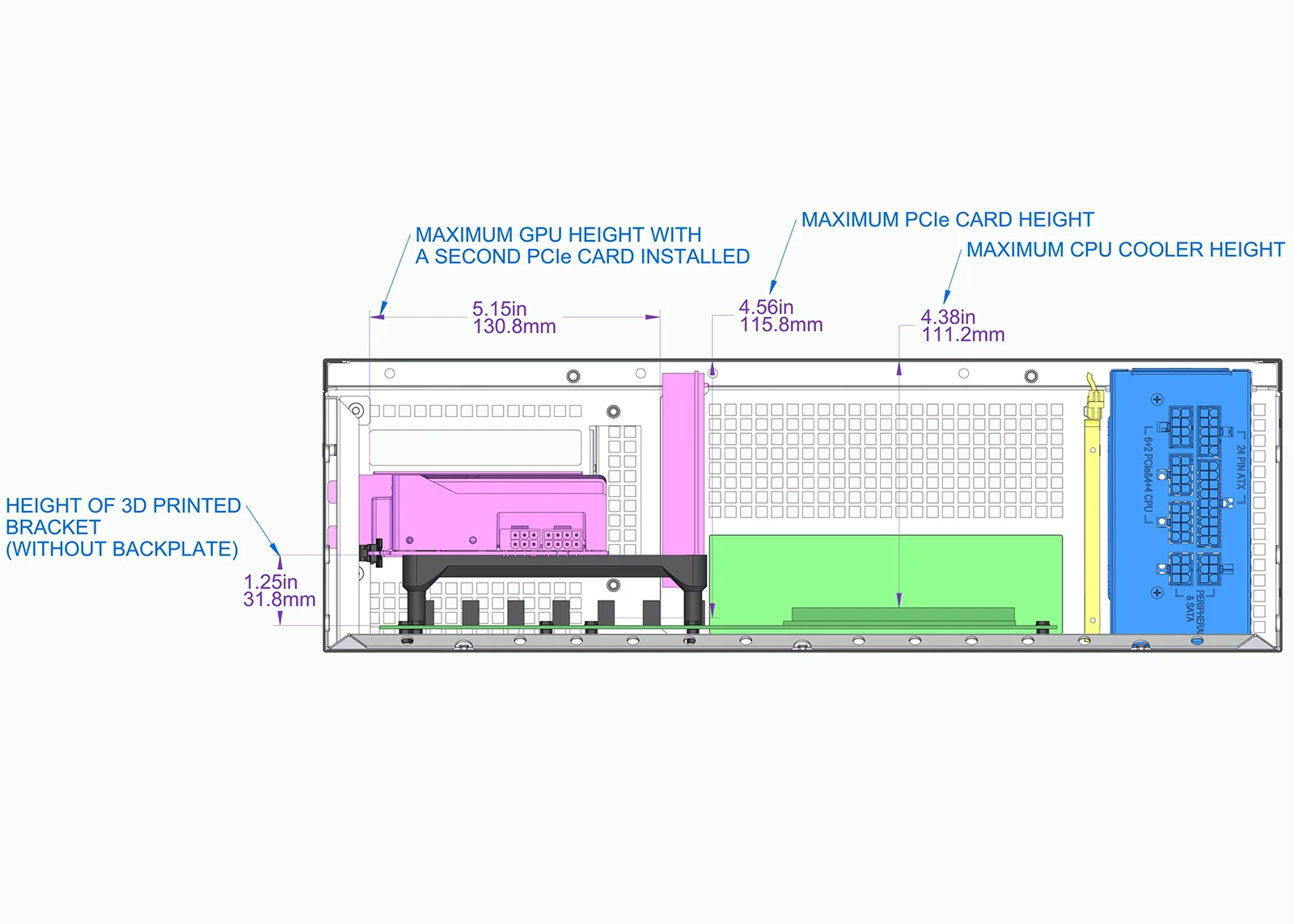

- Maximum card height: 133mm
- Case has a rear support bridge to prevent GPU sag and reduce chances of shipping damage
- 1x full height PCIe card slot cutout

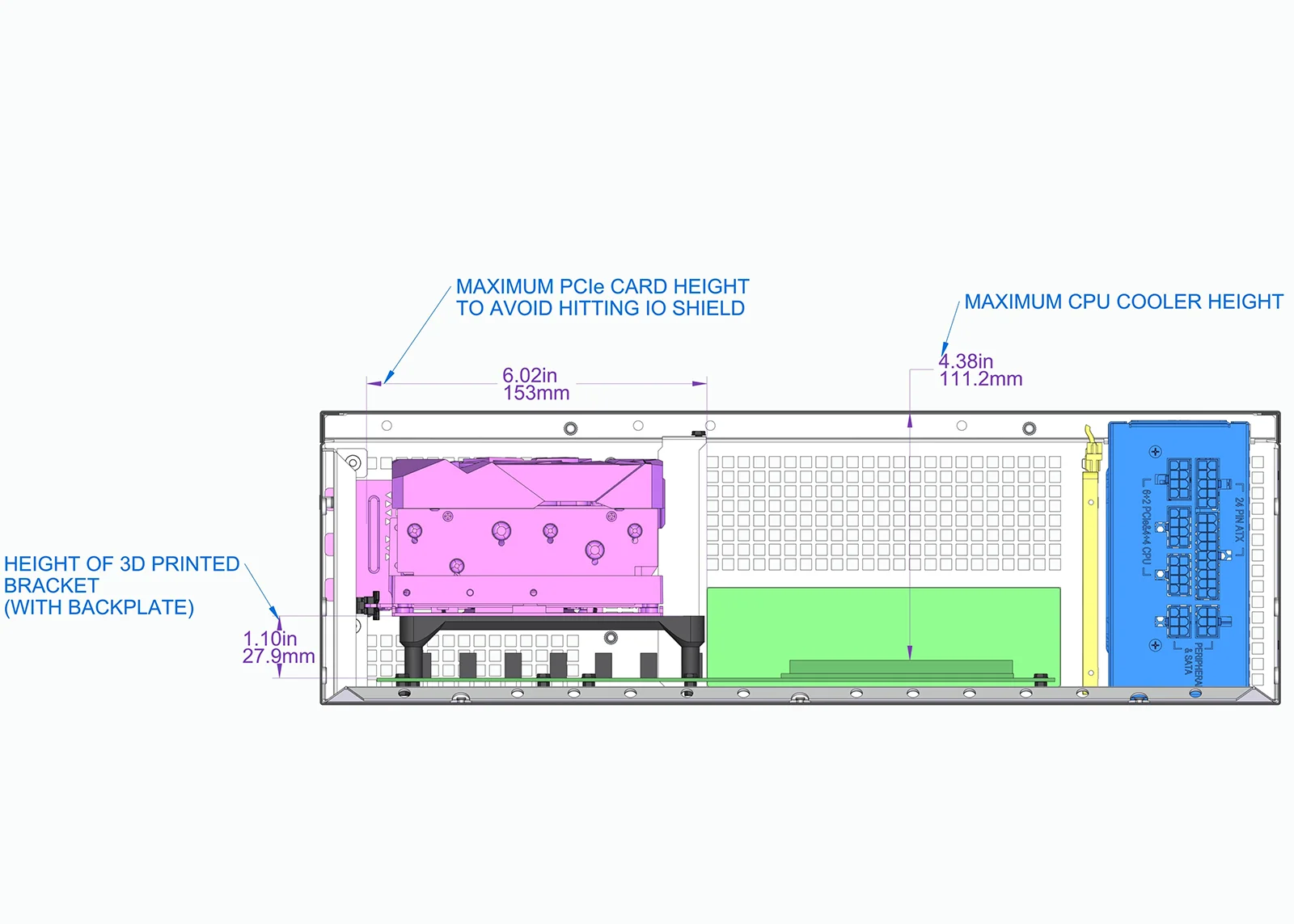

- Maximum card height in motherboard slot: 115mm

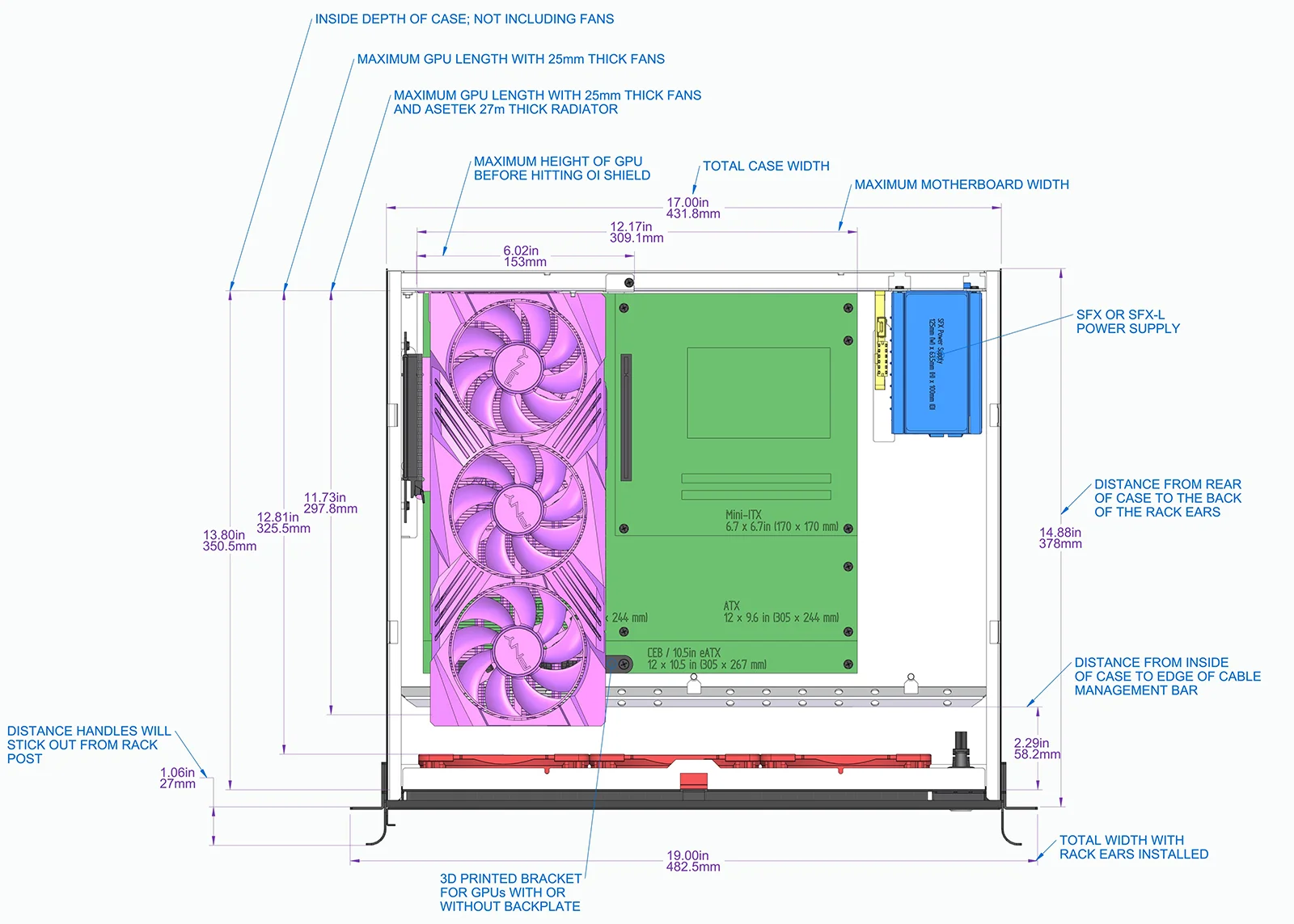

- Maximum card length with 3x Noctua A12x25 fans: 324mm
- Maximum card length with Asetek 360mm AIO and Noctua A12x25 fans: 297mm
- Maximum card length with no fans / no AIO cooler: 349mm
|
| Storage
|

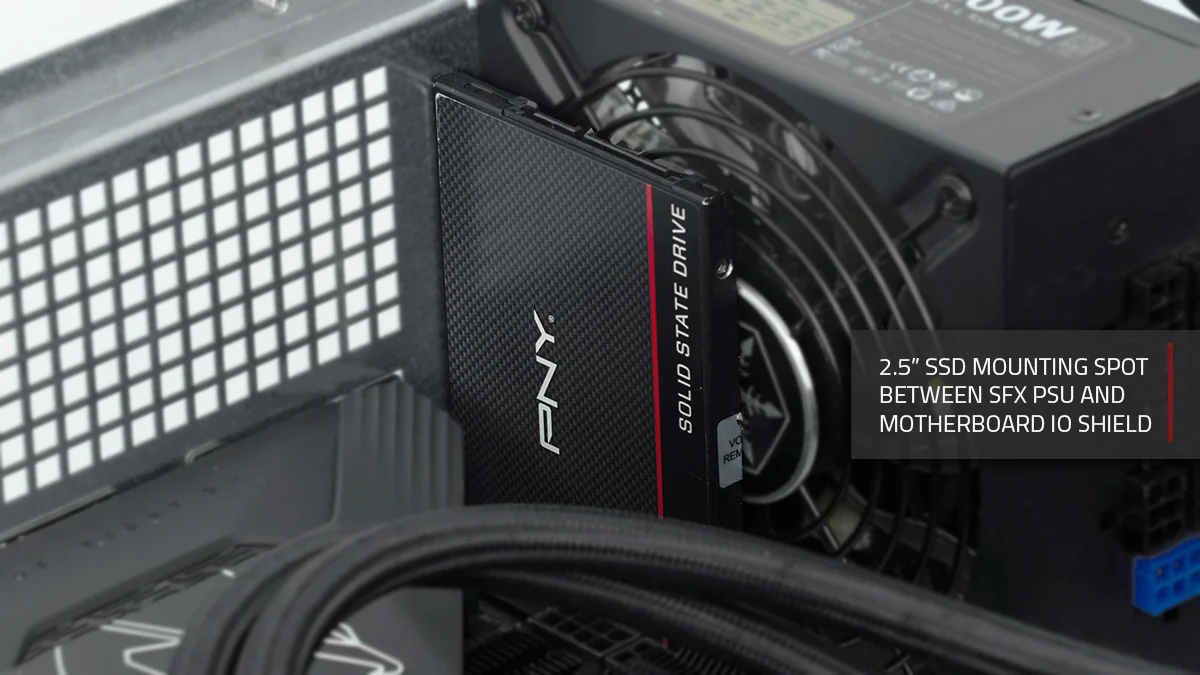

- 1x 2.5" SSD
- SSD mounting point is two countersunk holes in the rear of the case, next to the SFX PSU
- This case is designed for use of M.2/NVMe and PCIe based storage on motherboard
|

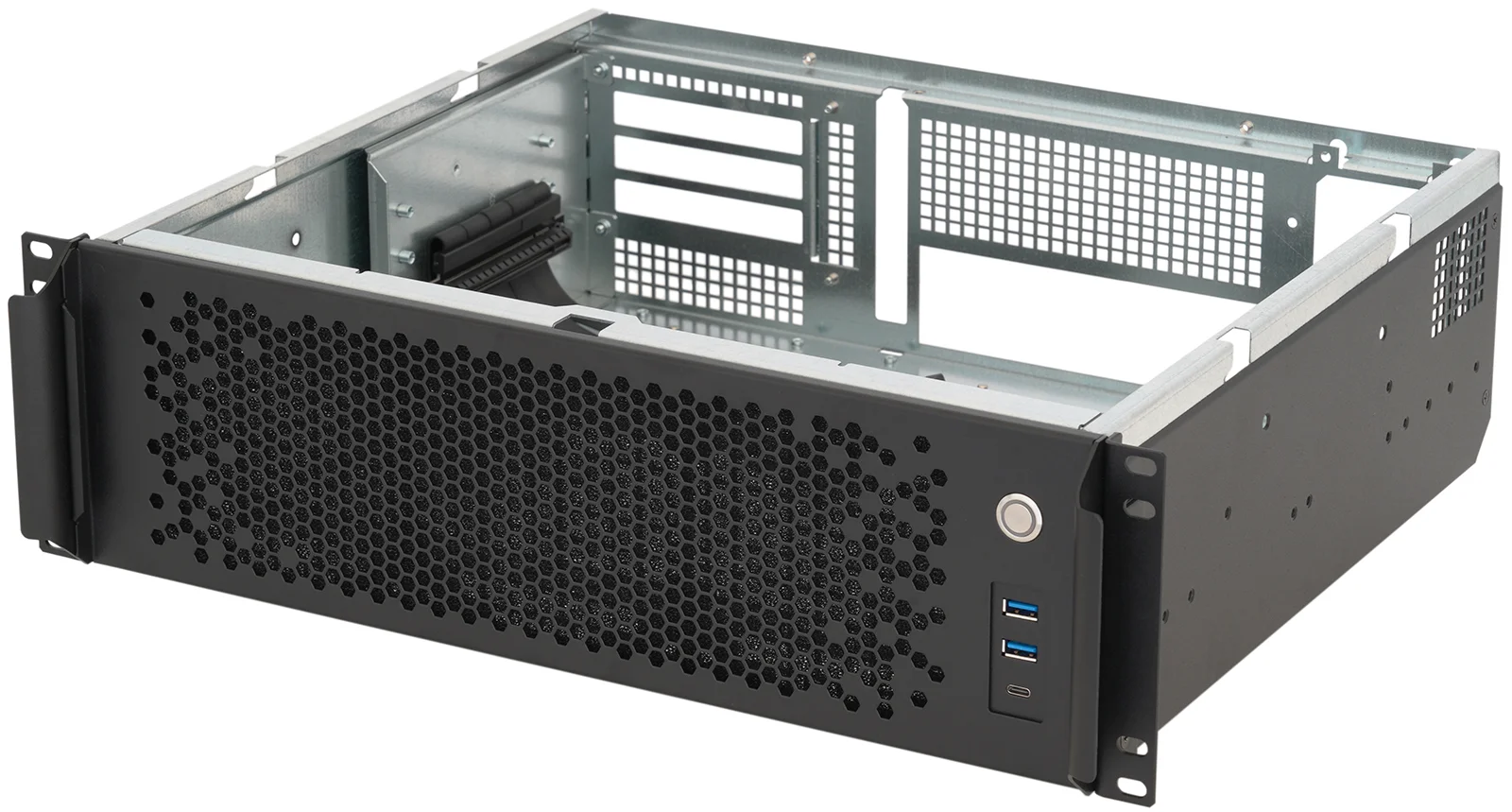

| Front Panel I/O
|
- One (1) USB 3.2 Type C 10Gbps Port
- One (2) USB 3.0 Type A Ports
- One (1) Momentary Switch / Power Status LED (Ring Shape, White)
|
| Power Supply
|
|
| Material
|
- Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Front Panels
- ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
- Rack Ears
- ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
|
| Finish
|
- Fine texture powder coated chassis and panels
- Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
- Optional custom powder coat finishes, MOQ 10 units
|
| Branding
|
- Case is unbranded on interior and exterior of chassis.
- Optional logo screen printing (full color) on front panel for business customers, MOQ 10 units
|
| Outside Dimensions
|
- 14.89" x 17.00" x 3U (5.22") [DxWxH]
- 378mm x 432mm x 132.5mm [DxWxH]
|
| Weights
|
- Chassis
-
- Rack Slide Kits
-
- Packaging Materials (Box, Tape, Foam Corners)
-
|
| Shipping Box Dimensions
|
- 21" x 19" x 10"
- Double Wall
|
| Rack Rails
|
- Sliger PM-Series Ball Bearing Slides
- General Devices C300-S Series
|
| Warranty
|
- Case
- 5 Year Warranty [Chassis, USB cables, Power Button, SATA Adapters]
- Liquid Coolers & Fans
- 3 Year Warranty
- Please see our warranty policy for additional conditions, exclusions, and limitations.
|
| Homologation
|
- HTS Tariff Code
- 8473.30.00.02
- Country of Origin
- United States of America
| Rev Control
|
- 1.0 (4/18/22 - **/**/**)
- Initial Release
|
| |
