CX3152a | Short Depth 3U with 360mm AIO and ATX PSU |
- Support for ATX, MicroATX, SSI-CEB, and eATX motherboards up to 10.5" in depth

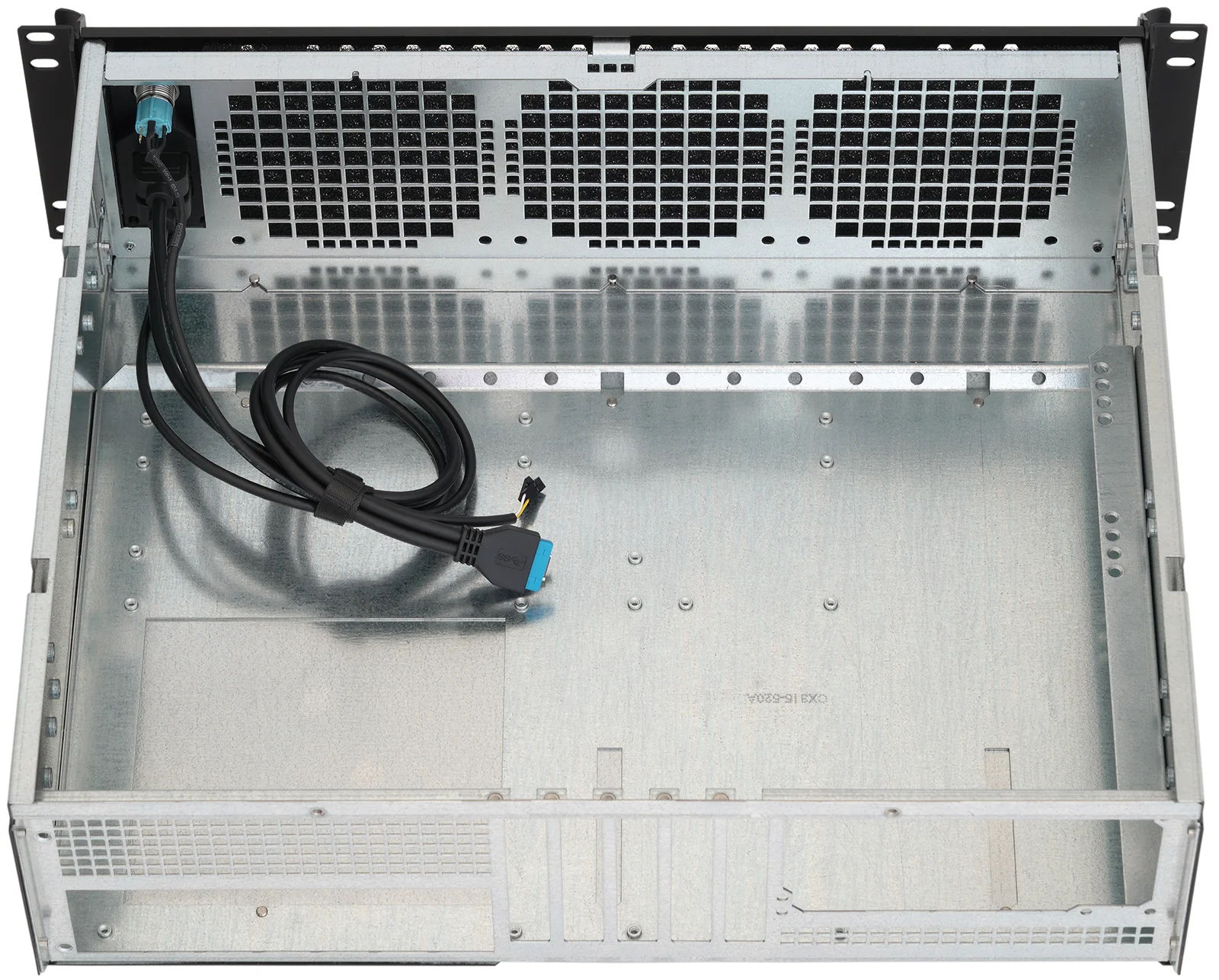

- Mounting for up to three(3) front mounted 120mm fans, support for air coolers up to 110mm tall

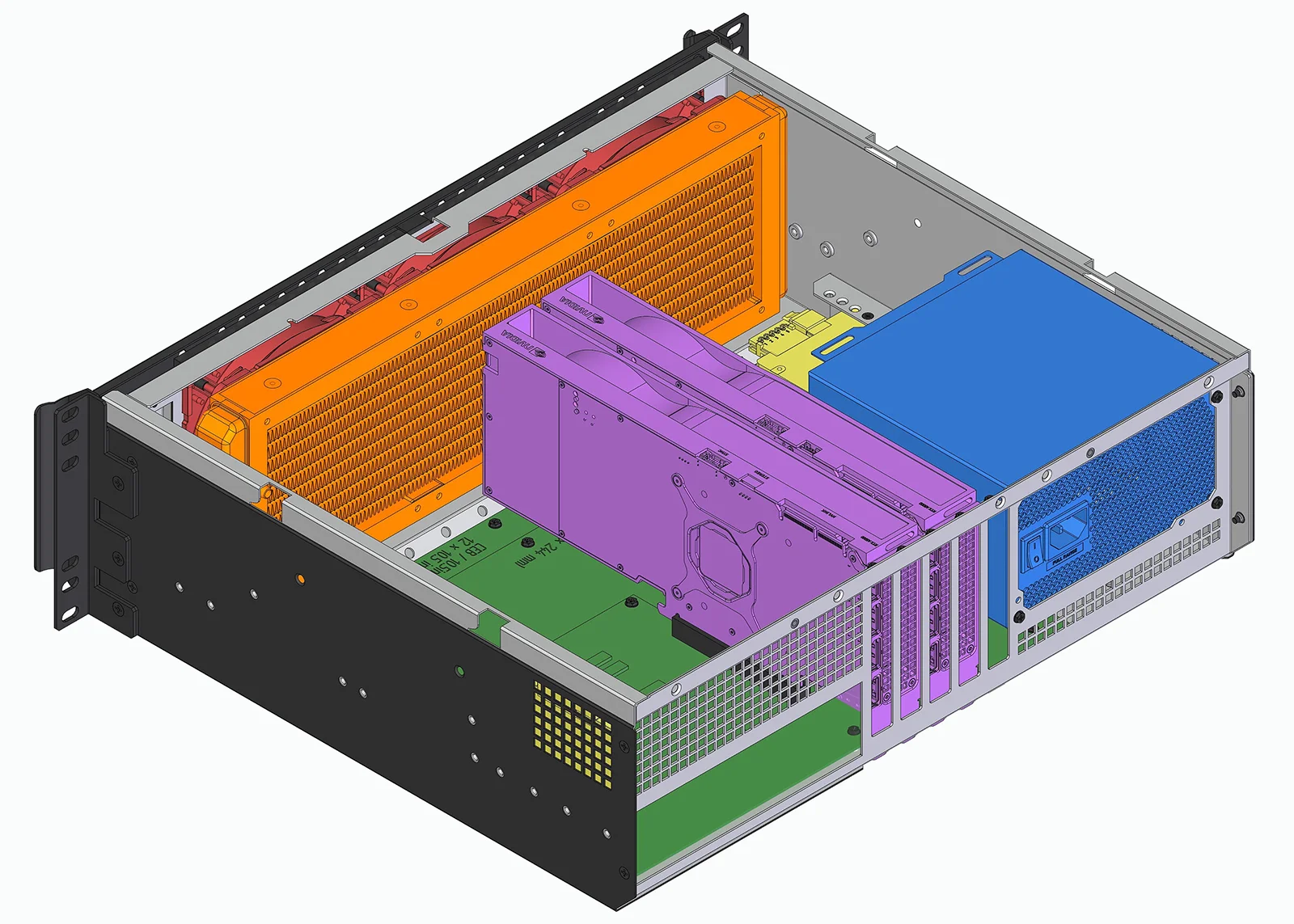

- Liquid cooling support for one(1) 360mm AIO, one(1) 240mm AIO or two(2) 120mm AIOs
- Five(5) PCIe slot cutouts for PCIe cards and GPUs up to 115mm tall
- Two(2) 2.5" SSD mounts (on-board M.2 and PCIe SSDs recommended)
- Supports high wattage ATX and FSP Twin redundant power supplies
- Made in USA with US materials, guaranteed availability for 8+ years
|
|
Rails Backorder
Our 14" General Devices rails are currently on backorder, and will take additional time to ship. Any orders placed with the 14" General Devices rails will ship without them, and a seperate shipment will go out once the rails are available again. There will be no extra charge with this additional shipment. We apologize for any inconvenience, and thank you in advance for your patience. Please contact us at sales@sliger.com or 1-775-356-5595 for more details.
Replacement / Optional Parts
This page is for replacement parts for existing cases. New case orders per the configure tab include all required panels, brackets, cables, screws, and accessories for assembly per the options selected on that tab.
Technical Specifications |
Motherboard
|
- SSI-CEB (305mm x 267mm) [12" x 10.5"]
- EATX (305mm x 267mm) [12" x 10.5"]
- ATX (305mm x 244 mm) [12" x 9.6"]
- Case ATX power supply overlaps edge of SSI-CEB, EATX, and ATX motherboards
- This limits SSI-CEB, EATX, and ATX motherboards to 5x PCIe slots
- Additionally, some low profile adapters for USB headers may be required
- MicroATX (245 x 245mm) [9.6" x 9.6"]
- FlexATX (229 x 191 mm) [9" x 7.5"]
- Mini-DTX (203mm x 170 mm) [8" x 6.7"]
- Mini-ITX (170mm x 170 mm) [6.7" x 6.7"]
|
CPU Air Coolers
|
|
---|
CPU Liquid Coolers
|
|
---|
Dust Filter
|
- Includes one(1) washable / reusable dust filter
- 30ppi open cell reticulated polyether filter foam with flame resistant rating, UL94 HF1, UL FILE NO E93229(N)
- Alternate density and/or materials such as aluminum mesh available for OEM projects
|
Fan Mounting
|
|
---|
GPU / PCIe Cards
|

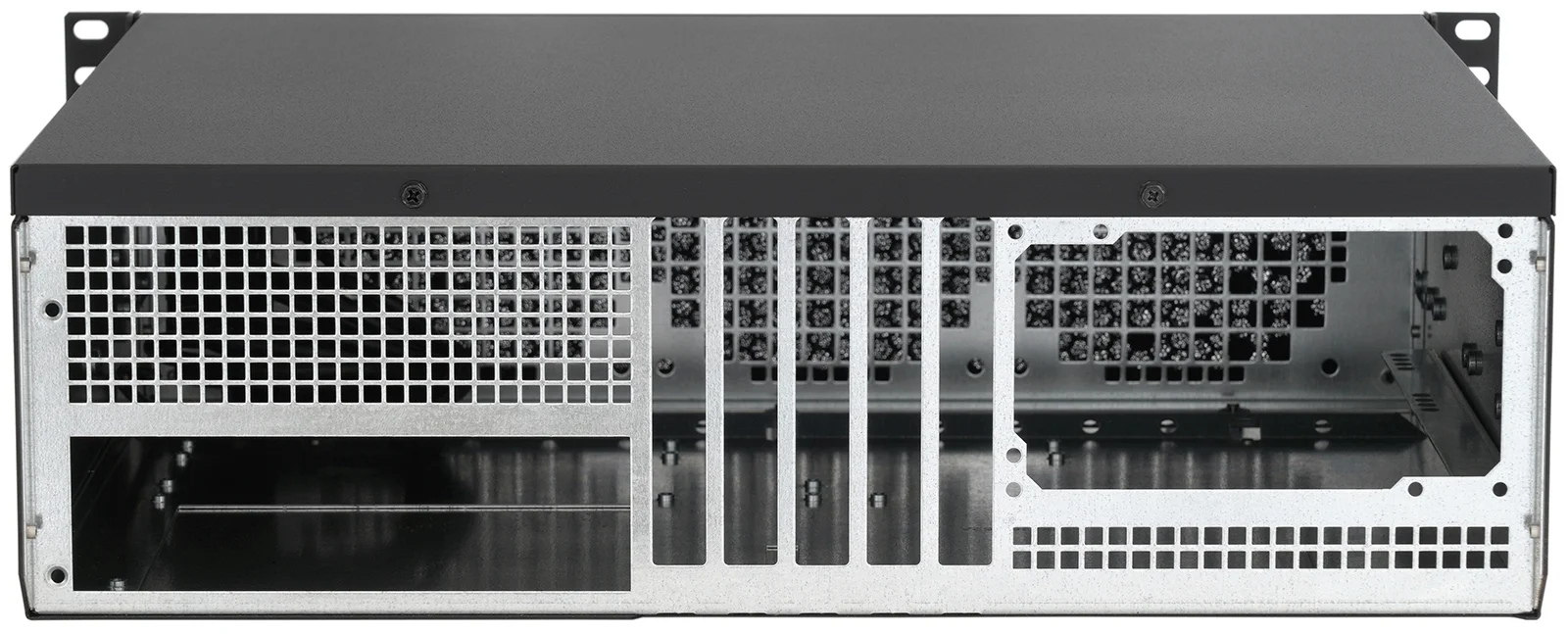

- Five(5) full height PCIe card slot cutouts

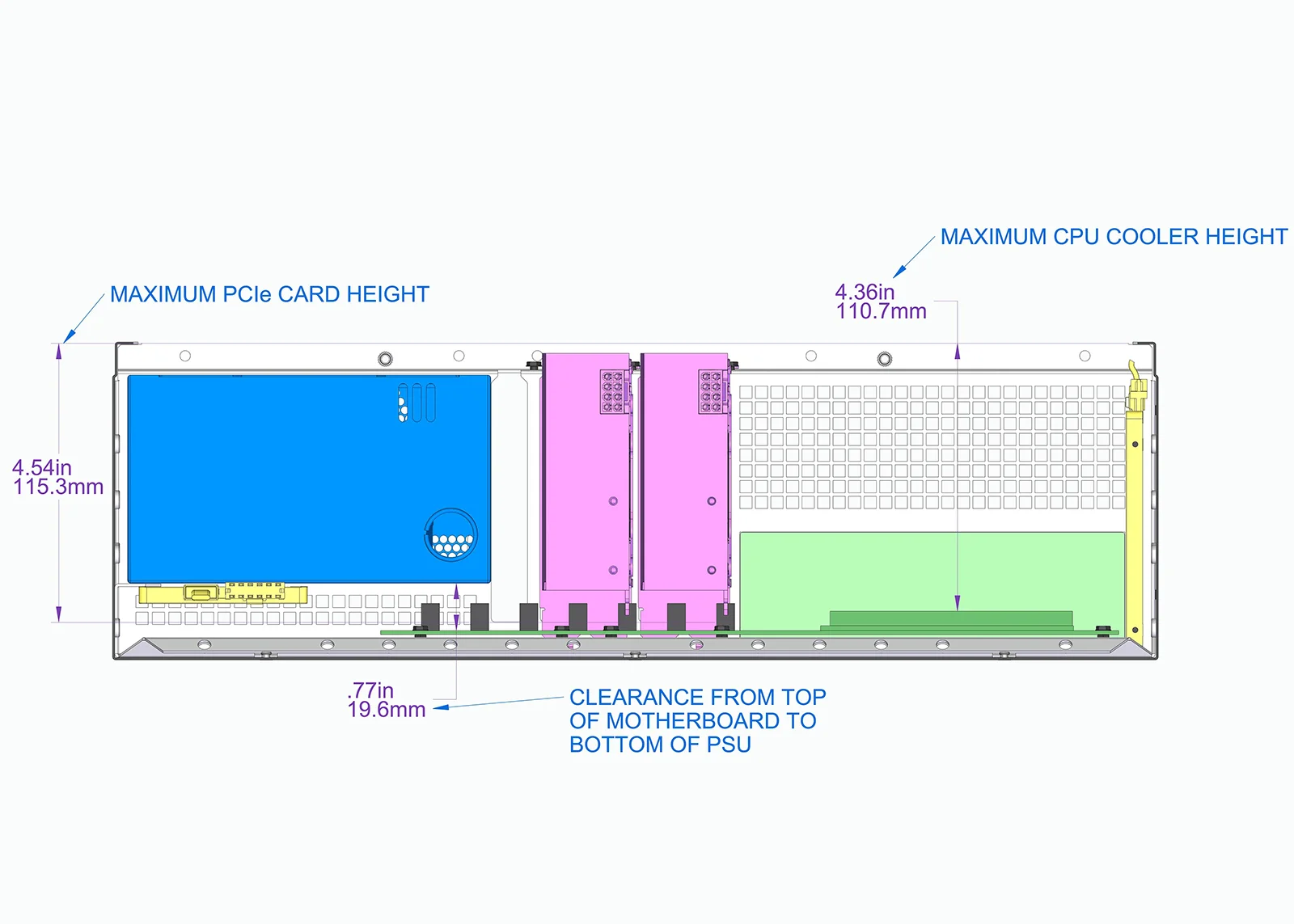

- Maximum card height: 115mm - including power connectors

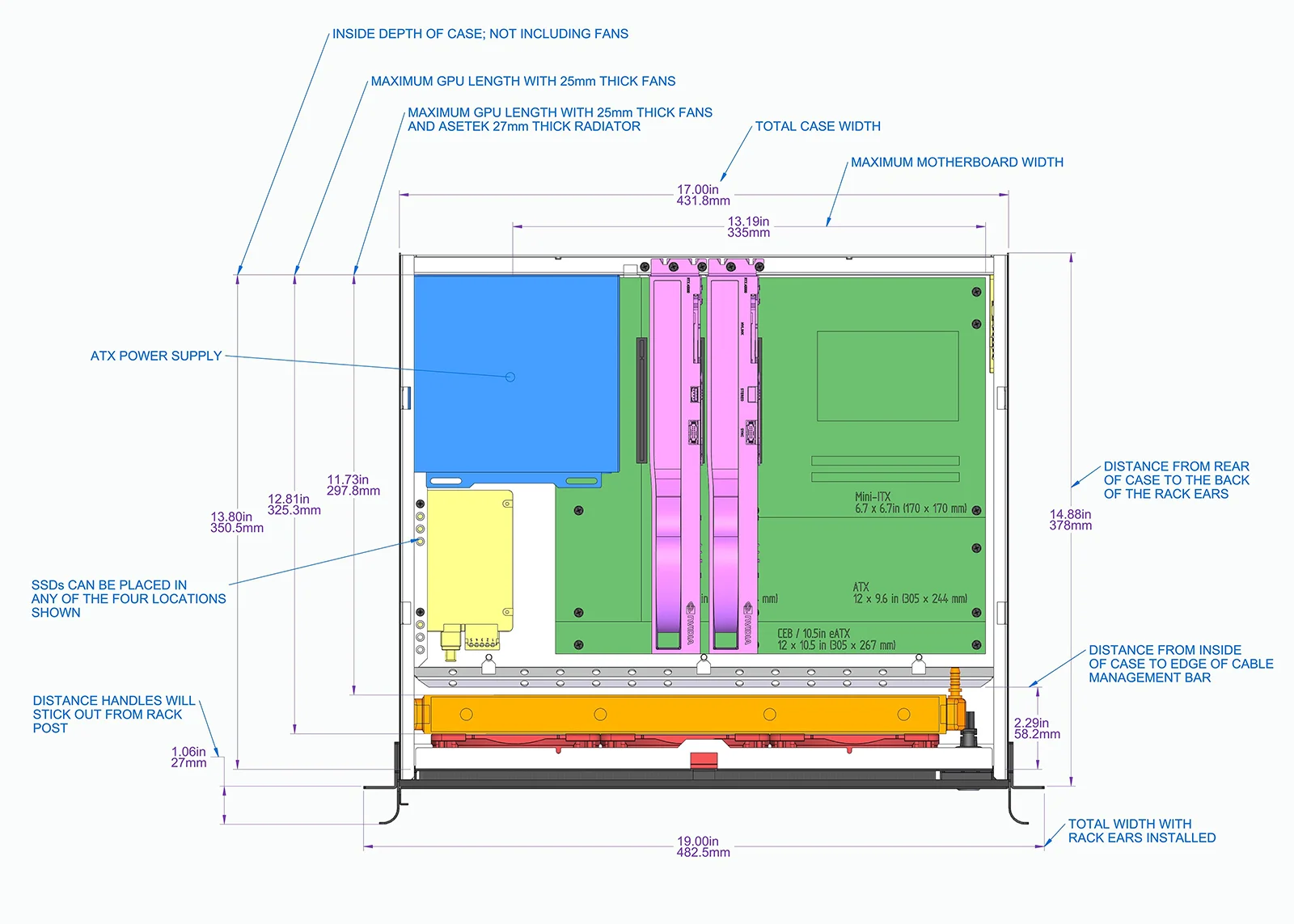

- Maximum card length with three(3) Noctua A12x25 fans: 324mm
- Maximum card length with Asetek 360mm AIO and Noctua A12x25 fans: 296mm
- Maximum card length with no fans / no AIO cooler: 349mm
- NOTE: Compatibility for GPUs with integrated AIO liquid coolers is limited by case height
|
Storage
|
- Two(2) 2.5" SSD up to 15mm thick

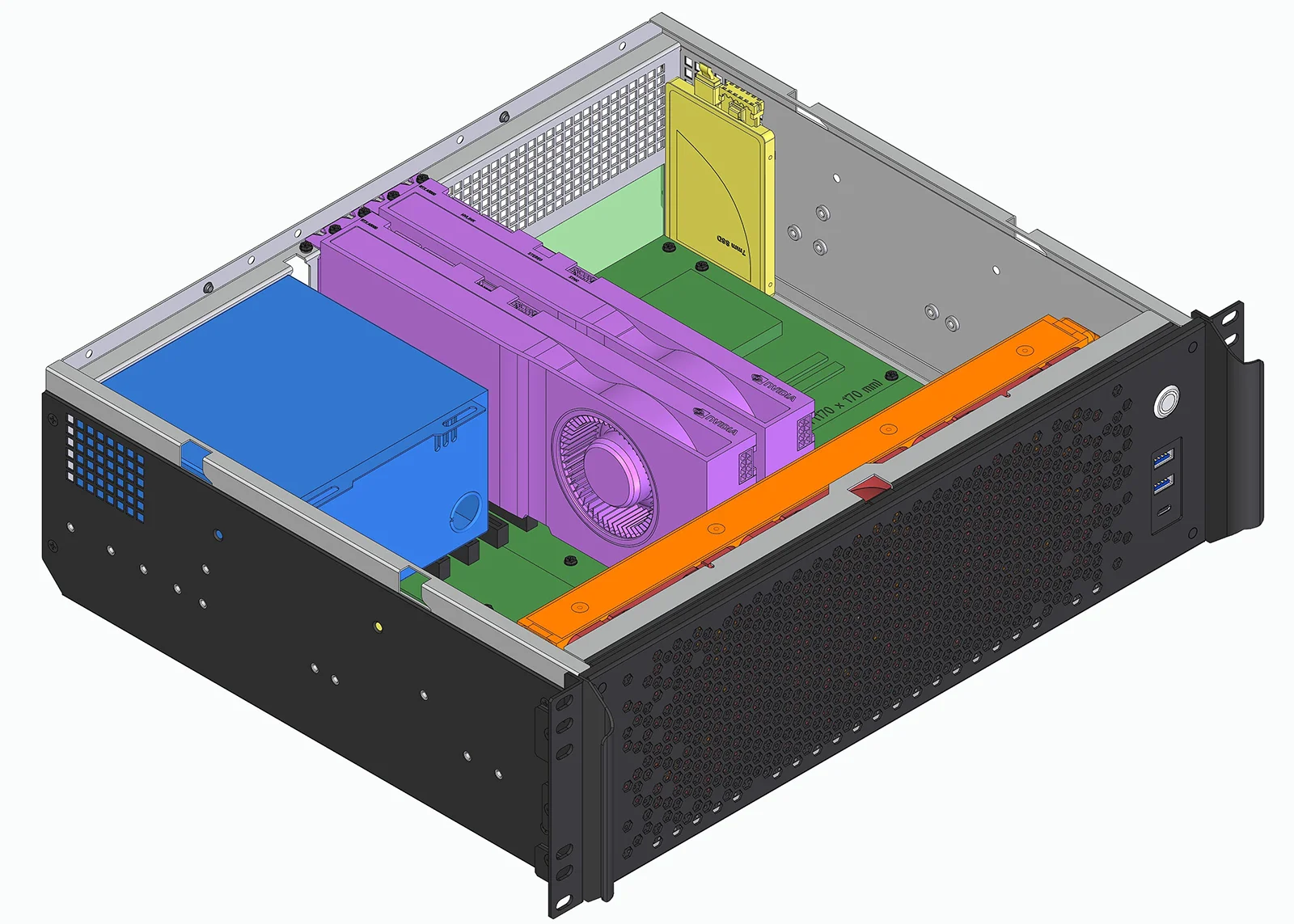

- One(1) 2.5" SSD is mounted vertically between motherboard IO shield and chassis side wall.
- One(1) 2.5" SSD is mounted under PSU support bar
- Sliger recommends use of M.2/NVMe and PCIe based storage on motherboard when possible
- Motherboard PCIe slots can be utilized for M.2 drives via Sabrent PCIe to M.2 or equivalent
- ASUS Hyper M.2 Gen5 PCIe x16 Gen5 to four(4) M.2 Gen5 SSDs
- OWC Accelsior S PCIe x4 to one(1) 2.5-inch SATA SSD
- StarTech PEX4SFF8639U.2 PCIe x4 to one(1) 2.5-inch U.2 NVME SSD
- 3.5" HDD Bracket converts PCIe slot to one(1) 3.5-inch HDD (requires SATA data and power cables)
|

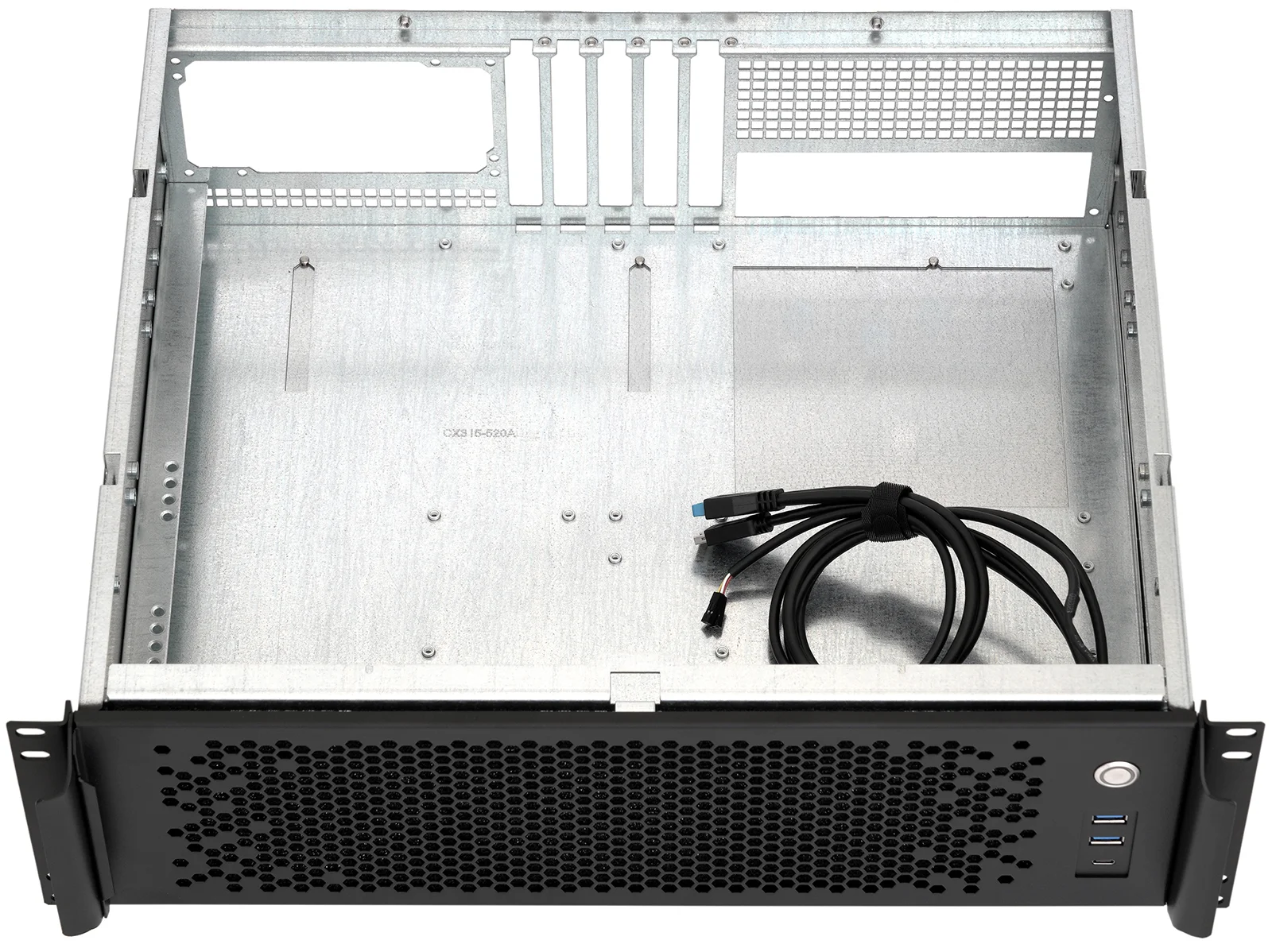

Front Panel I/O
|
- One(1) USB 3.2 Type C 10Gbps Port
- Two(2) USB 3.0 Type A Ports
- One(1) 16mm Momentary Power Button with integrated Power Status LED (Ring Shape, White)
|
Power Supply
|
- ATX
- Max Length: 270mm
- Power supply overlaps edge of motherboard, some low profile adapters for USB headers may be required
- Redundant ATX power supply available up to 900W:
- FSP-Twins
- Gemini 900A Gold Cybenetics
|
---|
Rack Rails
|
- General Devices C300-S Series
- Rack Rails are not included by default, must be purchased on the configuration or parts page.
- Brand Compatibility
- Brands such as iStarUSA TC Rails are natively compatible.
- Please contact our support team for any compatibility questions.
|
---|
Warranty
|
- Case and Rack Rails
- 5 Year Warranty
- Liquid Coolers & Fans
- 3 Year Warranty
- Please see our warranty policy for additional conditions, exclusions, and limitations.
|
---|
Rev Control
|
- 1.0 (4/18/22 - **/**/**)
- Initial Release
|
Case Mechanicals |
Material
|
- Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Front Panels
- ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
- Rack Ears
- ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
|
Finish
|
- Semi-gloss fine texture powder coat finish
- Powder coat is an outdoor architectural grade polyester epoxy blend
- Compliant with SAE AMS-STD-595 / FED-STD-595 color number 27038 (ANA 514)
- Custom powder coat finishes are available, additional labor/material charges and 10 unit MOQ will apply.
- Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
|
Branding
|
- Case is unbranded on interior and exterior of chassis.
- Optional logo screen printing (full color) on front panel for business customers, MOQ 10 units
|
Outside Dimensions
|
- 15.04" x 17.00" x 3U (5.22") [DxWxH]
- 382mm x 432mm x 132.5mm [DxWxH]
- Depth from front rack post is 14.89" [378mm]
|
---|
Weights
|
- Chassis
- 13.75lbs [6.24kg]
- Rack Slide Kits - All Rail Kits Will Ship In Separate Box
- GDRAIL-14XX - 6lbs [2.72kg]
- GDRAIL-20XX - 7.5lbs [3.4kg]
- GDRAIL-26XX - 8.75lbs [3.97kg]
- Fans
- 2.1lbs [.95kg] total - .7lbs per fan
- Coolers
- Asetek 624S-M2 240mm AIO - 1.6lbs [.73kg]
- Asetek 636S-M2 360mm AIO - 1.9lbs [.86kg]
- Asetek 836SA 360mm Threadripper AIO - 2.35lbs [1.07kg]
- Retention kits - .25lbs [.11kg]
- Packaging Materials (Box, Tape, Foam Corners)
- 3.25lbs [1.47kg]
|
---|
Shipping
|
- 20.5" x 18.5" x 9.5" (Shipping Box Outside Dimensions)
- 20" x 18" x 9" (ID)
- Shipping box is ECT52, Double Wall, Kraft Brown
- Standard SLIGER branded tape, optional unbranded kraft brown tape for business customers
|
Regulatory & Homologation |
Product Lifecycle
|
- Planned availability through 2032
- Extended availability beyond 8 years as built-to-order(BTO) with a 25 unit MOQ
|
EMI / Safety
|
- Case cannot be certified as a standalone item. Certifications must be sought as a fully integrated system.
- Contact us before using case for FCC, CE, UL, IEC, or other safety / regulatory compliance.
- Alternate vent sizes, brackets, EMI springs, and/or powder coat masking, may be required depending on certifications sought.
- UL listed wire, fans, coolers, and materials where possible
|
Industry Standards
|
- 19-inch rack standard
- Electronic Industries Alliance EIA-310-D
- International Electrotechnical Commission IEC 60297-1 / IEC 60297-3-100
- Consumer Electronics Association CEA-310-E
- Deutsches Institut für Normung DIN 41494
|
Environmental
|
- Compliant with RoHS Directive 2002/95/EC, 2015/863 RoHS2, RoHS3 (EU) with all applicable exemptions
- Regulation (EC) No 1907/2006 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Compliant for all Substances of Very High Concern (SVHC)
- Conflict–Free Sourcing Initiative (CFSI) with Conflict-Minerals Report (CMRT) available upon request
- Compliant with US EPA PBT Section 6 Toxic Substances Control Act (TSCA)
|
Import / Export
|
- Harmonized Tariff Schedule (HTS) / HS Schedule B
- 8473.30.0002 - COMPUTER CASES AND ACCESSORIES
- Export Control Classification Number [ECCN]
- EAR99 LOW-TECHNOLOGY CONSUMER GOODS
- Country of Origin
- United States of America
- "Made in USA" per Federal Trade Commission (FTC) subchapter C title 16 Code of Federal Regulations Part 323
- TAA (Trade Agreements Act) Compliant for GSA Schedules, IDIQ contracts, and DoD contracts
- Compliant with Section 889 of Federal Acquisition Regulation (FAR) of National Defense Authorization Act (NDAA)
|
