CX3170a XL 17" deep 3U for eATX / EEB motherboard
CX3170a XL17" deep 3U for eATX / EEB motherboard
  • Supports SSI-EEB, SSI-CEB, eATX, and XL ATX motherboards up to 13" in depth
  • Eight(8) PCIe slot cutouts for PCIe cards and GPUs up to 115mm tall x 375mm long
  • Mounts one SFX or SFX-L power supply for systems up to 1300W
  • 3x front mounted 120mm fans with support for 1x 360mm AIO, or 2x 120mm AIOs

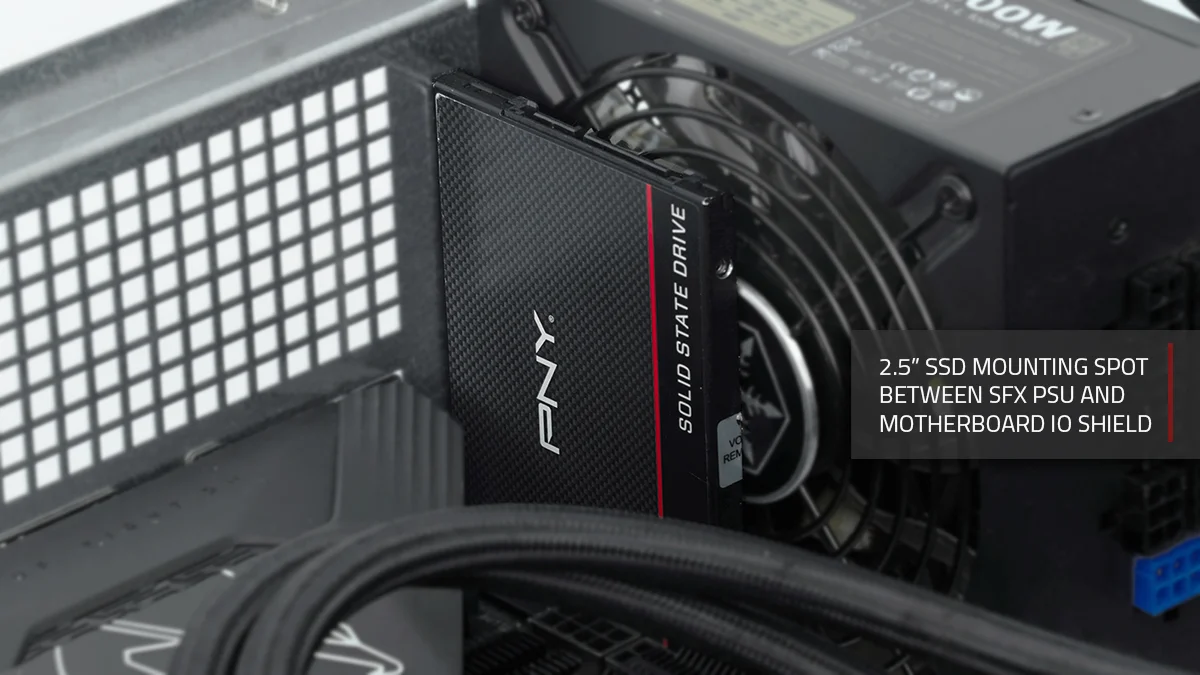

  • Mounting for up to 3x 3.5" HDDs, 8x 2.5" SSDs, or a combination of both
Front Panel Color



BUSINESS CUSTOMERS: Custom branded front panels are available!
Services include custom powder coating of any color on Prismatic Powders, modified vent patterns, custom laser cutouts, and full color screen printing (including gradients). Please contact sales@sliger.com to discuss your requirements. A minimum order quantity (MOQ) of 10 units is required.
Rack Slides
Installation instructions for our CX/PM Series rack slides are available here.
*Indicated rack slides may ship in a seperate shipping box from the case itself.
120mm Fans
* Fan wire extention cables are currently out of stock. We apologize for any inconvenience.
Asetek 360mm AIO Liquid Coolers for HEDT and Server CPUs
*Supports Threadripper, Threadripper Pro, and Eypc CPUs on sockets; TR4, sTRX4, TR5, sTR5, SP3, SP6, and sWRX8.
The 836SA-M1 does NOT support socket SP5.
Additional technical information on the ASETEK 8 Series AIOs is available here.
Asetek 360mm AIO Liquid Cooler for Desktop CPUs
Additional technical information on our Asetek AIOs is available here.
Asetek 240mm AIO Liquid Cooler for Desktop CPUs
Additional technical information on our Asetek AIOs is available here.
Add To Cart
FREE SHIPPING (US ONLY)
IN STOCK
Orders for CX3170a XL are currently shipping in 1-10 business days based on order quantity and current production availability. Contact us if you need expedited / same day order processing.
Order Terms & Conditions
5% CANCELLATION FEE
Due to changes in refund policies from PayPal and Amazon, all order cancellations are now subject to a 5% order cancellation fee.
Order Cancellations & Returns

Technical Specifications

Motherboard
  • XL-ATX (325mm x 330mm) [12.8" x 13"]
  • SSI-EEB (305mm x 330mm) [12" x 13"]
  • eATX (305mm x 267mm) [12" x 10.5"]
  • SSI-CEB (305mm x 267mm) [12" x 10.5"]
  • ATX (305mm x 244 mm) [12" x 9.6"]
  • MicroATX (245 x 245mm) [9.6" x 9.6"]
  • FlexATX (229 x 191 mm) [9" x 7.5"]
  • Mini-DTX (203mm x 170 mm) [8" x 6.7"]
  • Mini-ITX (170mm x 170 mm) [6.7" x 6.7"]
CPU Air Coolers
  • up to 110mm tall
  • Recommended Silent Air Coolers
  • Noctua D9L, Noctua NH-L12, Thermalright Silver Soul 110, or ID-COOLING SE-904-XT SLIM
  • List of 3U Air Coolers Options
  • PCPartPicker.com list of 3U air coolers
  • 3U Air Cooler Manufacturers (for bulk orders / system integrators)
  • www.dynatron.com
CPU Liquid Coolers
Fan Mounting
  • Front
  • Three(3) 120mm x 25mm fans
GPU / PCIe Cards
  • Eight(8) full height PCIe card slot cutouts
  • Maximum card height: 115mm
  • Maximum card length with no fans / no AIO cooler: 400mm
  • Maximum card length with 3x Noctua A12x25 fans: 375mm
  • Maximum card length with Asetek 360mm AIO and Noctua A12x25 fans: 348mm
  • Case includes eight(8) non-vented PCIe slot filler blank brackets (Sliger Part Number: CXSC1020A)
Storage

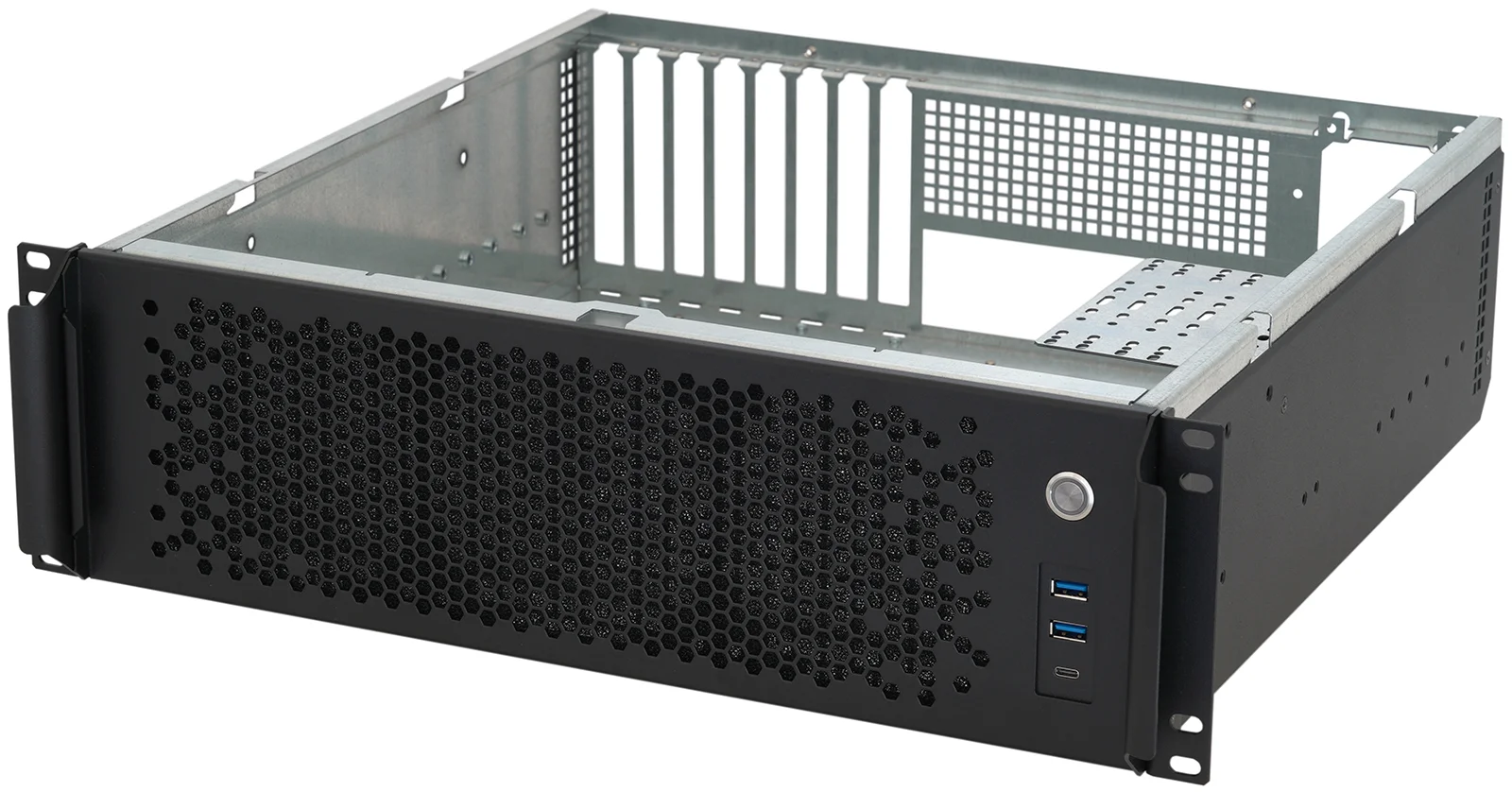

Front Panel I/O
  • One (1) USB C 10Gbps Port
  • One (2) USB 3.0 Ports
  • One (1) Momentary Switch / Power Status LED (Ring Shape, White)
Power Supply
Material
  • Chassis
  • ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
  • Front Panels
  • ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
  • Rack Ears
  • ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
Finish
  • Semi-gloss fine texture powder coat finish
  • Powder coat is an outdoor architectural grade polyester epoxy blend
  • Compliant with SAE AMS-STD-595 / FED-STD-595 color number 27038 (ANA 514)
  • Custom powder coat finishes are available, additional labor/material charges and 10 unit MOQ will apply.
  • Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
Branding
  • Case is unbranded on interior and exterior of chassis.
  • Optional logo screen printing (full color) on front panel for business customers, MOQ 10 units
  • Custom logo requires a one time design fee of $200 to create proofs and output files

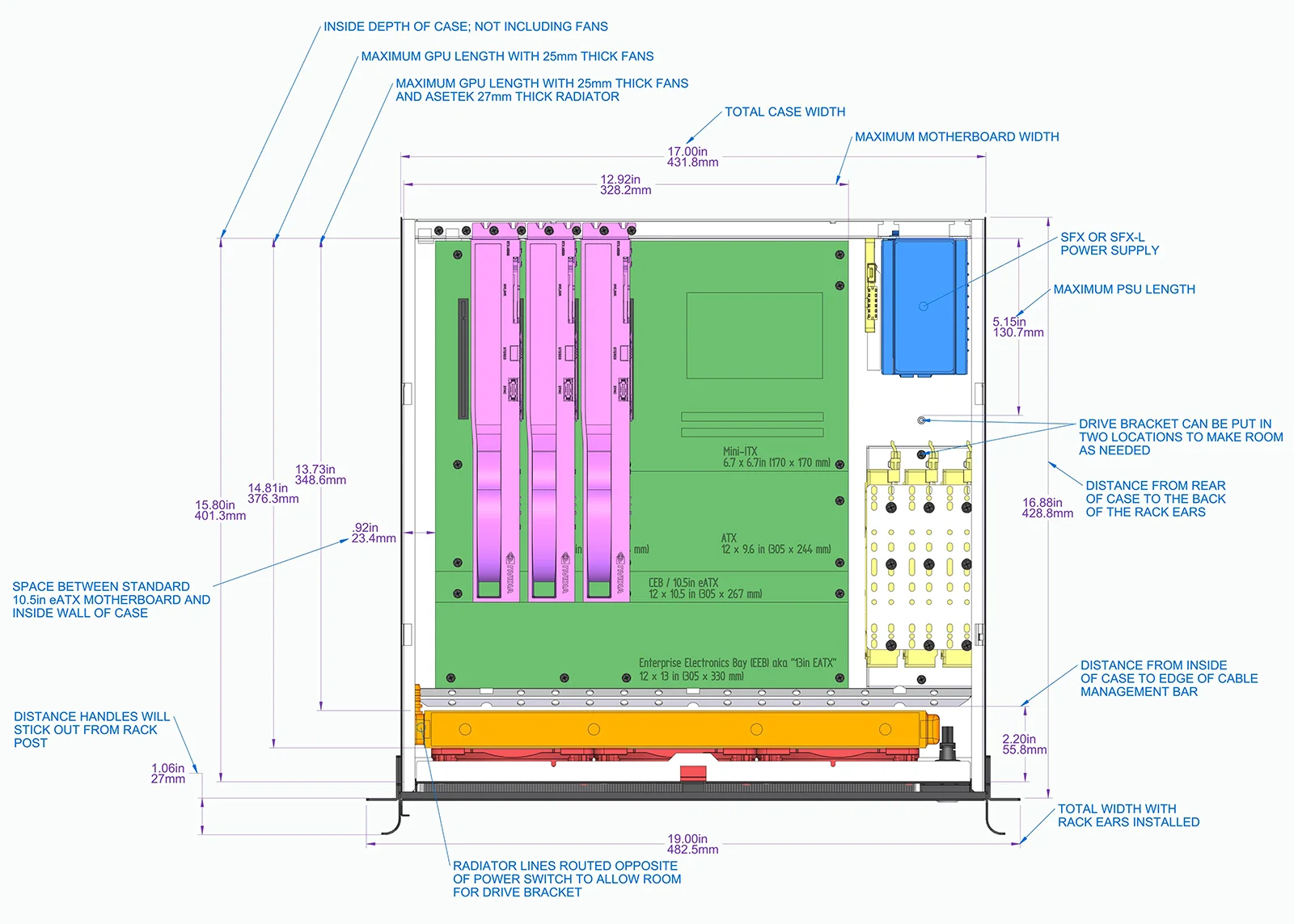

Case Dimensions
  • 16.89" x 17.00" x 3U (5.22") [DxWxH]
  • 429mm x 431.38mm x 132.5mm [DxWxH]
Weights
  • Chassis
  • Rack Slide Kits
  • Packaging Materials (Box, Tape, Foam Corners)
Shipping Box Dimensions
  • 21" x 21" x 10"
  • 51 ECT Double Wall
  • Packaged with reusable EPE foam end caps
Rack Rails
  • Sliger PM-Series Ball Bearing Slides
  • General Devices C300-S Series
Warranty
  • Case
  • 5 Year Warranty [Chassis, USB cables, Power Button, SATA Adapters]
  • Liquid Coolers & Fans
  • 3 Year Warranty
  • Please see our warranty policy for additional conditions, exclusions, and limitations.
Industry Standards
  • 19-inch rack standard
  • Electronic Industries Alliance EIA-310-D
  • International Electrotechnical Commission IEC 60297-1 / IEC 60297-3-100
  • Consumer Electronics Association CEA-310-E
  • Deutsches Institut für Normung DIN 41494
Safety and EMC
  • Contact us before using case for FCC, CE, UL, or other safety / regulatory compliance
  • Alternate brackets or powder coat masking may be required depending on certifications sought
Environmental
  • Compliant with RoHS Directive 2002/95/EC, 2015/863 RoHS2, RoHS3 (EU) with all applicable exemptions
  • Regulation (EC) No 1907/2006 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Compliant for all Substances of Very High Concern (SVHC)
  • Conflict–Free Sourcing Initiative (CFSI) with Conflict-Minerals Report (CMRT) available upon request
  • Compliant with US EPA PBT Section 6 Toxic Substances Control Act (TSCA)
Federal Acquisition
  • TAA (Trade Agreements Act) Compliant for GSA Schedules, IDIQ contracts, and DoD contracts
  • Compliant with Section 889 of Federal Acquisition Regulation (FAR) of National Defense Authorization Act (NDAA)
HTS Tariff Code
  • 8473.30.00.02 - COMPUTER CASES AND ACCESSORIES
Country of Origin
  • United States of America
Rev Control
  • 1.0 (4/18/22 - **/**/**)
  • Initial Release
