| Motherboard
|
- EATX (305mm x 280mm) [12" x 11"]
- ATX (305mm x 244 mm) [12" x 9.6"]
- MicroATX (245 x 245mm) [9.6" x 9.6"]
- FlexATX (229 x 191 mm) [9" x 7.5"]
- Mini-DTX (203mm x 170 mm) [8" x 6.7"]
- Mini-ITX (170mm x 170 mm) [6.7" x 6.7"]
|
| CPU Air Coolers
|
|

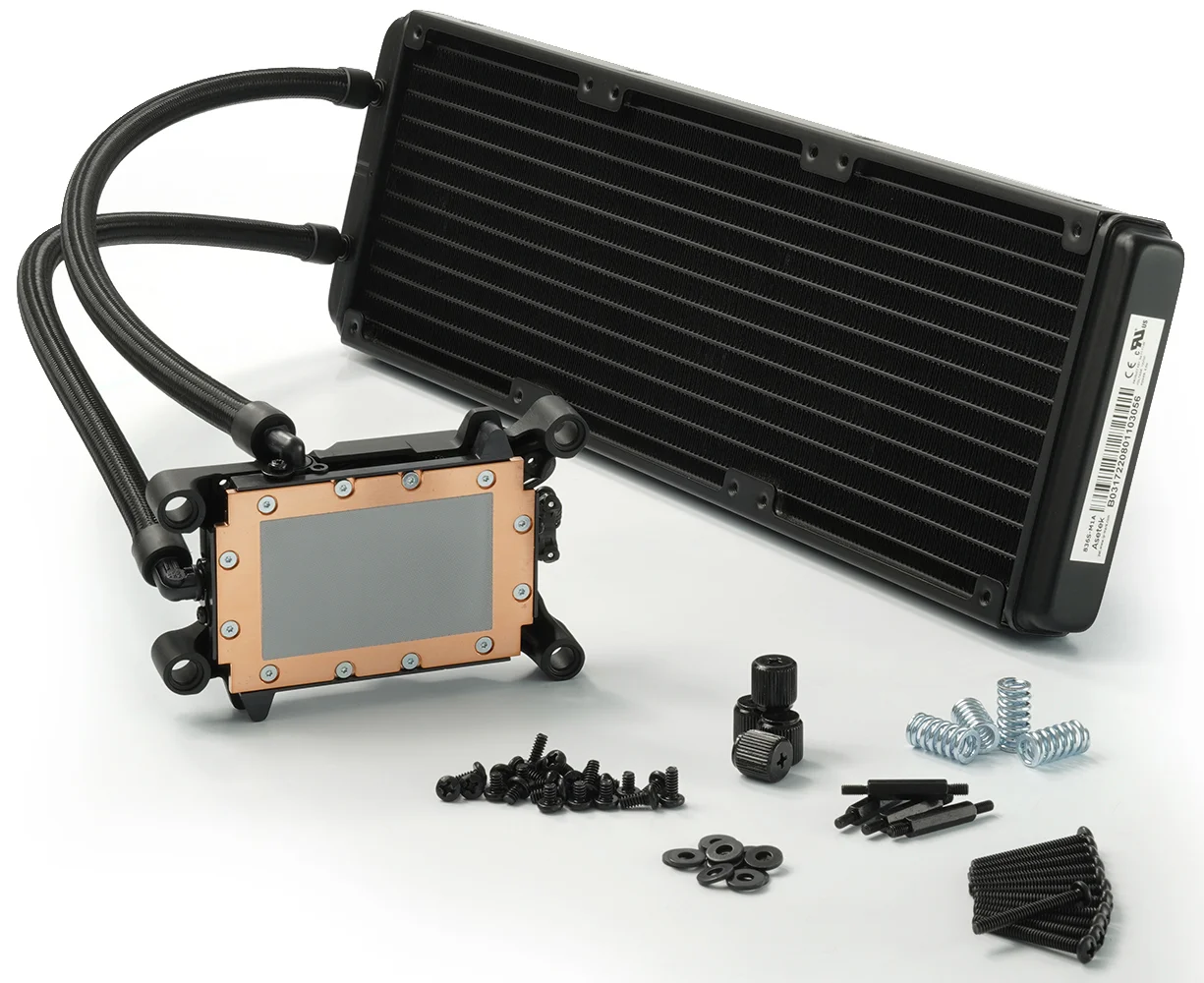

| CPU Liquid Coolers
|
|

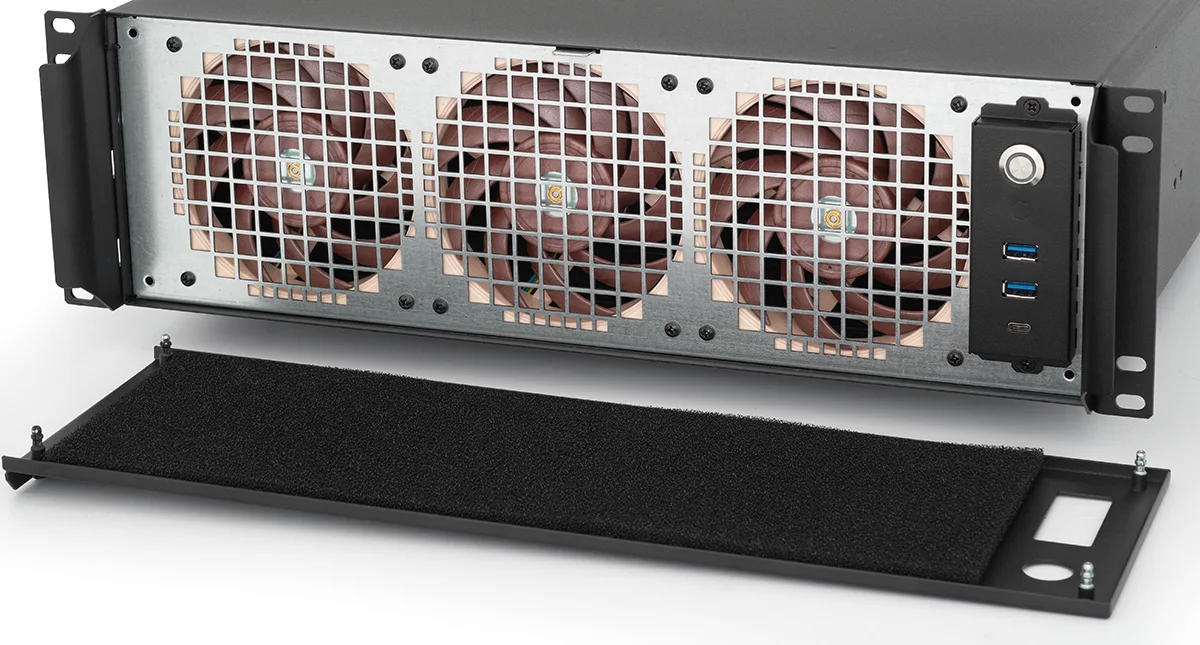

| Fan Mounting
|
- Front

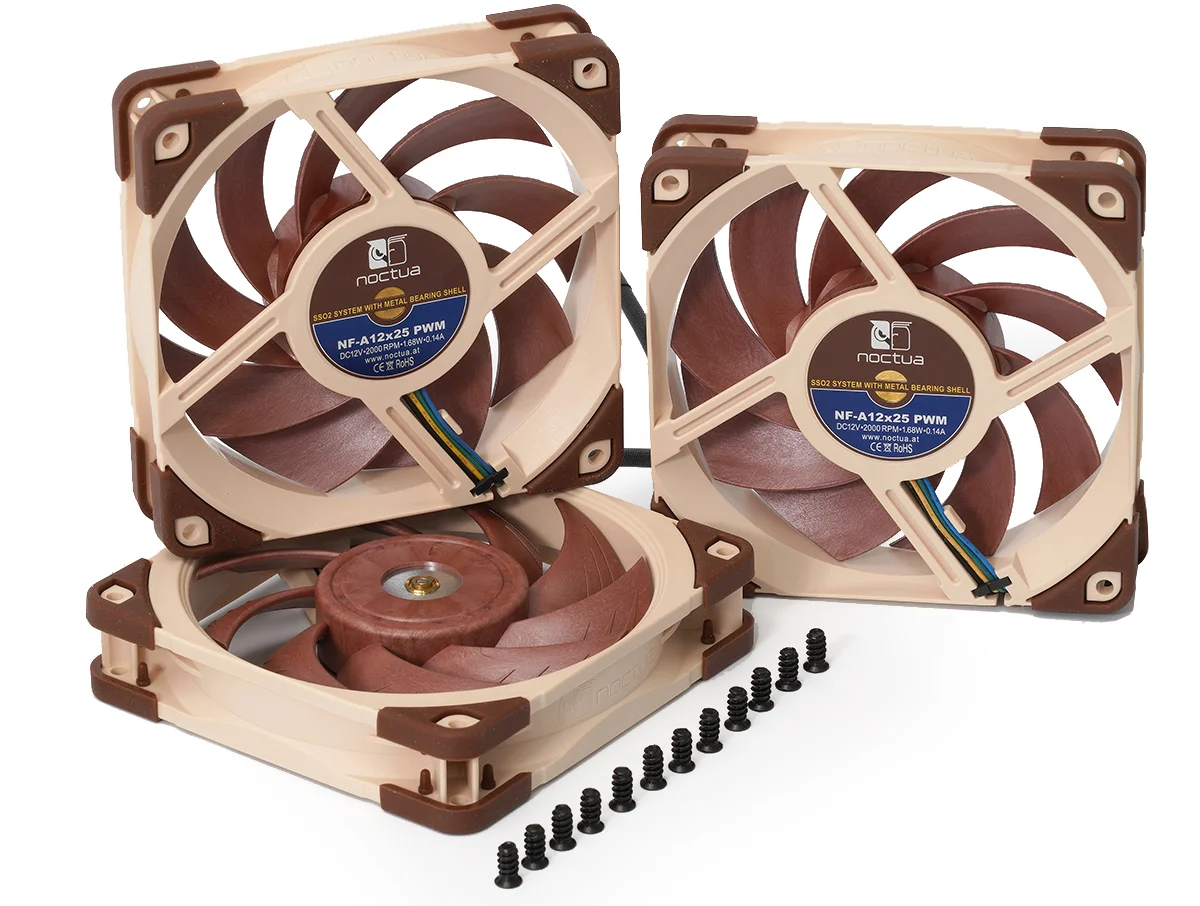

- 3x 120mm x 25mm fans
|

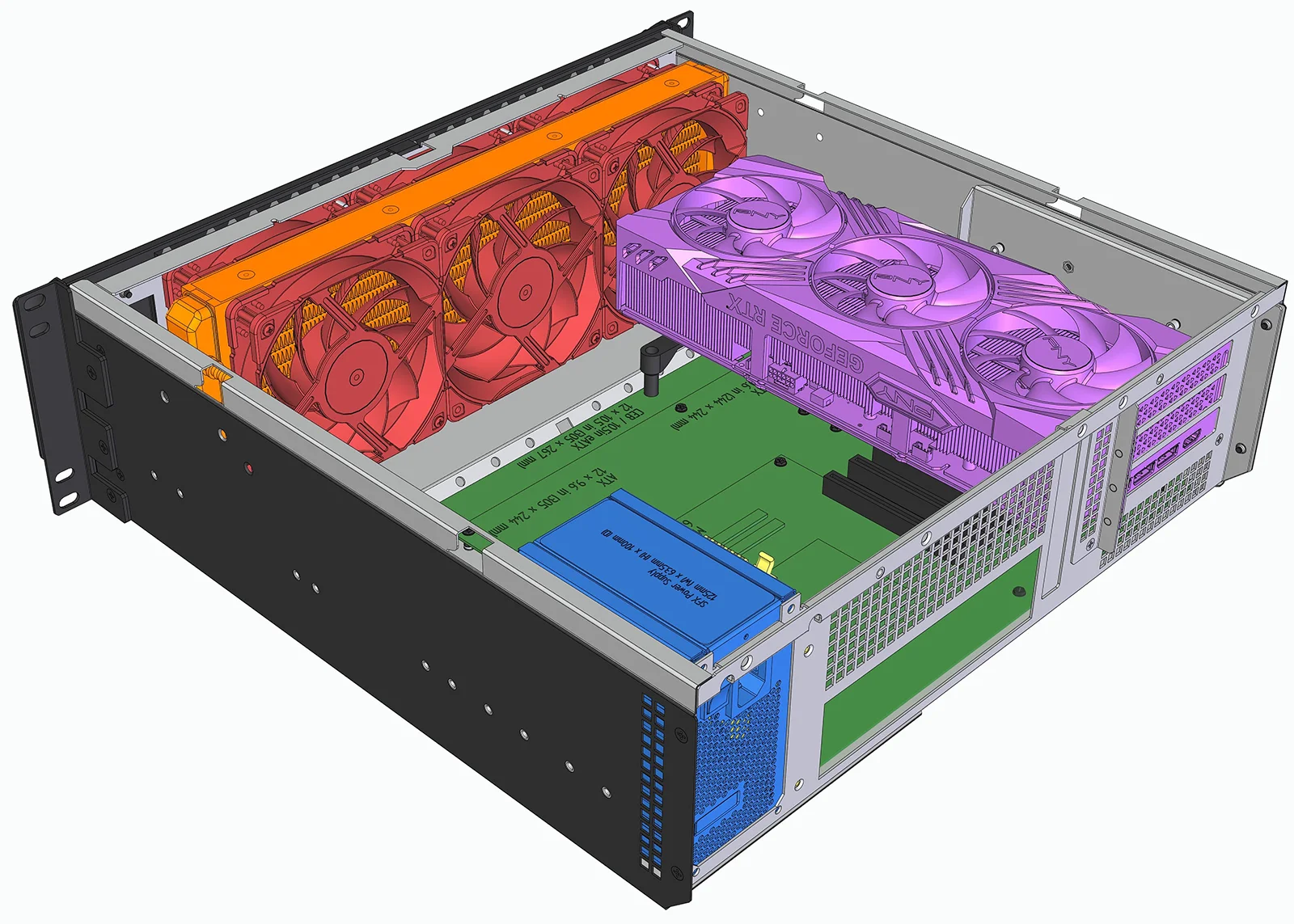

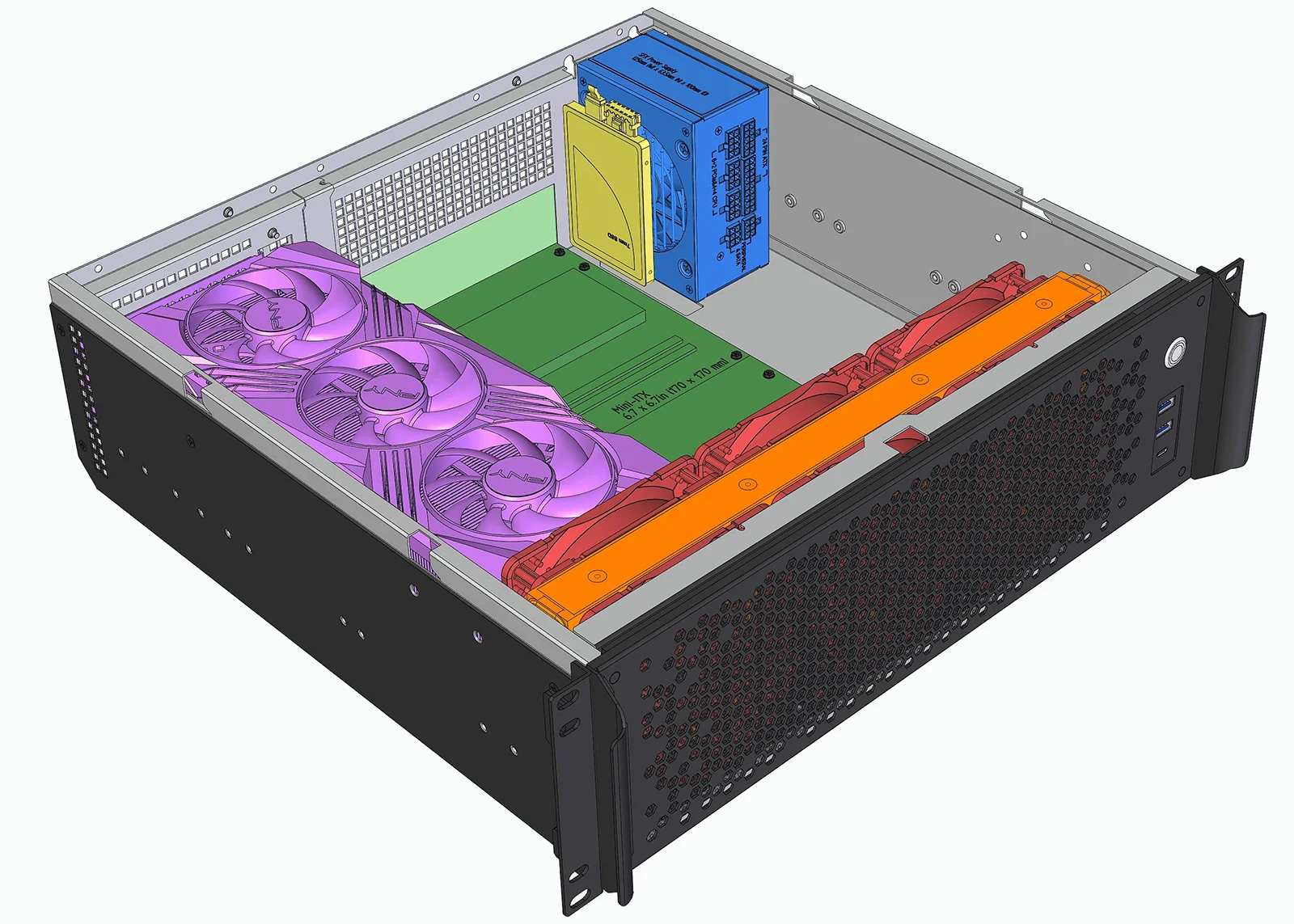

| GPU / PCIe Cards
|
- 1x horizontal 3-slot GPU cutout with PCIe 16x Gen 4.0 riser cable
- Maximum card width: 72mm or 3.5-slot

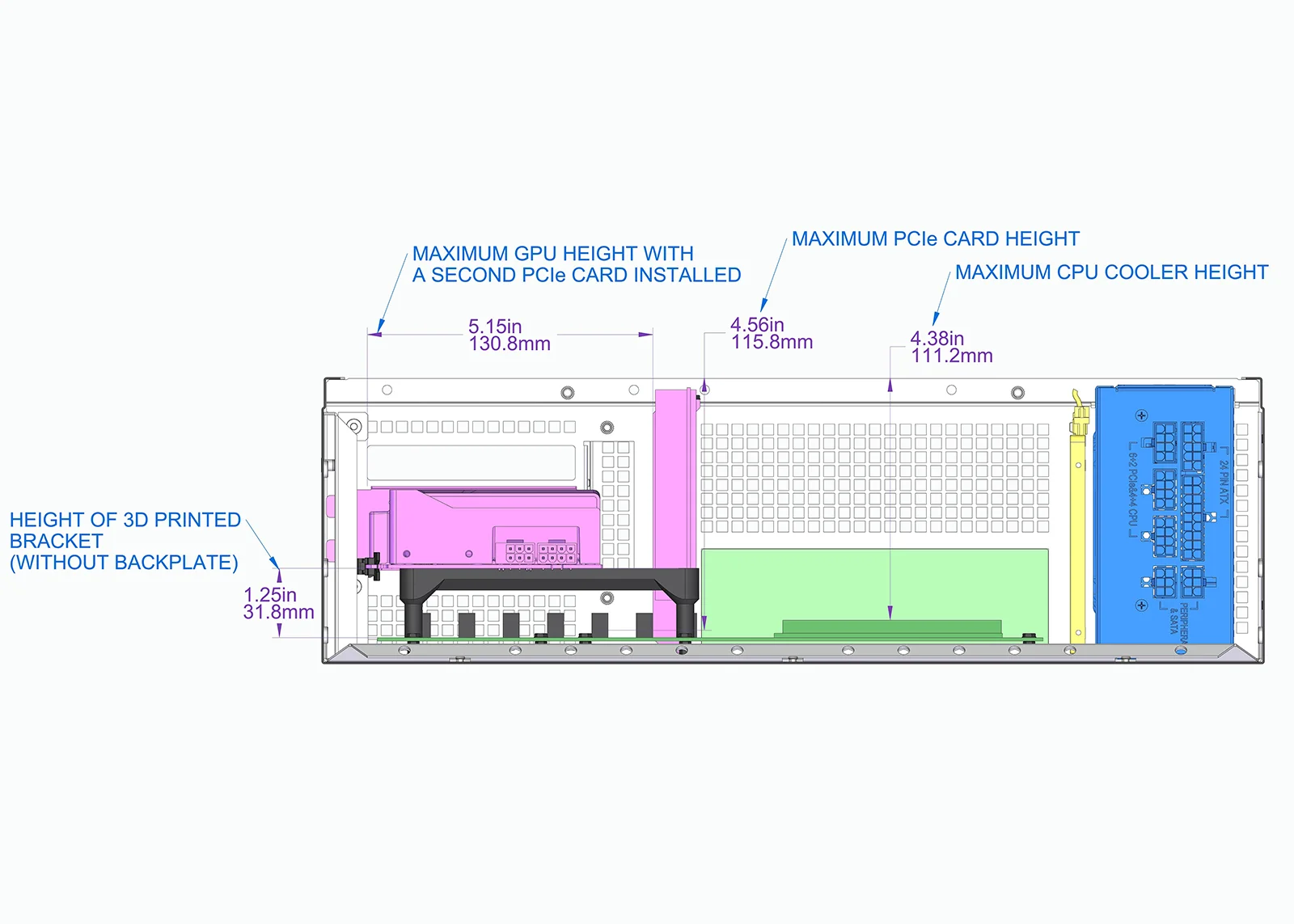

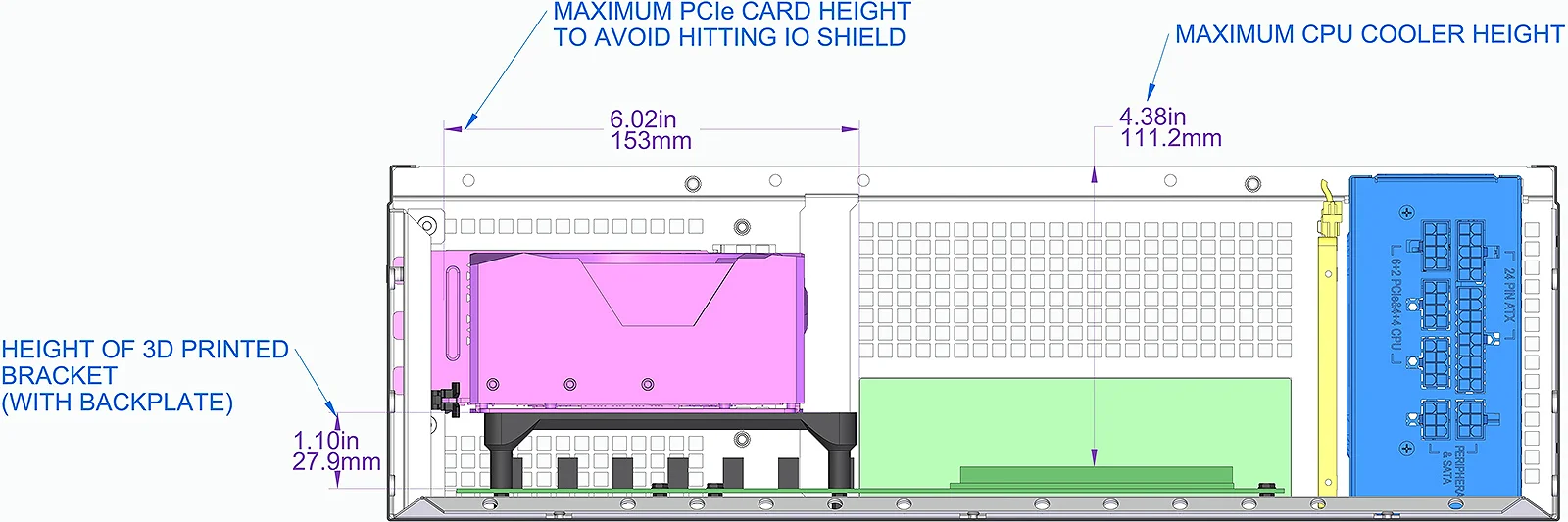

- Maximum card height: 135mm

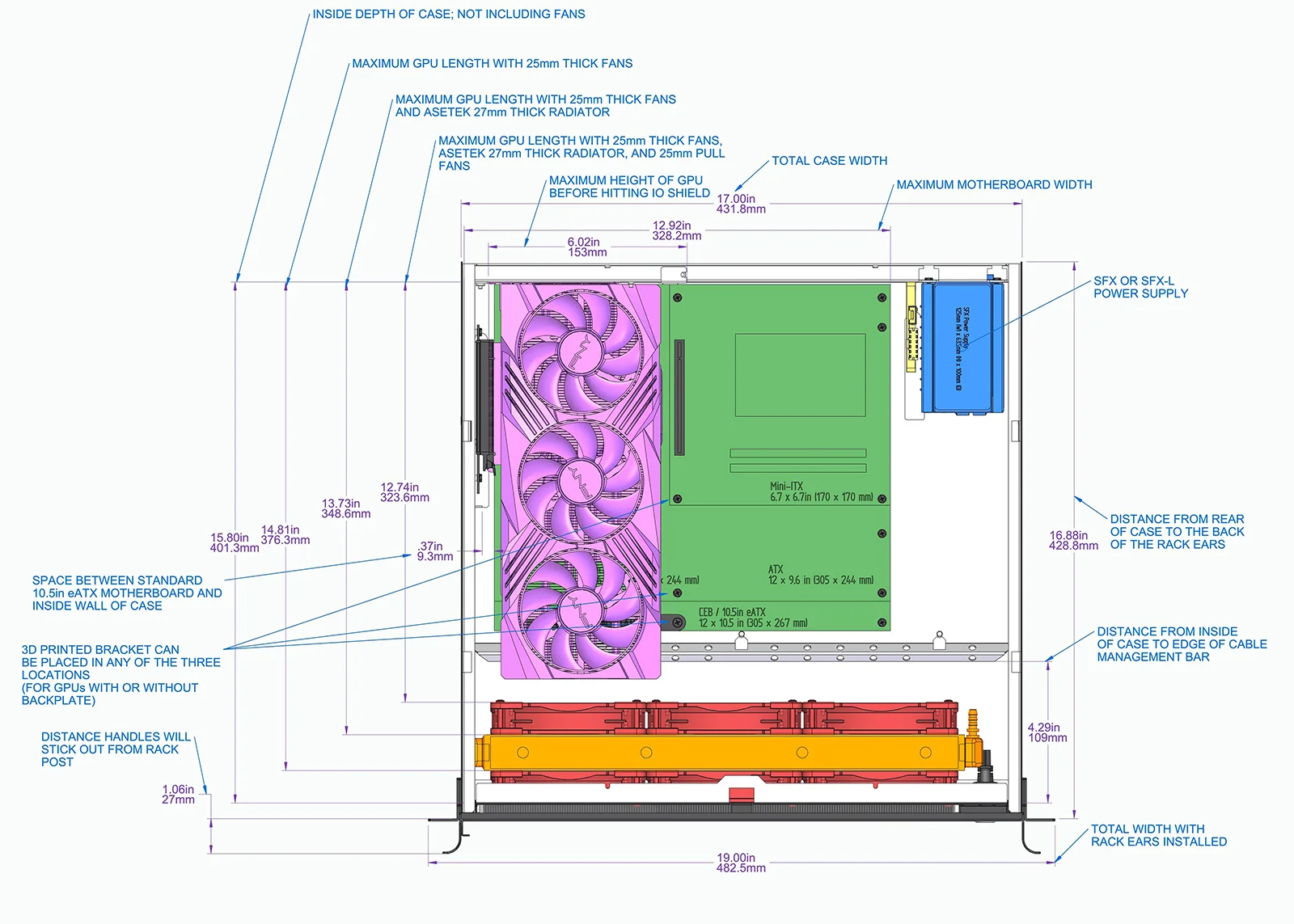

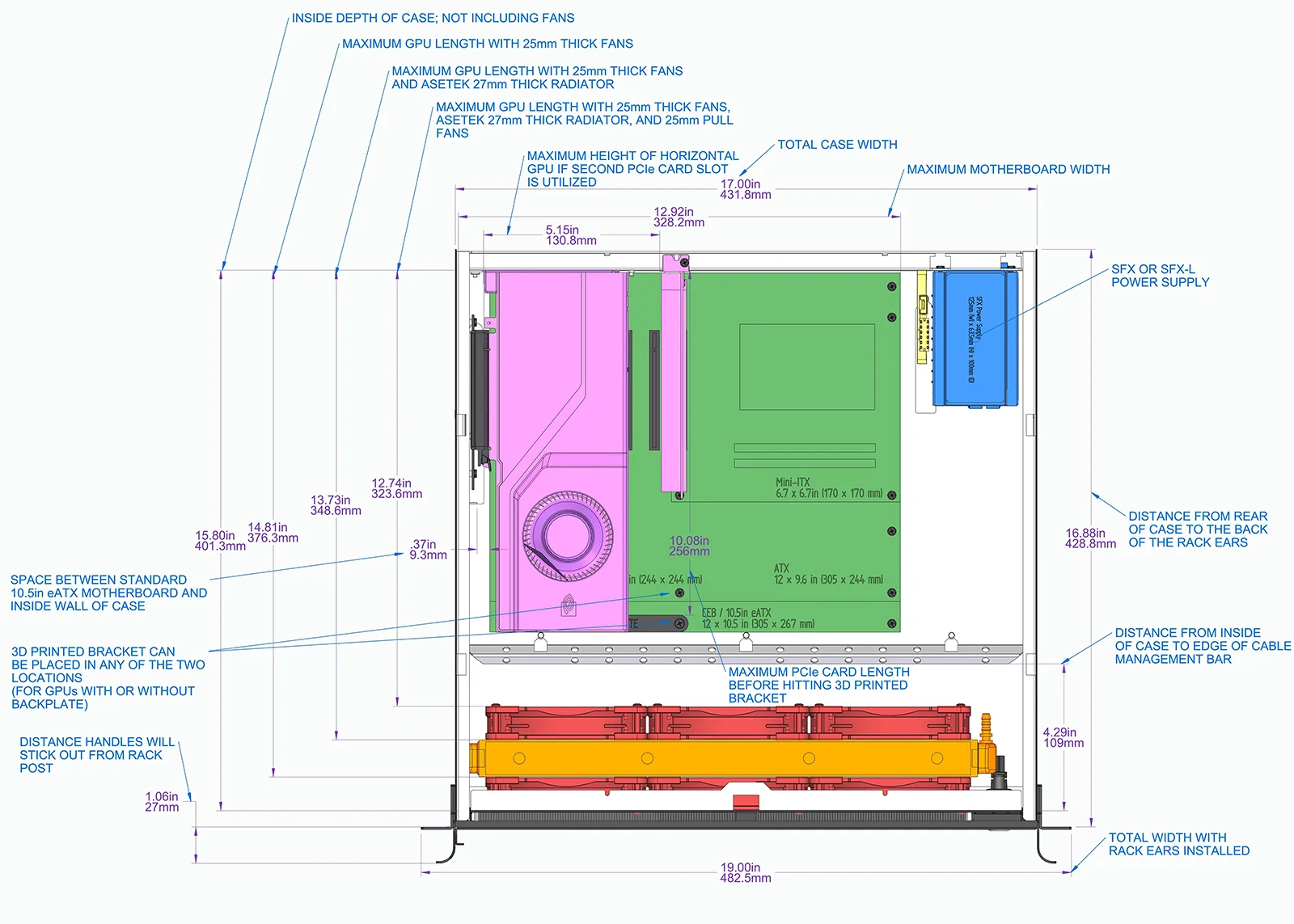

- Maximum card length with 120x25mm fans: 376mm

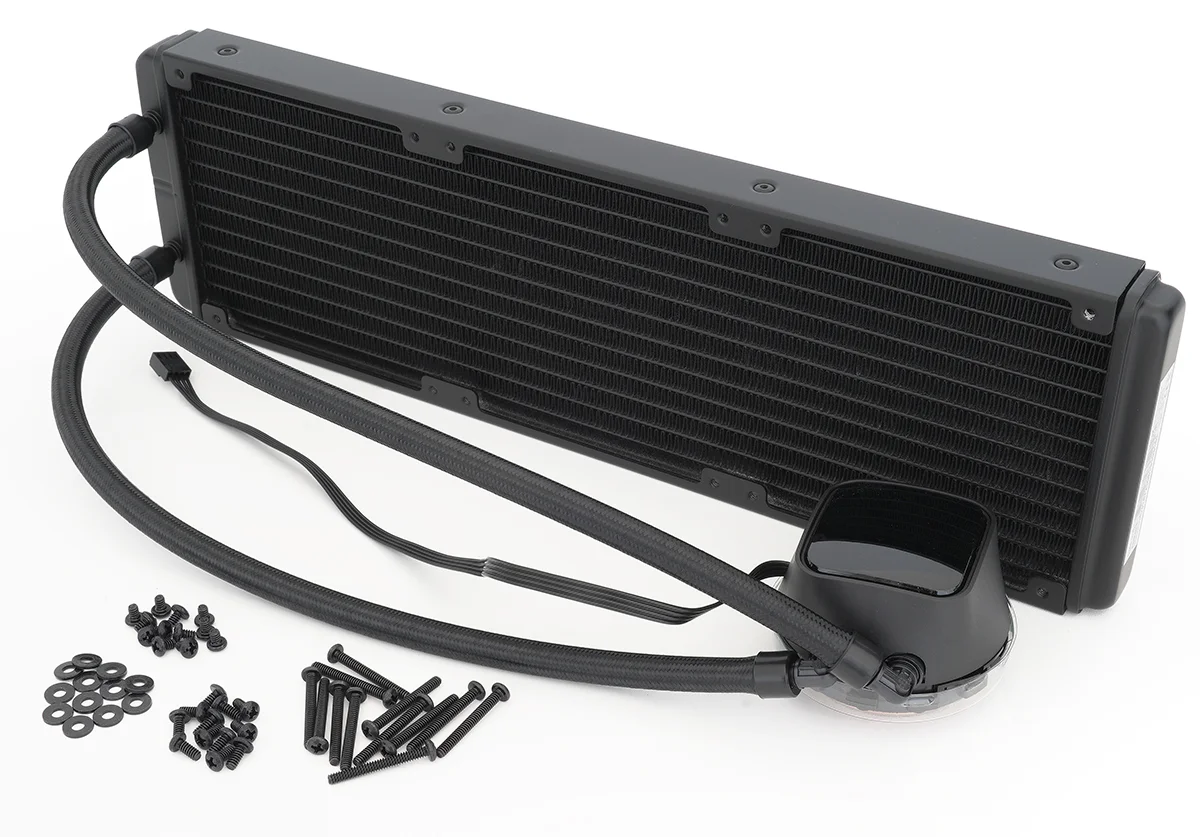

- Maximum card length with Asetek 360mm x 27mm AIO and 120x25mm fans: 348mm
- Maximum card length with Asetek 360mm x 27mm AIO and Push/Pull 120x25mm fans: 323mm

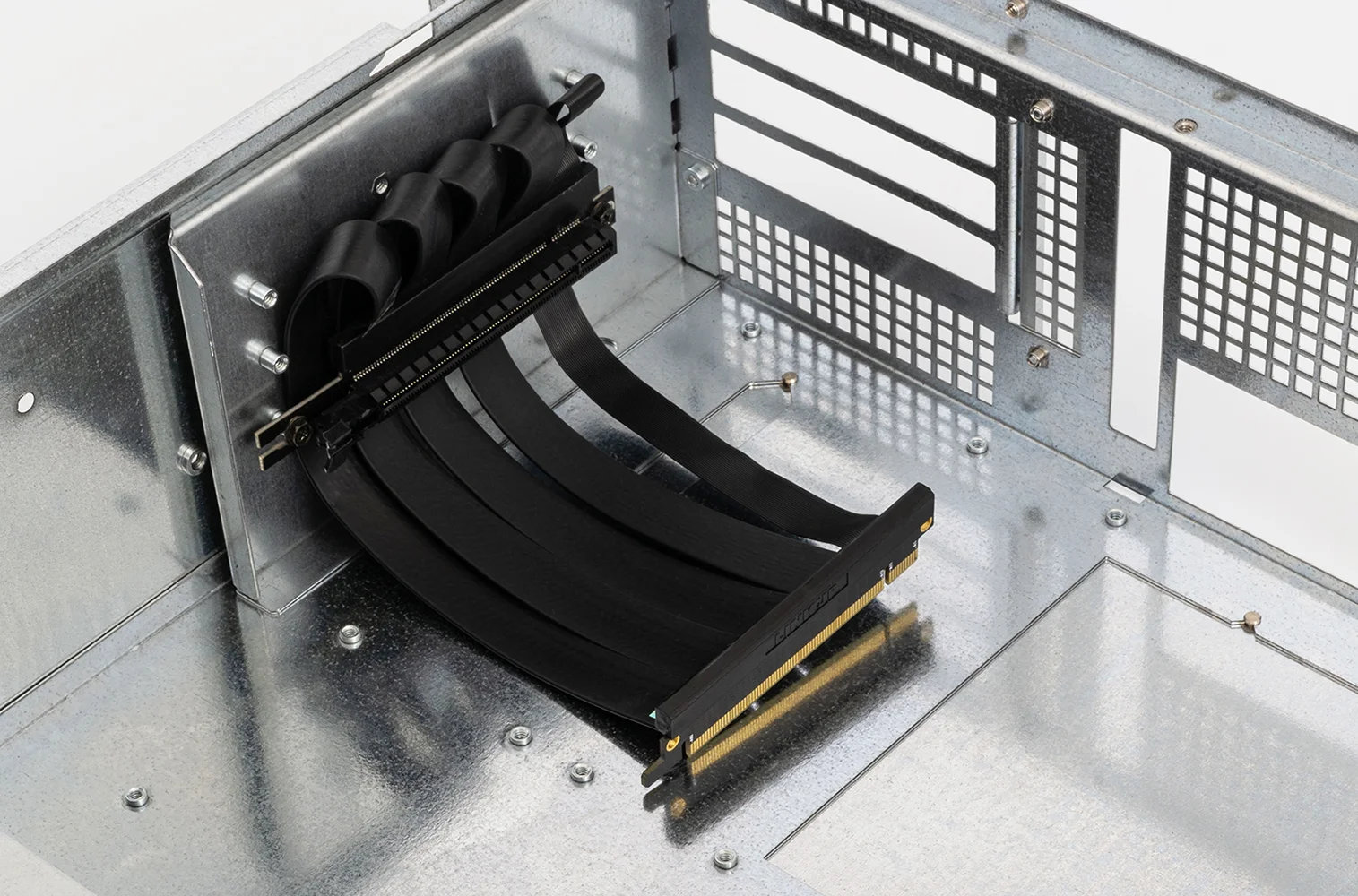

- Riser cable is included with case. Riser cable is PCIe 4.0 certified.
- 1x standard vertical full-height PCIe card slot cutout
- GPU in horizontal slot position may block this slot cutout.
- Some motherboards may not have this slot position populated with a PCIe slot.
|
| Storage
|

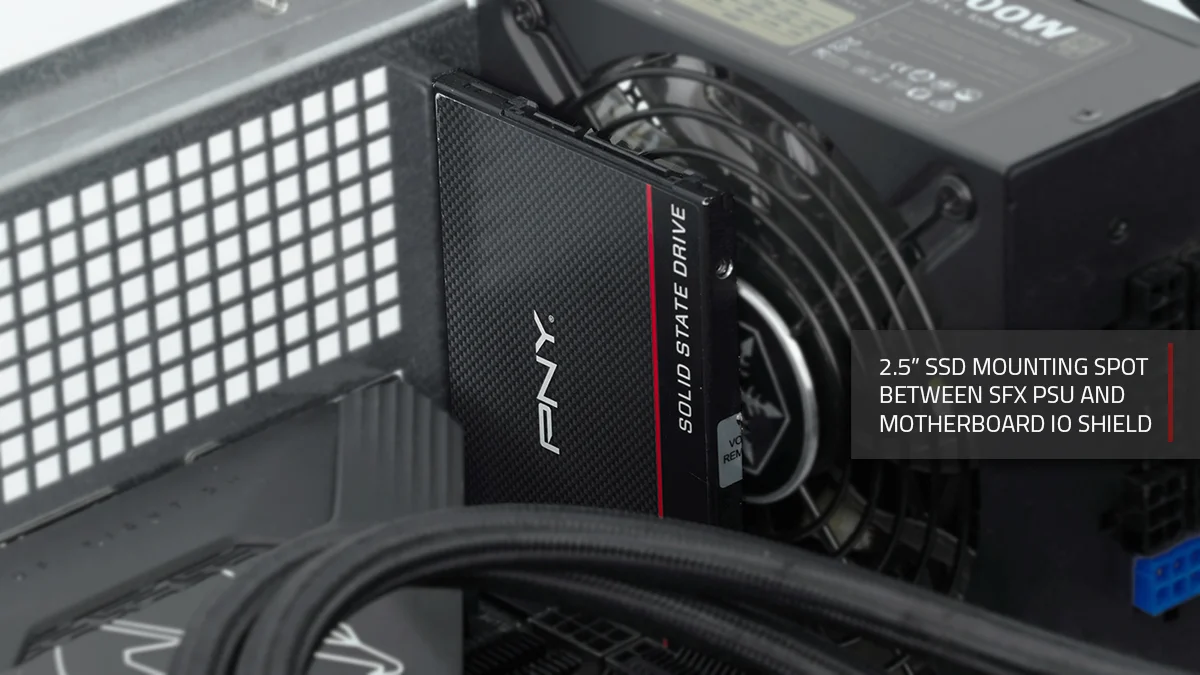

- 1x 2.5" SSD
- Sliger recommends use of M.2/NVMe and PCIe based storage on motherboard
|

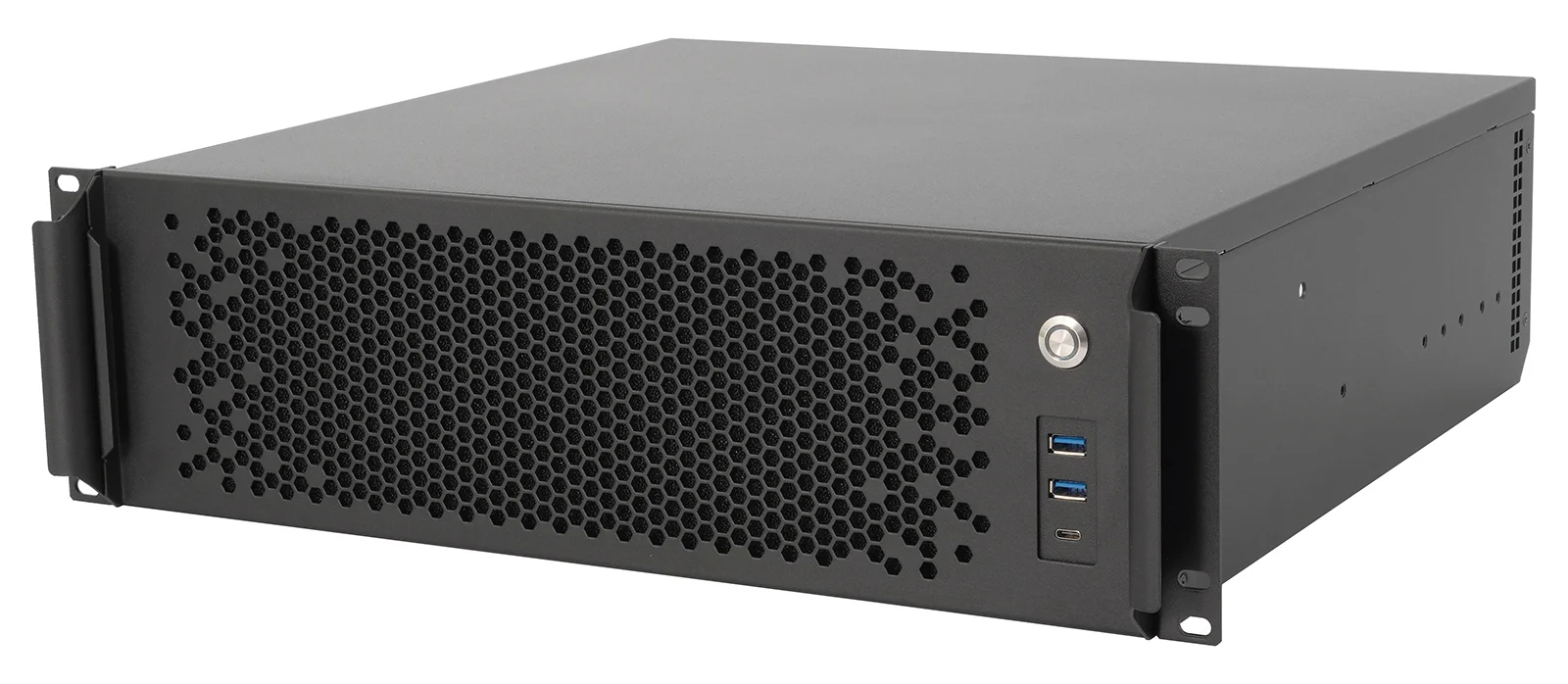

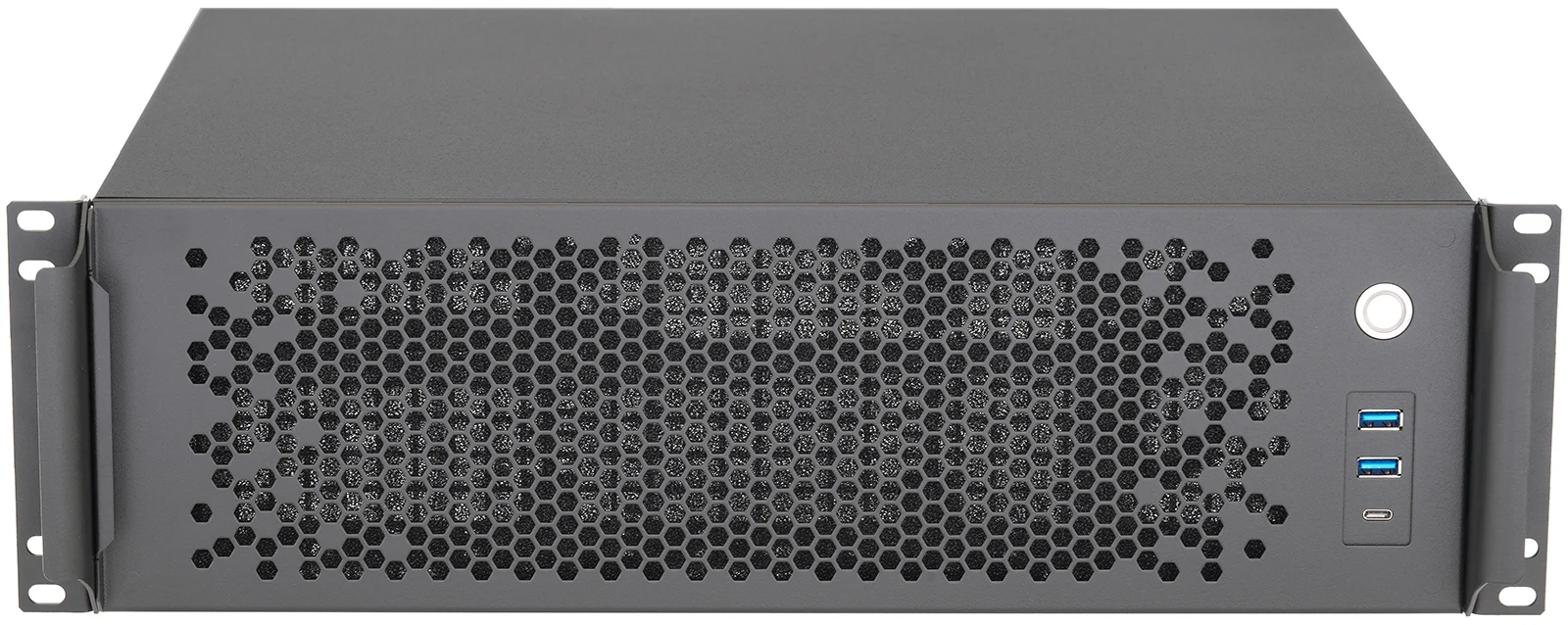

| Front Panel I/O
|
- One (1) USB C 10Gbps Port
- One (2) USB 3.0 Ports
- One (1) Momentary Switch / Power Status LED (Ring Shape, White)
|
| Power Supply
|
|
| Material
|

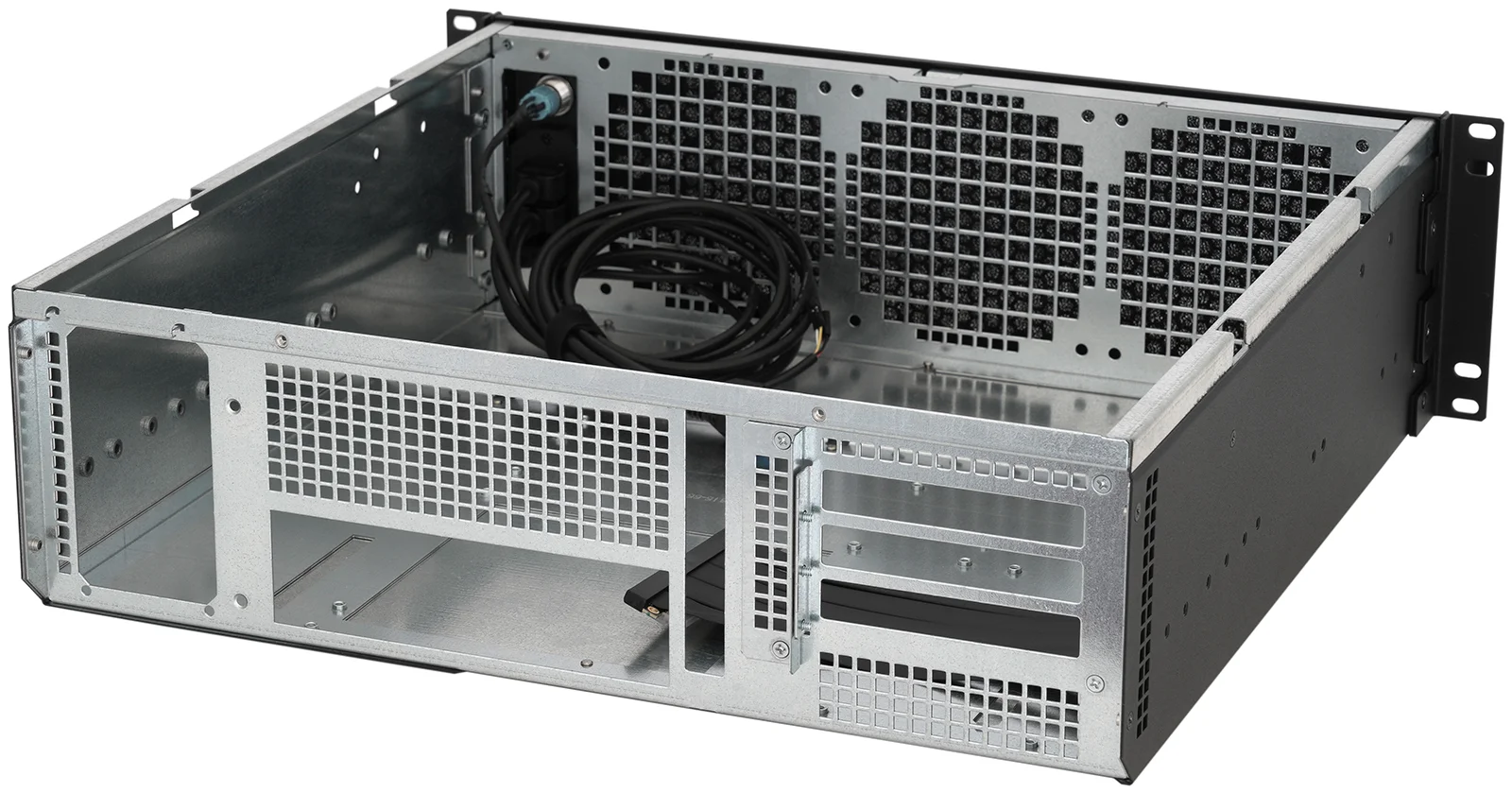

- Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Front Panels
- ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
- Rack Ears
- ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
|
| Finish
|
- Semi-gloss fine texture powder coat finish
- Powder coat is an outdoor architectural grade polyester epoxy blend
- Compliant with SAE AMS-STD-595 / FED-STD-595 color number 27038 (ANA 514)
- Custom powder coat finishes are available, additional labor/material charges and 10 unit MOQ will apply.
- Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
|
| Branding
|
- Case is unbranded on interior and exterior of chassis.
- Optional logo screen printing (full color) on front panel for business customers, MOQ 10 units
|
| Case Dimensions
|
- 16.89" x 17.00" x 3U (5.22") [DxWxH]
- 429mm x 431.38mm x 132.5mm [DxWxH]
|
| Weights
|
- Chassis
-
- Rack Slide Kits
-
- Packaging Materials (Box, Tape, Foam Corners)
-
|
| Shipping Box Dimensions
|
- 21" x 21" x 10"
- 51 ECT Double Wall
- Packaged with reusable EPE foam end caps
|
| Rack Rails
|
- Sliger PM-Series Ball Bearing Slides
- General Devices C300-S Series
|
| Warranty
|
- Case
- 5 Year Warranty [Chassis, USB cables, Power Button, SATA Adapters]
- Liquid Coolers & Fans
- 3 Year Warranty
- Please see our warranty policy for additional conditions, exclusions, and limitations.
|
| Industry Standards
|
- 19-inch rack standard
- Electronic Industries Alliance EIA-310-D
- International Electrotechnical Commission IEC 60297-1 / IEC 60297-3-100
- Consumer Electronics Association CEA-310-E
- Deutsches Institut für Normung DIN 41494
|
| Safety and EMC
|
- Contact us before using case for FCC, CE, UL, or other safety / regulatory compliance
- Alternate brackets or powder coat masking may be required depending on certifications sought
|
| Environmental
|
- Compliant with RoHS Directive 2002/95/EC, 2015/863 RoHS2, RoHS3 (EU) with all applicable exemptions
- Regulation (EC) No 1907/2006 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Compliant for all Substances of Very High Concern (SVHC)
- Conflict–Free Sourcing Initiative (CFSI) with Conflict-Minerals Report (CMRT) available upon request
- Compliant with US EPA PBT Section 6 Toxic Substances Control Act (TSCA)
|
| Federal Acquisition
|
- TAA (Trade Agreements Act) Compliant for GSA Schedules, IDIQ contracts, and DoD contracts
- Compliant with Section 889 of Federal Acquisition Regulation (FAR) of National Defense Authorization Act (NDAA)
|
| HTS Tariff Code
|
- 8473.30.00.02 - COMPUTER CASES AND ACCESSORIES
|
| Country of Origin
|
|
| Rev Control
|
- 1.0 (4/18/22 - **/**/**)
- Initial Release
|
|
