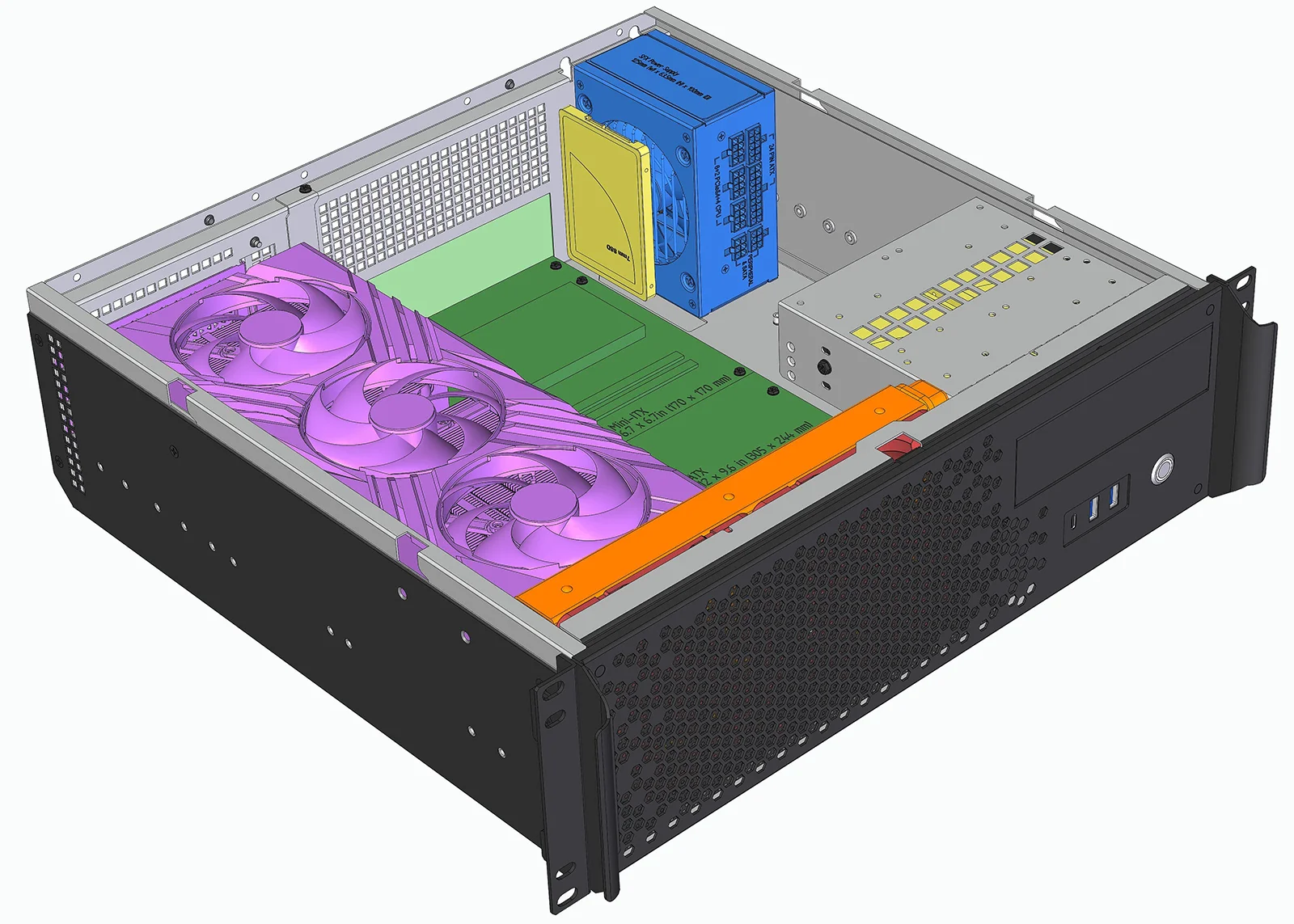

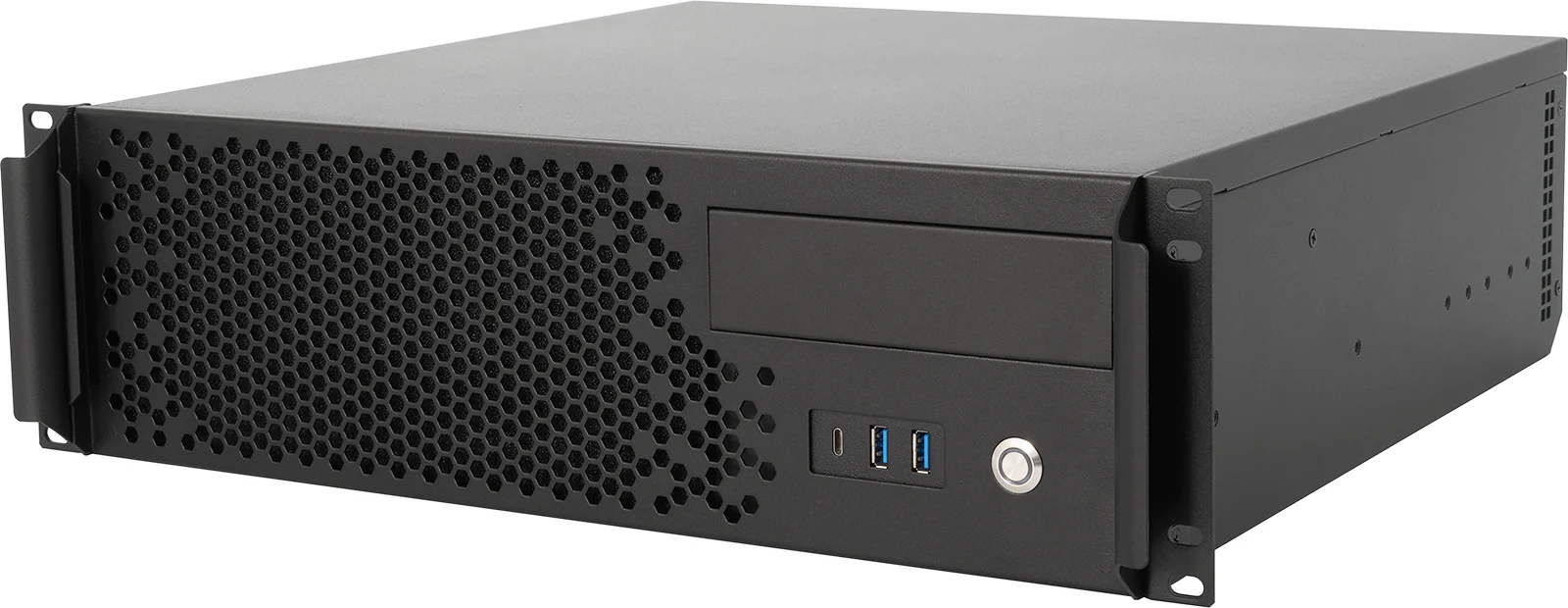

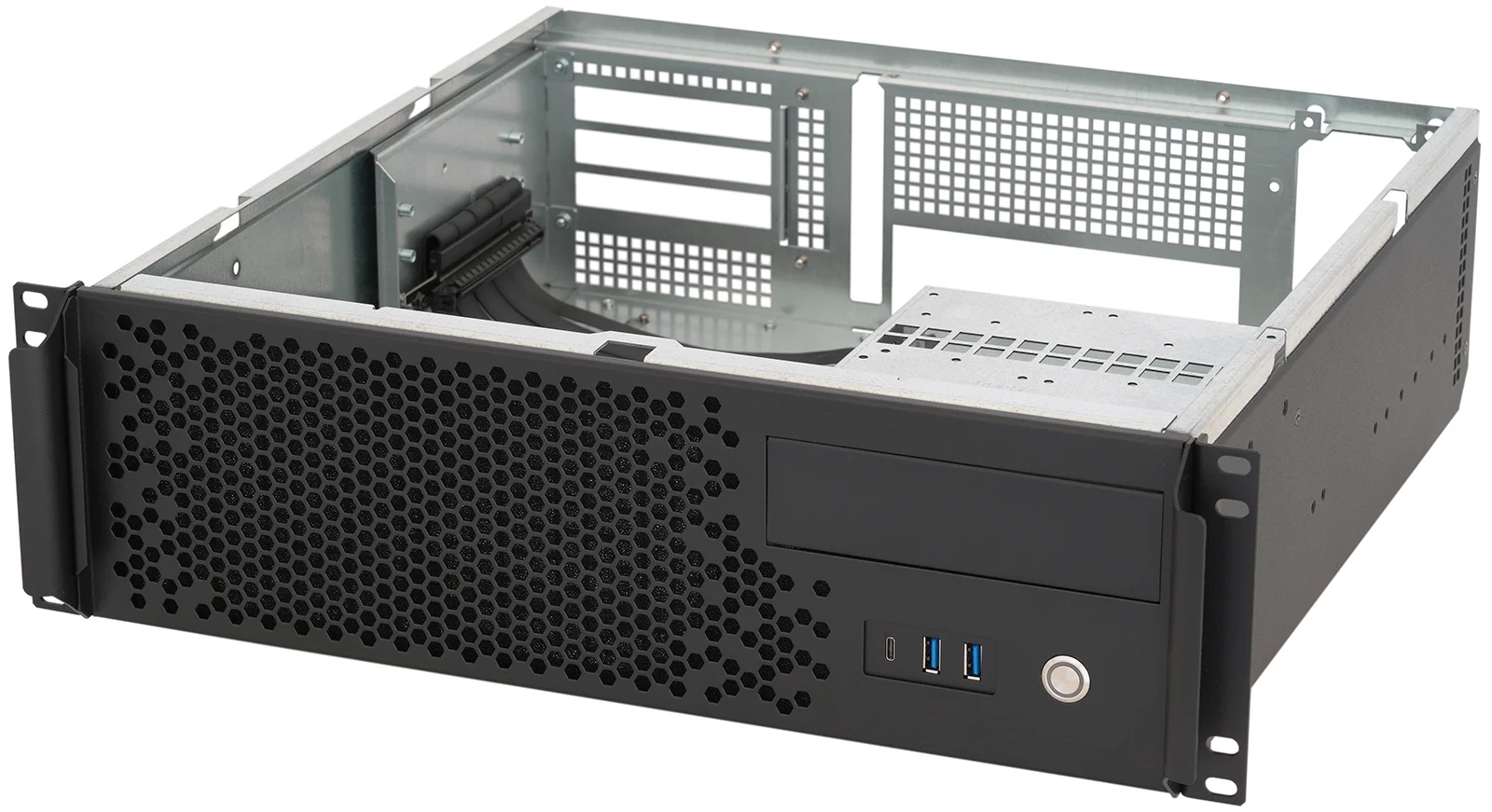

| CX3171i XL | 17in deep 3U for high performance AIO cooling |
- Supports SSI-EEB, SSI-CEB, eATX, and XL-ATX motherboards up to 13" in depth
- Mounting for up to two(2) 120mm fans, support for air coolers up to 110mm tall
- Liquid cooling support for a 340mm AIO with up to four(4) 120mm fans in push/pull
- One(1) PCIe 4.0 riser for one(1) 3.5-slot GPU
- One(1) 5.25" bay for hot-swap and removable media devices, two(2) internal 2.5" SSD mount
- Mounts one(1) SFX or SFX-L power supply
- Made in USA with US materials, guaranteed availability for 8+ years
| |

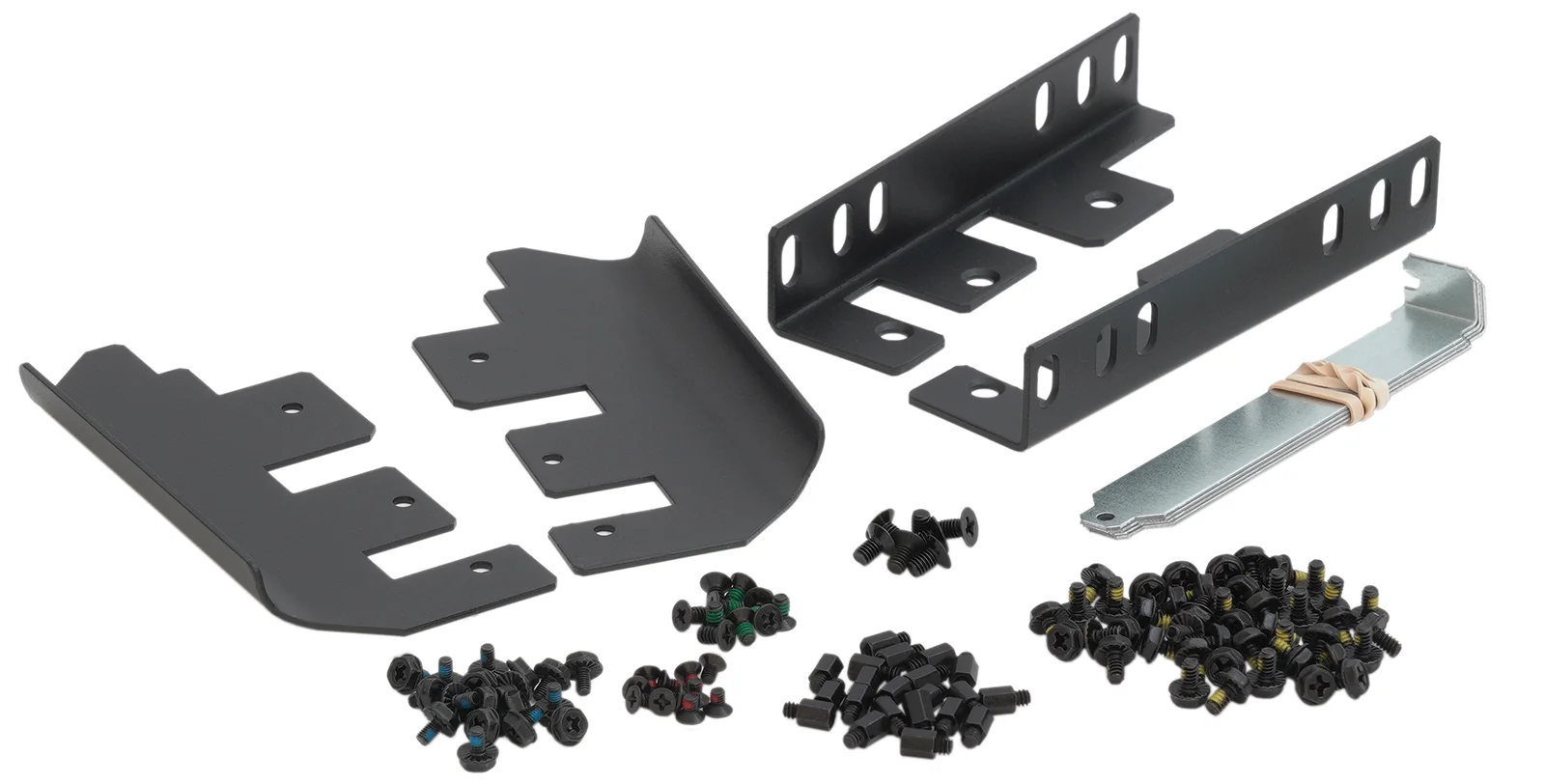

Replacement / Optional Parts
This page is for replacement parts for existing cases. New case orders per the configure tab include all required panels, brackets, cables, screws, and accessories for assembly per the options selected on that tab.
| Technical Specifications |
| Motherboard
|
- XL-ATX (325mm x 330mm) [12.8" x 13"]
- SSI-EEB (305mm x 330mm) [12" x 13"]
- eATX (305mm x 267mm) [12" x 10.5"]
- SSI-CEB (305mm x 267mm) [12" x 10.5"]
- ATX (305mm x 244 mm) [12" x 9.6"]
- MicroATX (245 x 245mm) [9.6" x 9.6"]
- FlexATX (229 x 191 mm) [9" x 7.5"]
- Mini-DTX (203mm x 170 mm) [8" x 6.7"]
- Mini-ITX (170mm x 170 mm) [6.7" x 6.7"]
|
| CPU Air Coolers
|
|
|---|
| CPU Liquid Coolers
|
|
|---|

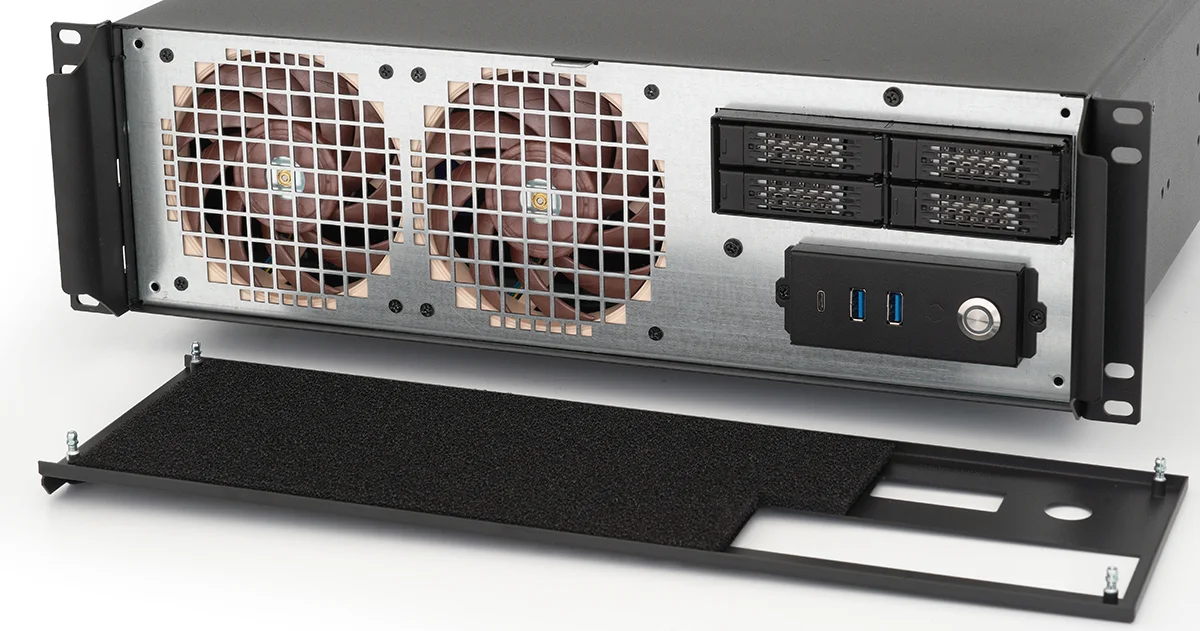

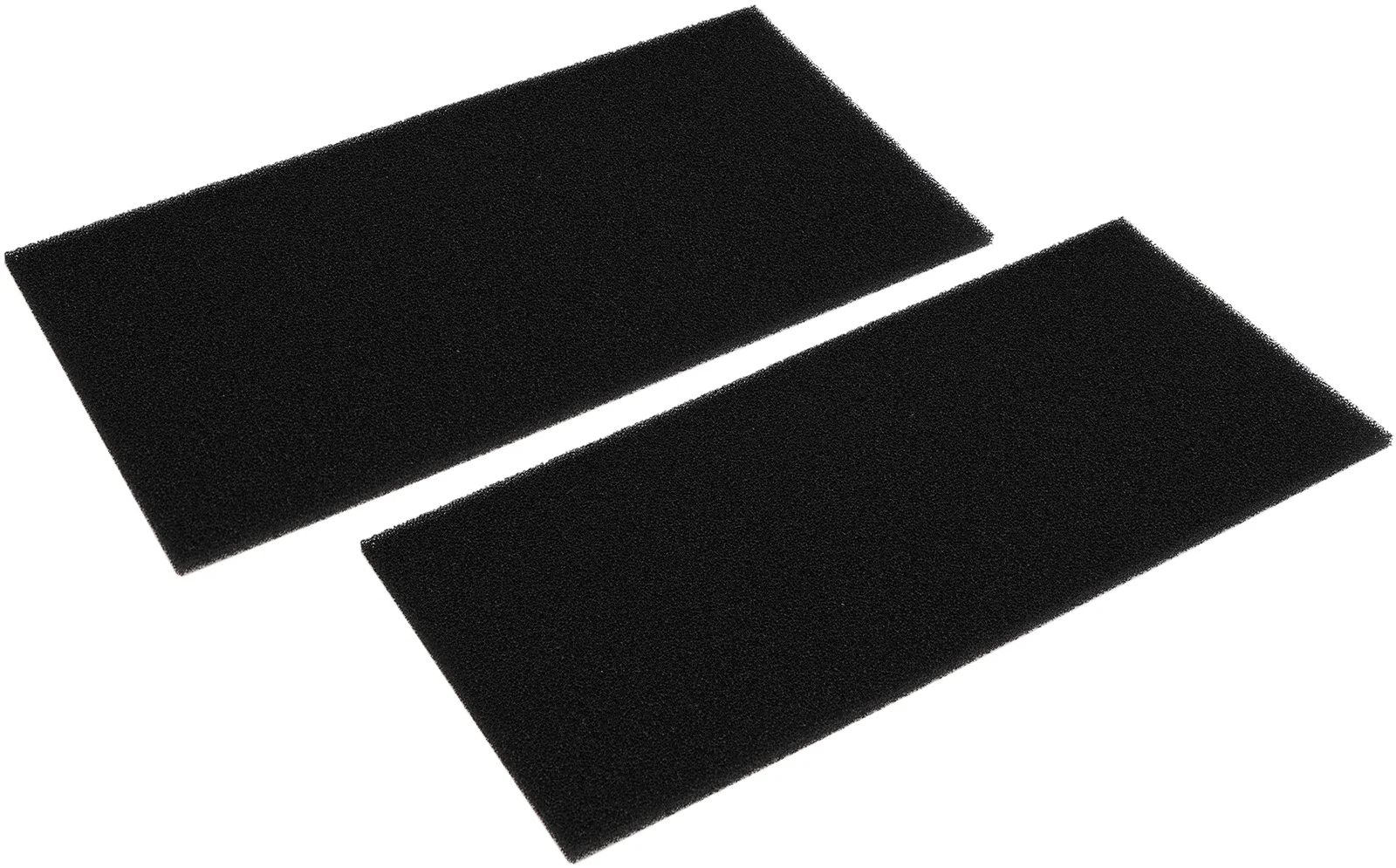

| Dust Filter
|
- Includes one(1) washable / reusable dust filter
- 30ppi open cell reticulated polyether filter foam with flame resistant rating, UL94 HF1, UL FILE NO E93229(N)

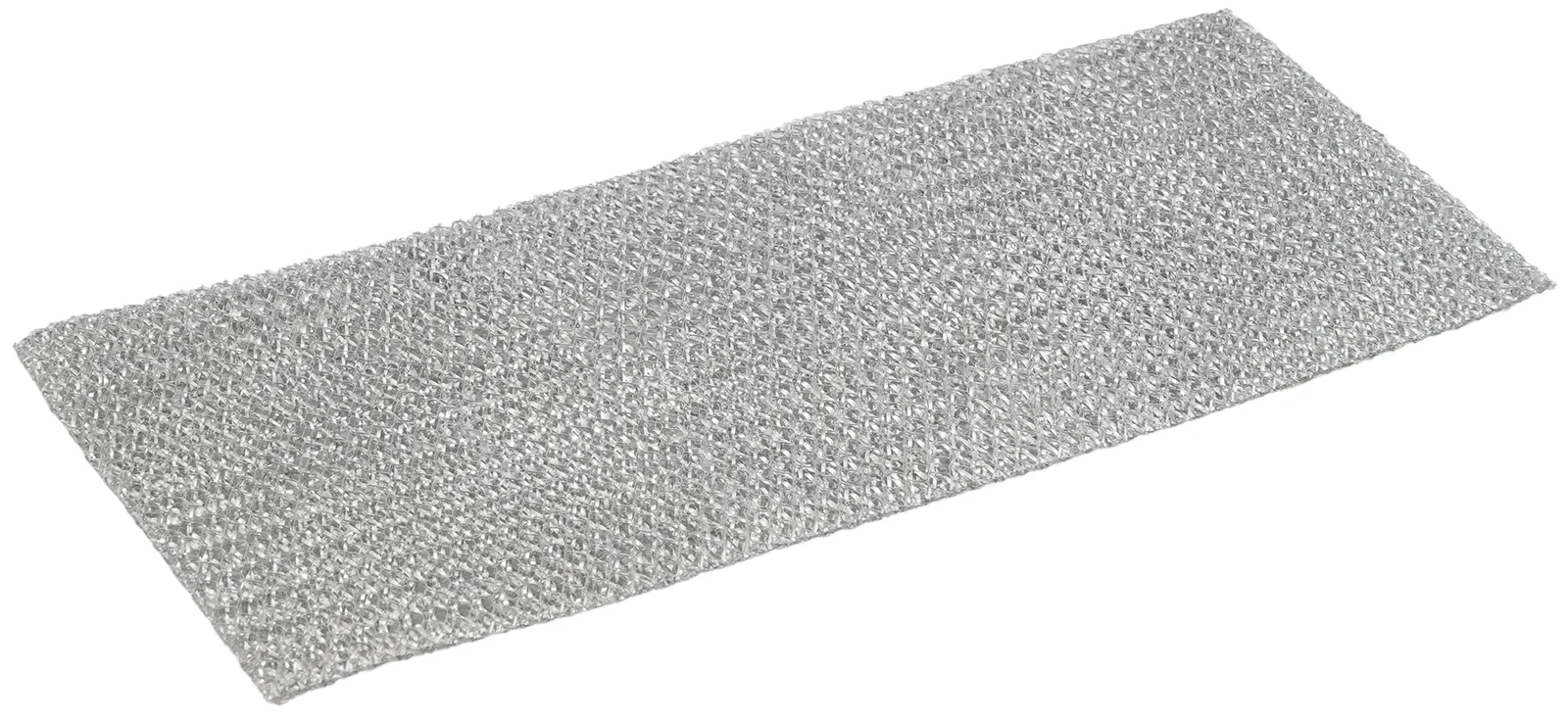

- Alternate density and/or materials such as aluminum mesh available for OEM projects
|
| Fan Mounting
|
|
|---|

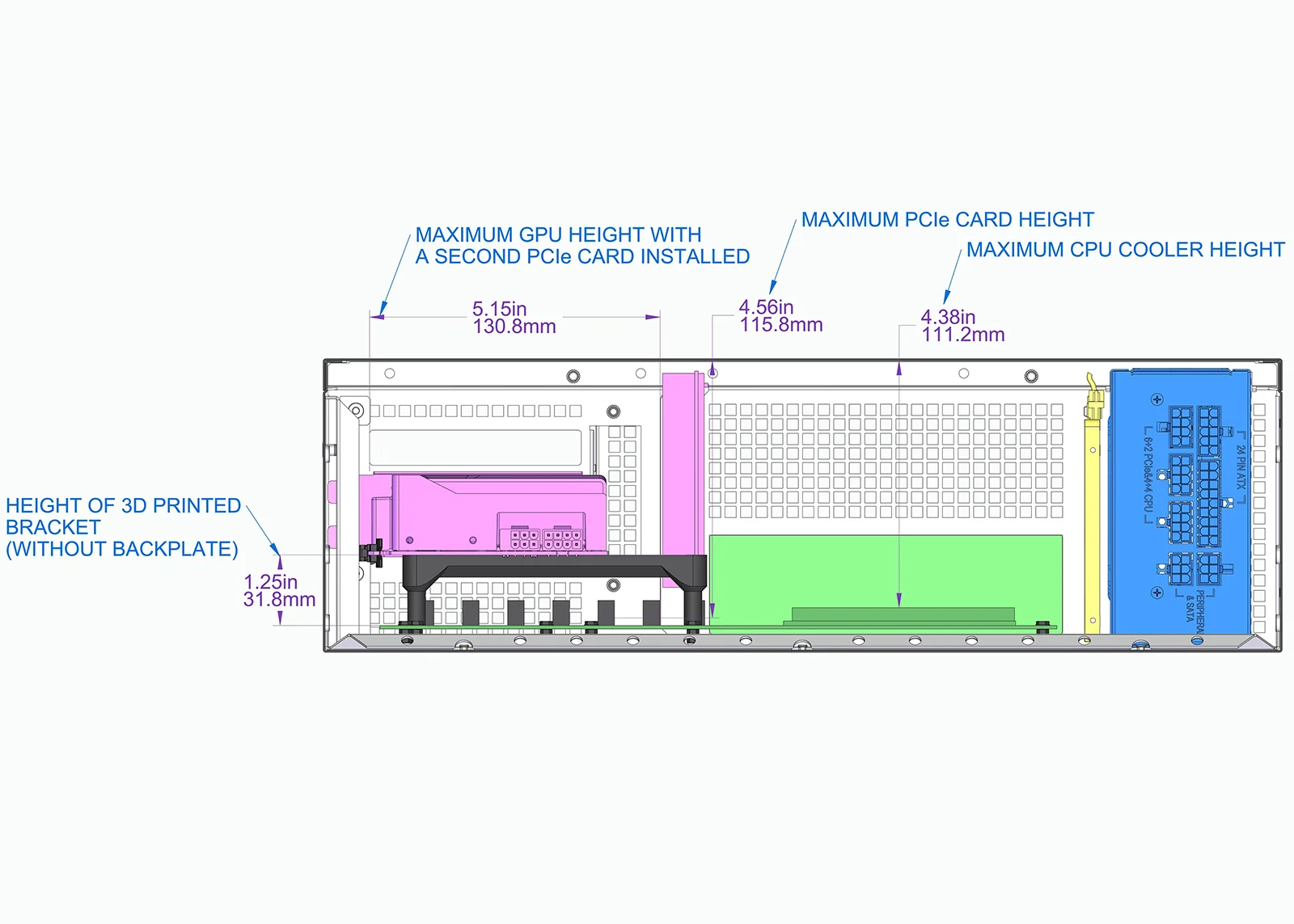

| GPU / PCIe Cards
|
- Three(3) horizontal slot cutouts with one PCIe 4.0 16x riser for large 3-slot GPU
- Maximum card width: 72mm or 3.5-slot
- Maximum card height: 150mm
- NOTE: if vertical PCIE slot is populated maximum height is reduced to 130mm

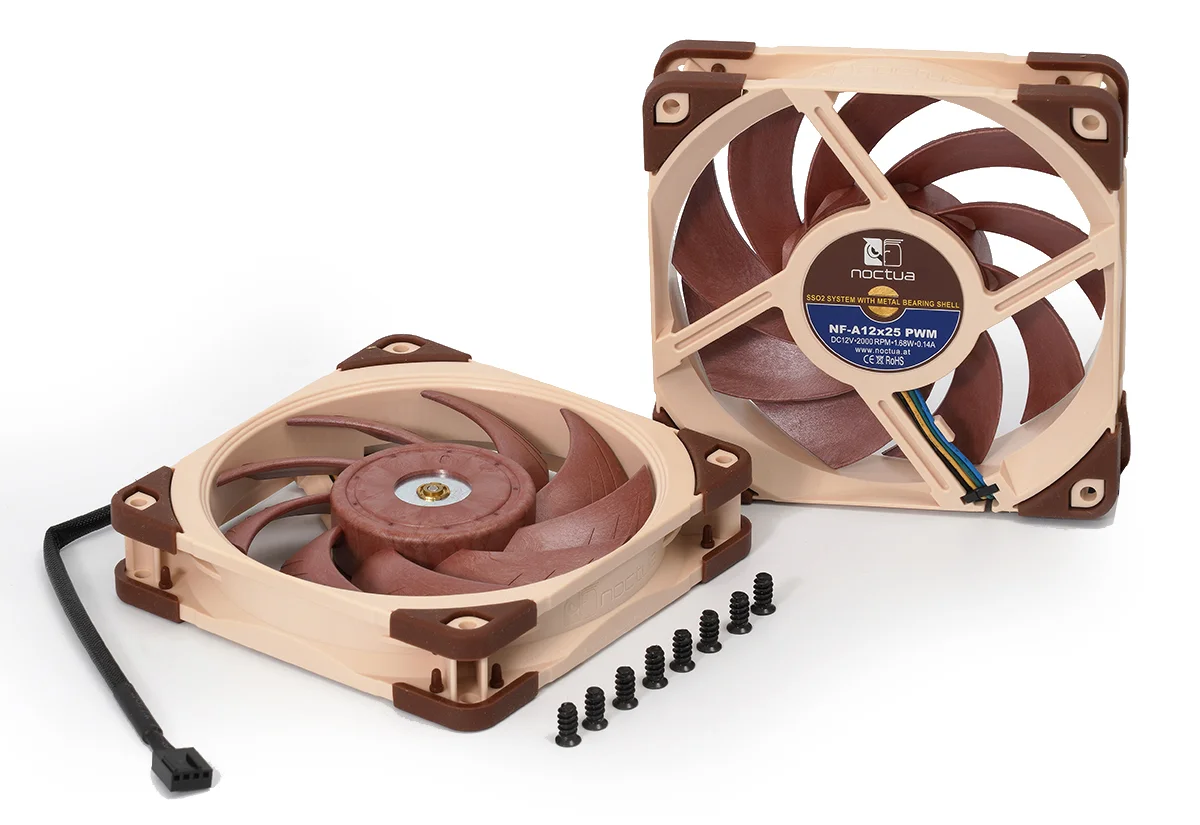

- Maximum card length with two(2) Noctua A12x25 fans: 375mm
- Maximum card length with Asetek 240mm AIO and two(2) Noctua A12x25 fans: 347mm
- Maximum card length with Asetek 240mm AIO and four(4) Noctua A12x25 fans: 322mm
- Maximum card length with no fans / no AIO cooler: 395mm
- Case has a rear support bridge to prevent GPU sag and reduce chances of shipping damage
- One(1) full height PCIe card slot cutout
- Maximum card height: 115mm - including power connectors
- Maximum card length with two(2) Noctua A12x25 fans: 375mm
- Maximum card length with Asetek 240mm AIO and two(2) Noctua A12x25 fans: 347mm
- Maximum card length with Asetek 240mm AIO and four(4) Noctua A12x25 fans: 322mm
- Maximum card length with no fans / no AIO cooler: 395mm
|
| 5.25" Bays
|
- One(1) 5.25" bay with removable filler blank

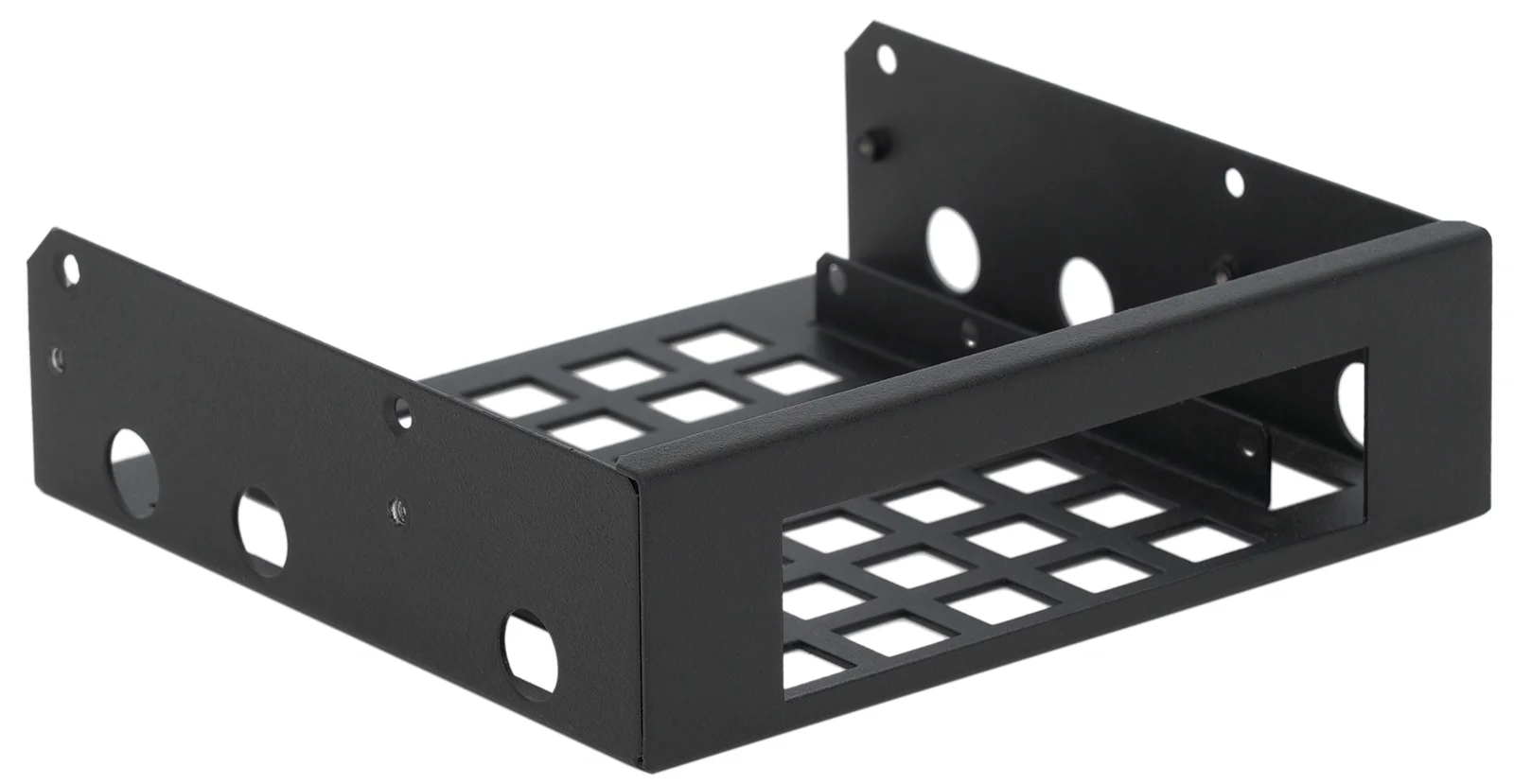

- 5.25" to 3.5" adapter available for purchase on the parts tab
|
| Storage
|
- One(1) 2.5" SSD up to 15mm thick
- 2.5" SSD is mounted vertically between motherboard IO shield and SFX PSU
- One(1) 2.5" SSD under 5.25" bay

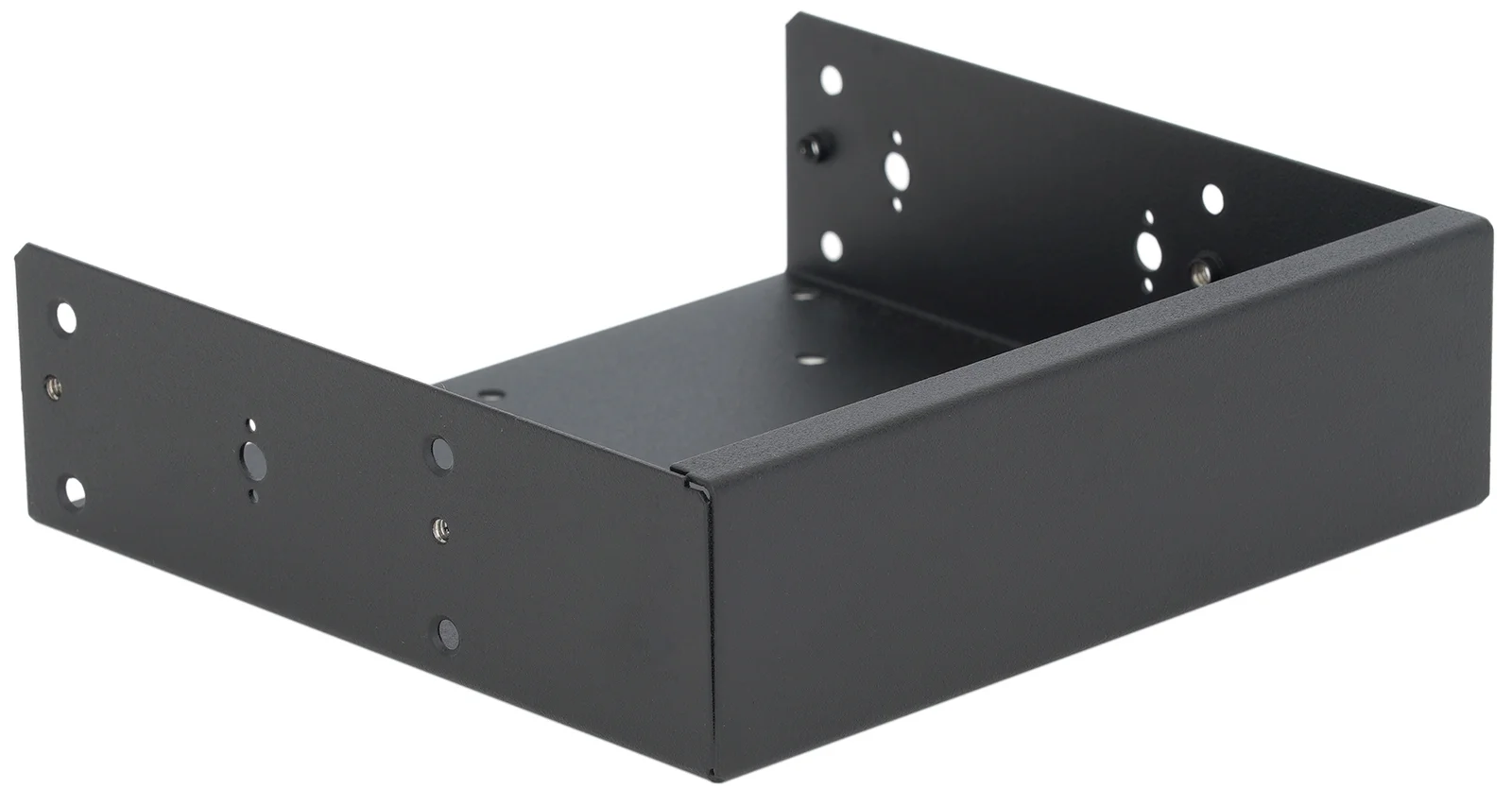

- One(1) 5.25" bay filler blank provides mounting for two(2) 2.5" SSD and one(1) 3.5" HDD
- Sliger recommends use of M.2/NVMe and PCIe based storage on motherboard when possible
- Motherboard PCIe slots can be utilized for M.2 drives via Sabrent PCIe to M.2 or equivalent
- ASUS Hyper M.2 Gen5 PCIe x16 Gen5 to four(4) M.2 Gen5 SSDs
- OWC Accelsior S PCIe x4 to one(1) 2.5-inch SATA SSD
- StarTech PEX4SFF8639U.2 PCIe x4 to one(1) 2.5-inch U.2 NVME SSD
- 3.5" HDD Bracket converts PCIe slot to one(1) 3.5-inch HDD (requires SATA data and power cables)
|

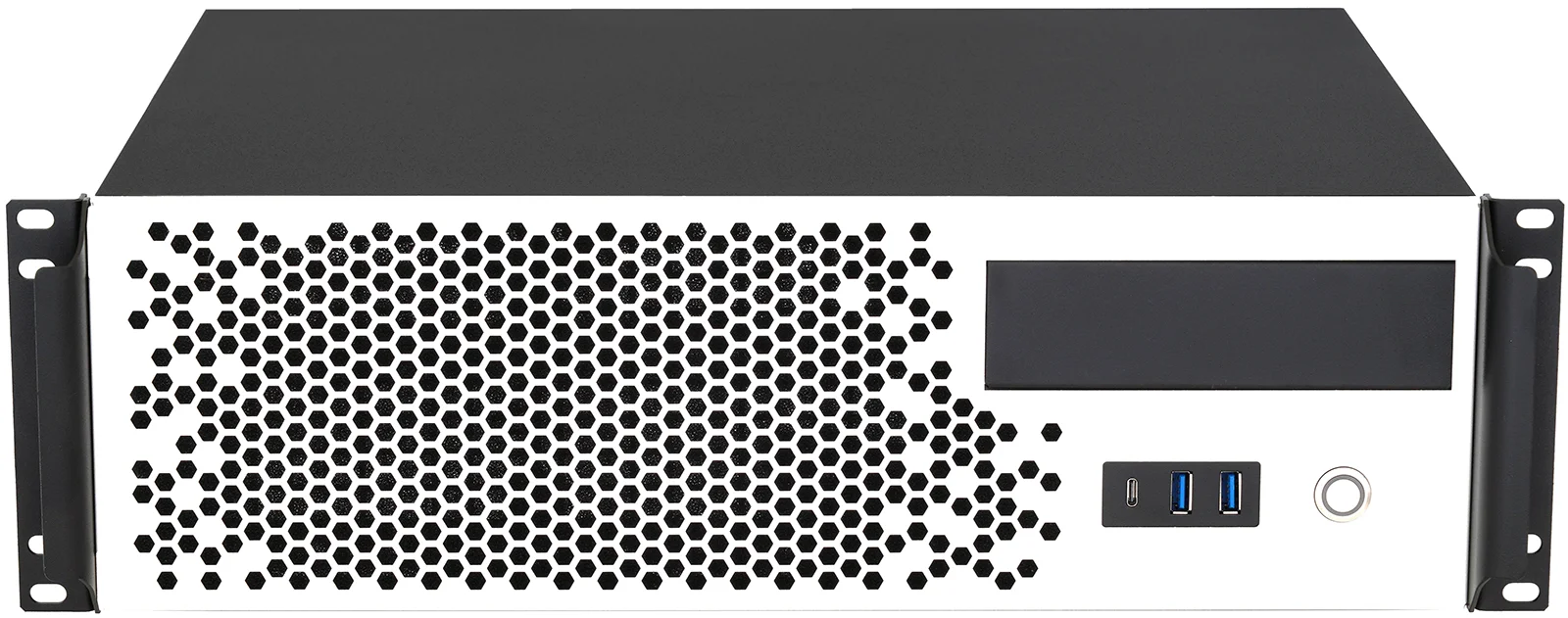

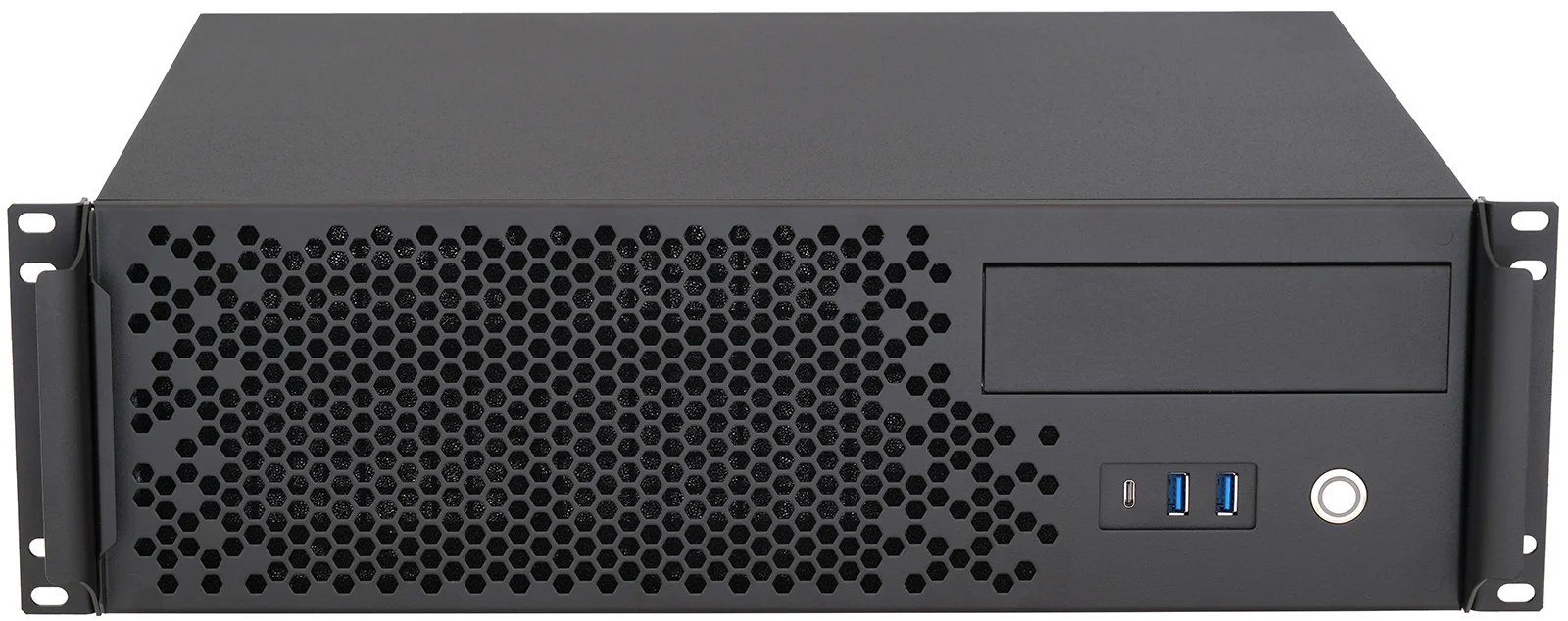

| Front Panel I/O
|
- One(1) USB 3.2 Type C 10Gbps Port
- Two(2) USB 3.0 Type A Ports
- One(1) 16mm Momentary Power Button with integrated Power Status LED (Ring Shape, White)
|
| Power Supply
|
|
|---|
| Rack Rails
|
- General Devices C300-S Series
- Rack Rails are not included by default, must be purchased on the configuration or parts page.
- Brand Compatibility
- Brands such as iStarUSA TC Rails are natively compatible.
- Please contact our support team for any compatibility questions.
|
|---|
| Warranty
|
- Case and Rack Rails
- 5 Year Warranty
- Liquid Coolers & Fans
- 3 Year Warranty
- Please see our warranty policy for additional conditions, exclusions, and limitations.
|
|---|
| Rev Control
|
- 1.0 (4/18/22 - **/**/**)
- Initial Release
|
|---|
| Case Mechanicals |
| Material
|
- Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Front Panels
- ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
- Rack Ears
- ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
|

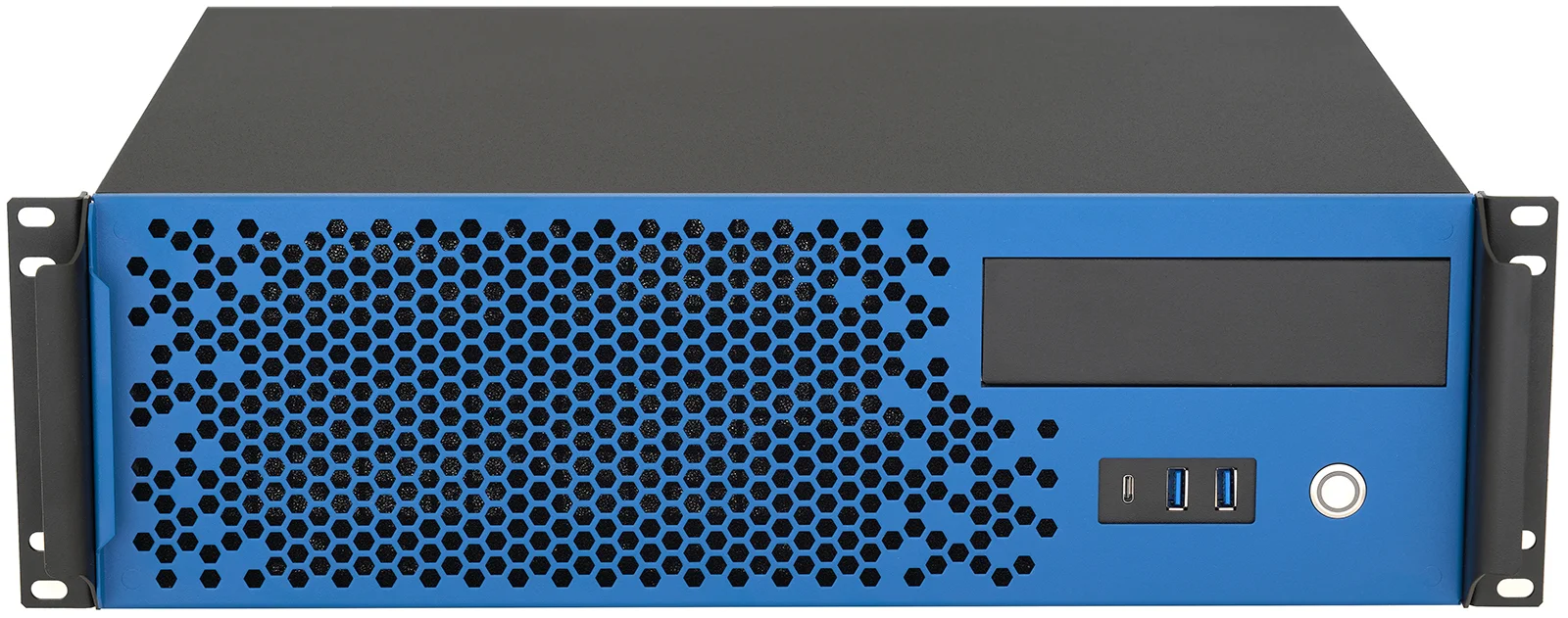

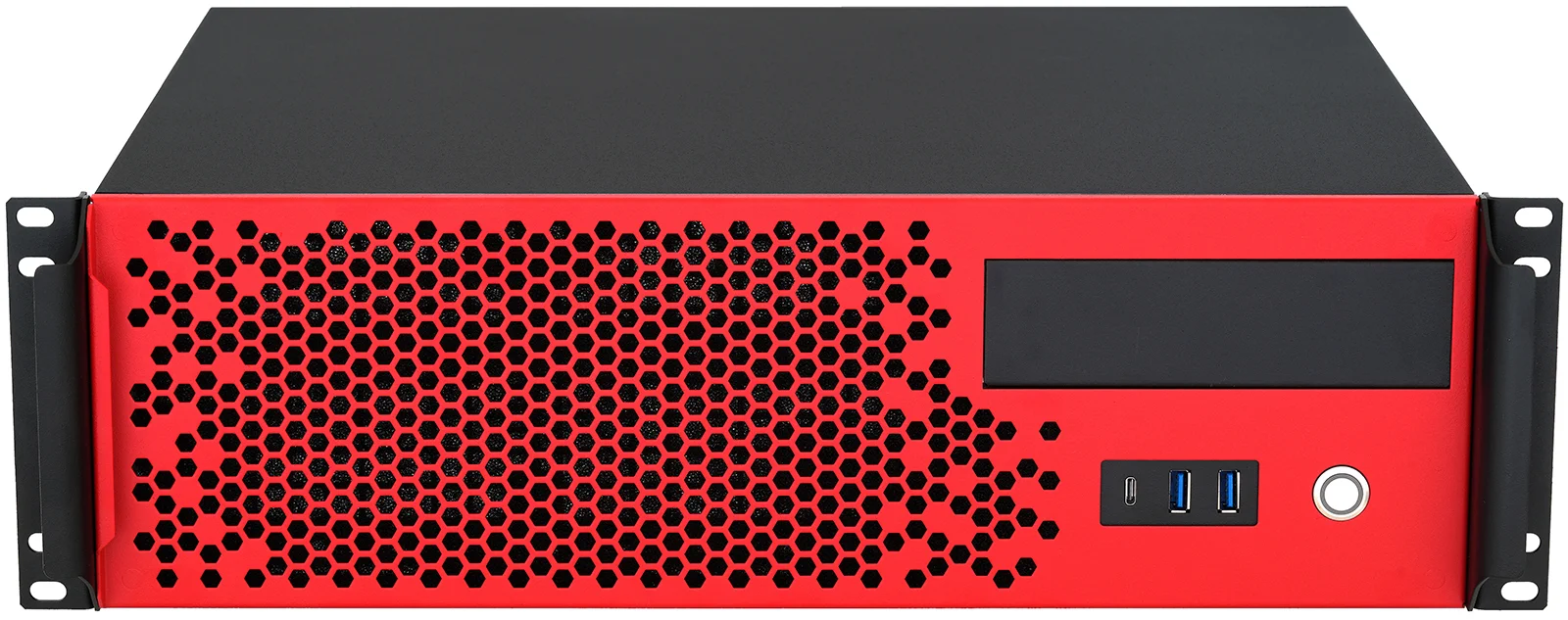

| Finish
|
- Semi-gloss fine texture powder coat finish
- Powder coat is an outdoor architectural grade polyester epoxy blend
- Compliant with SAE AMS-STD-595 / FED-STD-595 color number 27038 (ANA 514)
- Custom powder coat finishes are available, additional labor/material charges and 10 unit MOQ will apply.
- Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
|
| Branding
|
- Case is unbranded on interior and exterior of chassis.
- Optional logo screen printing (full color) on front panel for business customers, MOQ 10 units
|

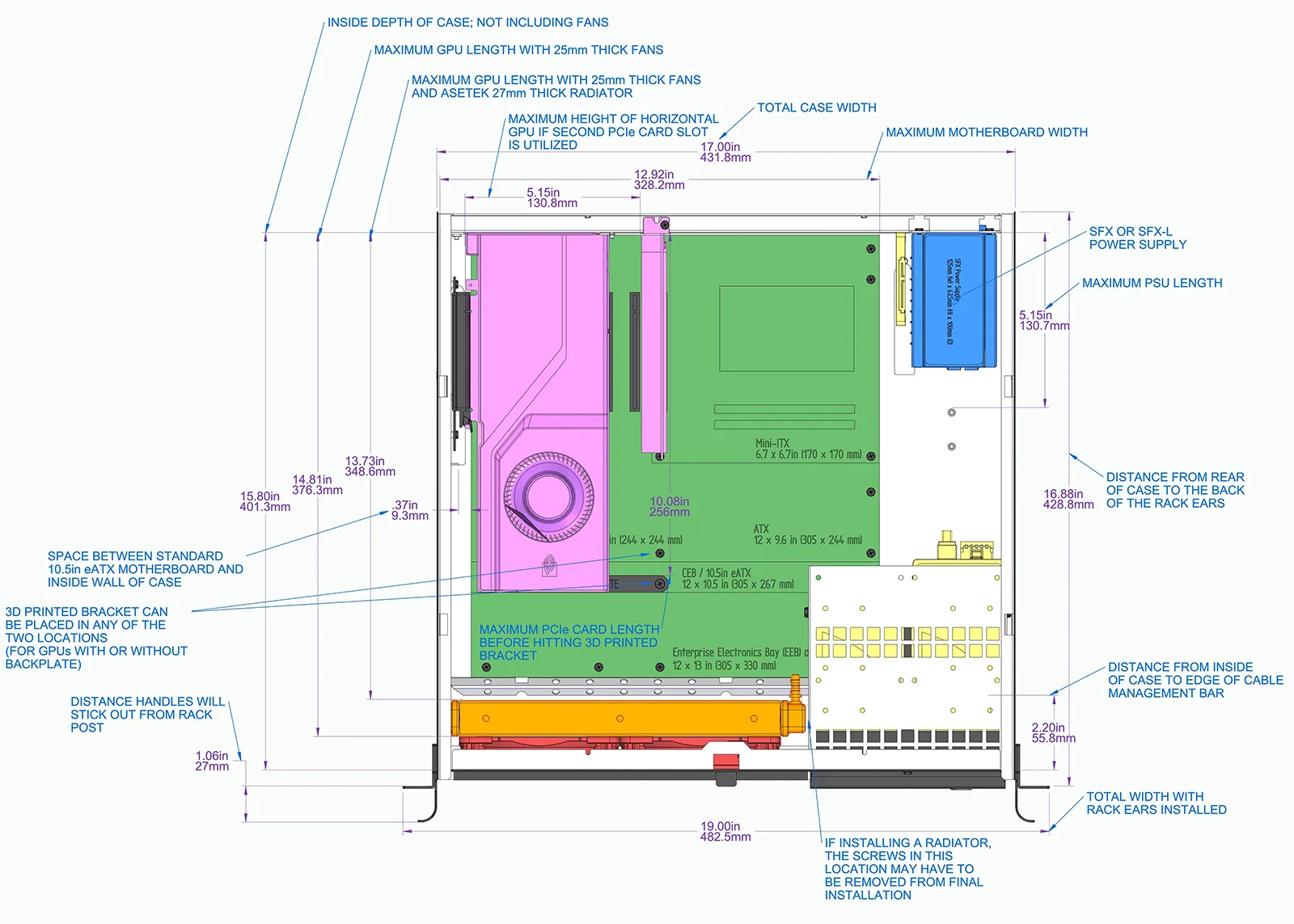

| Outside Dimensions
|
- 17.04" x 17.00" x 3U (5.22") [DxWxH]
- 433mm x 432mm x 132.5mm [DxWxH]
- Depth from front rack post is 16.89" [429mm]
|
|---|
>
| Weights
|
- Chassis
- 17.75lbs [8.05kg]

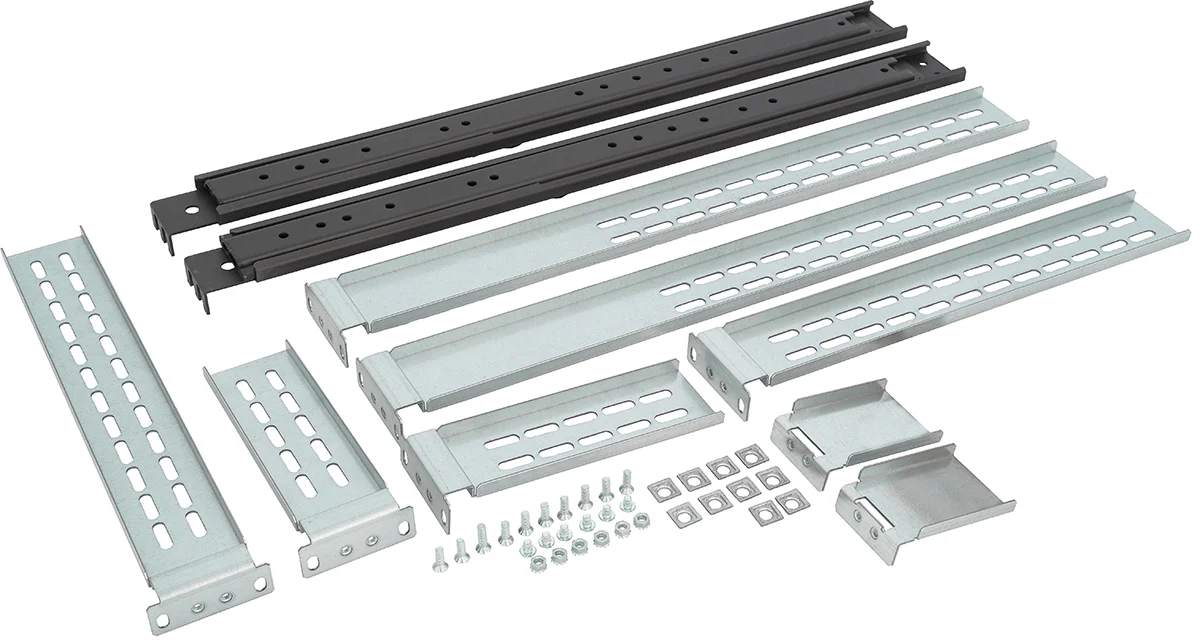

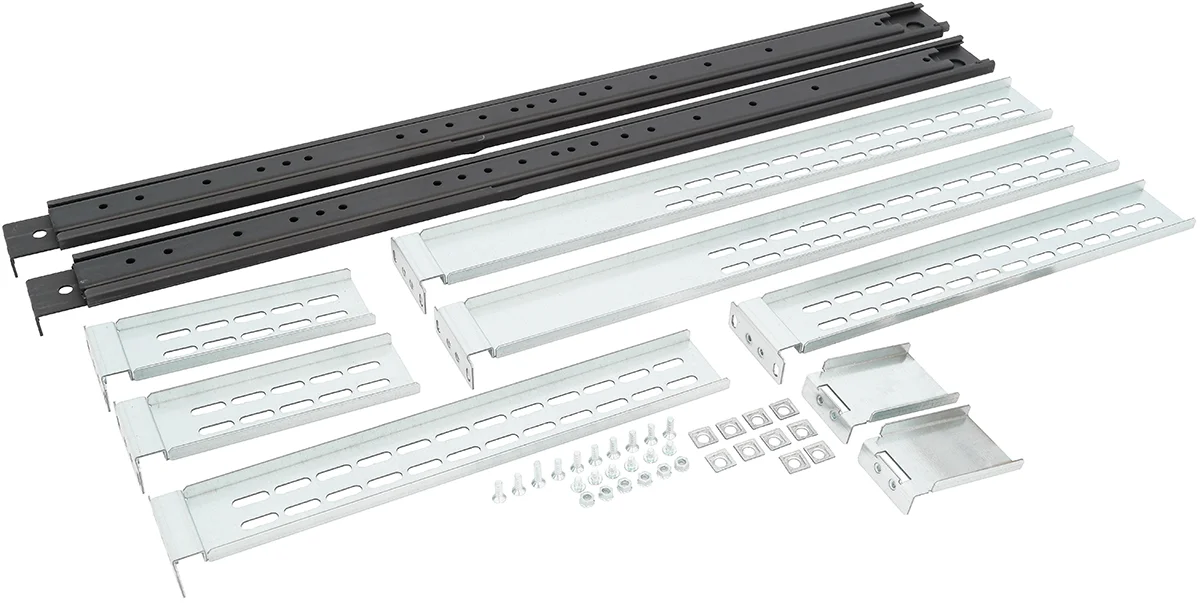

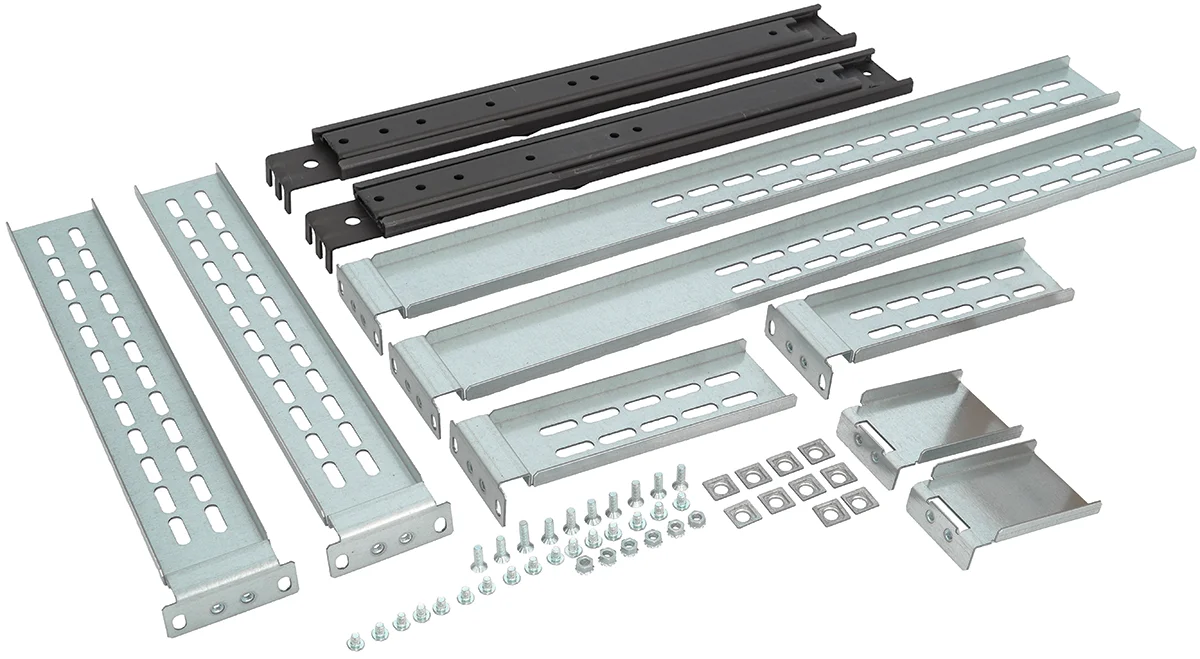

- Rack Slide Kits
- GDRAIL-14XX - 5.3lbs [2.4kg]
- GDRAIL-20XX - 7.5lbs [3.4kg] - Will Ship In Separate Box
- GDRAIL-26XX - 8.75lbs [3.97kg] - Will Ship In Separate Box
- Fans
- Two(2) fans - 1.4lbs [.64kg] total - .7lbs per fan
- Four(4) fans - 2.8lbs [1.27kg] total
- Coolers

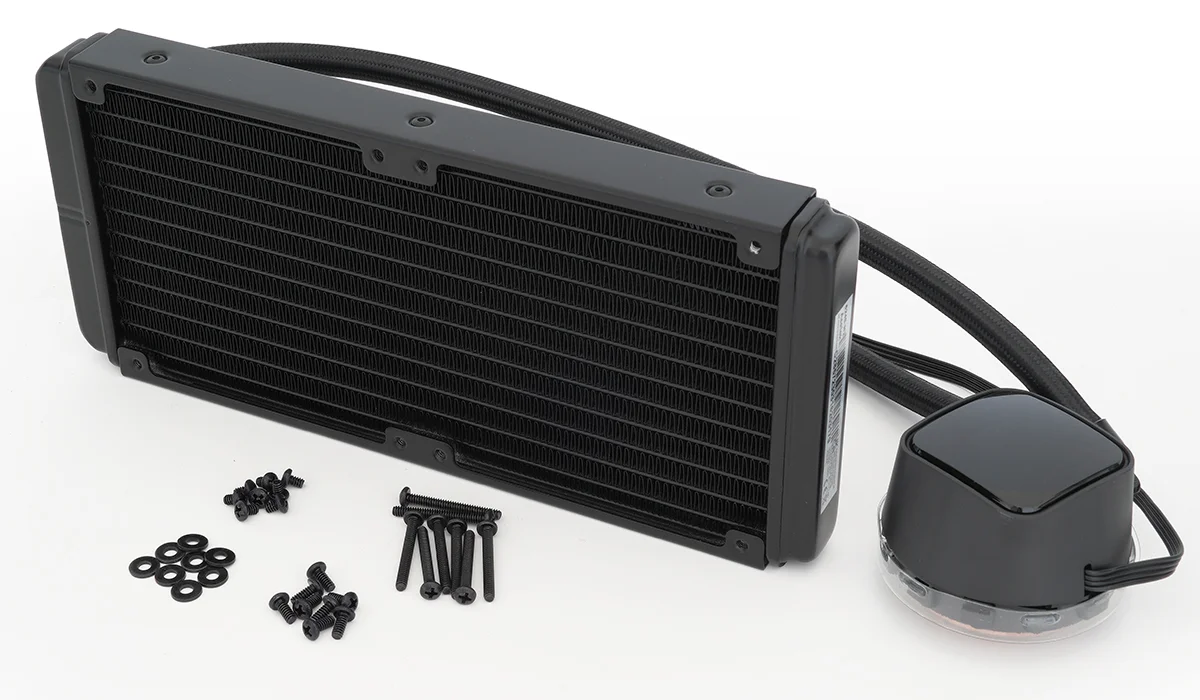

- Asetek 624S-M2 240mm AIO - 1.6lbs [.73kg]
- Retention kits - .25lbs [.11kg]
- Packaging Materials (Box, Tape, Foam Corners)
- 3.25lbs [1.47kg]
|
| Shipping
|
- 20.5" x 20.5" x 9.5" (Shipping Box Outside Dimensions)
- 20" x 20" x 9" (ID)
- Shipping box is ECT52, Double Wall, Kraft Brown
- Standard SLIGER branded tape, optional unbranded kraft brown tape for business customers
|
| Regulatory & Homologation |
| Product Lifecycle
|
- Planned availability through 2032
- Extended availability beyond 8 years as built-to-order(BTO) with a 25 unit MOQ
|
| EMI / Safety
|
- Case cannot be certified as a standalone item. Certifications must be sought as a fully integrated system.
- Contact us before using case for FCC, CE, UL, IEC, or other safety / regulatory compliance.
- Alternate vent sizes, brackets, EMI springs, and/or powder coat masking, may be required depending on certifications sought.
- UL listed wire, fans, coolers, and materials where possible
|
| Industry Standards
|
- 19-inch rack standard
- Electronic Industries Alliance EIA-310-D
- International Electrotechnical Commission IEC 60297-1 / IEC 60297-3-100
- Consumer Electronics Association CEA-310-E
- Deutsches Institut für Normung DIN 41494
|
| Environmental
|
- Compliant with RoHS Directive 2002/95/EC, 2015/863 RoHS2, RoHS3 (EU) with all applicable exemptions
- Regulation (EC) No 1907/2006 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Compliant for all Substances of Very High Concern (SVHC)
- Conflict–Free Sourcing Initiative (CFSI) with Conflict-Minerals Report (CMRT) available upon request
- Compliant with US EPA PBT Section 6 Toxic Substances Control Act (TSCA)
|
| Import / Export
|
- Harmonized Tariff Schedule (HTS) / HS Schedule B
- 8473.30.0002 - COMPUTER CASES AND ACCESSORIES
- Export Control Classification Number [ECCN]
- EAR99 LOW-TECHNOLOGY CONSUMER GOODS
- Country of Origin
- United States of America
- "Made in USA" per Federal Trade Commission (FTC) subchapter C title 16 Code of Federal Regulations Part 323
- TAA (Trade Agreements Act) Compliant for GSA Schedules, IDIQ contracts, and DoD contracts
- Compliant with Section 889 of Federal Acquisition Regulation (FAR) of National Defense Authorization Act (NDAA)
|
| Guides and Links |
| Install Guide
|
- Coming soon! For questions, please reach out to sales@sliger.com or call us at anytime!
|
