| Motherboard
|
- SSI-CEB (305mm x 267mm) [12" x 10.5"]
- EATX (305mm x 267mm) [12" x 10.5"]
- ATX (305mm x 244 mm) [12" x 9.6"]
- Case ATX power supply overlaps edge of SSI-CEB, EATX, and ATX motherboards
- This limits SSI-CEB, EATX, and ATX motherboards to 5x PCIe slots
- Additionally, some low profile adapters for USB headers may be required
- MicroATX (245 x 245mm) [9.6" x 9.6"]
- FlexATX (229 x 191 mm) [9" x 7.5"]
- Mini-DTX (203mm x 170 mm) [8" x 6.7"]
- Mini-ITX (170mm x 170 mm) [6.7" x 6.7"]
|
| CPU Air Coolers
|
|
|---|
| CPU Liquid Coolers
|
|
|---|
| Dust Filter
|
- Includes one(1) washable / reusable dust filter
- 30ppi open cell reticulated polyether filter foam with flame resistant rating, UL94 HF1, UL FILE NO E93229(N)
- Alternate density and/or materials such as aluminum mesh available for OEM projects
|
| Fan Mounting
|
|
|---|

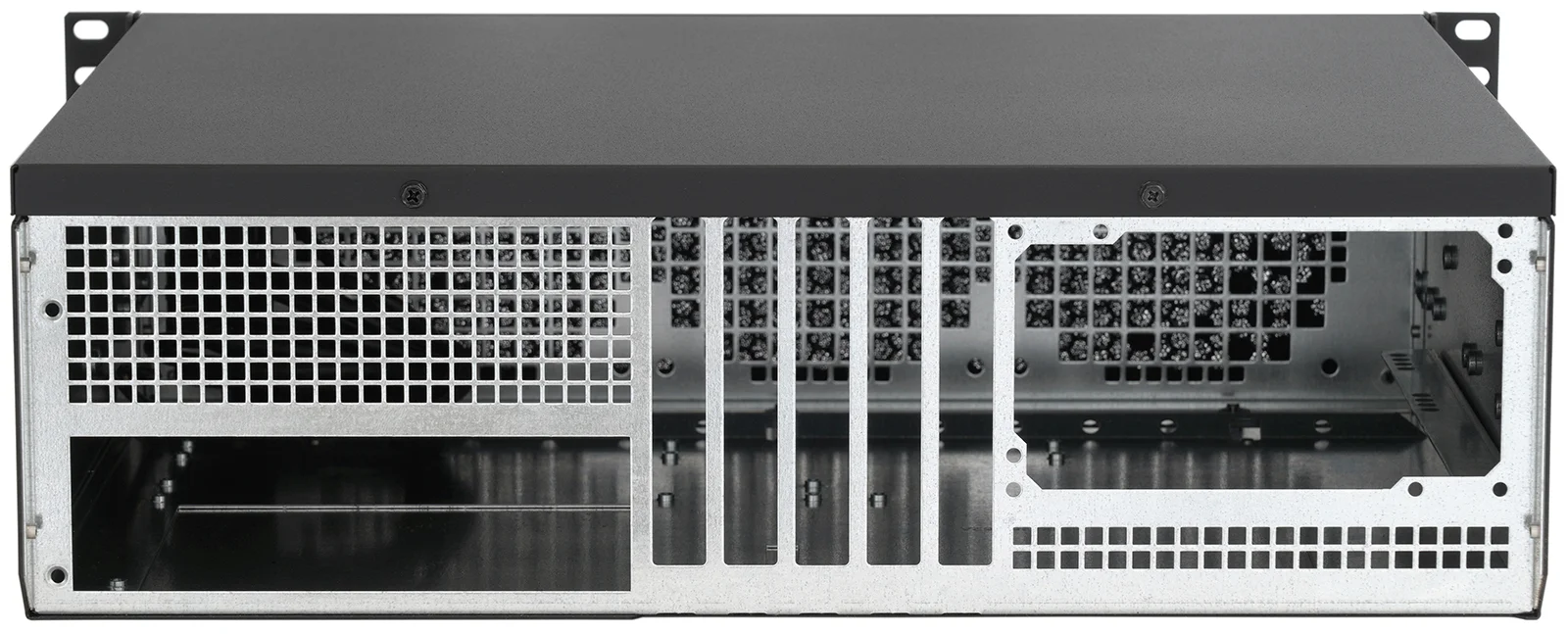

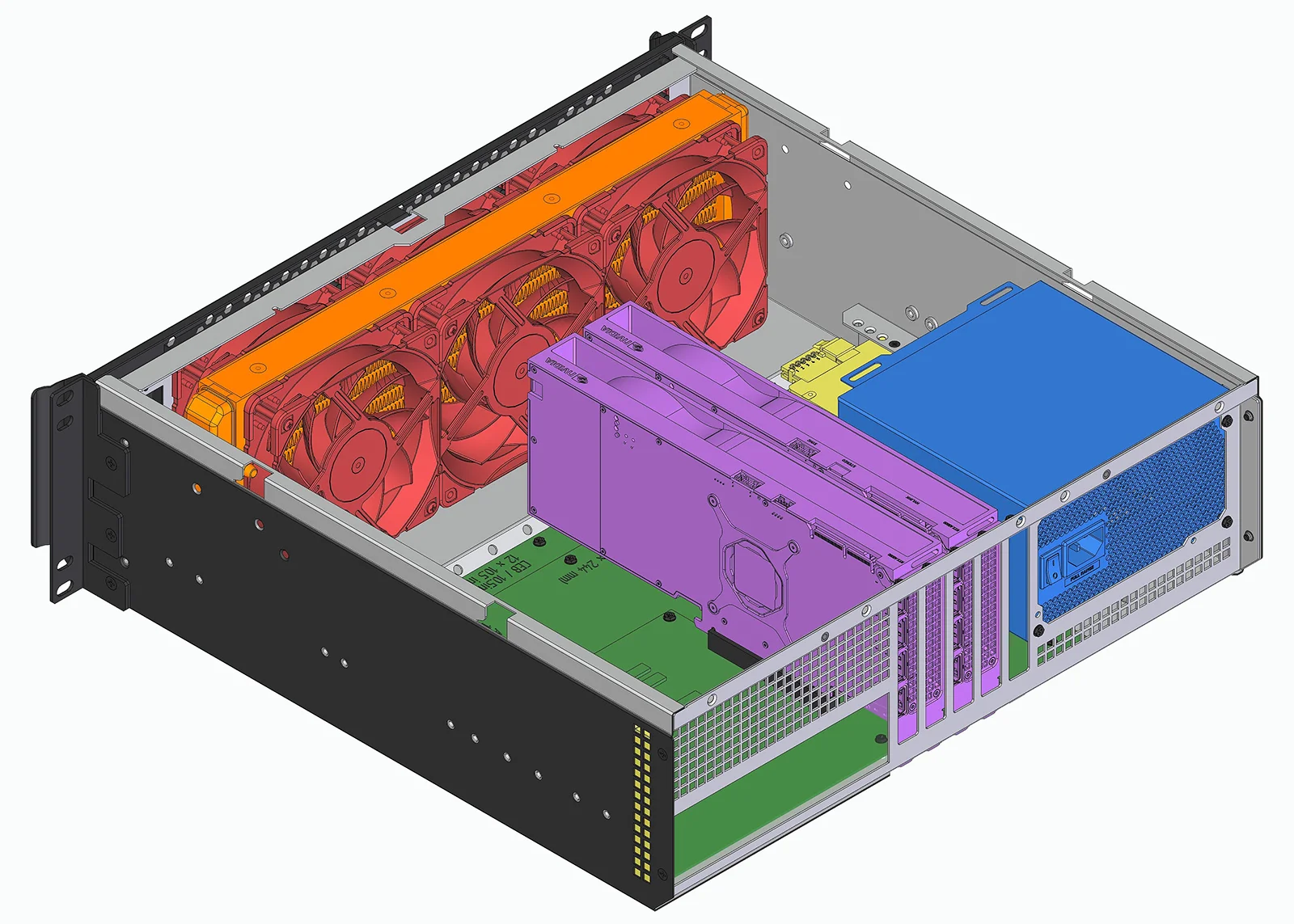

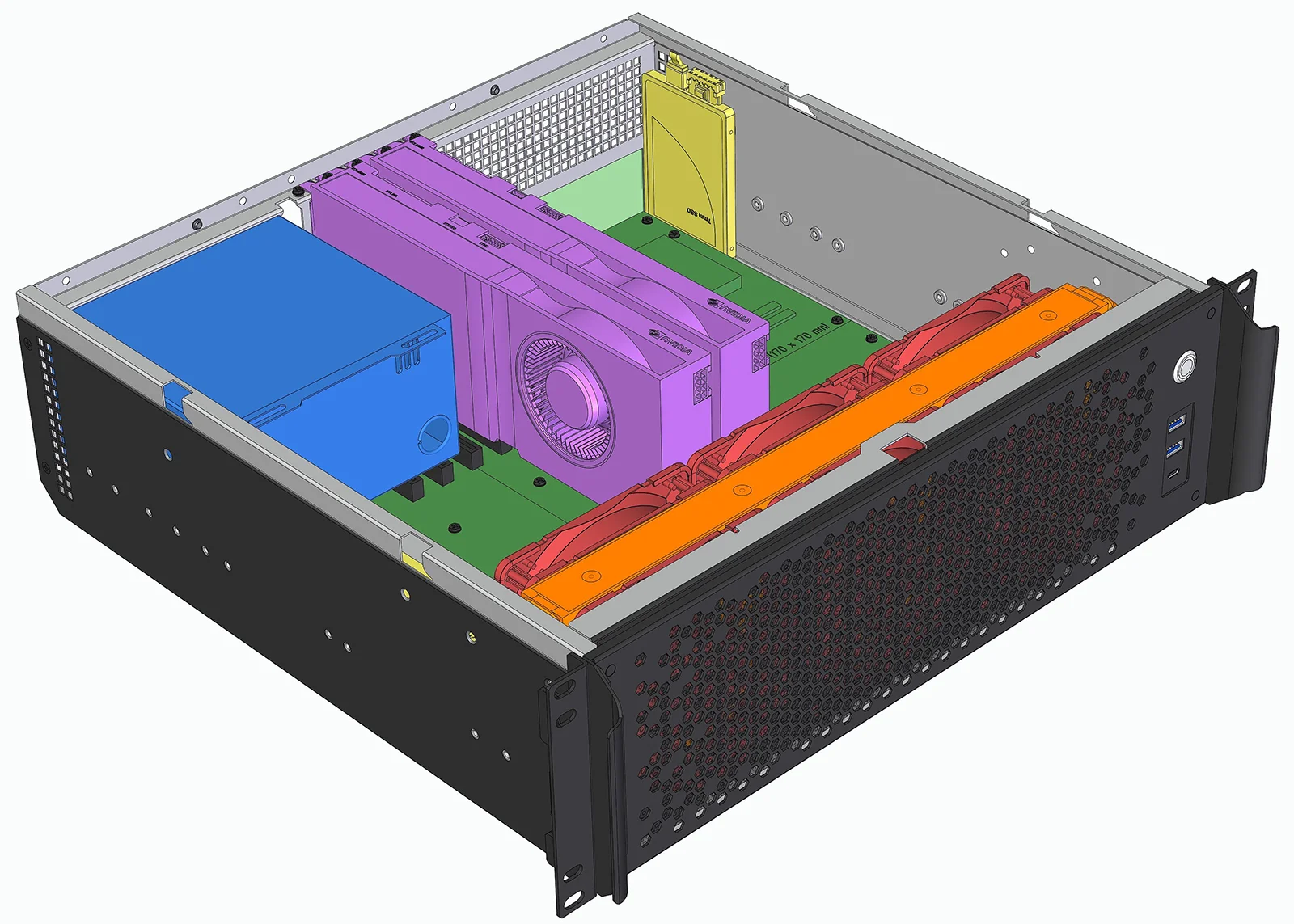

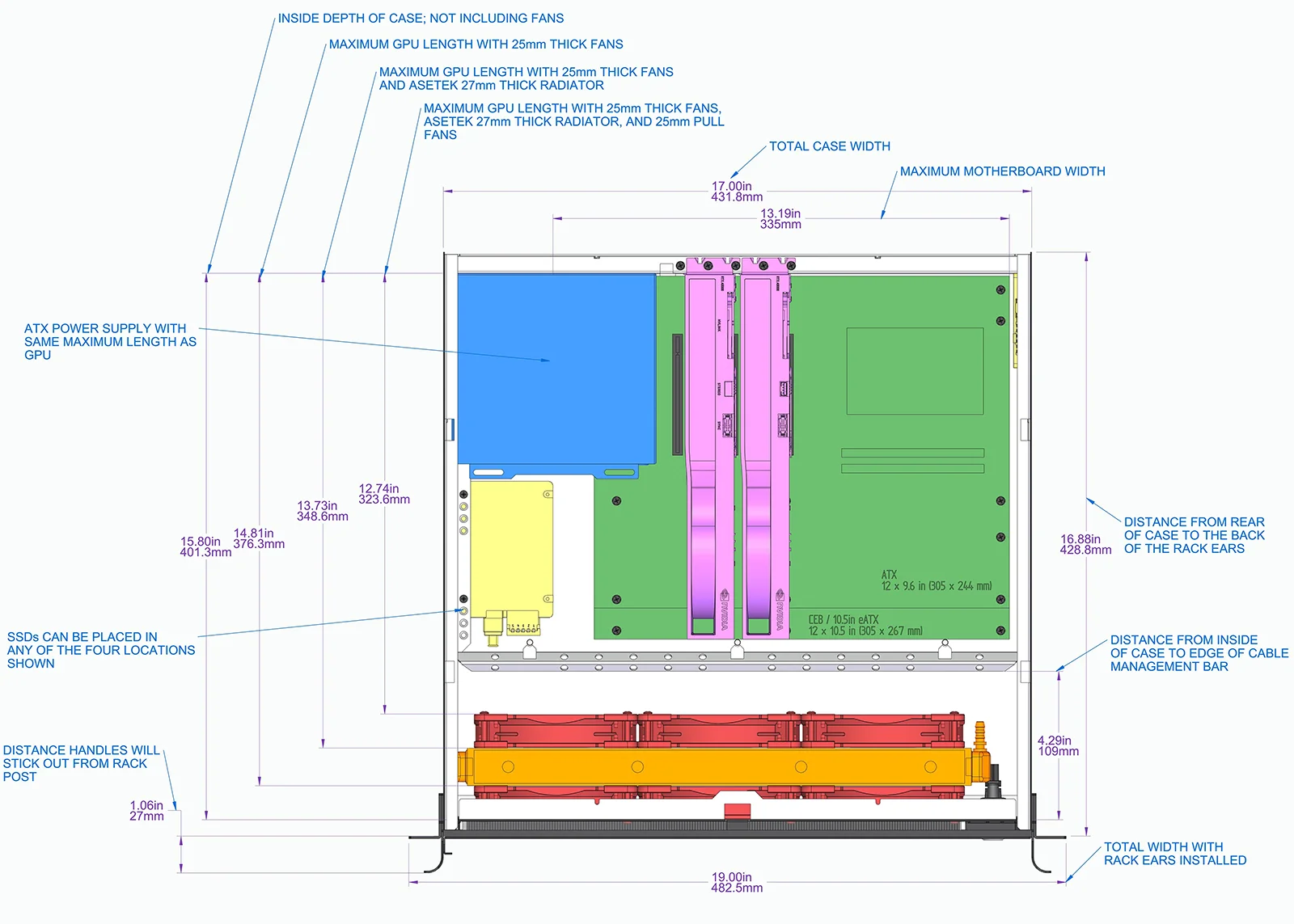

| GPU / PCIe Cards
|
- Five(5) full height PCIe card slot cutouts
- Maximum card height: 115mm - including power connectors
- Maximum card length with three(3) Noctua A12x25 fans: 375mm
- Maximum card length with Asetek 360mm AIO and three(3) Noctua A12x25 fans: 347mm
- Maximum card length with Asetek 360mm AIO and six(6) Noctua A12x25 fans: 322mm
- Maximum card length with no fans / no AIO cooler: 395mm
- NOTE: Compatibility for GPUs with integrated AIO liquid coolers is limited by case height
|
| Storage
|
- Two(2) 2.5" SSD up to 15mm thick
- One(1) 2.5" SSD is mounted vertically between motherboard IO shield and chassis side wall.
- One(1) 2.5" SSD is mounted under PSU support bar
- Sliger recommends use of M.2/NVMe and PCIe based storage on motherboard when possible
- Motherboard PCIe slots can be utilized for M.2 drives via Sabrent PCIe to M.2 or equivalent
- ASUS Hyper M.2 Gen5 PCIe x16 Gen5 to four(4) M.2 Gen5 SSDs
- OWC Accelsior S PCIe x4 to one(1) 2.5-inch SATA SSD
- StarTech PEX4SFF8639U.2 PCIe x4 to one(1) 2.5-inch U.2 NVME SSD
- 3.5" HDD Bracket converts PCIe slot to one(1) 3.5-inch HDD (requires SATA data and power cables)
|

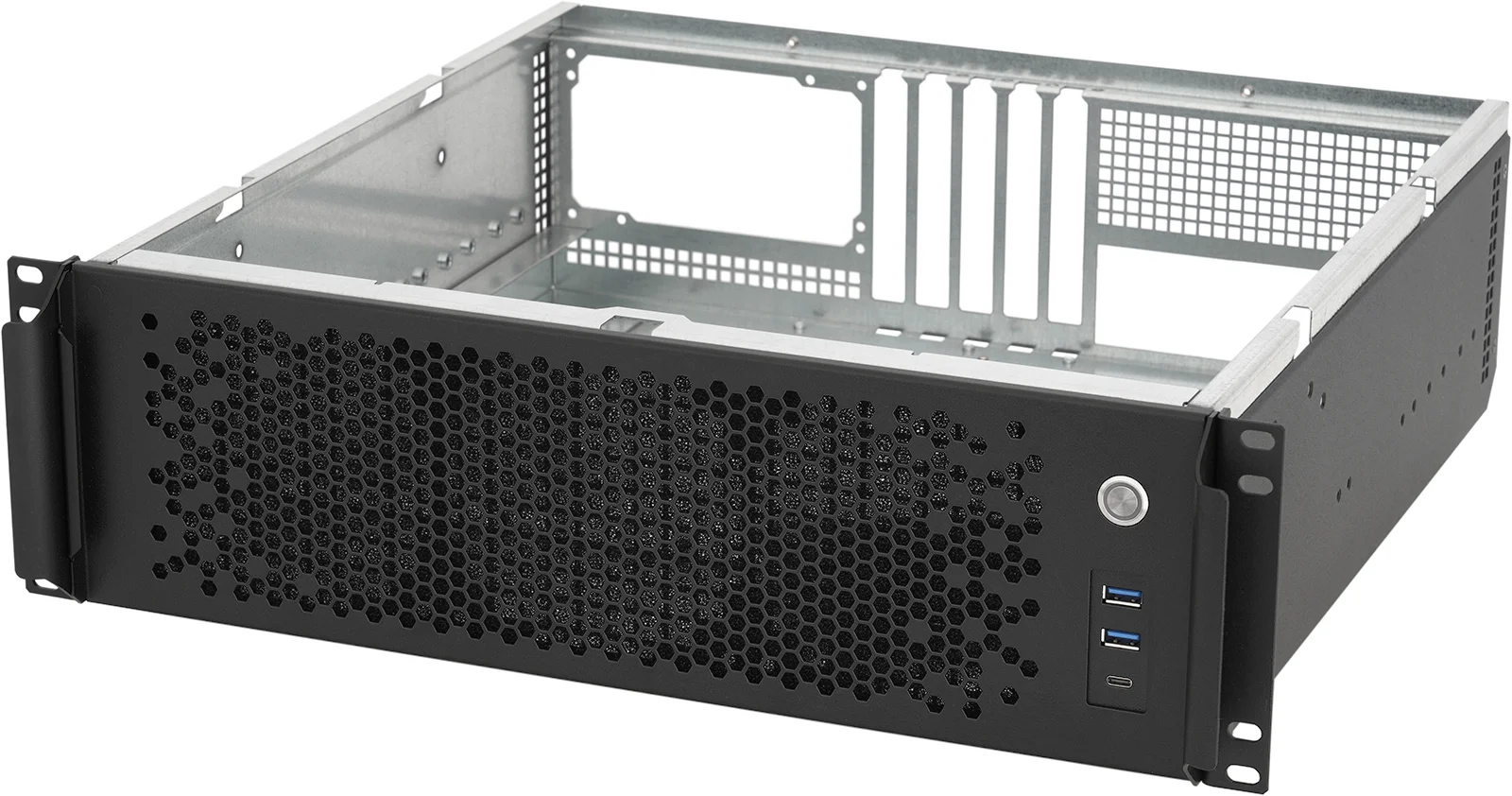

| Front Panel I/O
|
- One(1) USB 3.2 Type C 10Gbps Port
- Two(2) USB 3.0 Type A Ports
- One(1) 16mm Momentary Power Button with integrated Power Status LED (Ring Shape, White)
|
| Power Supply
|
- ATX
- Max Length: 270mm
- Power supply overlaps edge of motherboard, some low profile adapters for USB headers may be required
- Redundant ATX power supply available up to 900W:
- FSP-Twins
- Gemini 900A Gold Cybenetics
|
|---|
| Rack Rails
|
- General Devices C300-S Series
- Rack Rails are not included by default, must be purchased on the configuration or parts page.
- Brand Compatibility
- Brands such as iStarUSA TC Rails are natively compatible.
- Please contact our support team for any compatibility questions.
|
|---|
| Warranty
|
- Case and Rack Rails
- 5 Year Warranty
- Liquid Coolers & Fans
- 3 Year Warranty
- Please see our warranty policy for additional conditions, exclusions, and limitations.
|
|---|
| Rev Control
|
- 1.0 (4/18/22 - **/**/**)
- Initial Release
|
|---|
