| Motherboard
|
- SSI-CEB (305mm x 267mm) [12" x 10.5"]
- EATX (305mm x 280mm) [12" x 11"]
- ATX (305mm × 244 mm) [12" × 9.6"]
- MicroATX (245 x 245mm) [9.6" × 9.6"]
- FlexATX (229 × 191 mm) [9" × 7.5"]
- Mini-DTX (203mm × 170 mm) [8" × 6.7"]
- Mini-ITX (170mm × 170 mm) [6.7" × 6.7"]
|
| CPU Air Coolers
|
- up to 153mm tall
- Noctua NH-D12L recommended
|
| CPU Liquid Coolers
|
|
| Fan Mounting
|

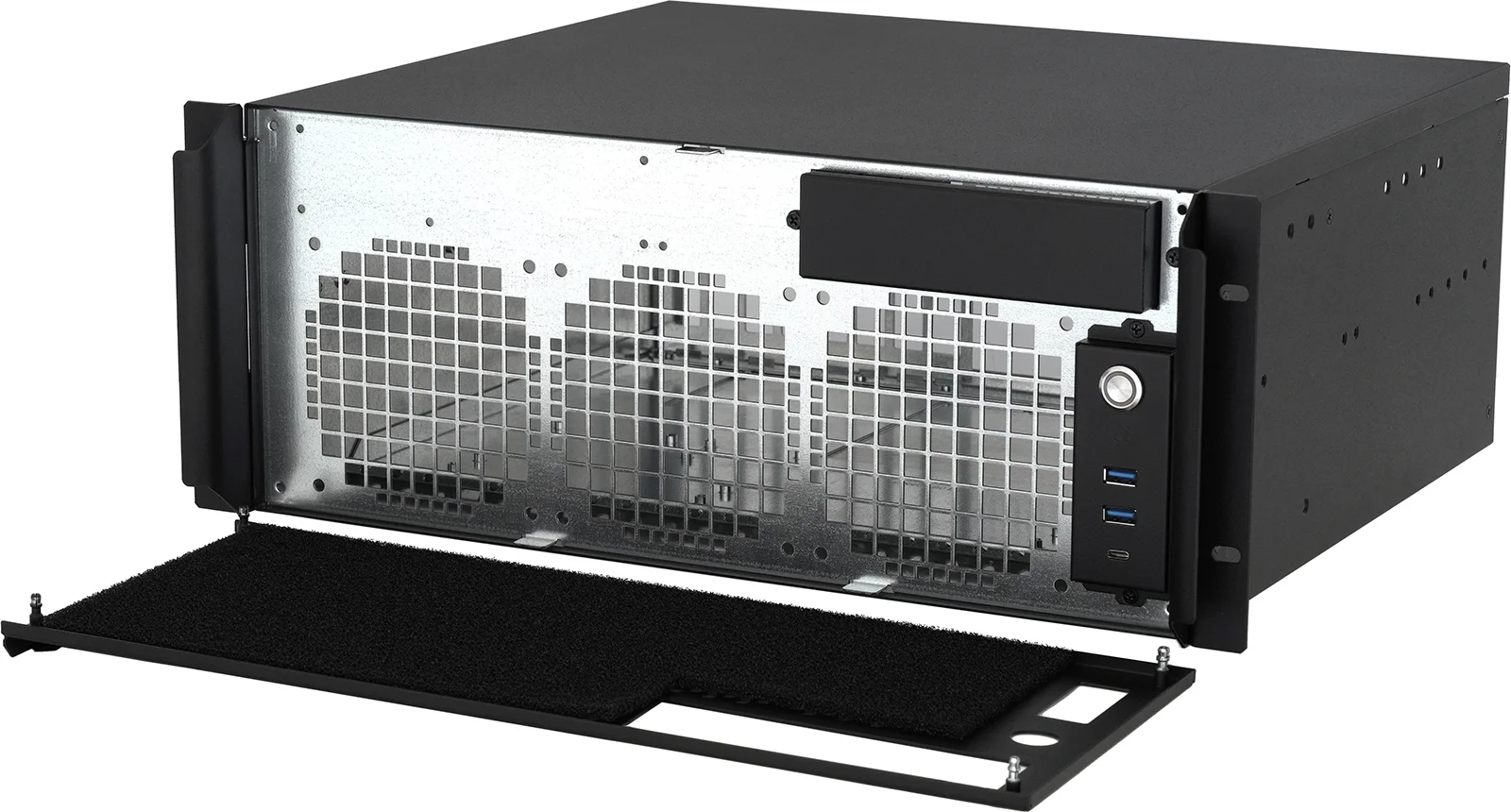

- Front
- 3x 120mm fans
- Supports 25mm to 38mm thickness
|
| GPU / PCIe Cards
|

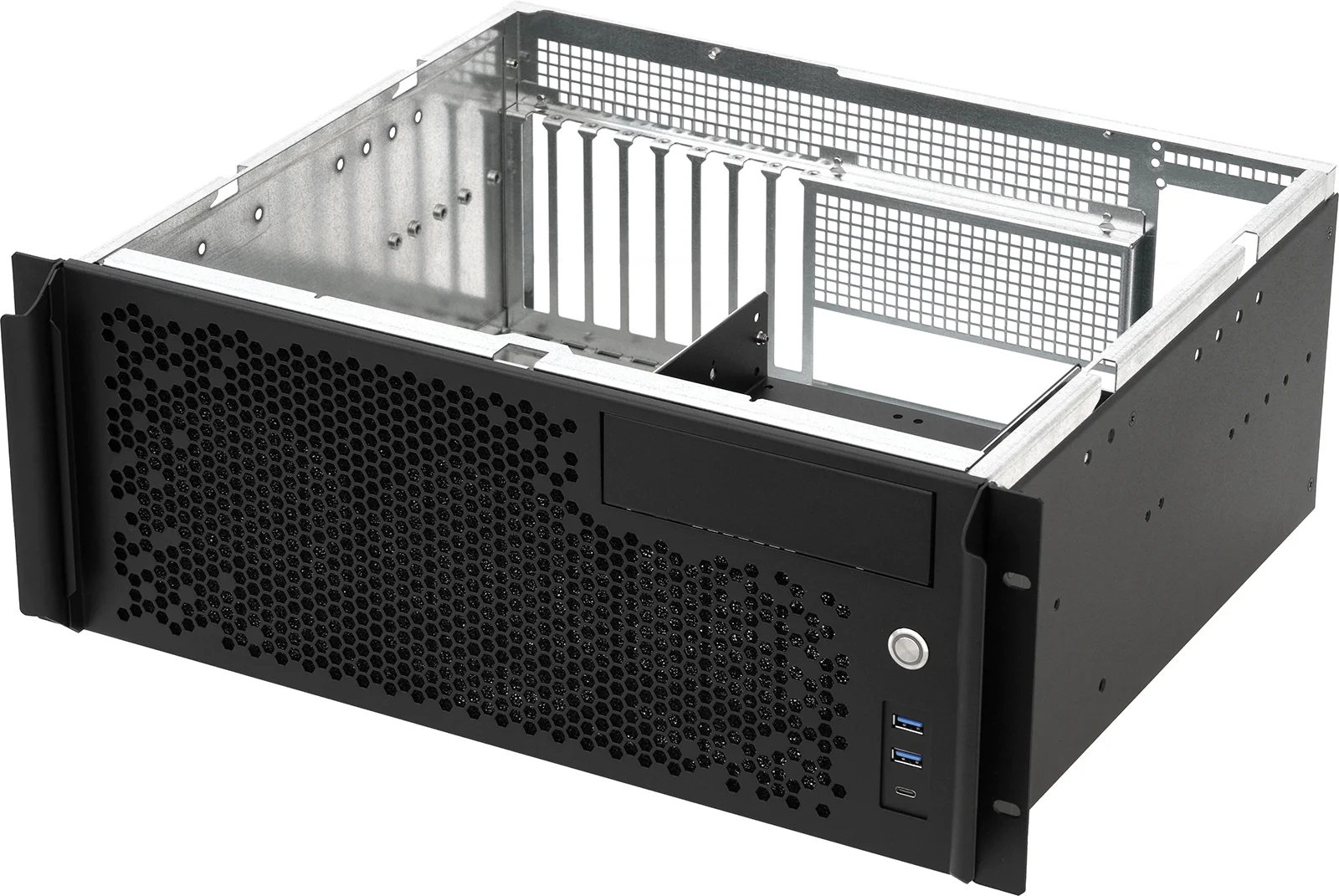

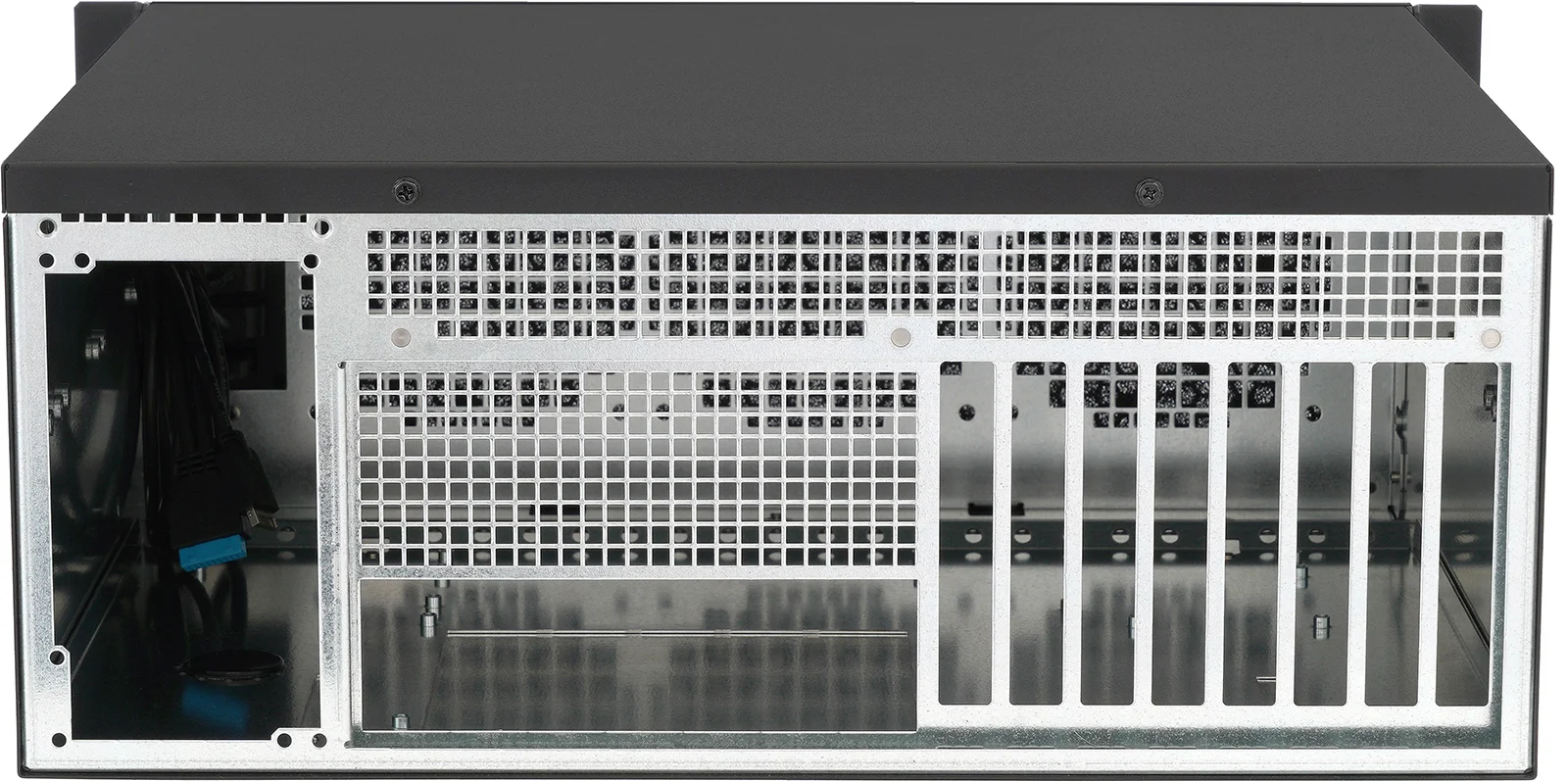

- Eight (8) full height card slot cutouts

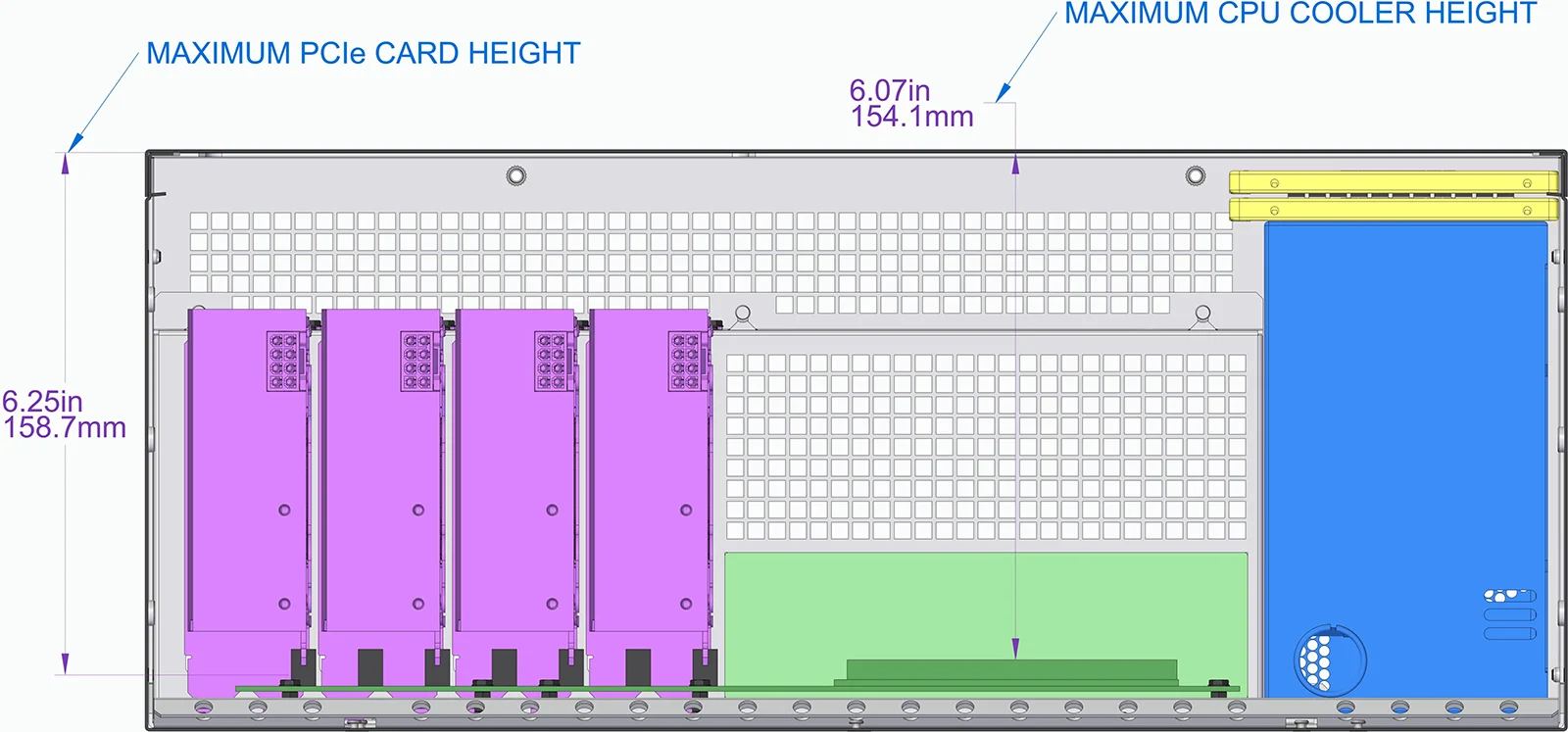

- Maximum card height: 158mm (card and power connector must be ≤158mm tall)

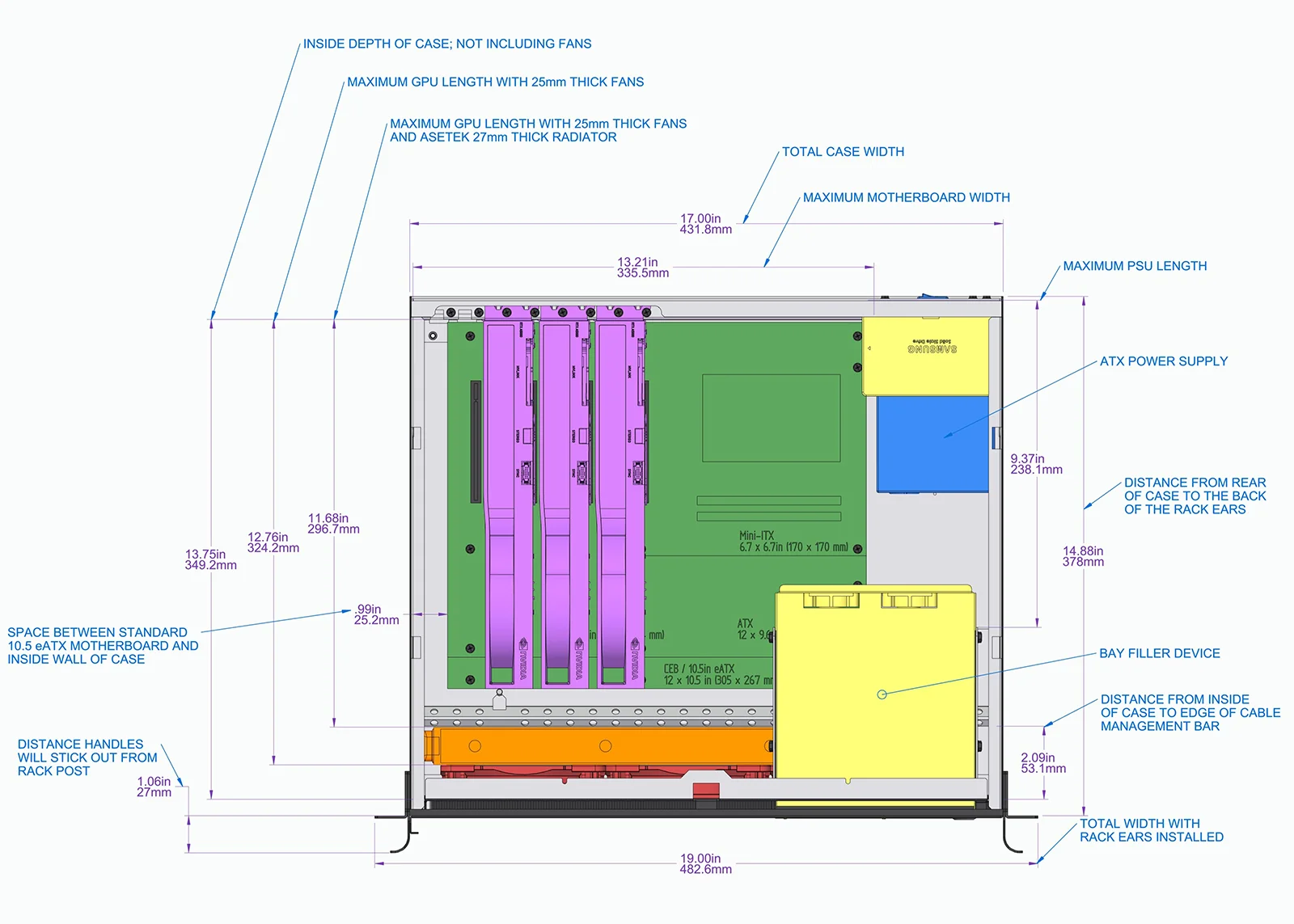

- Maximum card length: 324mm (with 25mm thick front fans)
-
- LIQUID COOLING NOTE: radiators reduce the available depth inside the case for long GPUs
- Inside of case is 349mm deep
- Thickness of radiator + thickness of case fans + GPU length must equal less than 349mm total.
|
| 5.25" Bays
|
- 1x 5.25" bay with filler blank
|
| Storage
|
- Case is designed for use of M.2 storage on motherboard
- 5.25" bay filler blank provides mounting for 2x 2.5" SSD and 1x 3.5" HDD
|
| Front Panel I/O
|
- One (1) USB C 10Gbps Port
- One (2) USB 3.0 Ports
- One (1) Momentary Switch / Power Status LED (Ring Shape, White)
|
| Power Supply
|
- ATX
- Maximum of 150mm length
|
| Material
|
- Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Front Panels
- ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
- Rack Ears
- ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
|
| Finish
|
- Fine texture powder coated chassis and panels
- Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
- Optional custom powder coat finishes, MOQ 10 units
|
| Branding
|
- Case is unbranded on interior and exterior of chassis.
- Optional logo screen printing (full color) on front panel for business customers, MOQ 10 units
|
| Outside Dimensions
|
- 14.89" x 17.00" x 4U (6.96") [DxWxH]
- 378mm x 432mm x 176.75mm [DxWxH]
|
| Weights
|
- Chassis
-
- Rack Slide Kits
-
- Packaging Materials (Box, Tape, Foam Corners)
-
|
| Shipping Box Dimensions
|
- 21" x 19" x 11"
- Double Wall
|
| Rack Rails
|
- Sliger PM-Series Ball Bearing Slides
- General Devices C300-S Series
|
| Warranty
|
- Case
- 5 Year Warranty [Chassis, USB cables, Power Button, SATA Adapters]
- Liquid Coolers & Fans
- 3 Year Warranty
- Please see our warranty policy for additional conditions, exclusions, and limitations.
|
| Homologation
|
- HTS Tariff Code
- 8473.30.00.02
- Country of Origin
- United States of America
| Rev Control
|
- 1.0 (4/18/22 - **/**/**)
- Initial Release
|
| |
