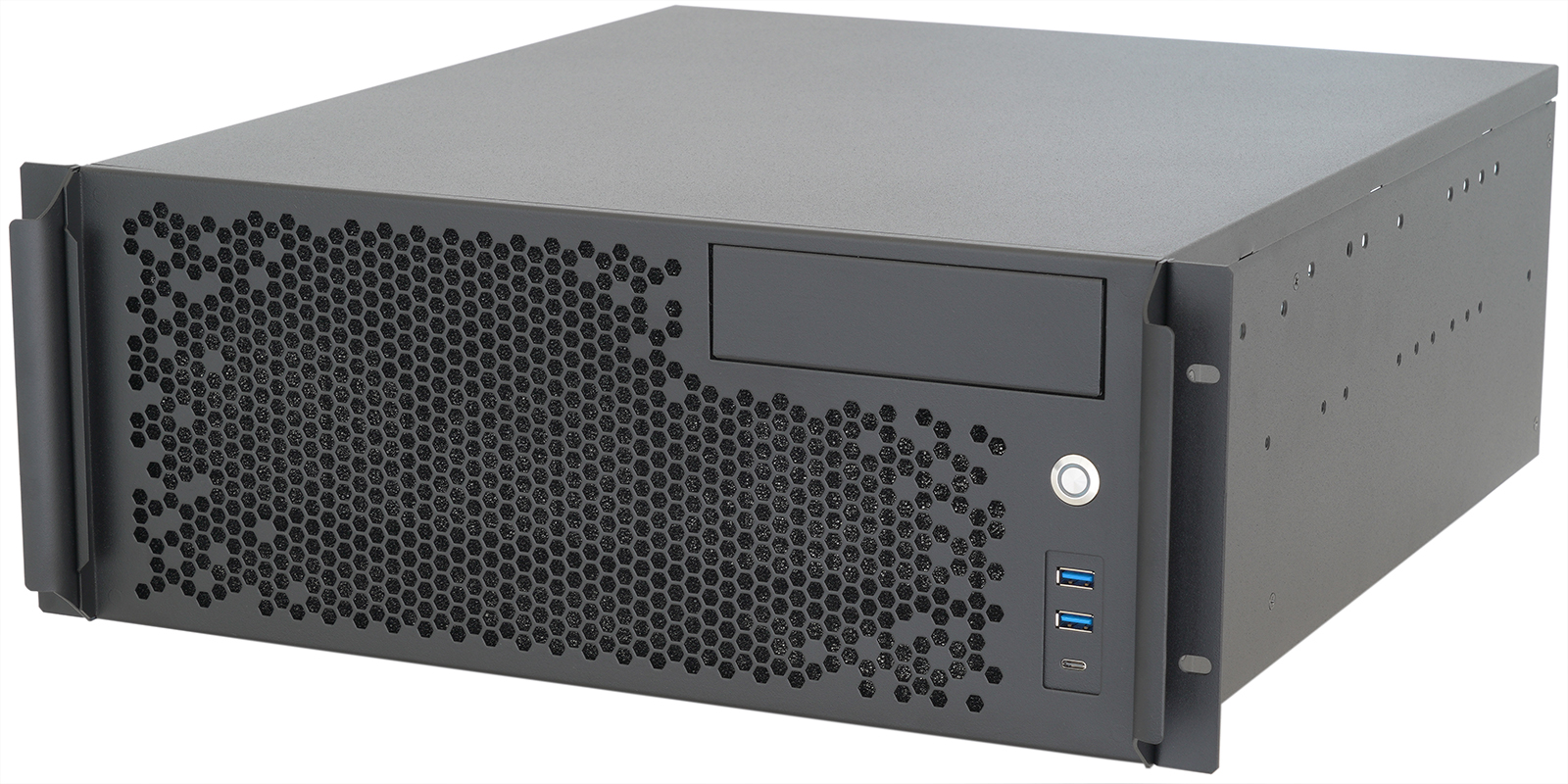

CX4200i 20" deep 4U with 5.25" bay and HDD storage
CX4200i20" deep 4U with 5.25" bay and HDD storage
  • Supports SSI-EEB, SSI-CEB, EATX, ATX motherboards and more
  • Three front mounted 120mm fans for silent airflow
  • Air cooling with CPU air coolers up to 158mm tall

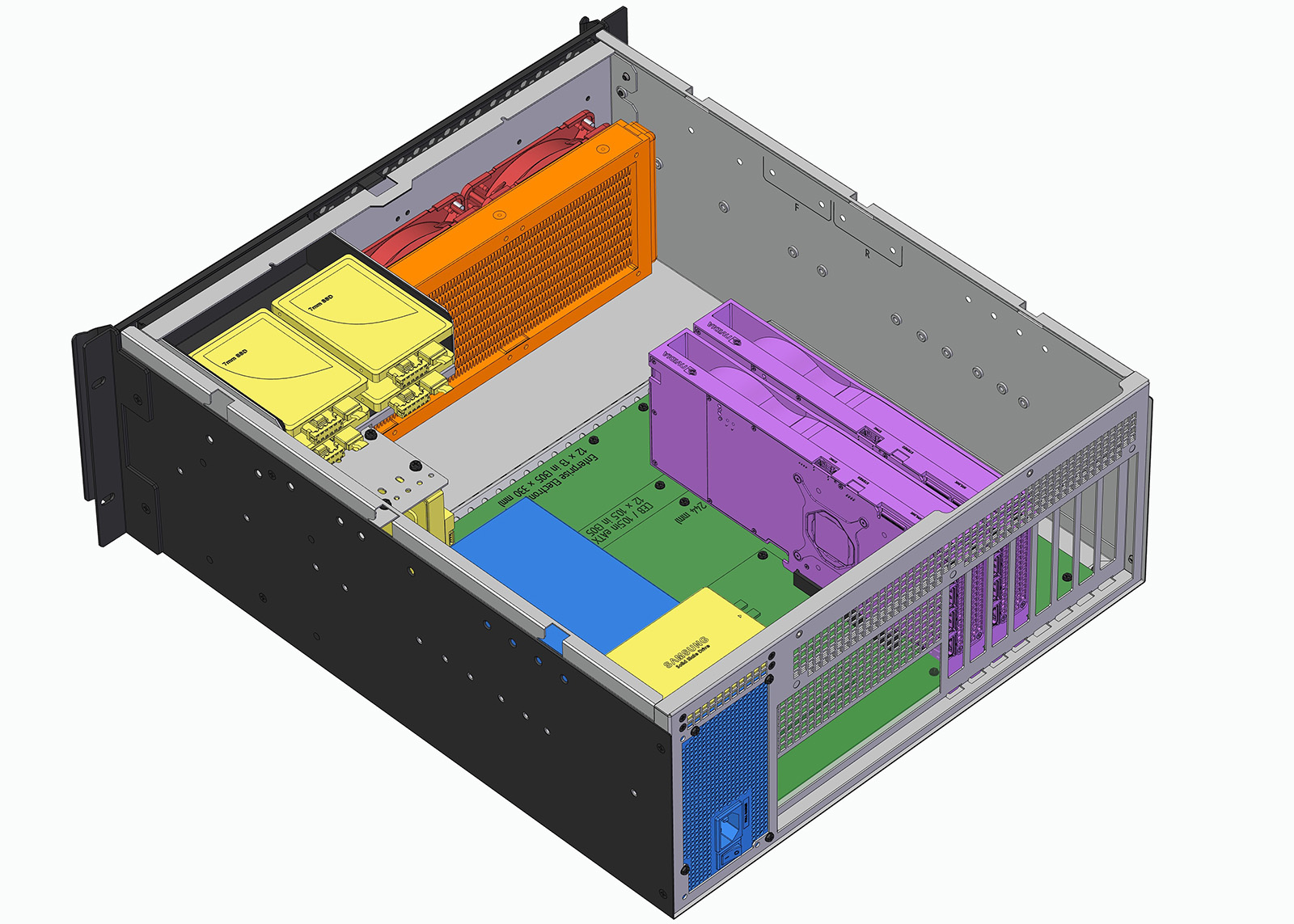

  • Liquid cooling support for 1x 240mm or up to 3x 120mm AIOs
  • Storage bracket for 3x 3.5" HDDs, 8x 2.5" SSDs, or any combination of
  • One 5.25" bay for removable media
  • ATX power supplies up to 250mm in length
  • Manufactured in the USA
Front Panel Color


BUSINESS CUSTOMERS: Custom branded front panels are available!
Services include custom powder coating of any color on Prismatic Powders, modified vent patterns, custom laser cutouts, and full color screen printing (including gradients). Please contact sales@sliger.com to discuss your requirements. A minimum order quantity (MOQ) of 10 units is required.
Rack Slides
Installation instructions for our CX/PM Series rack slides are available here.
120mm Fans
* Fan extensions and gaskets/grommets are not included. Fan mounting screws are included.
NOTE: as of May 1st 2023 all cases include a washable dust filter.
360mm AIO Liquid Coolers for HEDT and Server CPUs
Returns on HEDT AIO coolers are subject to an additional 25% restocking fee.
360mm AIO Liquid Coolers for Desktop CPUs
240mm AIO Liquid Coolers for Desktop CPUs
Add To Cart
FREE SHIPPING (US ONLY)
IN STOCK
Orders for CX4200i are currently shipping in 1-10 business days based on order quantity and current production availability. Contact us if you need expedited / same day order processing.
Order Terms & Conditions
5% CANCELLATION FEE
Due to changes in refund policies from PayPal and Amazon, all order cancellations are now subject to a 5% order cancellation fee.
Order Cancellations & Returns

Technical Specifications

Motherboard
  • XL-ATX (325mm x 330mm) [12.8" x 13"]
  • SSI-EEB (305mm x 330mm) [12" x 13"]
  • SSI-CEB (305mm x 267mm) [12" x 10.5"]
  • EATX (up to 325mm x 330mm) [up to 12.8" x 13"]
  • ATX (305mm × 244 mm) [12" × 9.6"]
  • MicroATX (245 x 245mm) [9.6" × 9.6"]
  • FlexATX (229 × 191 mm) [9" × 7.5"]
  • Mini-DTX (203mm × 170 mm) [8" × 6.7"]
  • Mini-ITX (170mm × 170 mm) [6.7" × 6.7"]
GPU / PCIe Cards

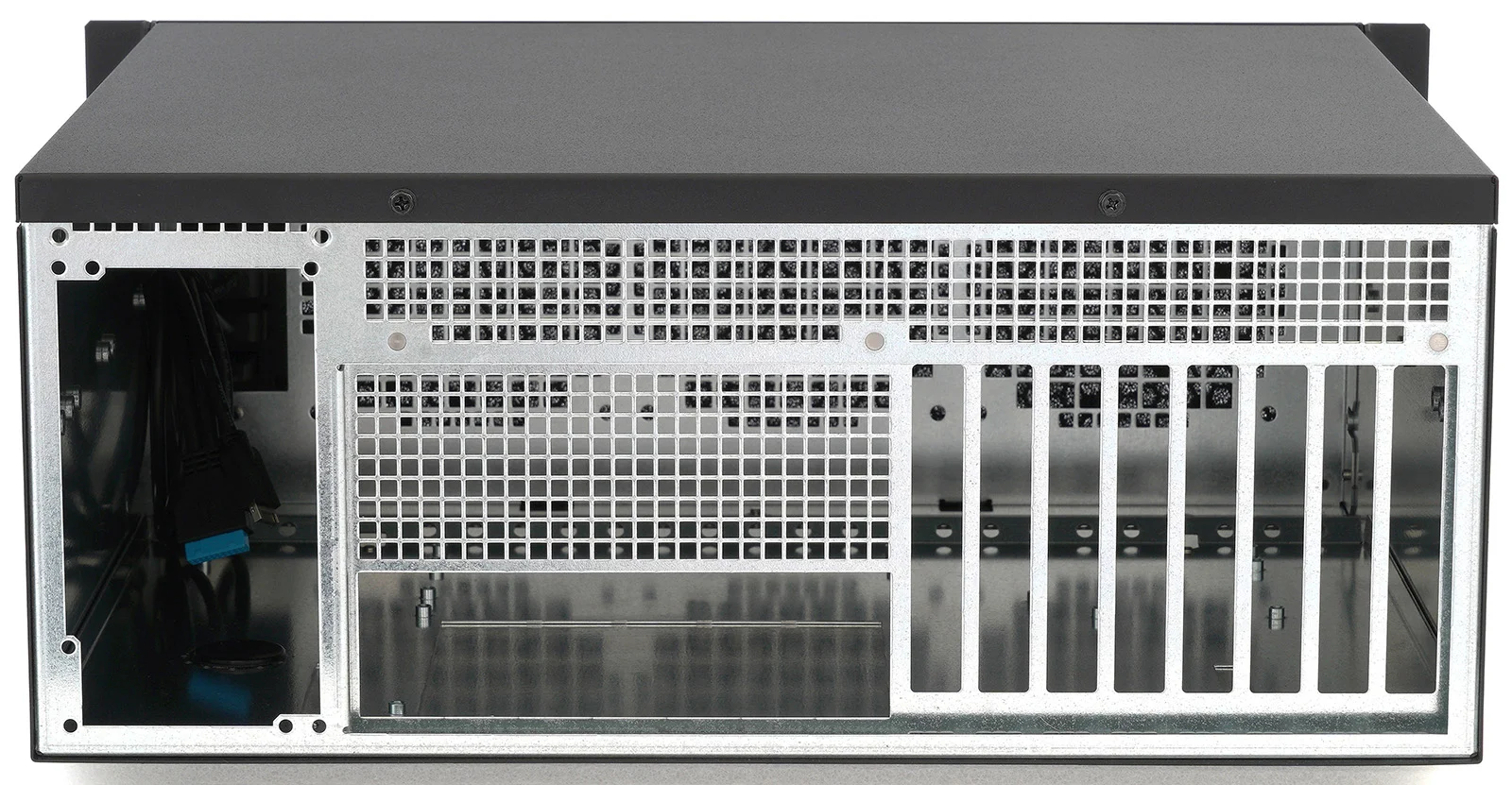

  • 8x full height PCIe card slot cutouts
  • Maximum card height: 158mm
  • Maximum card length: 450mm (with 25mm thick front fans)
  • Optional card retention bar
5.25" Bays
  • 1x 5.25" bays with filler blank
  • The 1x included 5.25" bay filler blank allows mounting 2x 2.5" SSD and 1x 3.5" HDD
Storage
  • 1x 5.25" bay filler provides 2x 2.5" SSD and 1x 3.5" HDD mount
  • Using the 5.25" filler panels prevents any 5.25" devices from being installed!

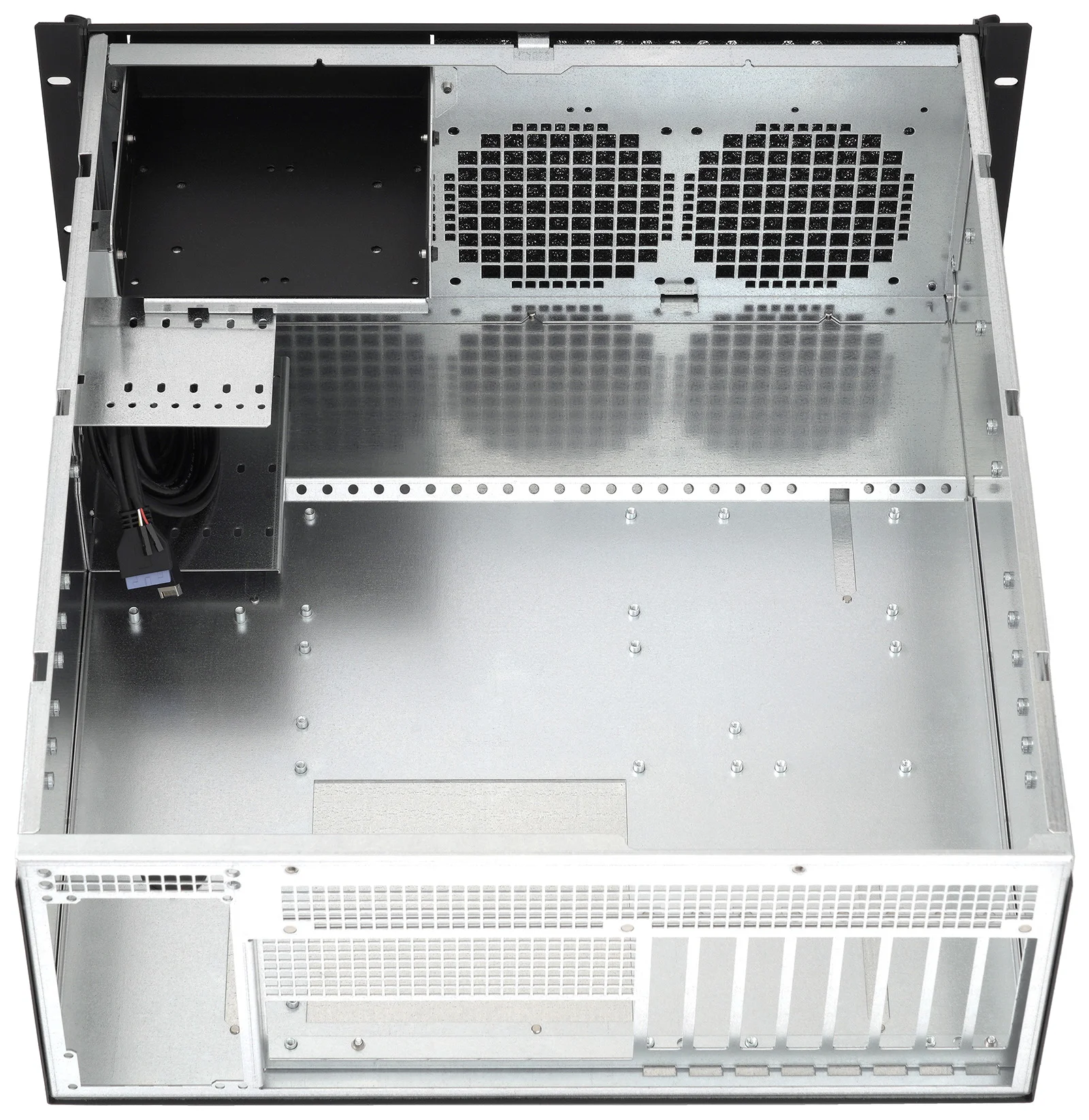

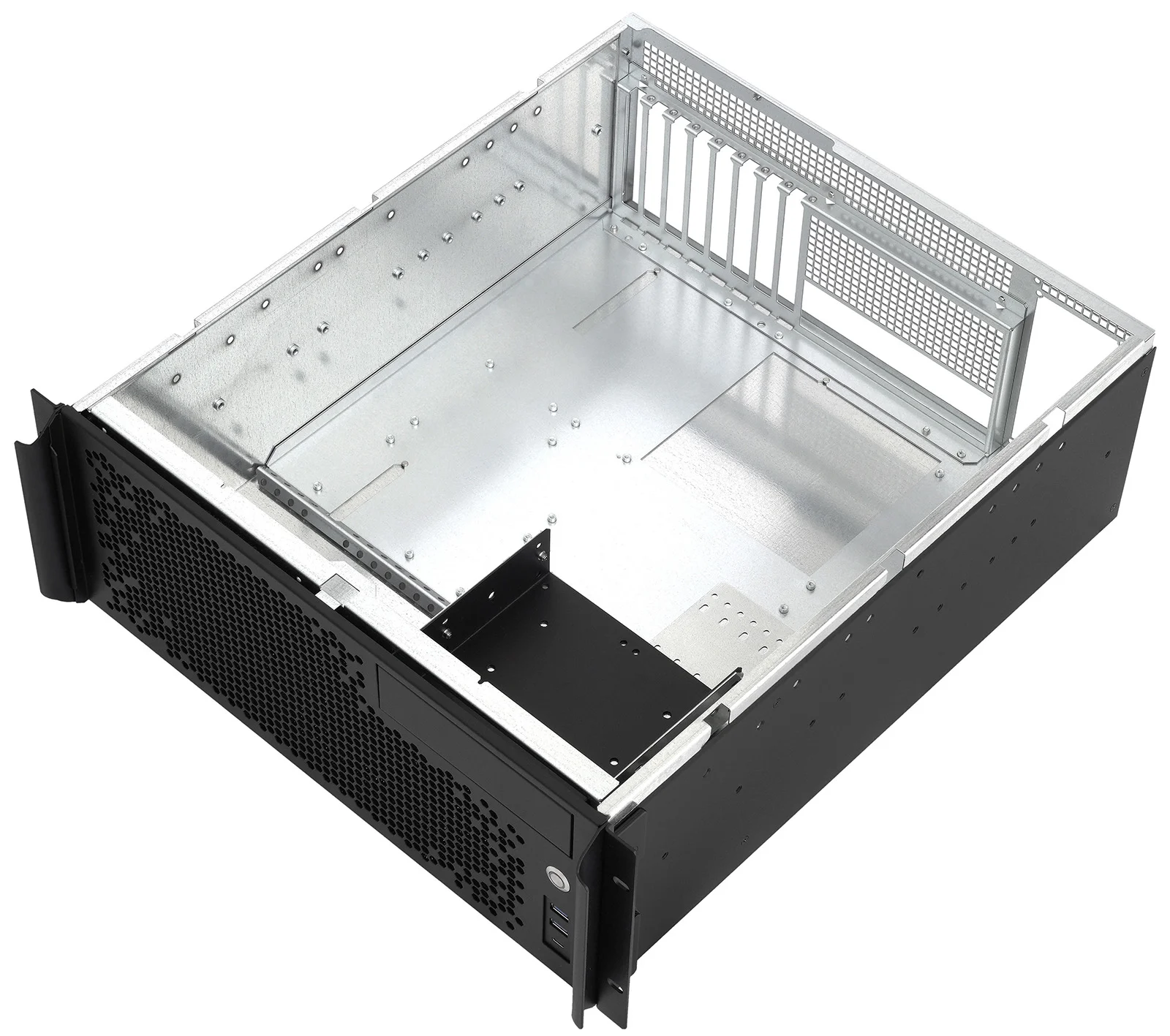

  • Internal mounting bracket with configuration options for:
  • 3x 3.5" HDD
  • or
  • 8x 2.5" SSD
  • or
  • 2x 3.5" HDD and 3x 2.5" SSD
  • or
  • 1x 3.5" HDD and 5x 2.5" SSD

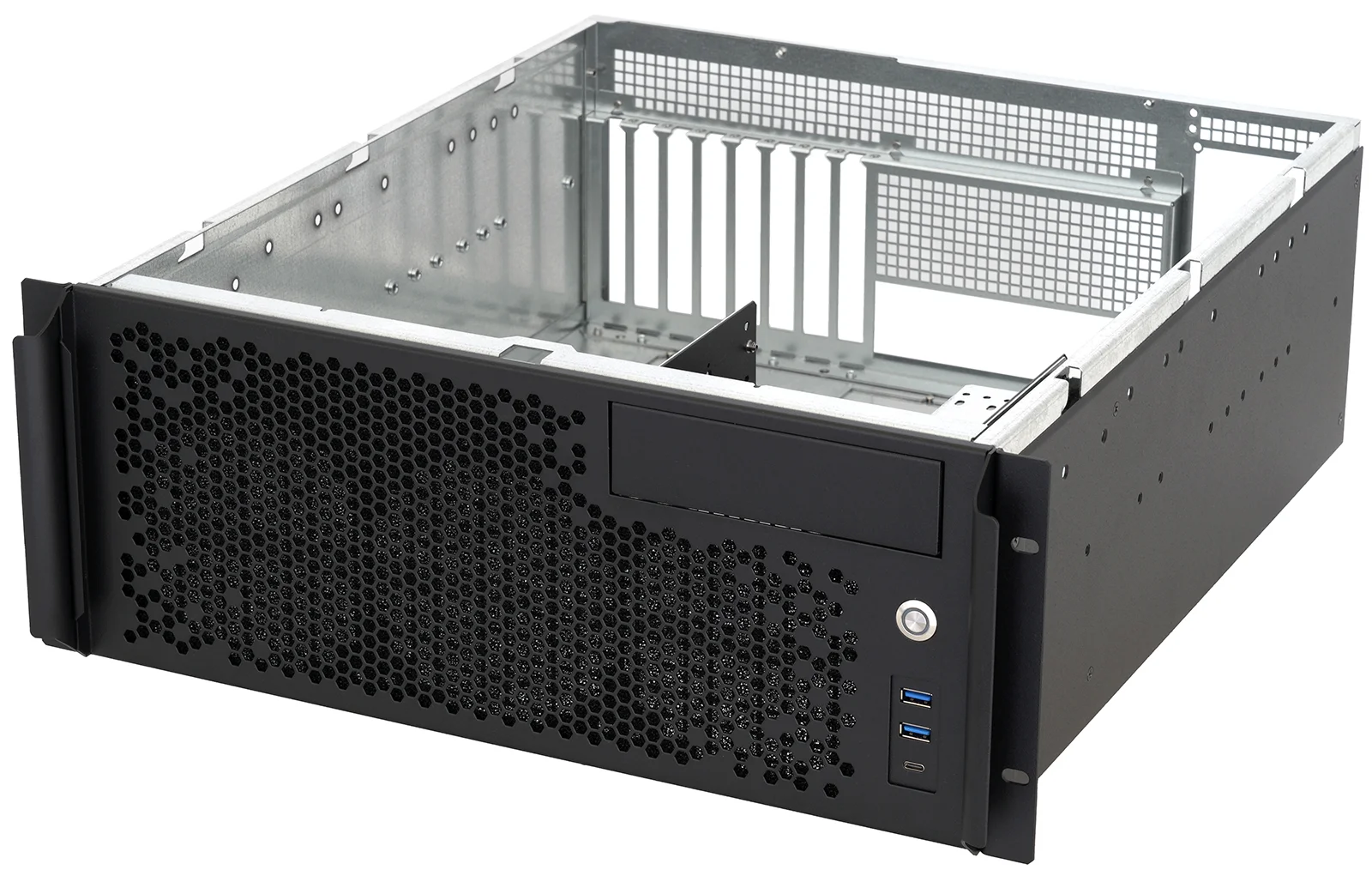

Front Panel I/O
  • 1x USB C 10Gbps Port
  • 1x USB 3.0 Ports
  • 1x Momentary Switch / Power Status LED (Ring Shape, White)
Power Supply
  • ATX
  • Maximum of 250mm length with 3.5" HDD bracket installed
Fan Mounting
  • Front
  • 3x 120mm fans
CPU Air Coolers
  • up to 158mm tall
  • Noctua NH-D12L recommended
CPU Liquid Coolers
  • ATTENTION: Please check your radiator or AIO compatibility before purchasing!
  • These cases are designed around specific Asetek AIO radiator sizes.
  • A complete list of compatible Asetek Partner AIO coolers is available here:
  • Asetek Partner AIOs (EVGA, MSI, NZXT, Asus, Razer, etc.)
  • Sliger also offers unbranded Asetek OEM coolers for purchase for new or existing cases.
  • List of Asetek OEM coolers offered by Sliger
  • List of compatible CPU sockets and AIO retention kits
  • For help, contact us at sales@sliger.com or call us at +1-775-356-5595.

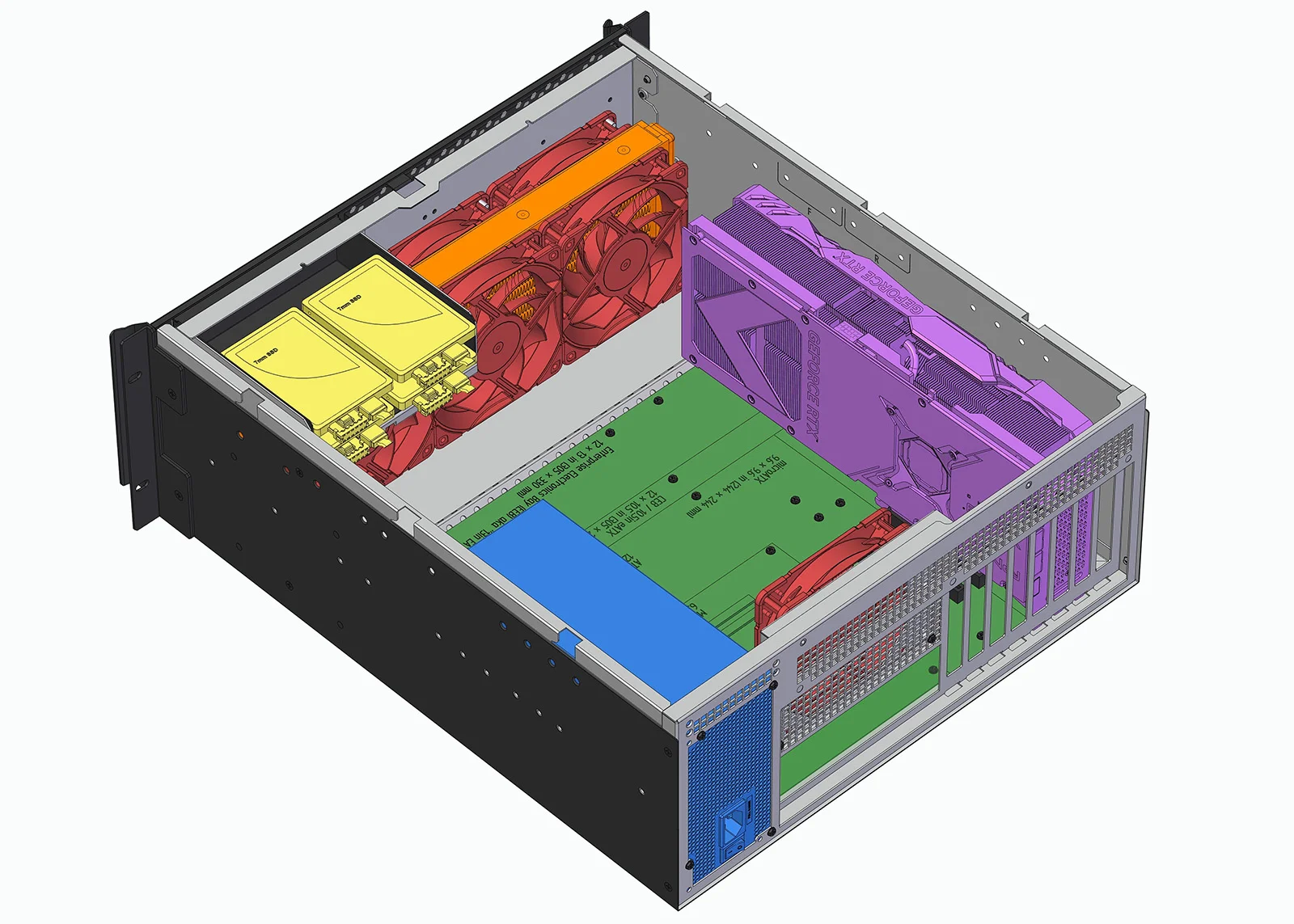

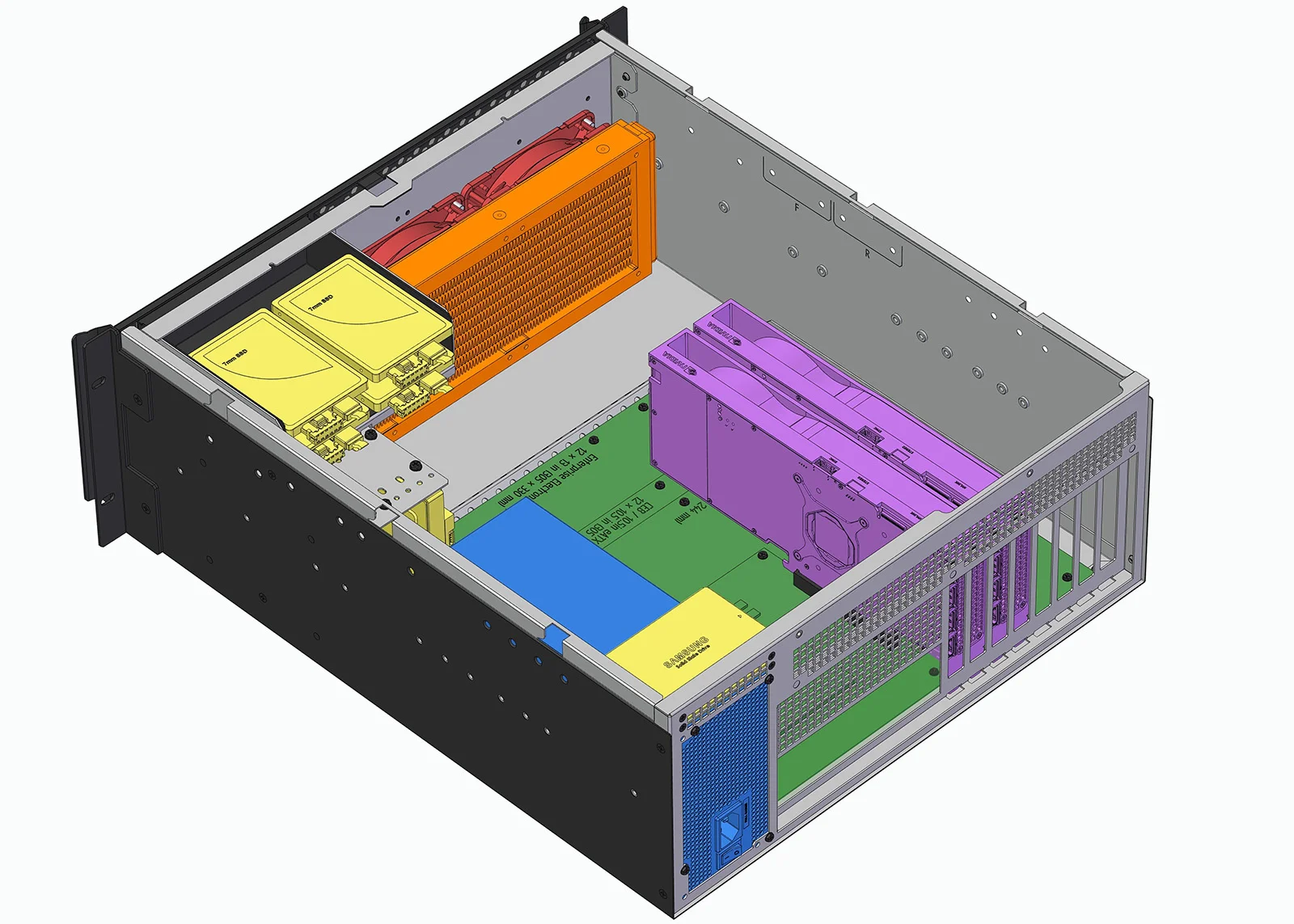

  • 1x 360mm AIO is supported, but requires removal of the HDD/SSD bracket
  • or
  • 1x 240mm liquid cooler
  • or
  • up to 3x 120mm liquid coolers
  • 120mm AIOs must be positioned vertically (tubes at top)
  • Custom loops supported, contact us for fitment checks!
  • NOTE: radiator + fan thickness must be less than 54mm
  • if greater than 54mm, the HDD/SSD bracket will not fit
Material
  • Chassis
  • ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
  • Front Panels
  • ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
  • Rack Ears
  • ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
Finish
  • Fine texture powder coated chassis and panels
  • Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
  • Optional custom powder coat finishes, MOQ 10 units
Branding
  • Case is unbranded on interior and exterior of chassis.
  • Optional logo screen printing (full color) on front panel for business customers, MOQ 10 units

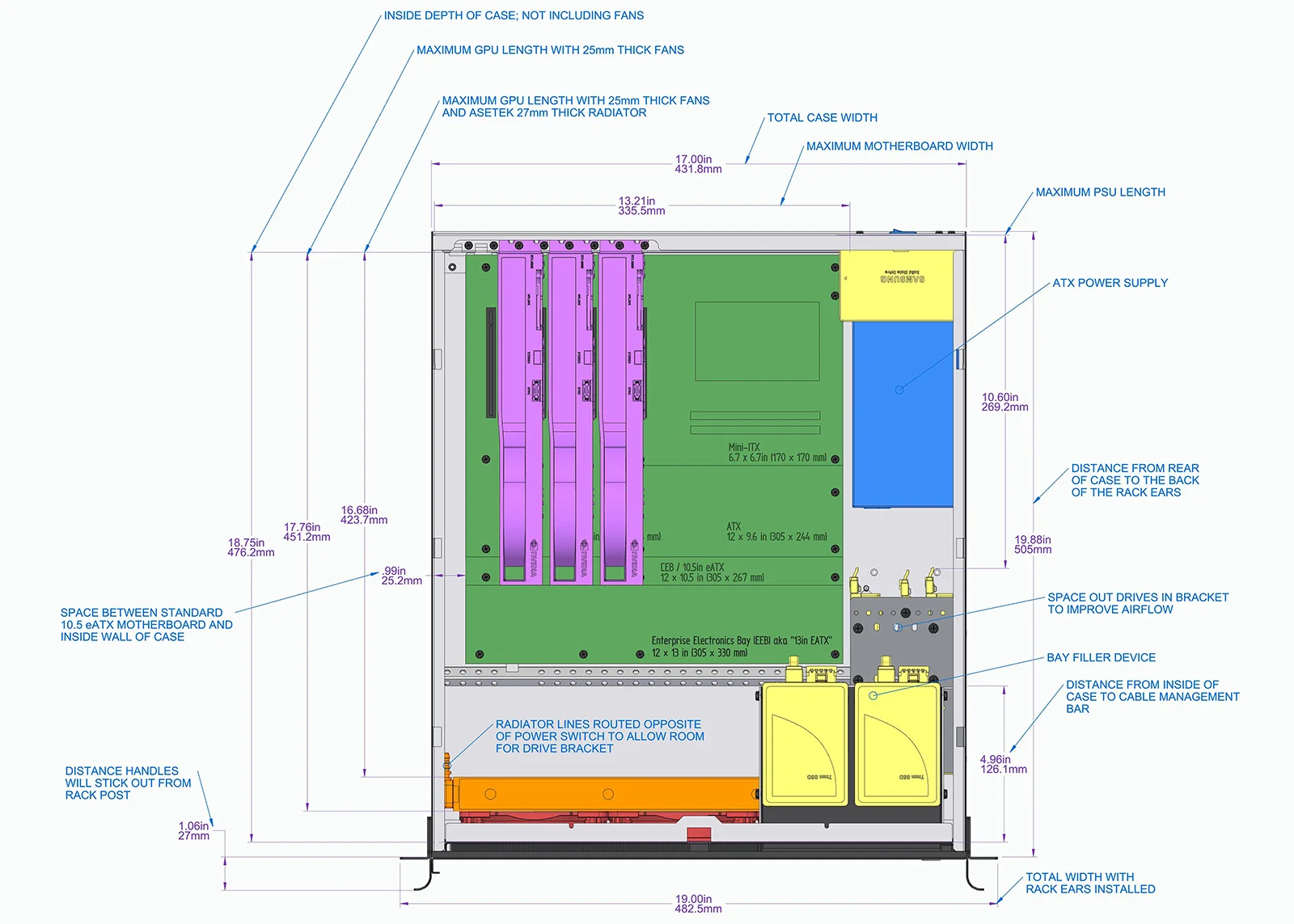

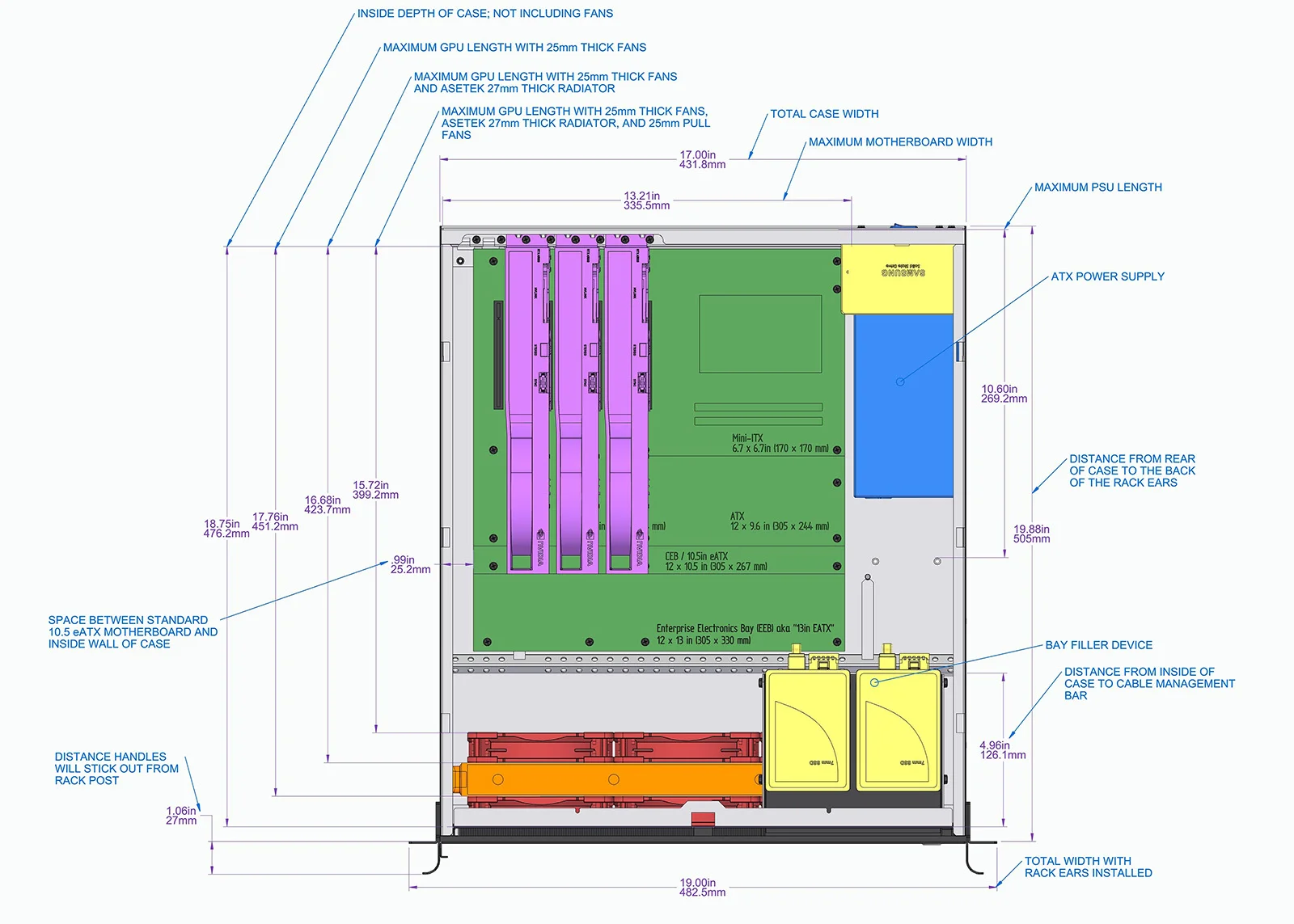

Outside Dimensions
  • 19.89" x 17.00" x 4U (6.96") [DxWxH]
  • 505mm x 432mm x 176.75mm [DxWxH]
  • Depth is measured from back side of rack ear
Weights
  • Chassis
  • Rack Slide Kits
  • Packaging Materials (Box, Tape, Foam Corners)
Shipping Box Dimensions
  • 26" x 21" x 11"
  • Double Wall
Rack Rails
  • Sliger PM-Series Ball Bearing Slides
  • General Devices C300-S Series
Warranty
  • Case
  • 5 Year Warranty [Chassis, USB cables, Power Button, SATA Adapters]
  • Liquid Coolers & Fans
  • 3 Year Warranty
  • Please see our warranty policy for additional conditions, exclusions, and limitations.
Homologation
  • HTS Tariff Code
  • 8473.30.00.02
  • Country of Origin
  • United States of America
Rev Control
  • 1.0 (4/18/22 - **/**/**)
  • Initial Release
