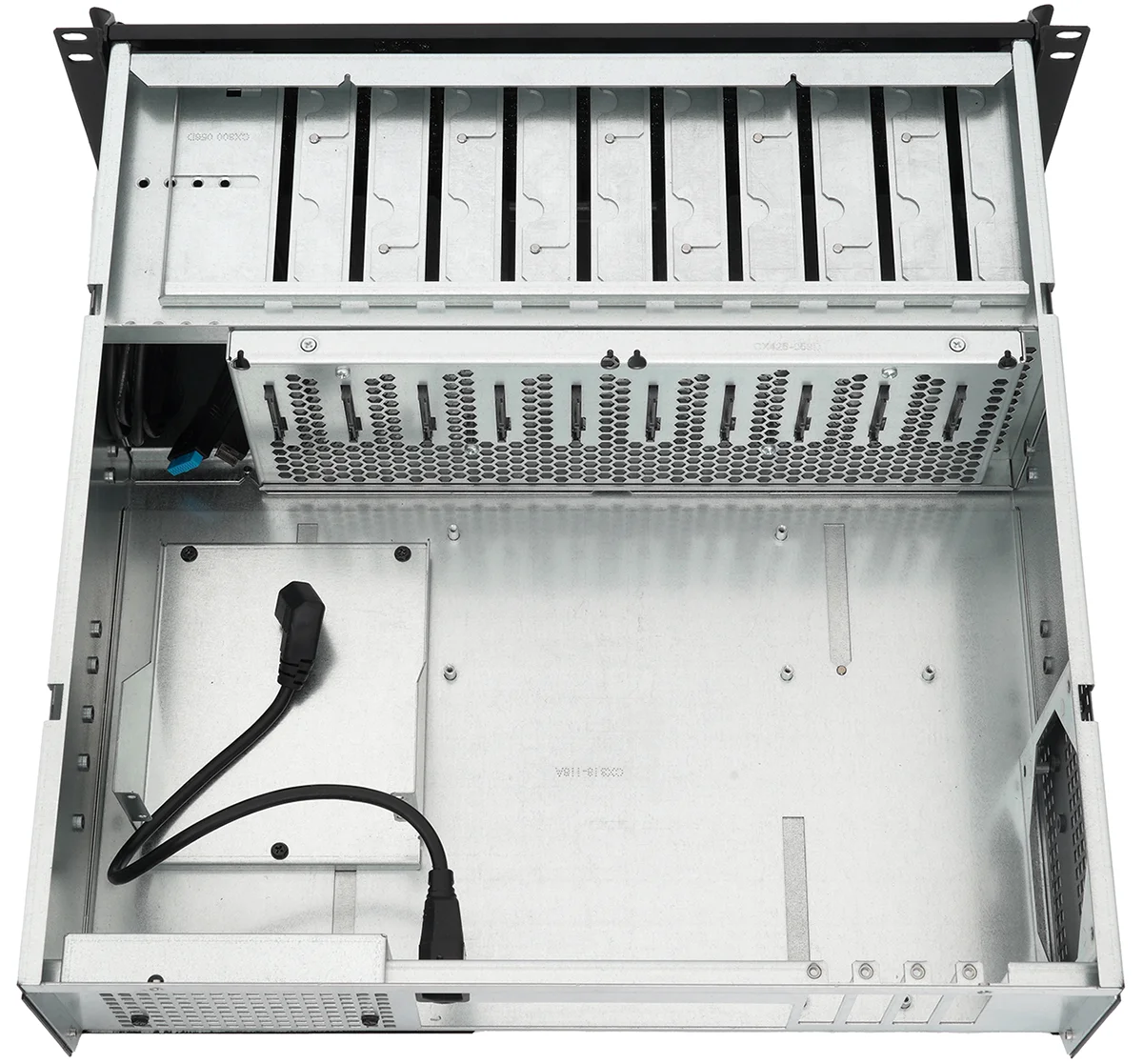

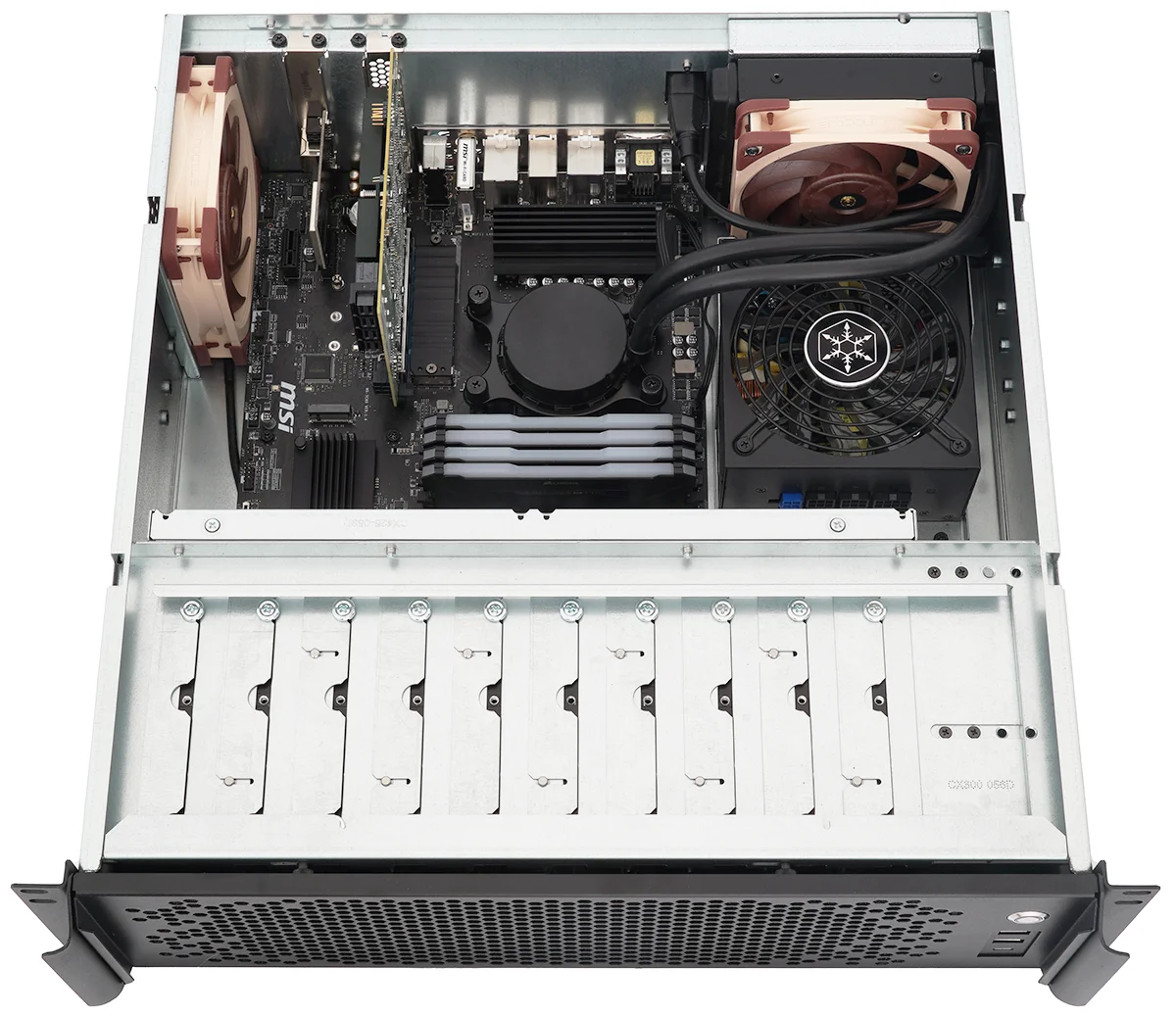

| Motherboard
|
- Mini-ITX (170mm × 170 mm) [6.7" × 6.7"]
- Micro-ATX (244mm x 244mm) [9.6" x 9.6"]
- Deep Mini-ITX (170mm x 209mm) [6.7" x 8.2"]
- NOTE: Motherboard mounting tray can be slid out of case to simplify assembly and maintenance
|
| CPU Air Coolers
|
|
| CPU Liquid Coolers
|
- 1x 92mm liquid cooler (Asetek 645LT) with 120mm to 92mm adapter
- 1x 120mm liquid cooler (Asetek 650LKS) 27mm thick or smaller
- 92mm AIO to 120mm fan adapter is a 3D printed part
|
| Fan Mounting
|
- Rear
- 1x 120mm fan, up to 38mm thick
- Side
- 1 x 120mm fan, up to 25mm thick
- Fan brackets are baffled from venting to reduce noise levels and improve airflow
|

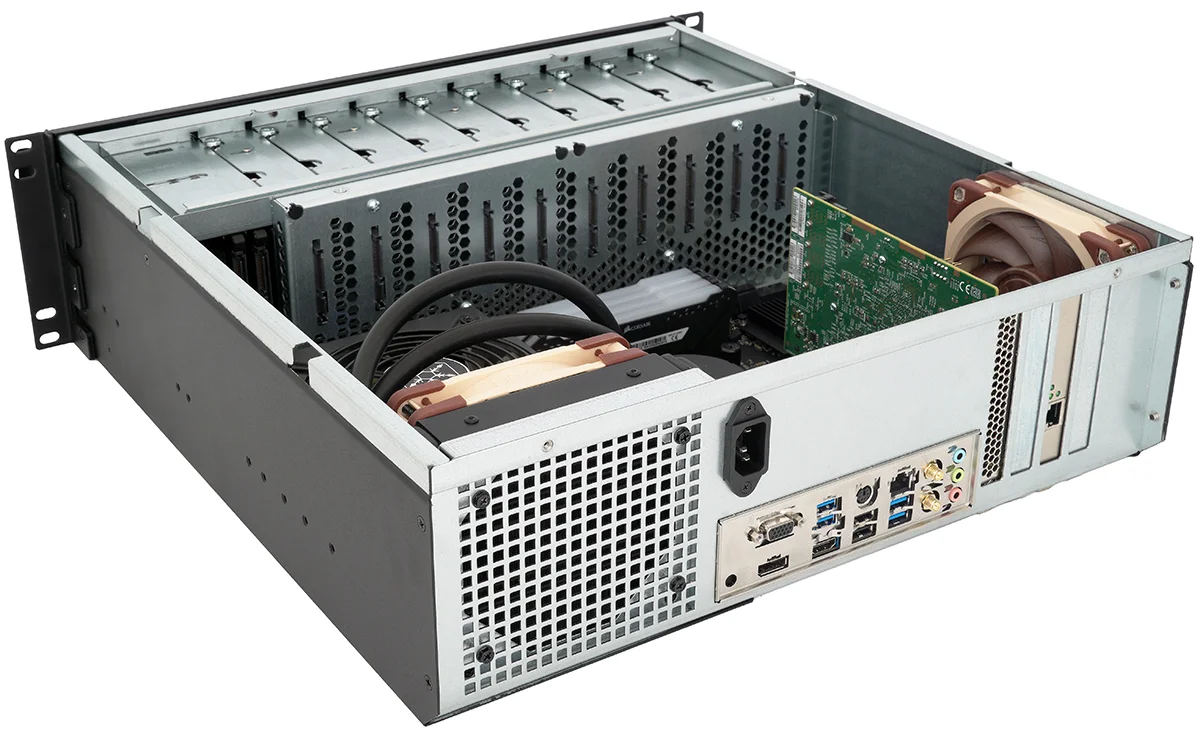

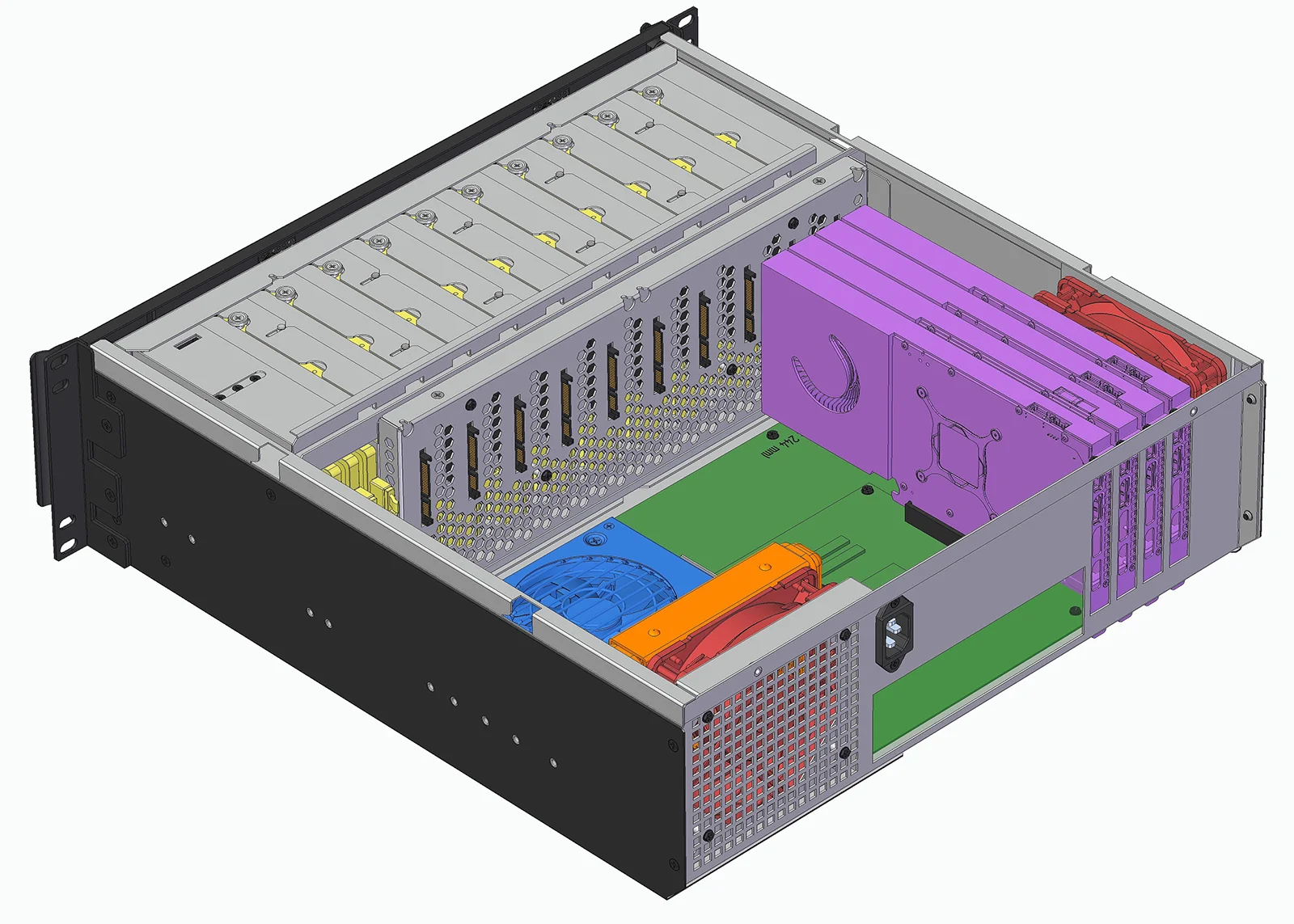

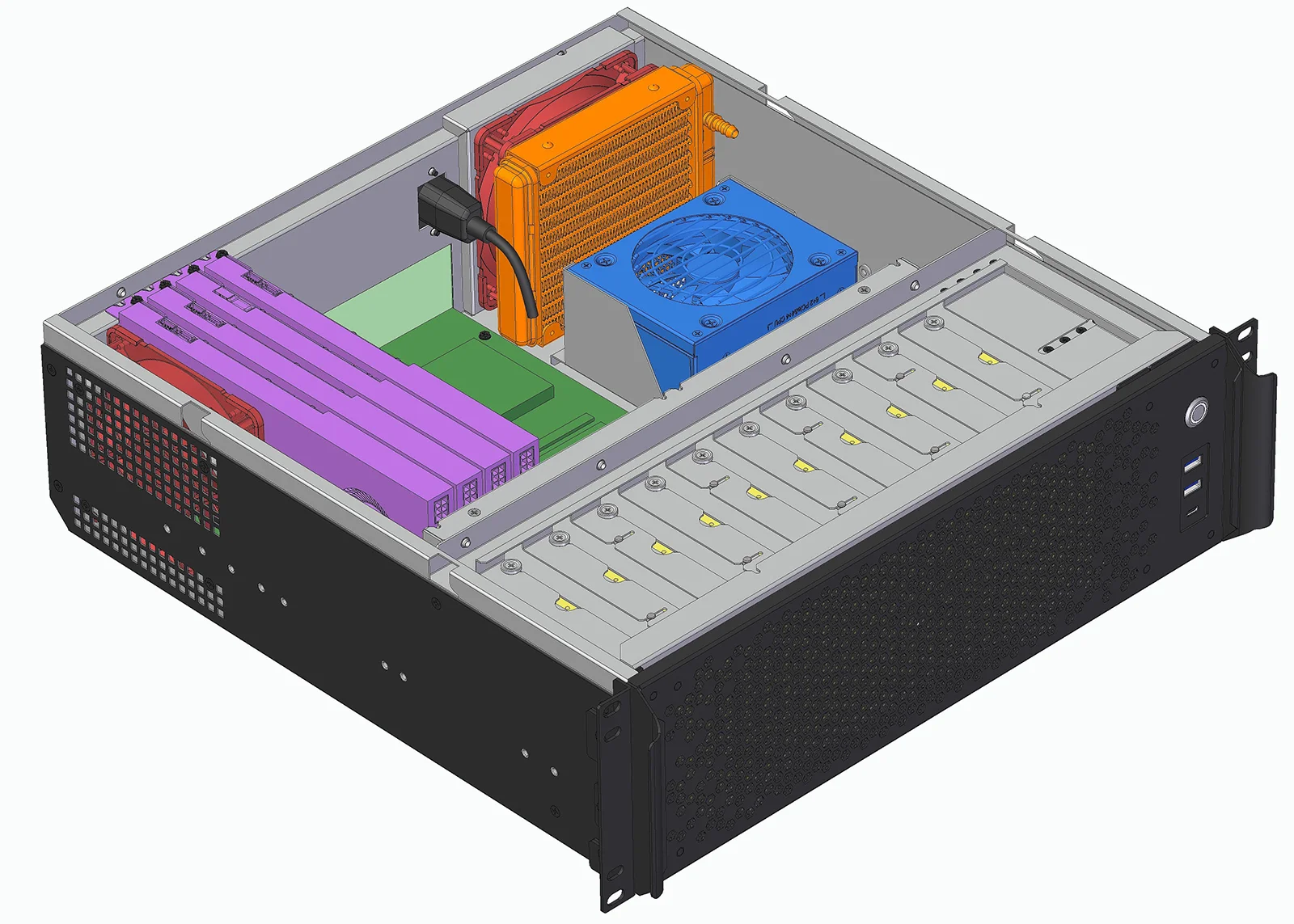

| GPU / PCIe Cards
|
- 4x full height PCIe card slot cutouts

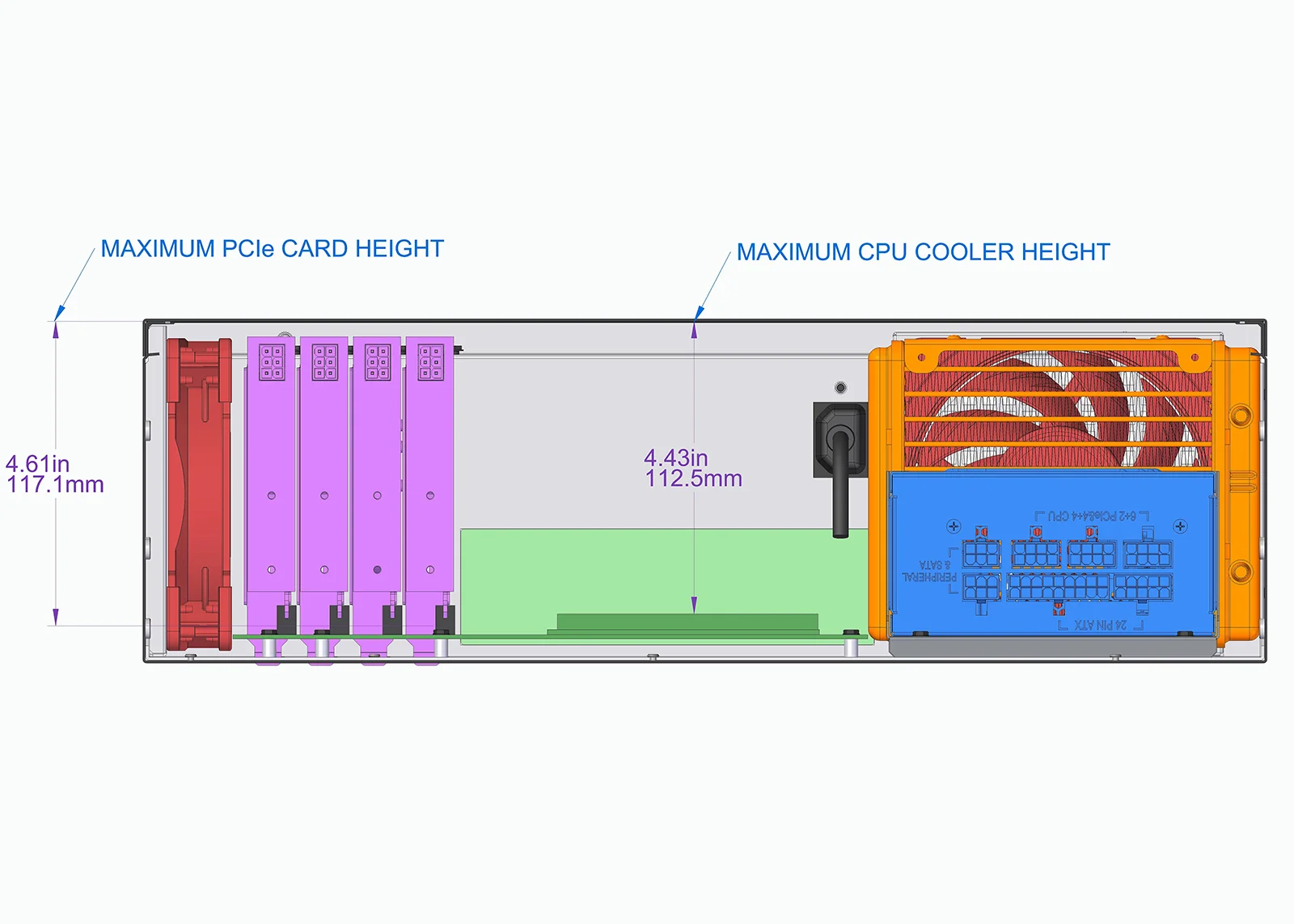

- Maximum card height: 115mm (this limit applies to card and power connector)
- ENSURE CLEARANCE FOR 12-pin 12VHPWR / CEM5 POWER CONNECTOR
- Maximum card length: 245mm
- Full list of compatible GPU cards [PCPartPicker.com]
- If using a dual slot PCIe card, such as a GPU, you must use a slim (15mm thick) 120mm fan on the side vent
|

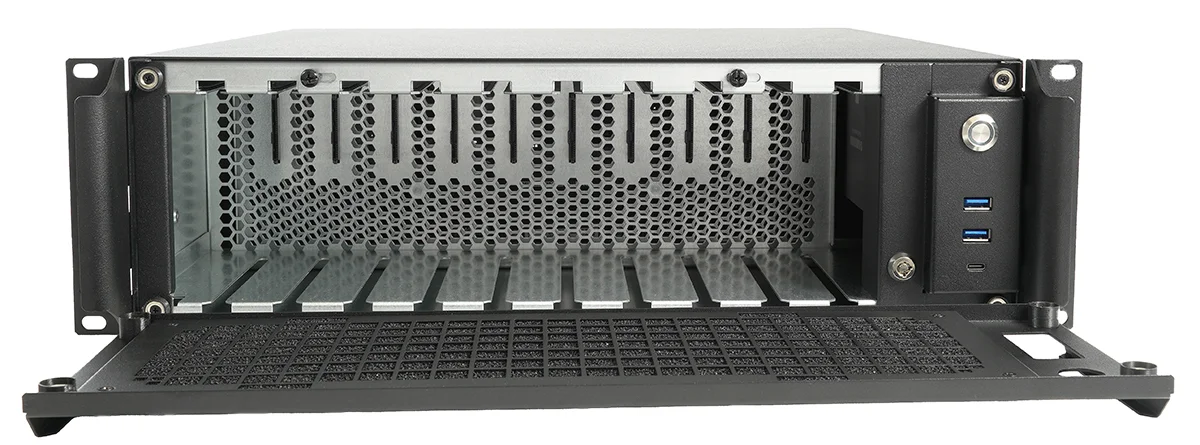

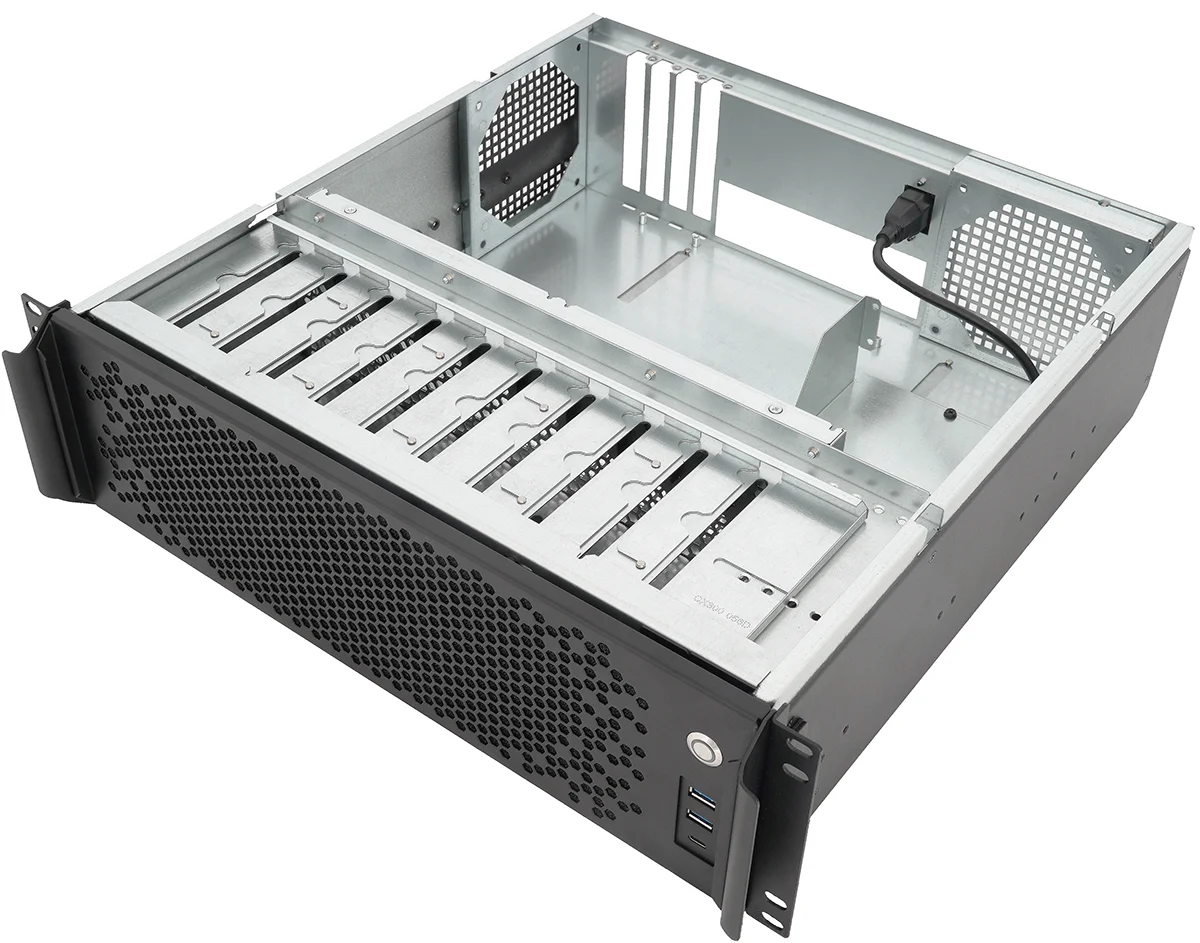

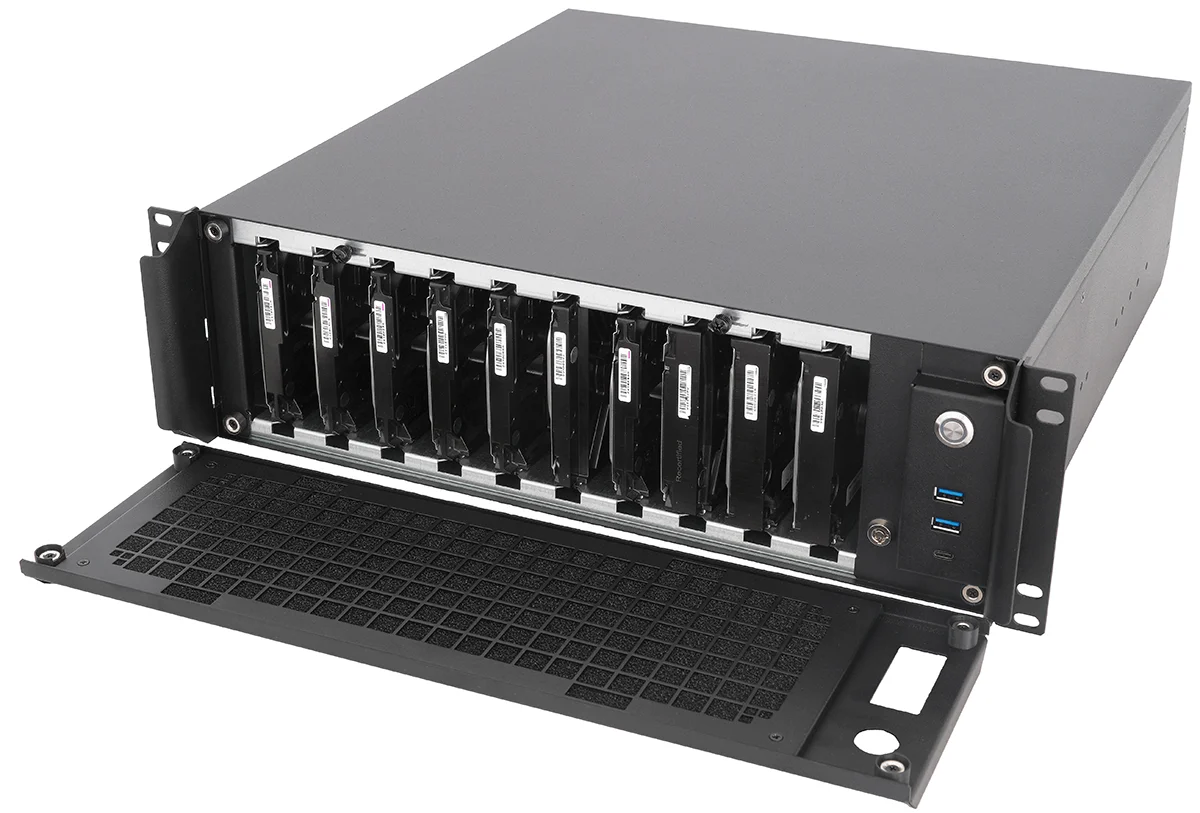

| Storage
|

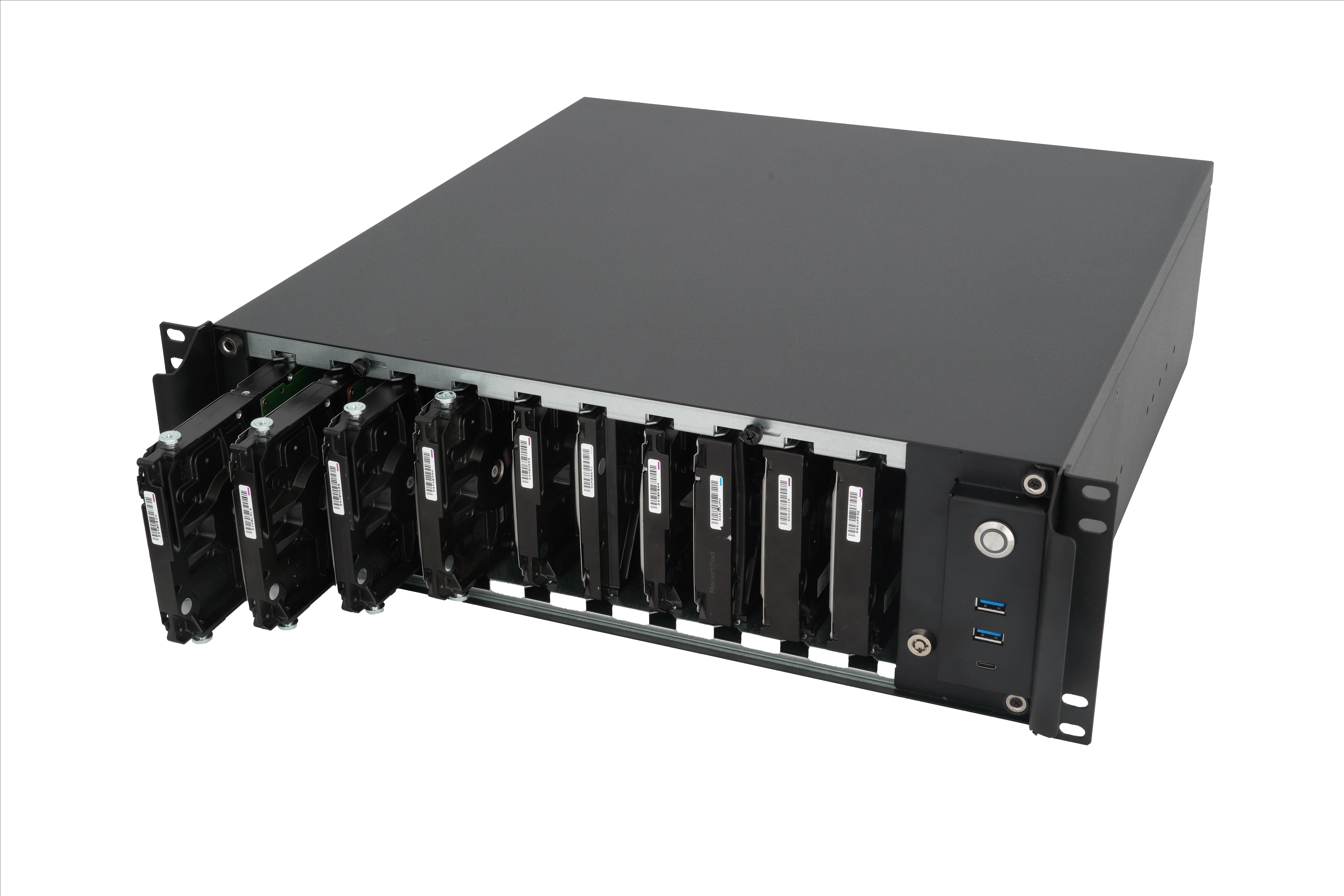

- Ten(10) 3.5" SAS or SATA Hard Drive Disks
- Case includes 10x SATA/SAS SFF-8482 male to SATA female adapters (preinstalled in case)
- 4x shoulder screws attached to 3.5" HDDs
- These shoulder screws guide HDDs through slots and align the drive to a backplane mounted SATA to SATA adapter
- User must connect SATA data and power cables on inside of case to these SATA to SATA adapters
- Case has a locking mechanism and key, as well as thumb screws, to secure drives
- Case also includes two(2) SATA power distribution cables (1x SATA power male to 5x SATA power female)
- Case does NOT include any data cables
- Hot-swap support can depends on your HBA / RAID card, motherboard, and OS.
- Please note that connecting a SAS drive to a SATA port will operate as SATA.
- A SAS controller can control SATA drives, but a SATA controller cannot control SAS drives.
- Four(4) 2.5" SSD/HDD mounting points (behind power button and USB front panel area)
|

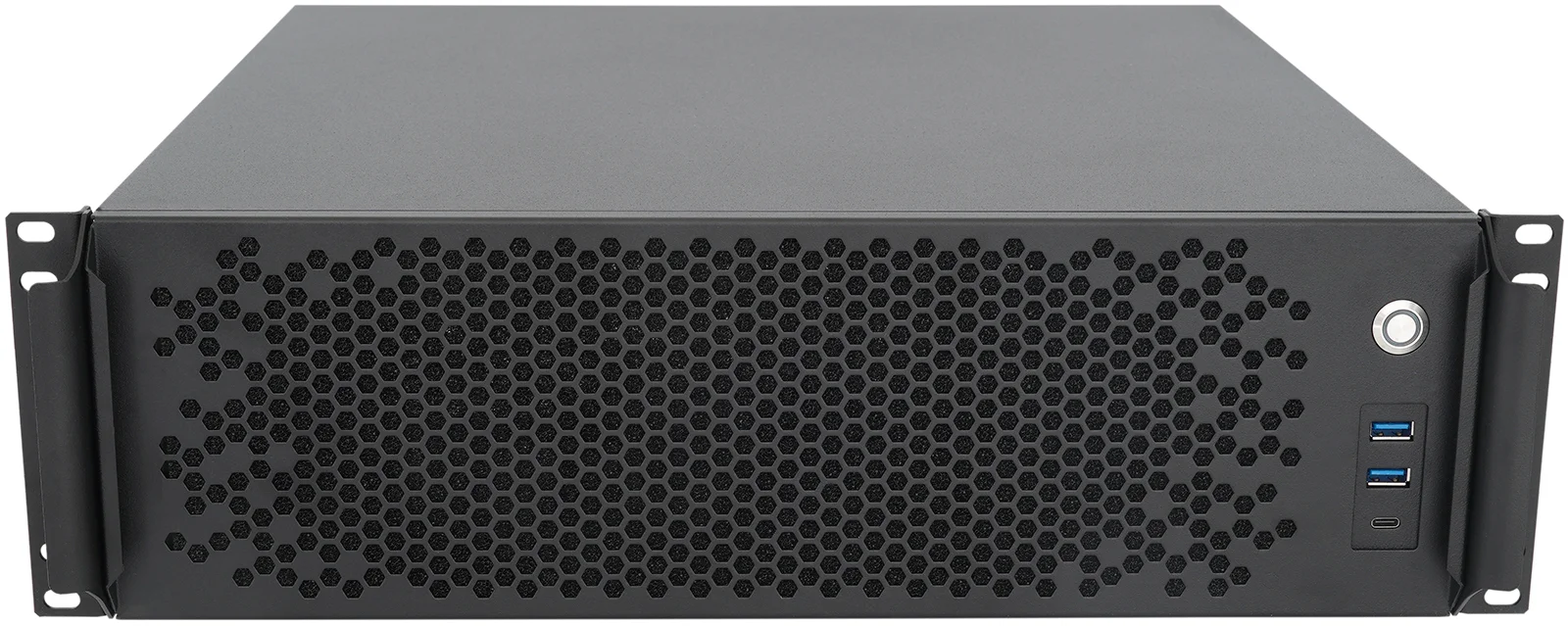

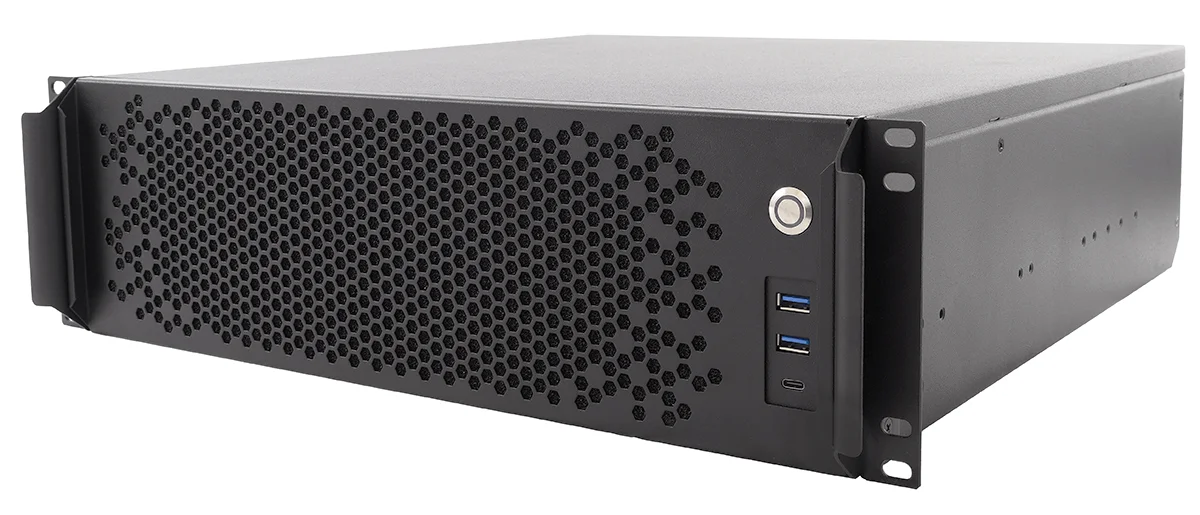

| Front Panel I/O
|
- 1x USB C 10Gbps Port
- 2x USB 3.0 Ports
- 1x Momentary Switch / Power Status LED (Ring Shape, White)
|
| Power Supply
|
|
| Material
|
- Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Front Panels
- ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
- Rack Ears
- ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
|

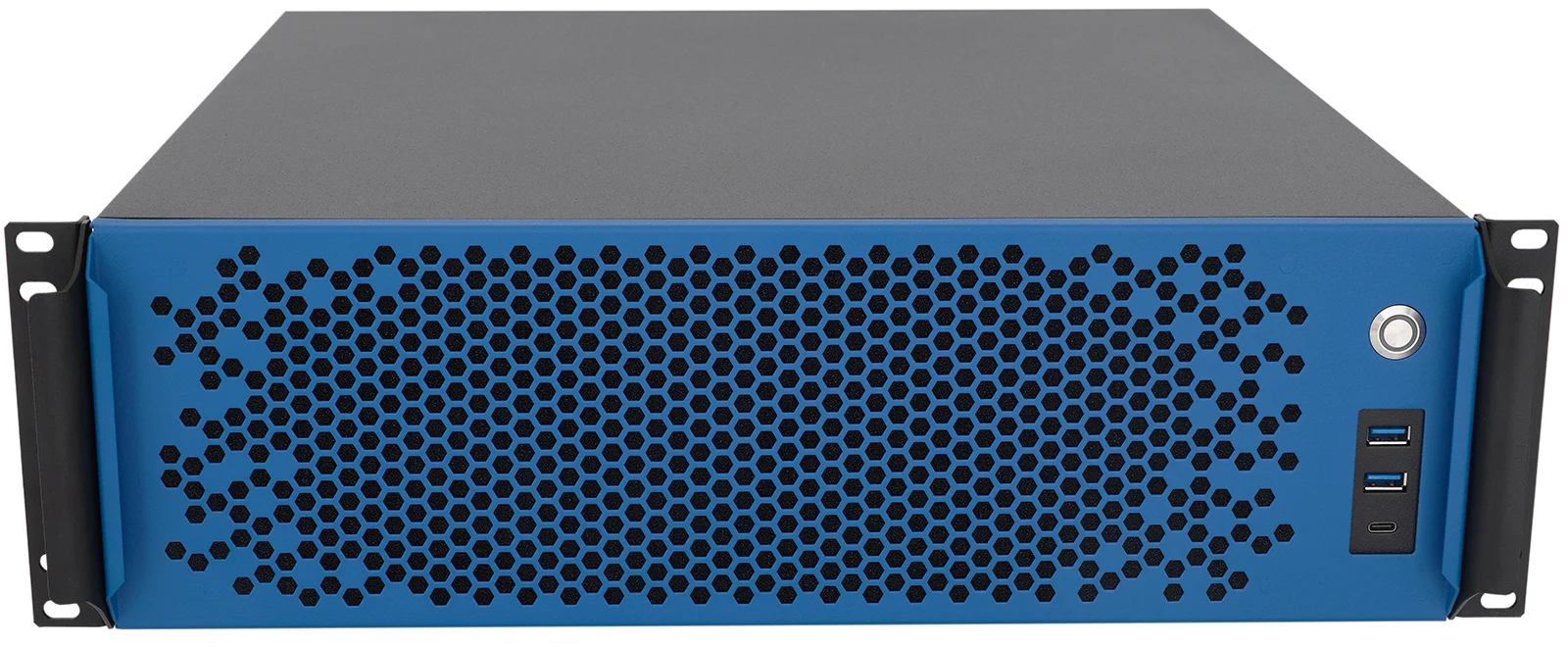

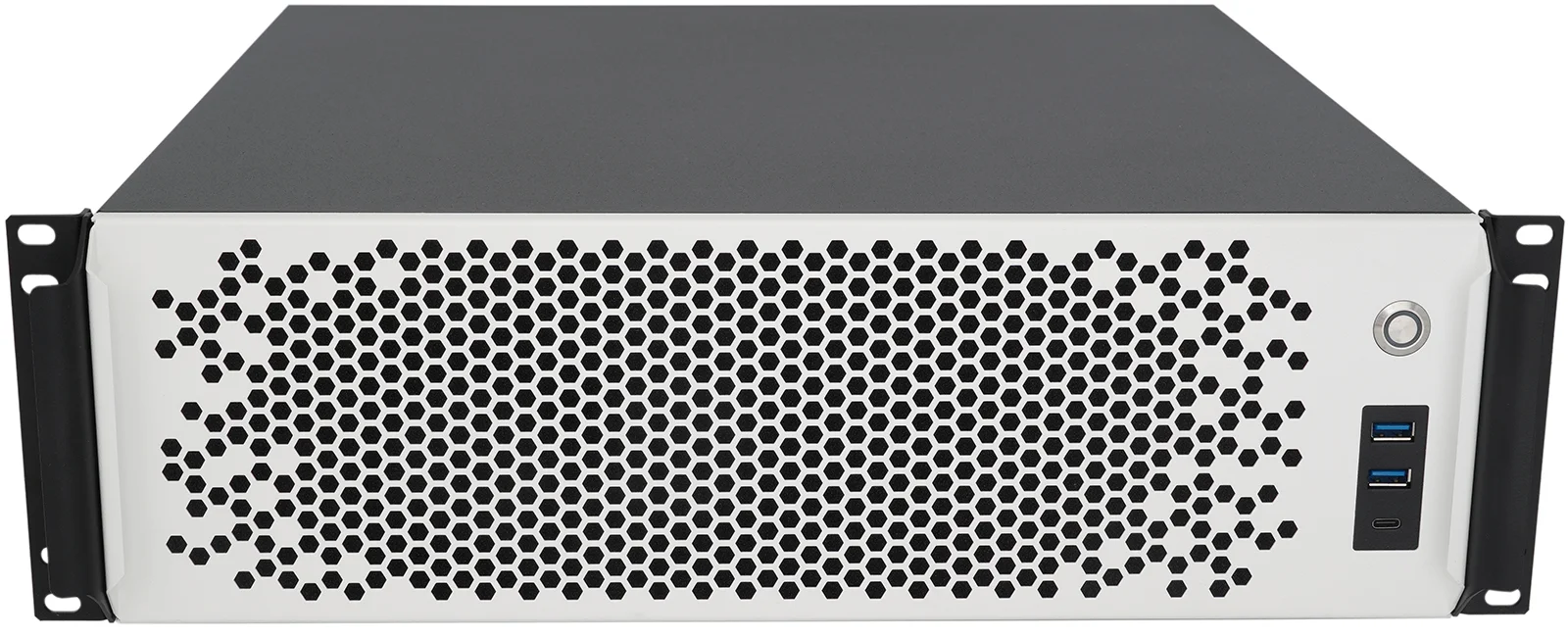

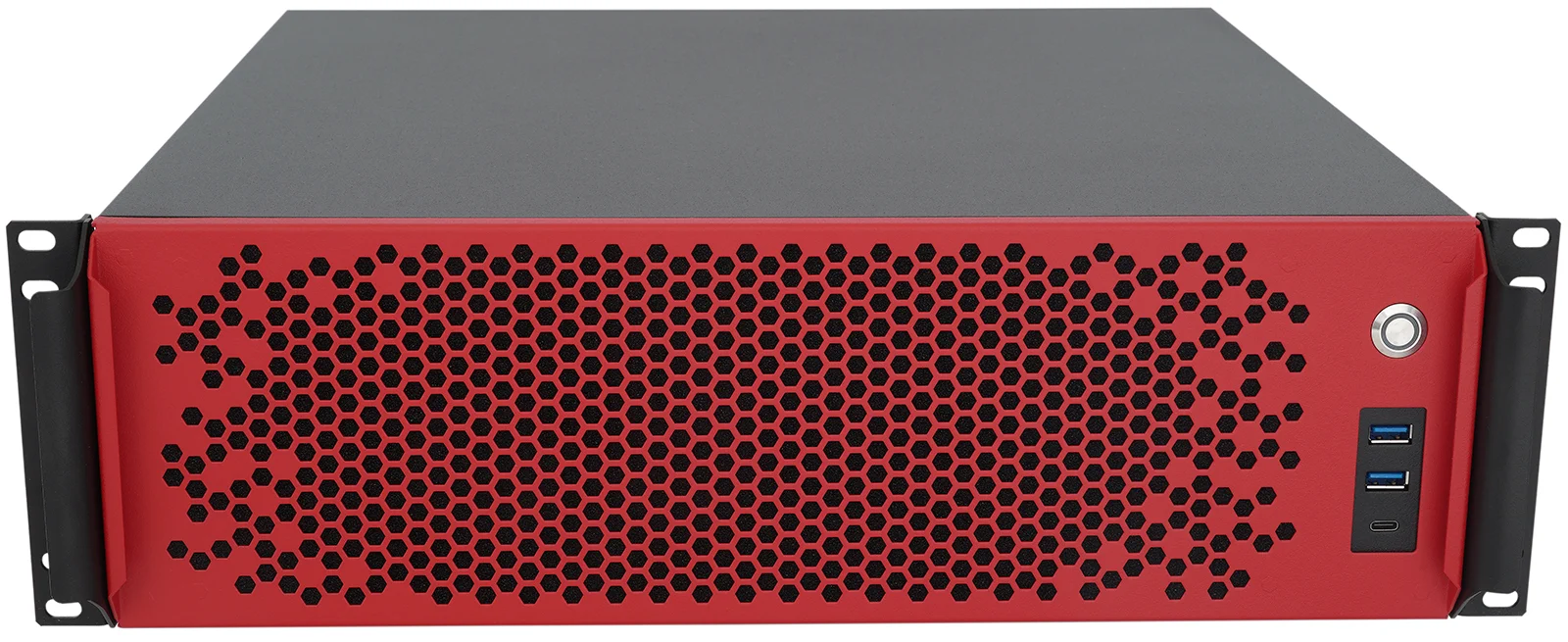

| Finish
|
- Semi-gloss fine texture powder coat finish
- Powder coat is an outdoor architectural grade polyester epoxy blend
- Compliant with SAE AMS-STD-595 / FED-STD-595 color number 27038 (ANA 514)
- Custom powder coat finishes are available, additional labor/material charges and 10 unit MOQ will apply.
- Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
|
| Branding
|
- Case is unbranded on interior and exterior of chassis.
- Optional logo screen printing (full color) on front panel for business customers, MOQ 10 units
- Custom logo requires a one time design fee of $200 to create proofs and output files
|

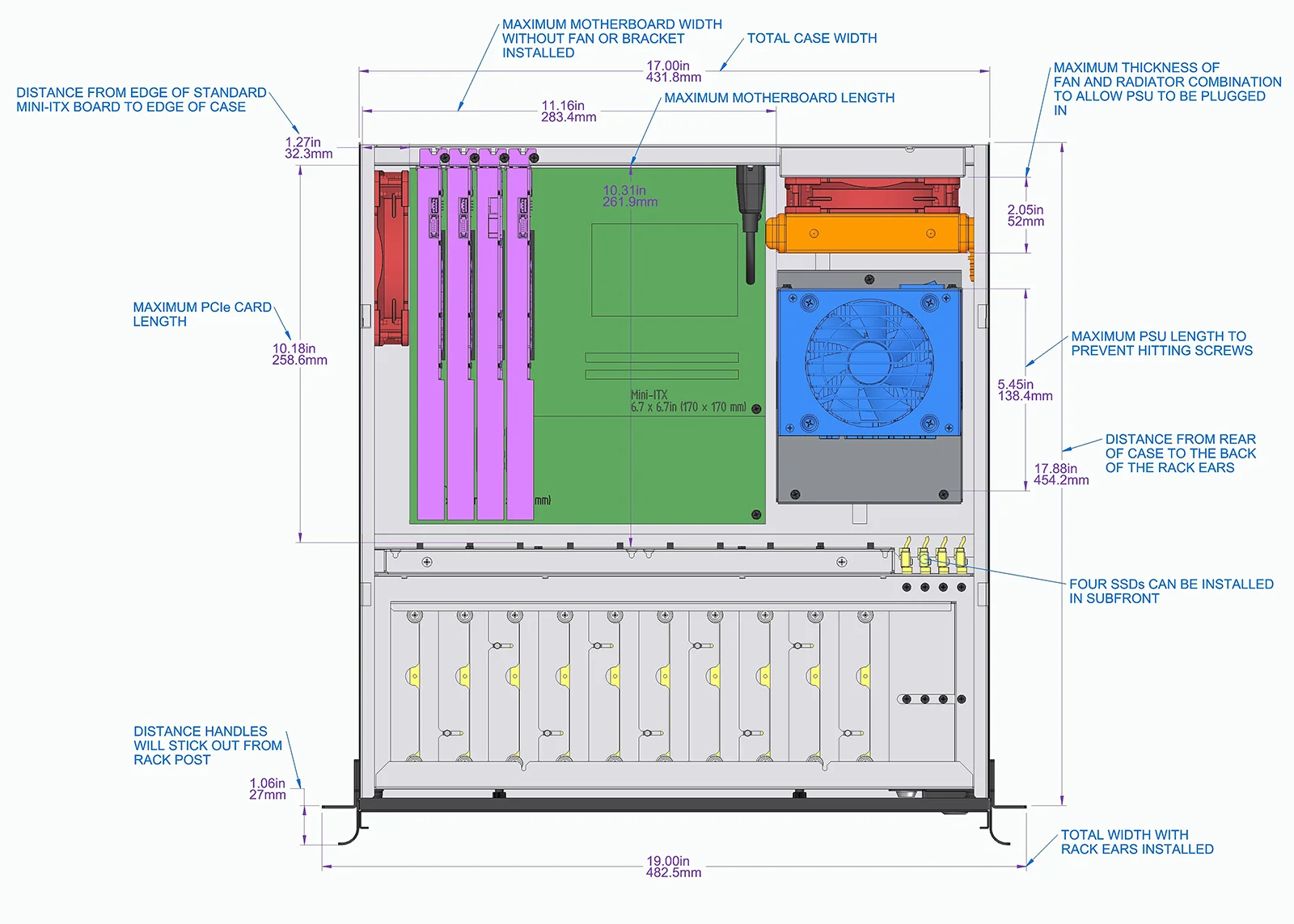

| Outside Dimensions
|
- 17.89" x 17.00" x 3U (5.22") [DxWxH]
- 378mm x 432mm x 132.5mm [DxWxH]
|
| Weights
|
- Chassis
-
- Rack Slide Kits
-
- Packaging Materials (Box, Tape, Foam Corners)
-
|
| Shipping Box Dimensions
|
- 21" x 22" x 9"
- 51 ECT Double Wall
- Packaged with reusable EPE foam end caps
|
| Rack Rails
|
- Sliger PM-Series Ball Bearing Slides
- iStarUSA TC Series
- General Devices C300-S Series
|
| Warranty
|
- Case
- 5 Year Warranty [Chassis, USB cables, Power Button, SATA Adapters]
- Liquid Coolers & Fans
- 3 Year Warranty
- Please see our warranty policy for additional conditions, exclusions, and limitations.
|
| Industry Standards
|
- 19-inch rack standard
- Electronic Industries Alliance EIA-310-D
- International Electrotechnical Commission IEC 60297-1 / IEC 60297-3-100
- Consumer Electronics Association CEA-310-E
- Deutsches Institut für Normung DIN 41494
|
| Safety and EMC
|
- Contact us before using case for FCC, CE, UL, or other safety / regulatory compliance
- Alternate brackets or powder coat masking may be required depending on certifications sought
|
| Environmental
|
- Compliant with RoHS Directive 2002/95/EC, 2015/863 RoHS2, RoHS3 (EU) with all applicable exemptions
- Regulation (EC) No 1907/2006 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Compliant for all Substances of Very High Concern (SVHC)
- Conflict–Free Sourcing Initiative (CFSI) with Conflict-Minerals Report (CMRT) available upon request
- Compliant with US EPA PBT Section 6 Toxic Substances Control Act (TSCA)
|
| Federal Acquisition
|
- TAA (Trade Agreements Act) Compliant for GSA Schedules, IDIQ contracts, and DoD contracts
- Compliant with Section 889 of Federal Acquisition Regulation (FAR) of National Defense Authorization Act (NDAA)
|
| HTS Tariff Code
|
- 8473.30.00.02 - COMPUTER CASES AND ACCESSORIES
|
| Country of Origin
|
|
| Rev Control
|
- 1.0 (7/25/23 - **/**/**)
- Initial Release
|
|
