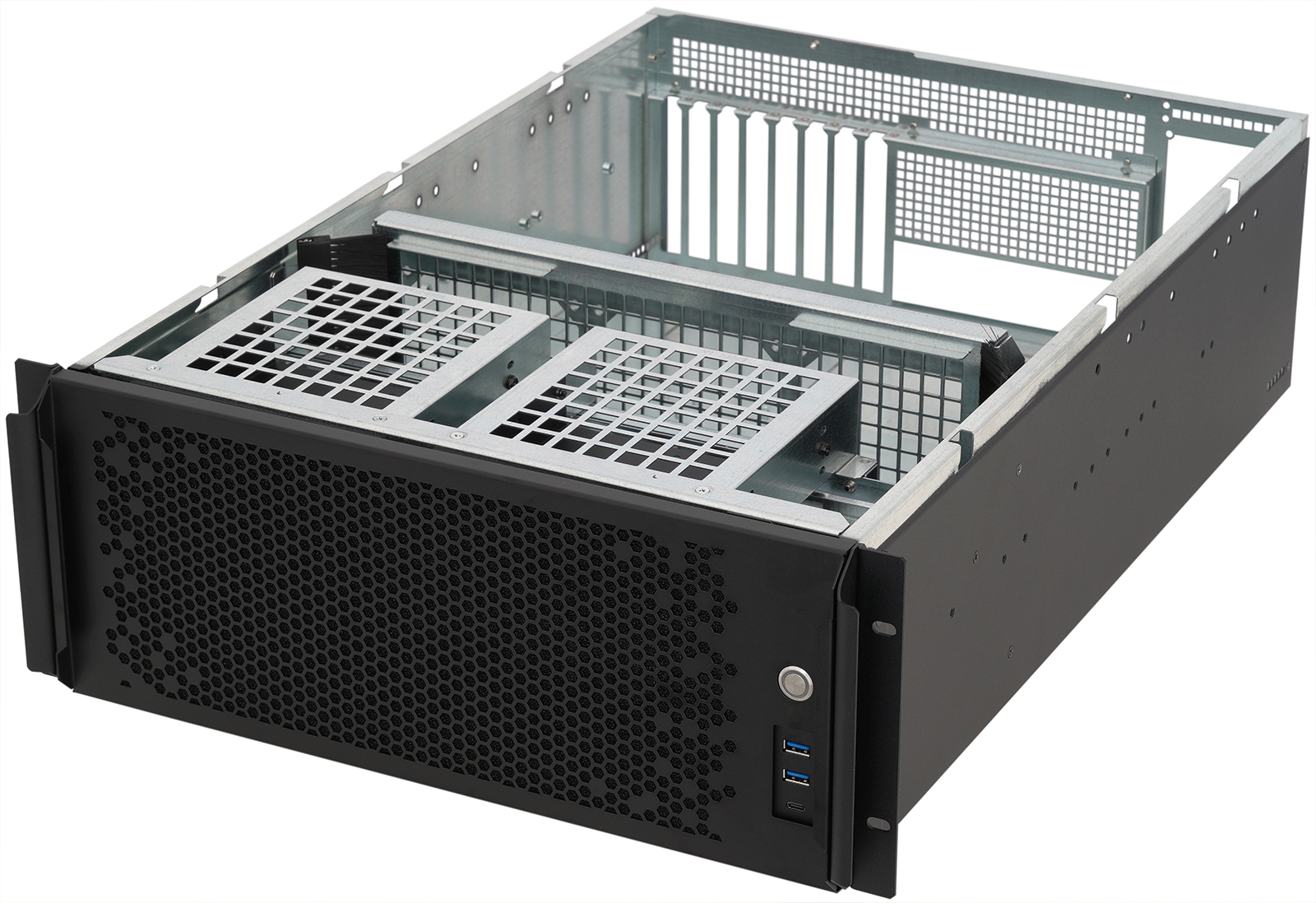

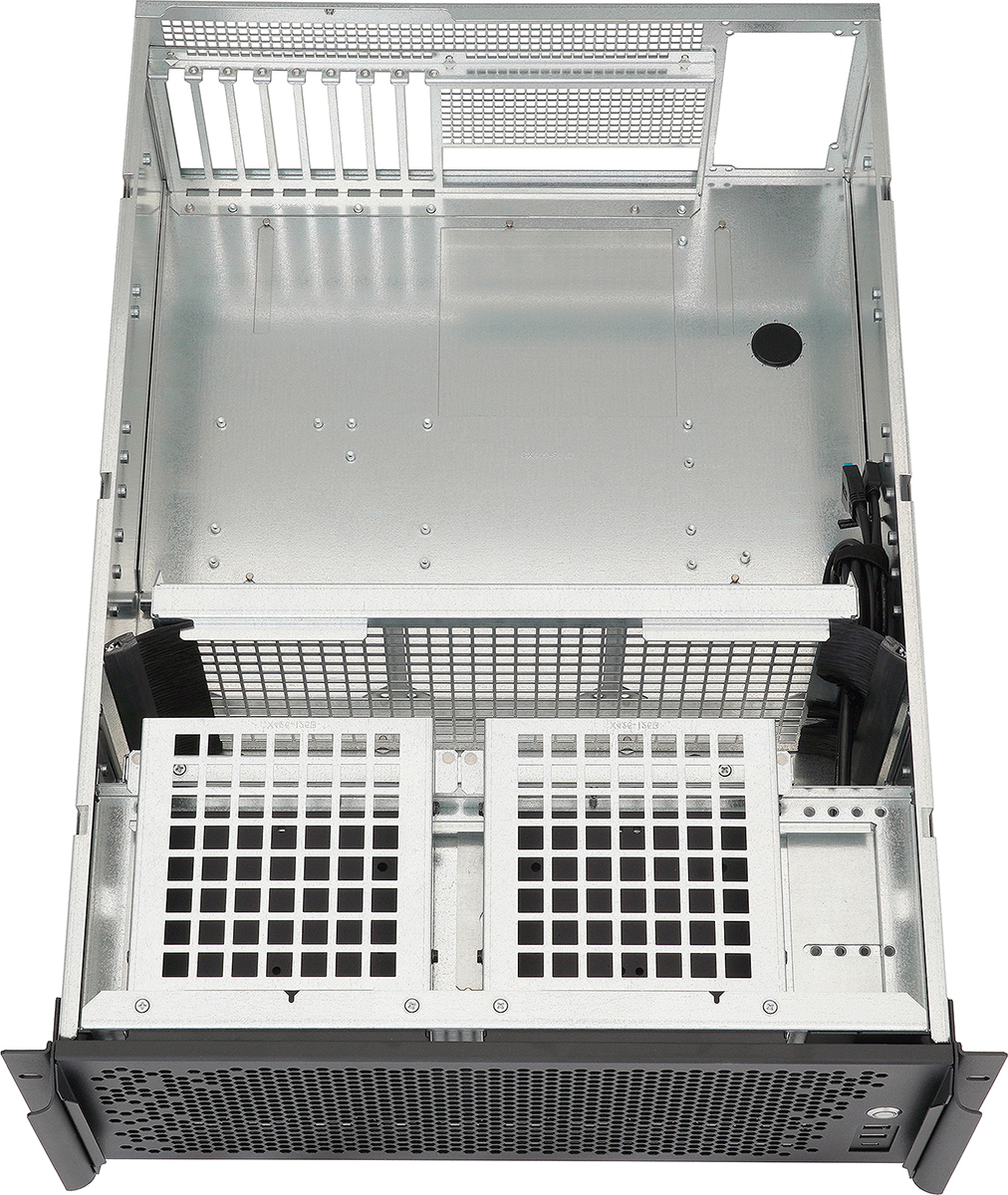

CX4713 | Extended length for SSI-EEB motherboards |

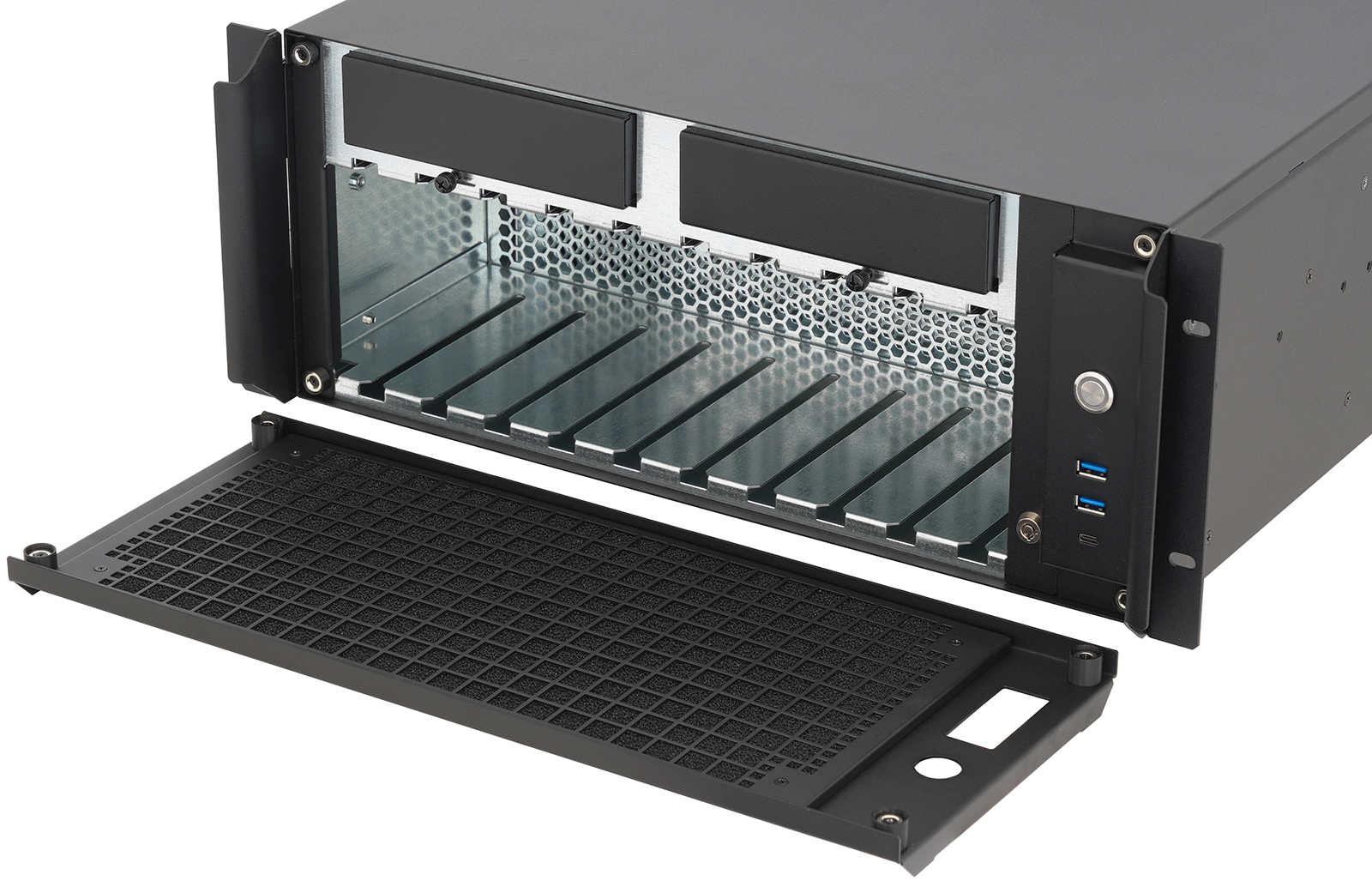

- Ten(10) 3.5" SATA/SAS HDD bays with direct SFF-8482 adapter backplane
- Two(2) 5.25" bays for removable NVME or ODD media
- Up to six(6) internal 2.5" SSD mounts for cache and boot drives
- Supports SSI-EEB, SSI-CEB, EATX, and ATX motherboards
- Air cooling support for CPU air coolers up to 153mm tall
- Liquid cooling support for one(1) 360mm, one(1) 240mm or two(2) 120mm AIOs
- Made in USA with US materials, guaranteed availability for 8+ years
|
|
Rails Backorder
Our 14" General Devices rails are currently on backorder, and will take additional time to ship. Any orders placed with the 14" General Devices rails will ship without them, and a seperate shipment will go out once the rails are available again. There will be no extra charge with this additional shipment. We apologize for any inconvenience, and thank you in advance for your patience. Please contact us at sales@sliger.com or 1-775-356-5595 for more details.
Replacement / Optional Parts
This page is for replacement parts for existing cases. New case orders per the configure tab include all required panels, brackets, cables, screws, and accessories for assembly per the options selected on that tab.
Technical Specifications |
Motherboard
|
- XL-ATX (325mm x 330mm) [12.8" x 13"]
- SSI-EEB (305mm x 330mm) [12" x 13"]
- SSI-CEB (305mm x 267mm) [12" x 10.5"]
- EATX (up to 325mm x 330mm) [up to 12.8" x 13"]
- ATX (305mm × 244 mm) [12" × 9.6"]
- MicroATX (245 x 245mm) [9.6" × 9.6"]
- FlexATX (229 × 191 mm) [9" × 7.5"]
- Mini-DTX (203mm × 170 mm) [8" × 6.7"]
- Mini-ITX (170mm × 170 mm) [6.7" × 6.7"]
|
CPU Air Coolers
|
|
---|
CPU Liquid Coolers
|
|
---|

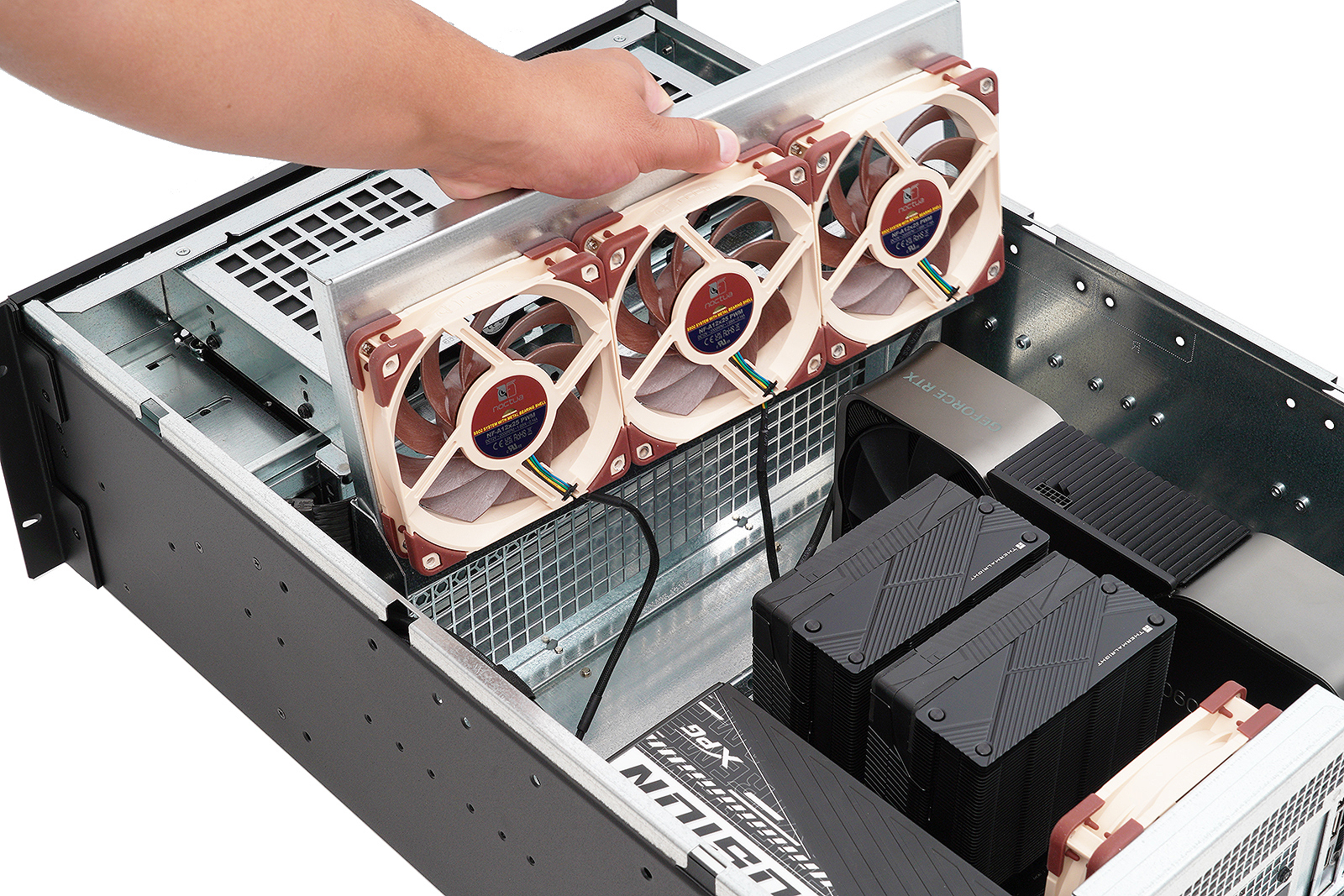

Fan Mounting
|
|

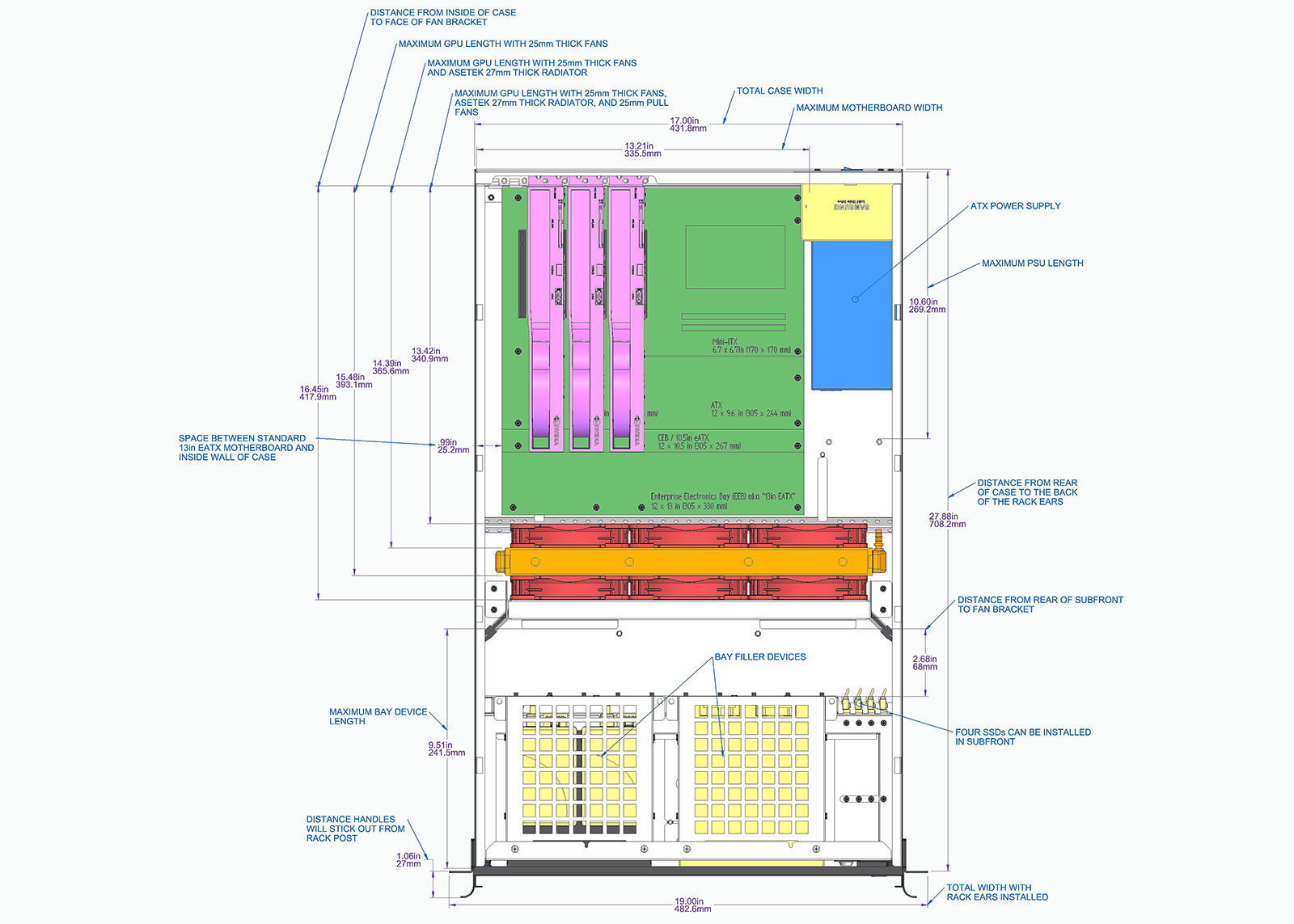

GPU / PCIe Cards
|
- Eight(8) full height PCIe card slot cutouts

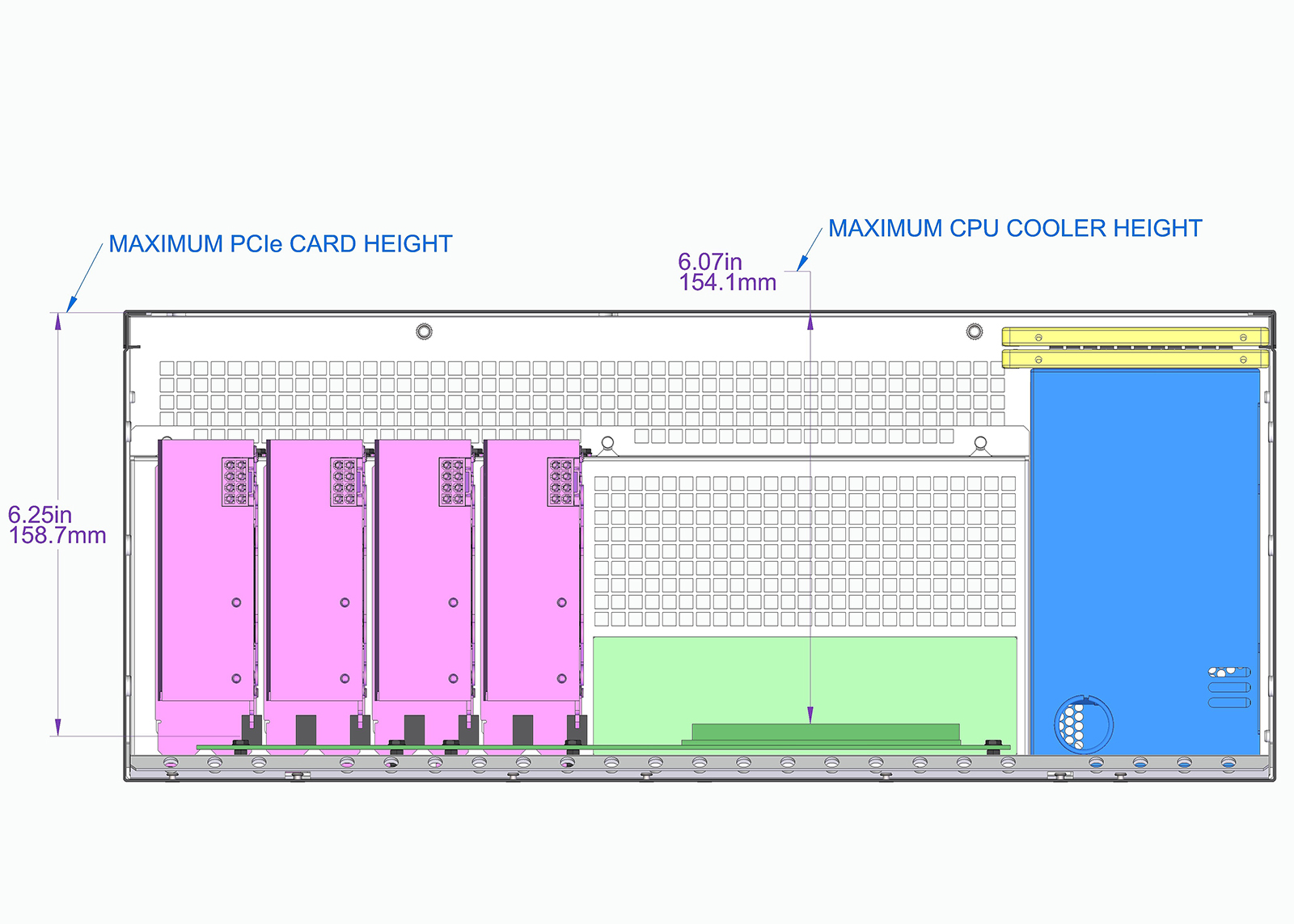

- Maximum card height: 158mm - including power connectors
- Maximum card length with three(3) Noctua A12x25 fans: 392mm
- Maximum card length with Asetek 360mm AIO and three(3) Noctua A12x25 fans: 364mm
- Maximum card length with Asetek 360mm AIO and six(6) Noctua A12x25 fans: 339mm
- Maximum card length with no fans / no AIO cooler: 416mm
- NOTE: Compatibility for GPUs with integrated AIO liquid coolers is limited by case height
|
Storage
|
- Ten(10) 3.5" SAS or SATA Hard Drive Disks
- Case includes ten(10) SATA/SAS SFF-8482 male to SATA female adapters (preinstalled in case)
- Four(4) shoulder screws attached to 3.5" HDDs
- These shoulder screws guide HDDs through slots and align the drive to a backplane mounted SATA to SATA adapter
- User must connect SATA data and power cables on inside of case to these SATA to SATA adapters
- Case has a locking mechanism and key, as well as thumb screws, to secure drives
- Case also includes two(2) SATA power distribution cables (1x SATA power male to 5x SATA power female)
- Case does NOT include any data cables
- Hot-swap support can depends on your HBA / RAID card, motherboard, and OS.
- Please note that connecting a SAS drive to a SATA port will operate as SATA.
- A SAS controller can control SATA drives, but a SATA controller cannot control SAS drives.
- Four(4) 2.5" SSD/HDD mounting points (behind power button and USB front panel area)
- Two(2) 2.5" SSD/HDD mounting points above ATX power supply cutout on rear (each via two(2) M3 screws into side of SSD)
- Two(2) 5.25" bays for IcyDock type NVME / U.2 / U.3 storage devices
- Each 5.25" bay includes a 5.25" filler blank that can mount one(1) 3.5" HDD and two(2) 2.5" SSD
- 5.25" to 3.5" adapter available for purchase on the parts tab
- Without third party devices the default case has a maximum storage of twelve(12) 3.5" HDD and ten(10) 2.5" SSD
- Internal Drive Bay Converter Mounting Bracket
- ORICO Converter Mounting Bracket Amazon Affiliate Link
|
Front Panel I/O
|
- One(1) USB 3.2 Type C 10Gbps Port
- Two(2) USB 3.0 Type A Ports
- One(1) 16mm Momentary Power Button with integrated Power Status LED (Ring Shape, White)
|
Power Supply
|
|
---|
Rack Rails
|
- General Devices C300-S Series
- Rack Rails are not included by default, must be purchased on the configuration or parts page.
- Brand Compatibility
- Brands such as iStarUSA TC Rails are natively compatible.
- Please contact our support team for any compatibility questions.
|
---|
Warranty
|
- Case and Rack Rails
- 5 Year Warranty
- Liquid Coolers & Fans
- 3 Year Warranty
- Please see our warranty policy for additional conditions, exclusions, and limitations.
|
---|
Rev Control
|
- 1.0 (4/18/22 - **/**/**)
- Initial Release
|
|
Case Mechanicals |
Material
|
- Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Front Panels
- ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
- Rack Ears
- ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
|
Finish
|
- Semi-gloss fine texture powder coat finish
- Powder coat is an outdoor architectural grade polyester epoxy blend
- Compliant with SAE AMS-STD-595 / FED-STD-595 color number 27038 (ANA 514)
- Custom powder coat finishes are available, additional labor/material charges and 10 unit MOQ will apply.
- Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
|
Branding
|
- Case is unbranded on interior and exterior of chassis.
- Optional logo screen printing (full color) on front panel for business customers, MOQ 10 units
|
Outside Dimensions
|
- 28.04" x 17.00" x 4U (6.96") [DxWxH]
- 712mm x 432mm x 176.75mm [DxWxH]
- Depth from front rack post is 27.89" [708mm]
|
---|
Weights
|
- Chassis
- 33.25lbs [15.08kg]
- Rack Slide Kits
- GDRAIL-14XX - 5.3lbs [2.4kg]
- GDRAIL-20XX - 6.65lbs [3.02kg]
- GDRAIL-26XX - 7.9lbs [3.58kg]
- Fans
- Three(3) fans - 2.1lbs [.95kg] total - .7lbs per fan
- Five(5) fans - 3.5lbs [1.59kg] total
- Six(6) fans - 4.2lbs [1.95kg] total
- Coolers
- Asetek 612X-M2 120mm AIO - 1.7lbs [.77kg]
- Asetek 624S-M2 240mm AIO - 1.6lbs [.73kg]
- Asetek 636S-M2 360mm AIO - 1.9lbs [.86kg]
- Asetek 836SA 360mm Threadripper AIO - 2.35lbs [1.07kg]
- Retention kits - .25lbs [.11kg]
- Brackets
- Rear Fan - .25lbs [.11kg]
- Rear Fan w/ A12x25 - .95lbs [.43kg]
- Packaging Materials (Box, Tape, Foam Corners)
- 5lbs [2.27kg]
|
---|
Shipping
|
- 20.5" x 33.5" x 11.5" (Shipping Box Outside Dimensions)
- 20" x 33" x 11" (ID)
- Shipping box is ECT52, Double Wall, Kraft Brown
- Standard SLIGER branded tape, optional unbranded kraft brown tape for business customers
|
Regulatory & Homologation |
Product Lifecycle
|
- Planned availability through 2032
- Extended availability beyond 8 years as built-to-order(BTO) with a 25 unit MOQ
|
EMI / Safety
|
- Case cannot be certified as a standalone item. Certifications must be sought as a fully integrated system.
- Contact us before using case for FCC, CE, UL, IEC, or other safety / regulatory compliance.
- Alternate vent sizes, brackets, EMI springs, and/or powder coat masking, may be required depending on certifications sought.
- UL listed wire, fans, coolers, and materials where possible
|
Industry Standards
|
- 19-inch rack standard
- Electronic Industries Alliance EIA-310-D
- International Electrotechnical Commission IEC 60297-1 / IEC 60297-3-100
- Consumer Electronics Association CEA-310-E
- Deutsches Institut für Normung DIN 41494
|
Environmental
|
- Compliant with RoHS Directive 2002/95/EC, 2015/863 RoHS2, RoHS3 (EU) with all applicable exemptions
- Regulation (EC) No 1907/2006 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Compliant for all Substances of Very High Concern (SVHC)
- Conflict–Free Sourcing Initiative (CFSI) with Conflict-Minerals Report (CMRT) available upon request
- Compliant with US EPA PBT Section 6 Toxic Substances Control Act (TSCA)
|
Import / Export
|
- Harmonized Tariff Schedule (HTS) / HS Schedule B
- 8473.30.0002 - COMPUTER CASES AND ACCESSORIES
- Export Control Classification Number [ECCN]
- EAR99 LOW-TECHNOLOGY CONSUMER GOODS
- Country of Origin
- United States of America
- "Made in USA" per Federal Trade Commission (FTC) subchapter C title 16 Code of Federal Regulations Part 323
- TAA (Trade Agreements Act) Compliant for GSA Schedules, IDIQ contracts, and DoD contracts
- Compliant with Section 889 of Federal Acquisition Regulation (FAR) of National Defense Authorization Act (NDAA)
|
Guides and Links |
Install Guide
|
- Coming soon! For questions, please reach out to sales@sliger.com or call us at anytime!
|
Assorted Manuals
|
|
