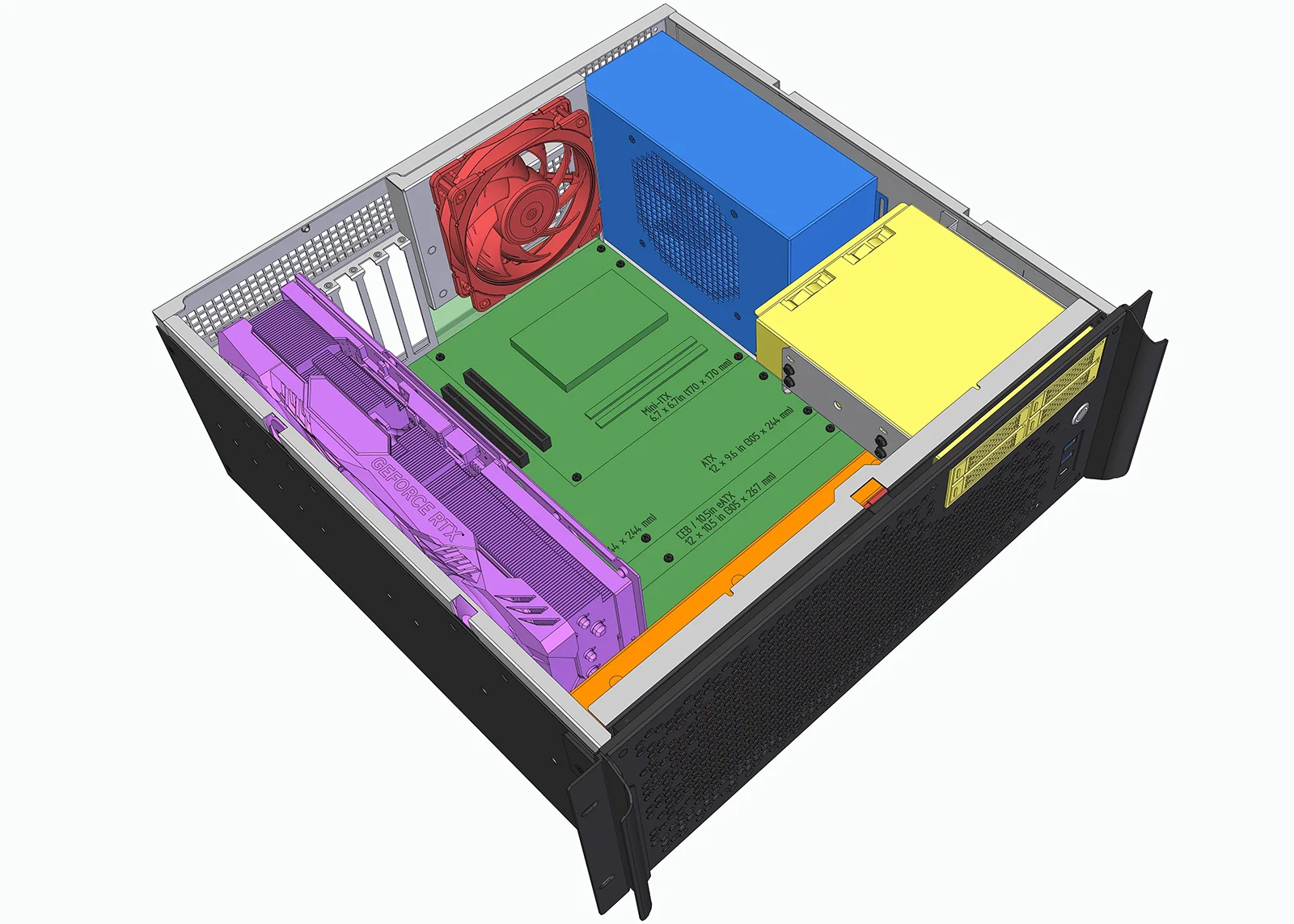

| Motherboard
|
- XL-ATX (325mm x 330mm) [12.8" x 13"]
- SSI-EEB (305mm x 330mm) [12" x 13"]
- SSI-CEB (305mm x 267mm) [12" x 10.5"]
- EATX (up to 325mm x 330mm) [up to 12.8" x 13"]
- ATX (305mm × 244 mm) [12" × 9.6"]
- MicroATX (245 x 245mm) [9.6" × 9.6"]
- FlexATX (229 × 191 mm) [9" × 7.5"]
- Mini-DTX (203mm × 170 mm) [8" × 6.7"]
- Mini-ITX (170mm × 170 mm) [6.7" × 6.7"]
|
| CPU Air Coolers
|
- up to 153mm tall
- Noctua NH-D12L recommended
|
| CPU Liquid Coolers
|
- ATTENTION: Please check your radiator or AIO compatibility before purchasing!
- These cases are designed around specific Asetek AIO radiator sizes.
- Sliger also offers unbranded Asetek OEM coolers for purchase for new or existing cases.
- List of Asetek OEM coolers offered by Sliger
- List of compatible CPU sockets and AIO retention kits
- For help, contact us at sales@sliger.com or call us at +1-775-356-5595.
-
- 1x 360mm liquid cooler (395mm maximum)
- or
- 1x 240mm liquid cooler (247mm maximum)
- or
- up to 3x 120mm liquid coolers
- NOTE: radiator + fan thickness must be less than 54mm
- if greater than 54mm, the HDD/SSD bracket will not fit
|

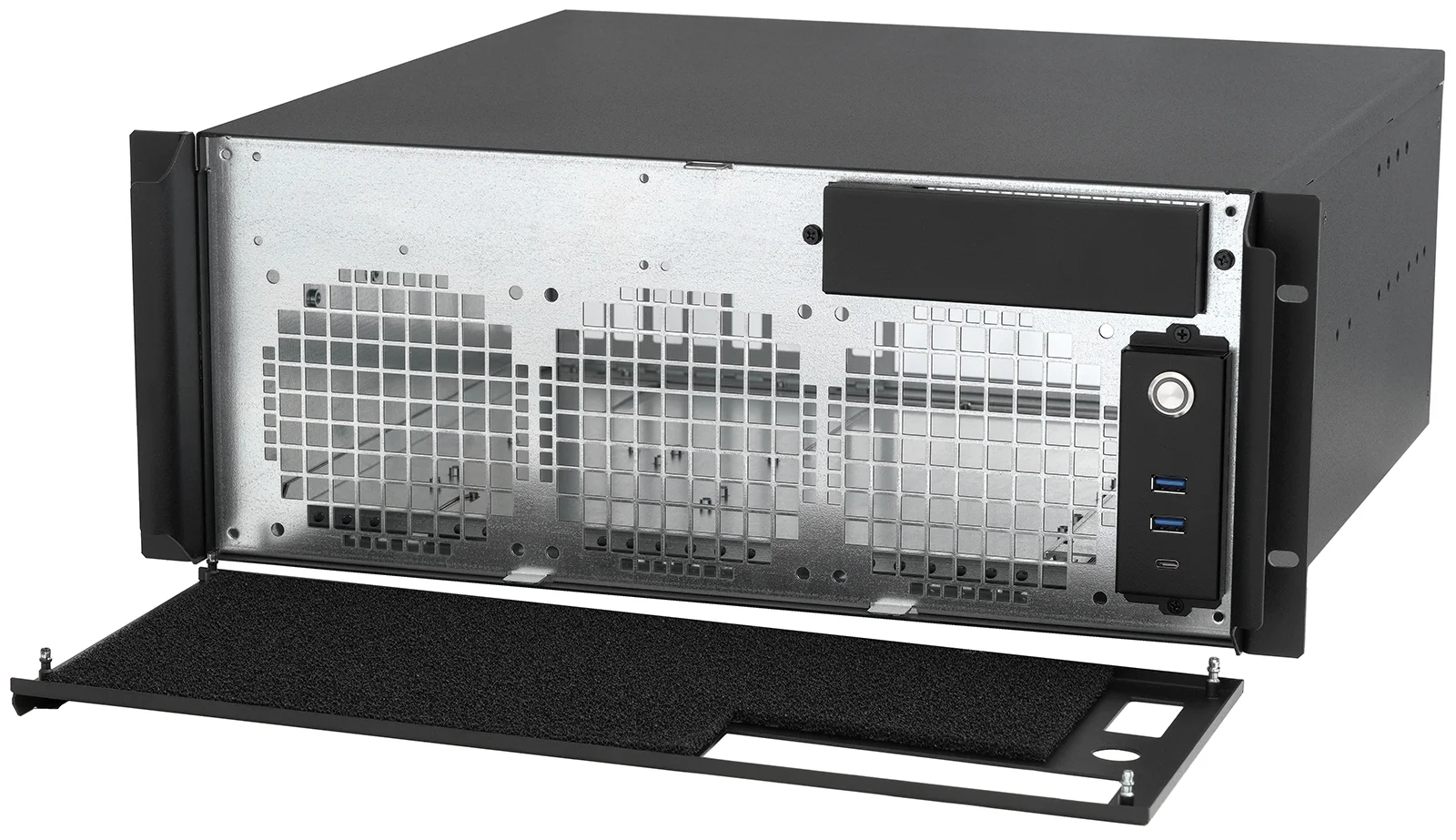

| Fan Mounting
|
- Front
- Three (3) 120mm fans
- Up to six(6) 120mm fans when using push/pull setup on 360mm radiator
- Rear
- Optional bracket for one (1) 120mm fan over motherboard IO shield
- Optional bracket for one (1) 120mm fan blowing down onto PCIe cards
|
| GPU / PCIe Cards
|

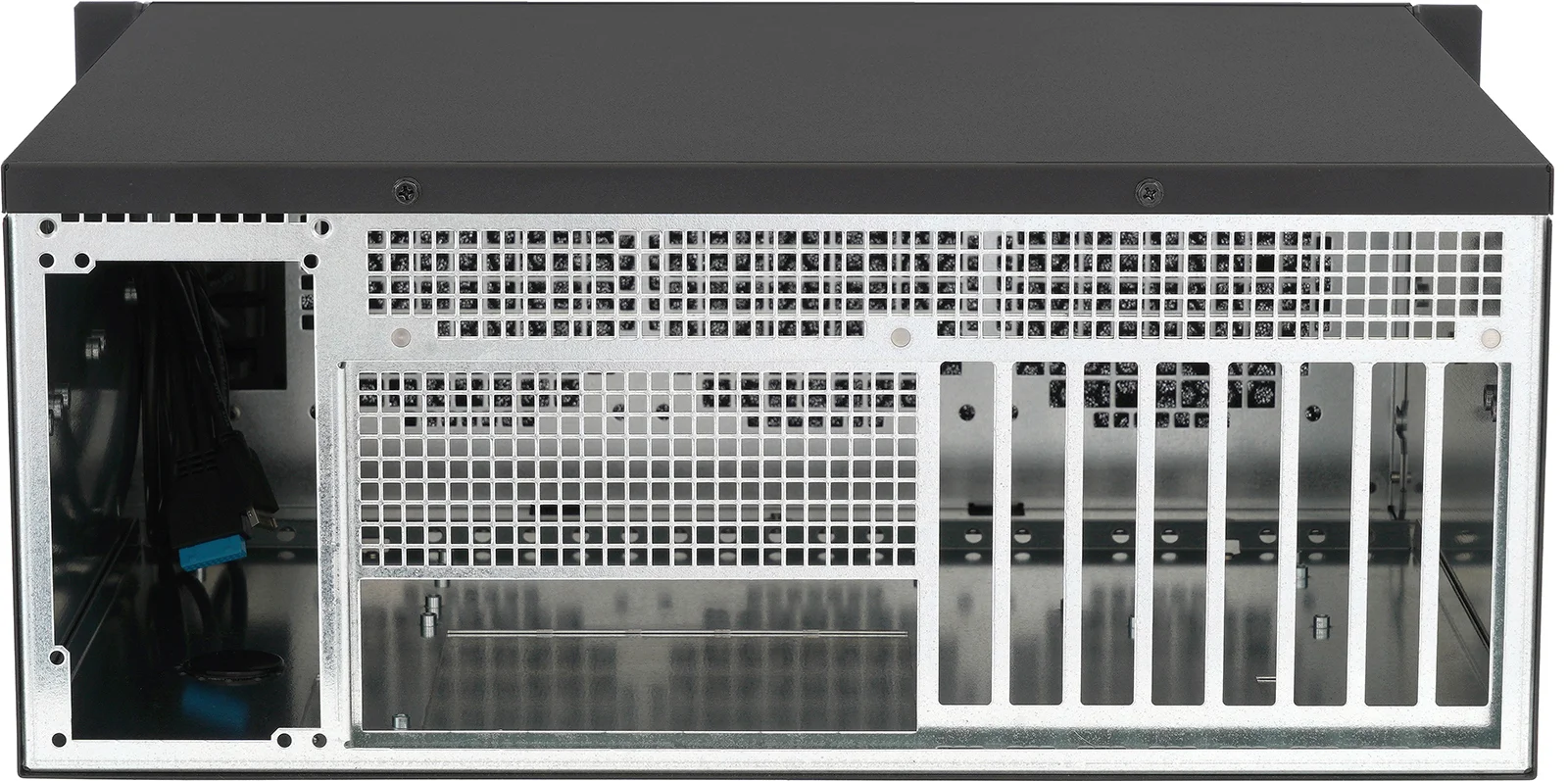

- 8x full height PCIe card slot cutouts

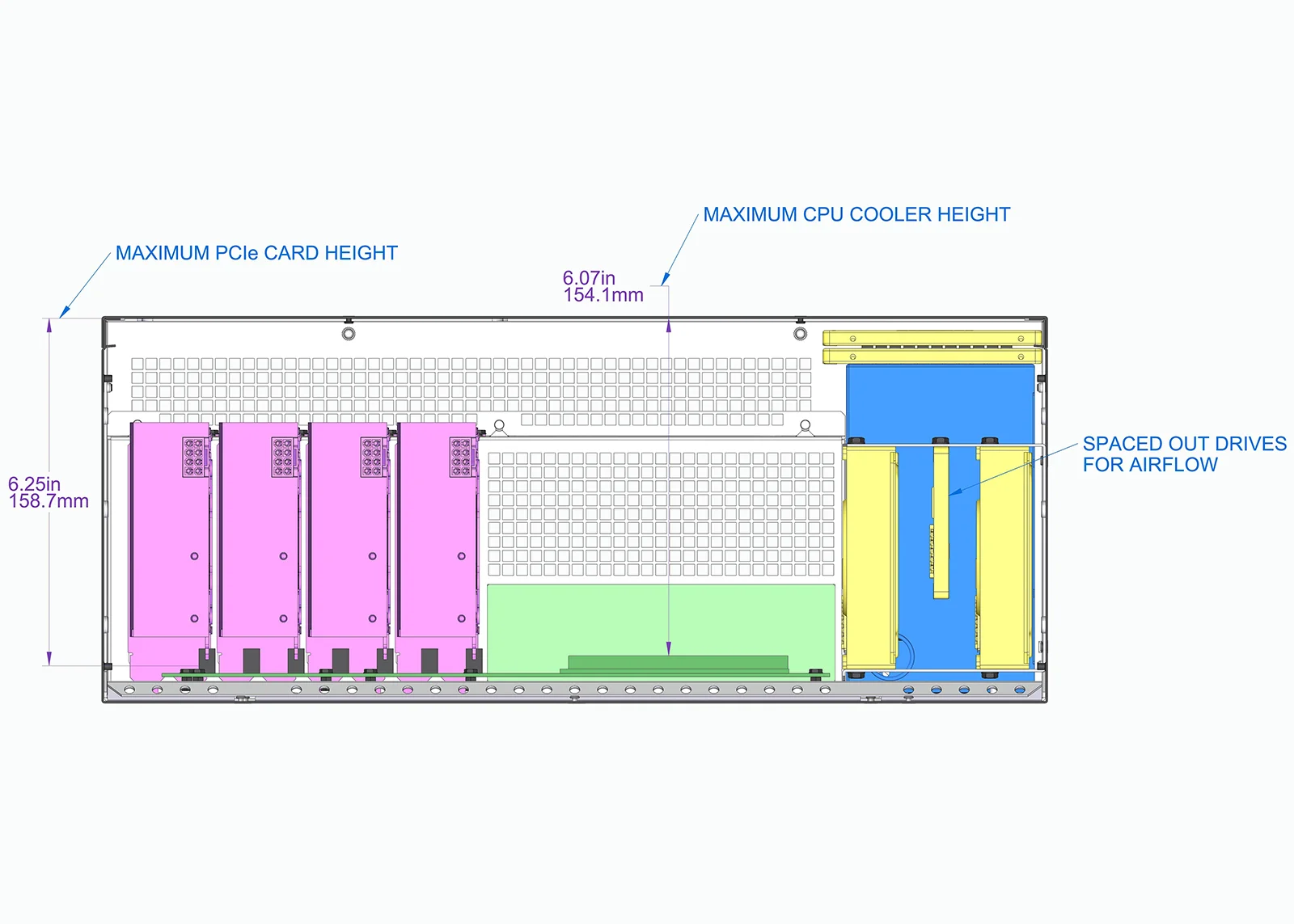

- Maximum card height: 158mm (card and power connector must be ≤158mm tall)
- Maximum card length: 375mm (with 25mm thick front fans)
-
- LIQUID COOLING NOTE: radiators reduce the available depth inside the case for long GPUs
- Inside of case is 399mm deep
- Thickness of radiator + thickness of case fans + GPU length must equal less than 399mm total.
|
| 5.25" Bays
|
- 1x 5.25" bay with filler blank
|
| Storage
|
- Internal mounting bracket with configuration options for:
- 3x 3.5" HDD
- or
- 8x 2.5" SSD
- or
- 2x 3.5" HDD and 3x 2.5" SSD
- or
- 1x 3.5" HDD and 5x 2.5" SSD
|

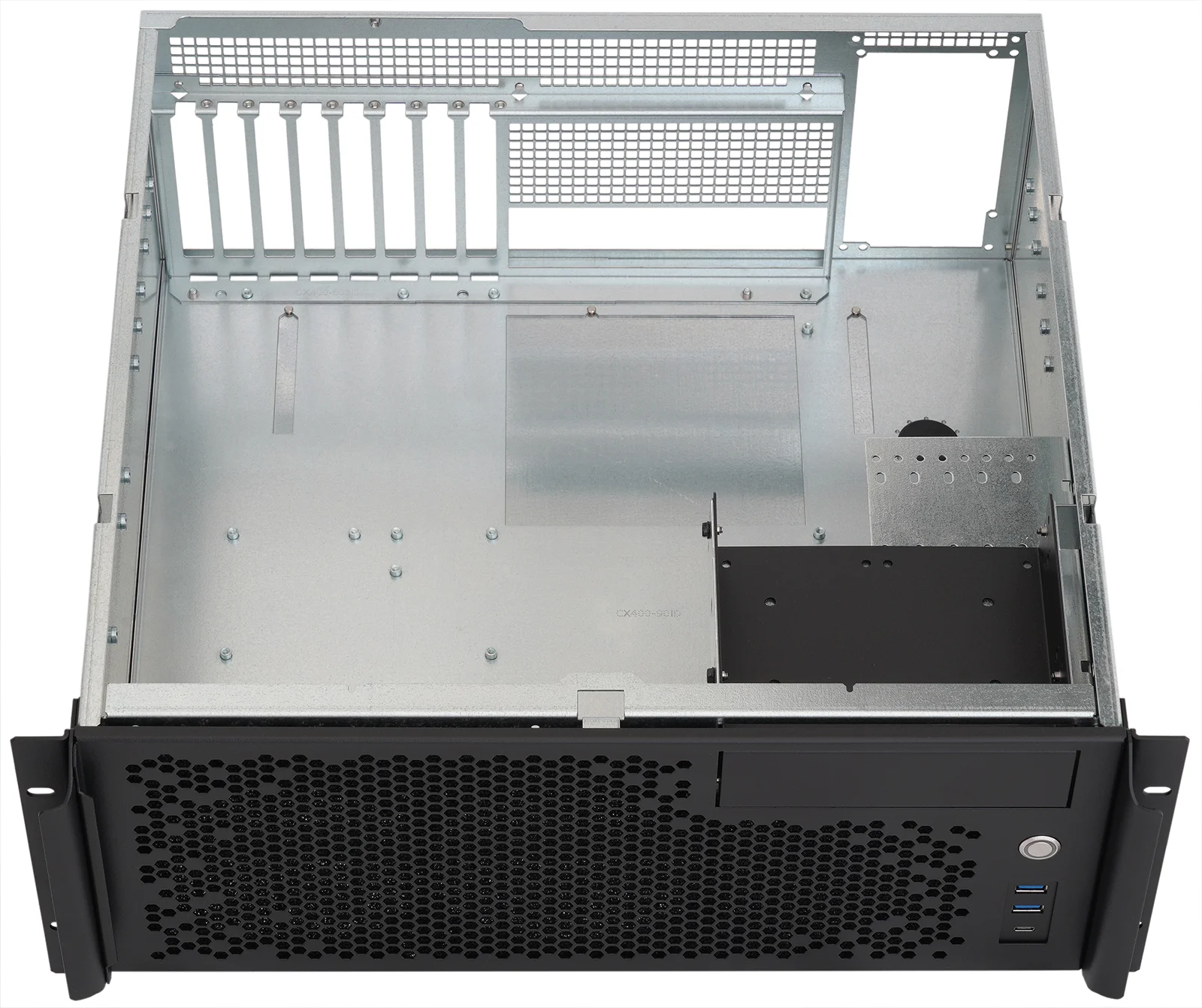

| Front Panel I/O
|
- 1x USB C 10Gbps Port
- 1x USB 3.0 Ports
- 1x Momentary Switch / Power Status LED (Ring Shape, White)
|
| Power Supply
|
- ATX
- Maximum of 160mm length
|
| Material
|
- Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Front Panels
- ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
- Rack Ears
- ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
|
| Finish
|
- Semi-gloss fine texture powder coat finish
- Powder coat is an outdoor architectural grade polyester epoxy blend
- Compliant with SAE AMS-STD-595 / FED-STD-595 color number 27038 (ANA 514)
- Custom powder coat finishes are available, additional labor/material charges and 10 unit MOQ will apply.
- Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
|
| Branding
|
- Case is unbranded on interior and exterior of chassis.
- Optional logo screen printing (full color) on front panel for business customers, MOQ 10 units
|

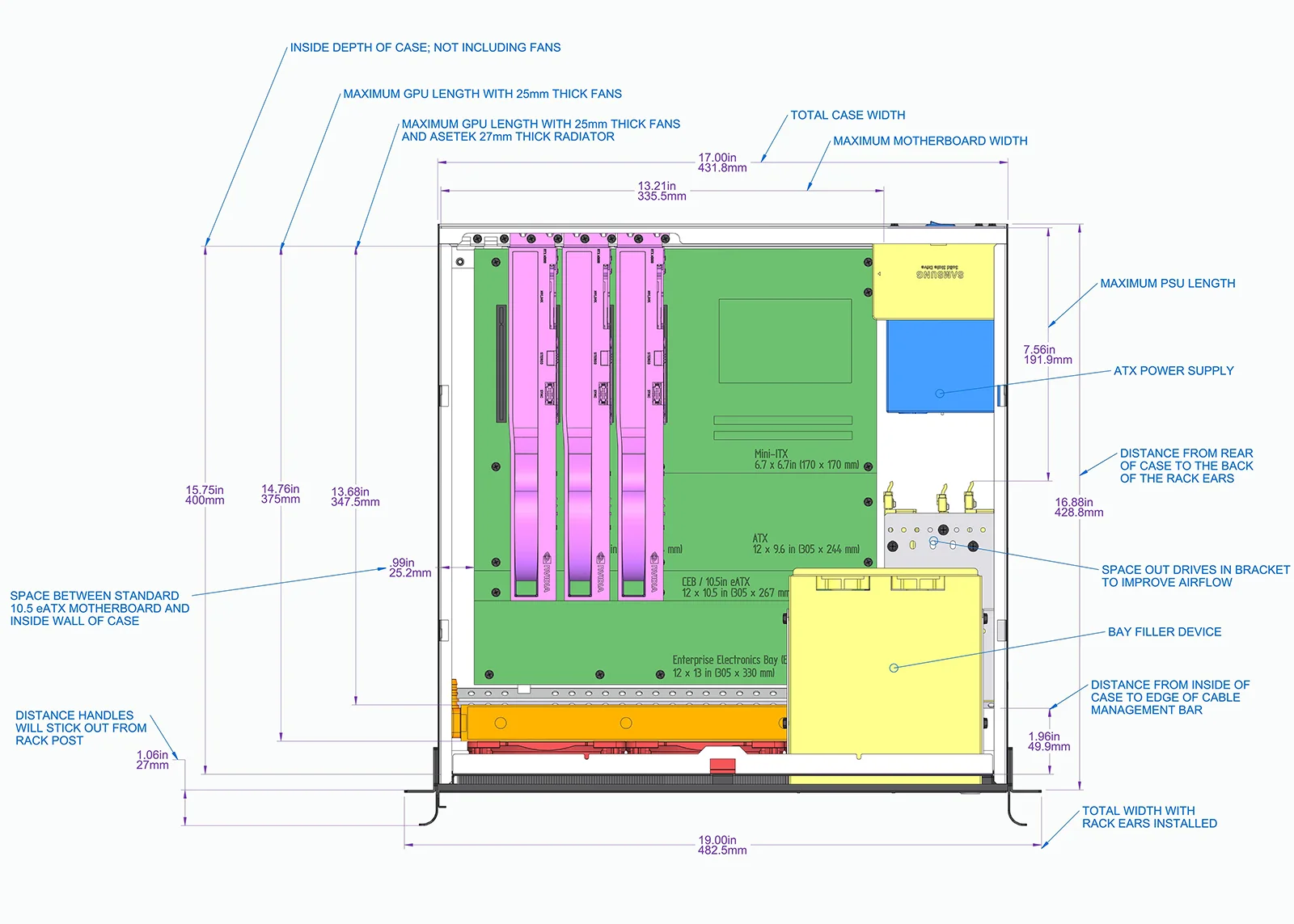

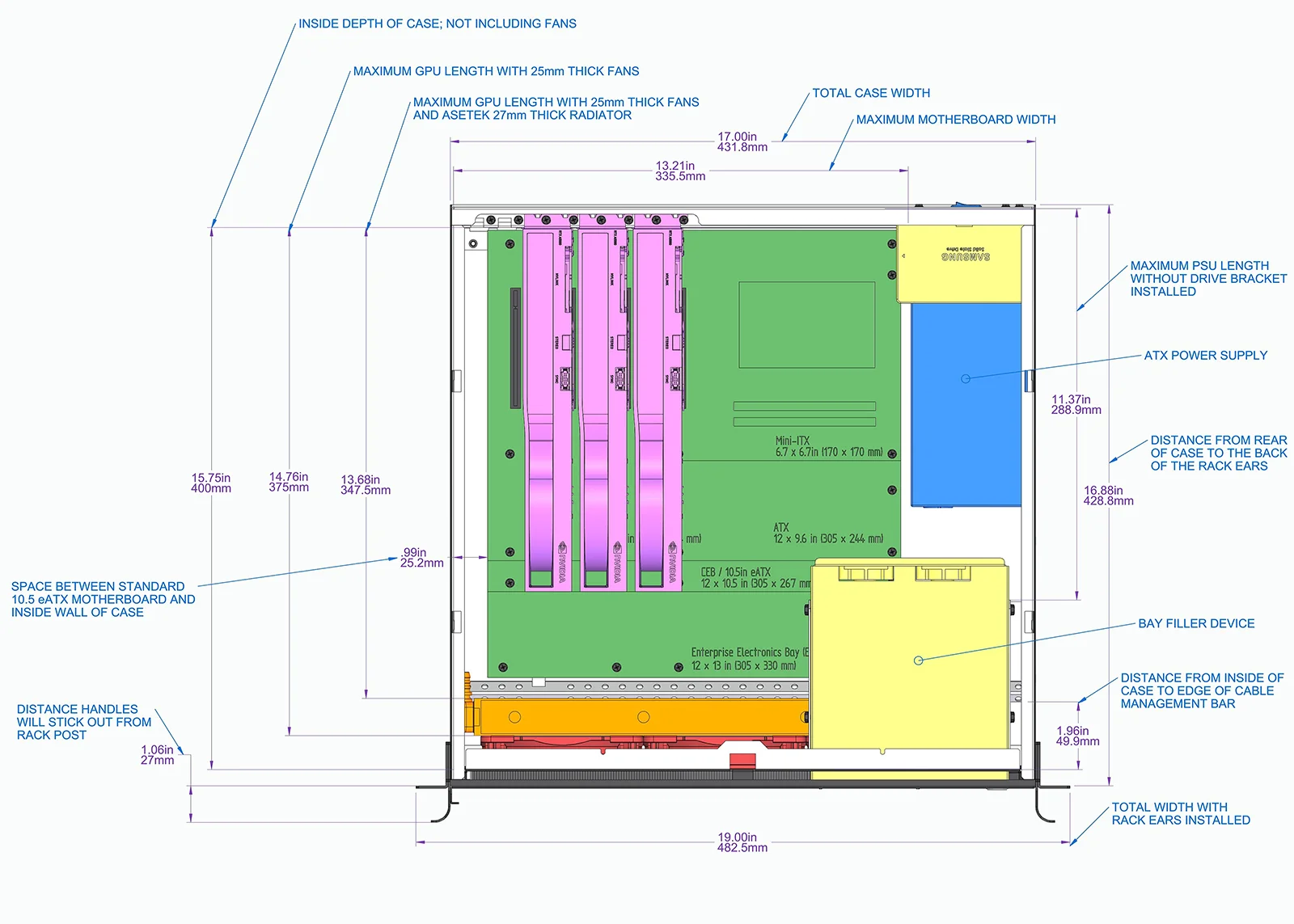

| Outside Dimensions
|
- 16.89" x 17.00" x 4U (6.96") [DxWxH]
- 429mm x 432mm x 176.75mm [DxWxH]
- Depth is measured from back side of rack ear
|
| Weights
|
- Chassis
-
- Rack Slide Kits
-
- Packaging Materials (Box, Tape, Foam Corners)
-
|
| Shipping Box Dimensions
|
- 21" x 21" x 11"
- 51 ECT Double Wall
- Packaged with reusable EPE foam end caps
|
| Rack Rails
|
- Sliger PM-Series Ball Bearing Slides
- General Devices C300-S Series
|
| Warranty
|
- Case
- 5 Year Warranty [Chassis, USB cables, Power Button, SATA Adapters]
- Liquid Coolers & Fans
- 3 Year Warranty
- Please see our warranty policy for additional conditions, exclusions, and limitations.
|
| Industry Standards
|
- 19-inch rack standard
- Electronic Industries Alliance EIA-310-D
- International Electrotechnical Commission IEC 60297-1 / IEC 60297-3-100
- Consumer Electronics Association CEA-310-E
- Deutsches Institut für Normung DIN 41494
|
| Safety and EMC
|
- Contact us before using case for FCC, CE, UL, or other safety / regulatory compliance
- Alternate brackets or powder coat masking may be required depending on certifications sought
|
| Environmental
|
- Compliant with RoHS Directive 2002/95/EC, 2015/863 RoHS2, RoHS3 (EU) with all applicable exemptions
- Regulation (EC) No 1907/2006 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Compliant for all Substances of Very High Concern (SVHC)
- Conflict–Free Sourcing Initiative (CFSI) with Conflict-Minerals Report (CMRT) available upon request
- Compliant with US EPA PBT Section 6 Toxic Substances Control Act (TSCA)
|
| Federal Acquisition
|
- TAA (Trade Agreements Act) Compliant for GSA Schedules, IDIQ contracts, and DoD contracts
- Compliant with Section 889 of Federal Acquisition Regulation (FAR) of National Defense Authorization Act (NDAA)
|
| HTS Tariff Code
|
- 8473.30.00.02 - COMPUTER CASES AND ACCESSORIES
- SCH B Code for Export: 8473.30.0002
|
| ECCN |
- Export Control Classification Number
- EAR99 - LOW-TECHNOLOGY CONSUMER GOODS
|
| Country of Origin
|
|
| Rev Control
|
- 1.0 (4/18/22 - **/**/**)
- Initial Release
|
|
