| Motherboard
|
- Mini-ITX (170mm × 170 mm)
- Not compatible with Mini-DTX boards such as the ASUS ROG Crosshair VIII Impact AM4
|
| CPU Liquid Coolers
|
- AIO liquid coolers are not supported in Conswole.
|
| CPU Air Coolers
|
|
| Fan Mounting
|
- DO NOT USE FANS AS INTAKE
- Note that fans are positioned via standoffs and long M3 screws. Standard fan screws are not required.
- with 3-slot wide GPU
- Two 120mm x 15mm slim fans behind GPU as exhaust
- 2x Noctua NF-A12x15 are recommended
- with 2-slot wide GPU (riser moved to middle slot)
- Two 120mm x 25mm fans behind GPU as exhaust
|
| PCIe Riser
|
- Conswole currently ships with a PCIe 3.0 riser.
- Conswole does not currently support PCIe 4.0 risers.
- Conswole does not support PCIe bifurcation risers.
|
| GPU / PCIe Cards
|
- Community Generated GPU Compatibility Lists
- NVIDIA GTX/RTX GPU Compatibility Spreadsheet [Google Docs]
- AMD Radeon GPU Compatibility Spreadsheet [Google Docs]
- Riser in 3-slot position: one three(3) slot wide card
- Maximum card width: 3 slot, up to 63mm [measured from backside of PCB, excludes backplate]
- Riser in middle position: one two(2) slot wide card
- Maximum card width: 2 slot, up to 40mm [measured from backside of PCB, excludes backplate]
- Tip: if your 2-slot wide card is wider than its 2-slot bracket, it will not fit in middle position.
- with Standard Inlet
- Maximum card height: 133mm
- Maximum card length: 324mm (up to 335mm is possible, but difficult to position)

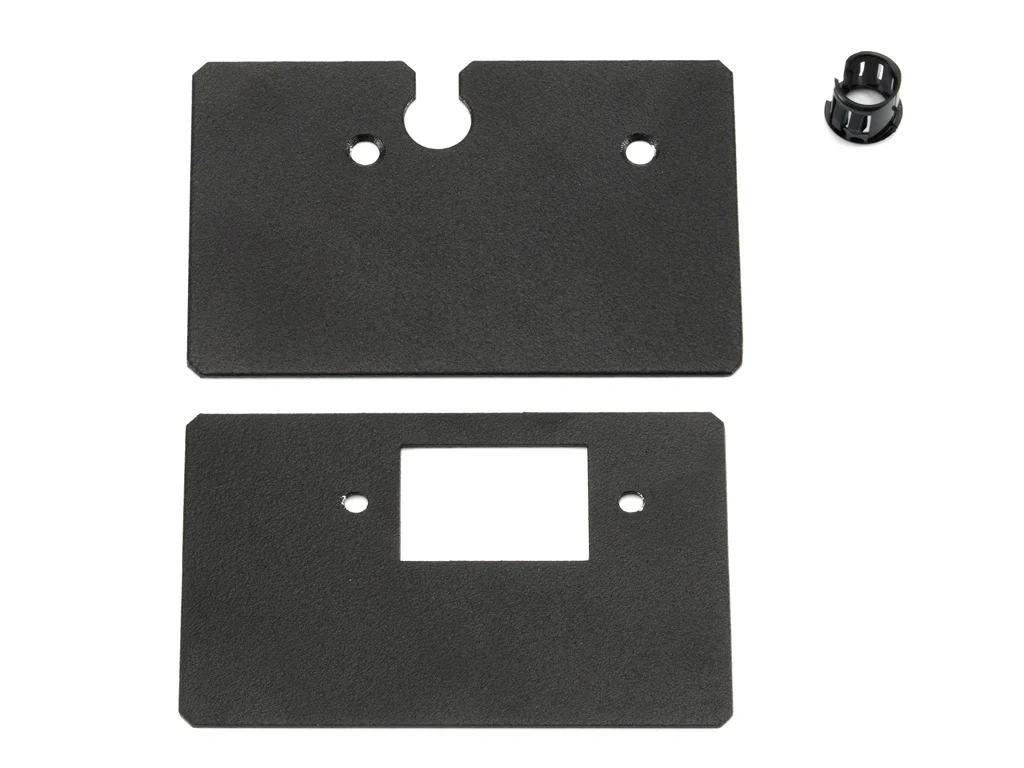

- with Pigtail Inlet
- Maximum card height: 157mm
- Maximum card length: 324mm (up to 335mm is possible, but difficult to position)
- 157mm of height for GPU + GPU power connectors regardless of Standard or Pigtail
|
| Storage
|
- Two 2.5" SSD or HDD next to power supply
- Motherboard M.2 SSDs are encouraged
|
| Power Supply
|
- SFX
- SFX-L is supported, but not recommended.
|

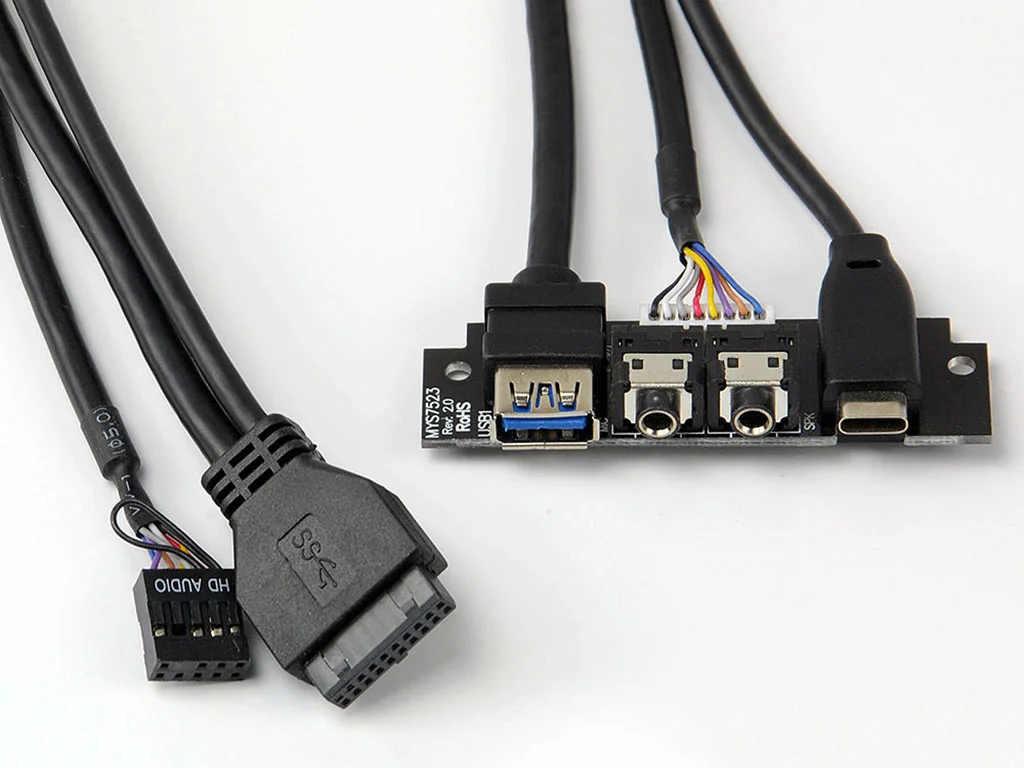

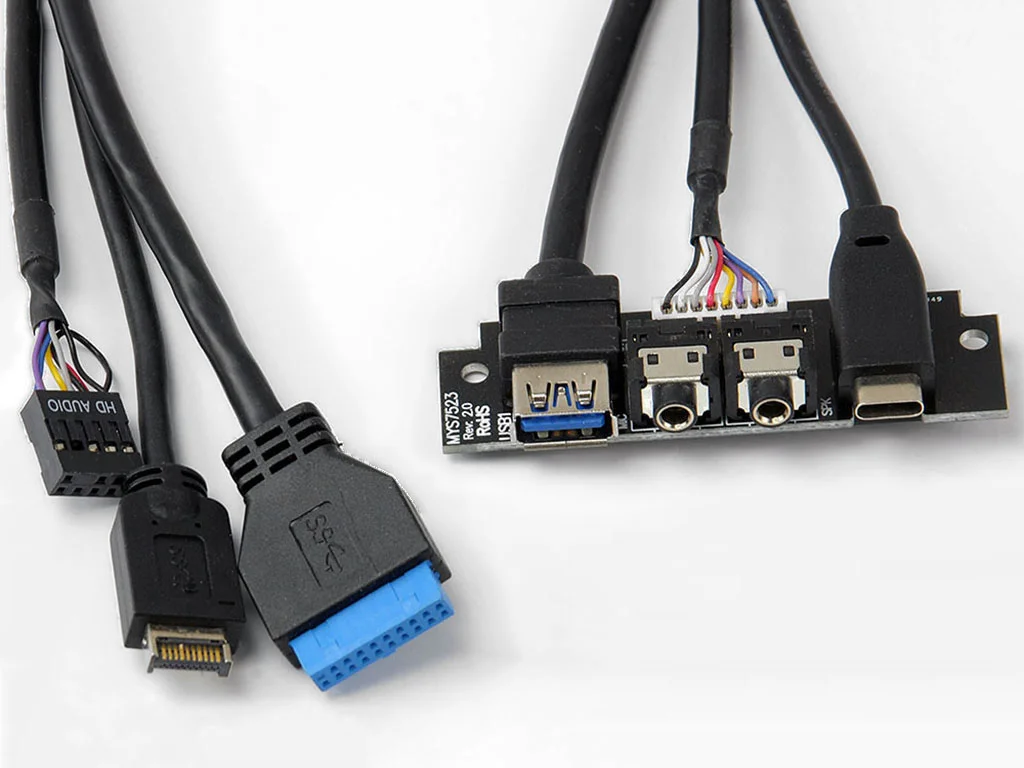

| Front Panel I/O
|
- One USB 3.1 Gen 2 Type C to USB E header (SS+ 10 Gbit/s)
- One USB 3.0 Type A to 20-Pin Motherboard Header
- Two Audio Jacks to standard 9-Pin HD AUDIO header
|
| Material
|
- Chassis
- SECC ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel with Powder Coat Finish
- Front Panel
- ASTM B209-10 5052-H32 0.063" Aluminum Sheet, Clear Anodized
- Feet
- Cavity Molded 75 Durometer Nonmarking Black SBR
|
| Finish
|
- Fine texture black powder coated chassis
- Grained and clear anodized front panel
- Optional custom powder coat finishes and anodize colors available, MOQ 25 units
|
| Branding
|
- Case is unbranded on interior and exterior of chassis.
- Optional logo screen printing (full color) on front panel for business customers, MOQ 5 units
|
| Case Dimensions (LxWxH)
|
- 13.50" x 13.62" x 3.63" - WxDxH
- 343mm x 346mm x 92mm - LxWxH
|
| Volume
|
- 10.9 Liters
- Volume includes all protruding flanges
|
| Weights
|

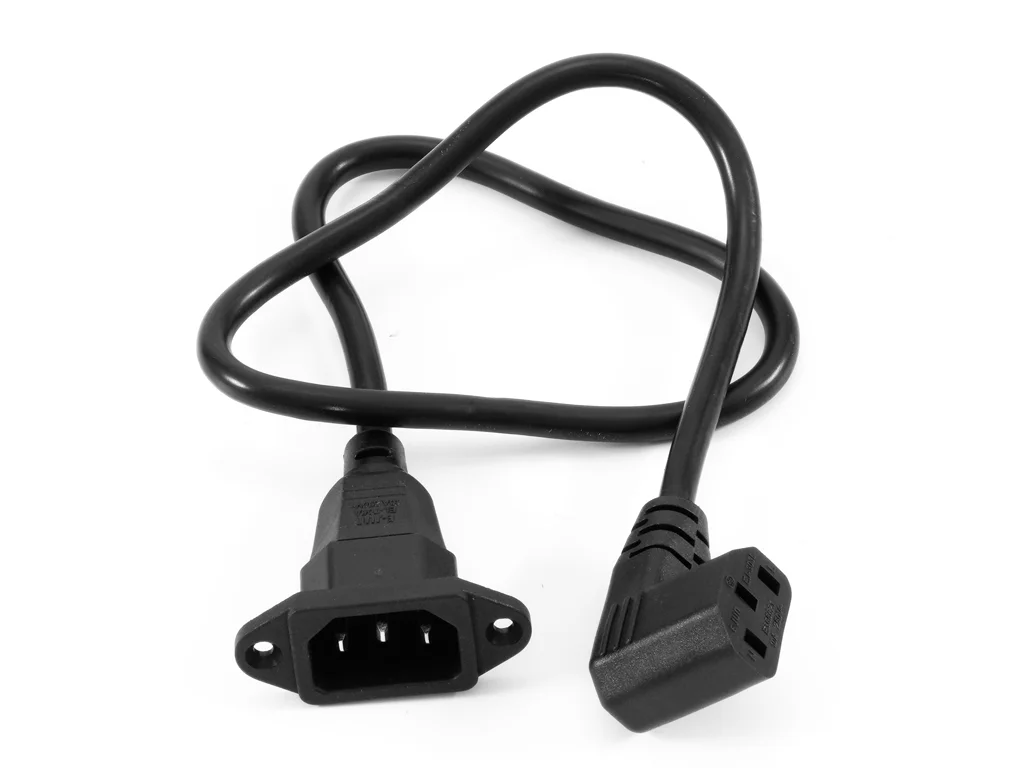

- Base Chassis (includes corver, PSU bracket, fan grill, power cord, riser, and front panel board)
- 6.90lbs
- Handle
- 0.45lbs
- Base Plate
- 1.60lbs
- Fans
- 0.90lbs per set [0.45lbs each]
- Packaging Material
- 8.50lbs
|
| Warranty
|
- Case
- 5 Year Warranty [Chassis, USB cables, Power Button, Power Cable, PCIe Riser]
- Liquid Coolers & Fans
- 3 Year Warranty
- Please see our warranty policy for additional conditions, exclusions, and limitations.
|
| Homologation
|
- HTS Tariff Code
- 8473.30.00.02
- Country of Origin
- United States of America
- Environmental Compliances
- RoHS/RoHS2/RoHS3 (2021)
- REACH 211 SVHC (2021)
- US EPA TSCA Section 6
- Fair Trade
- Trade Agreement Act (TAA) (19 U.S.C. & 2501-2581)
| Rev Control
|
- CL530-A (3/16/20 - 4/16/23)
- Initial Release
| |
